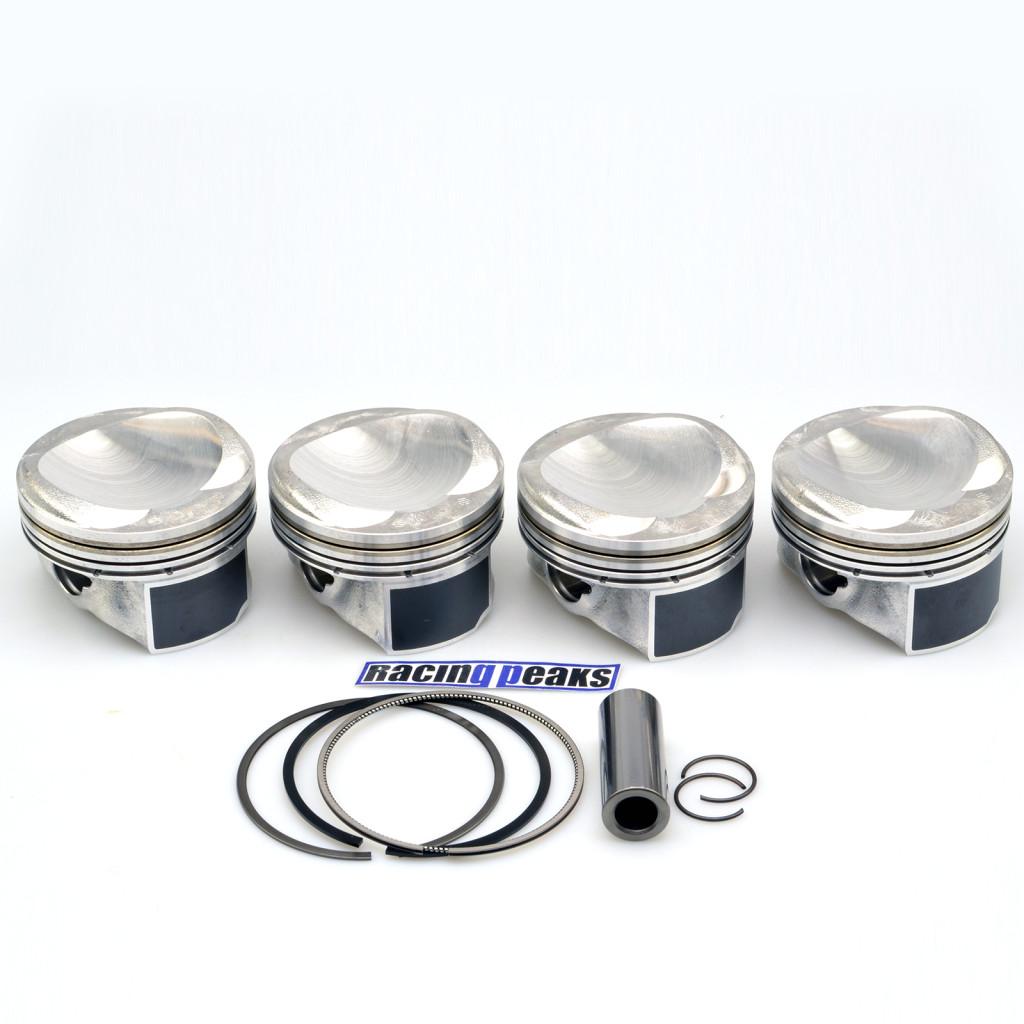

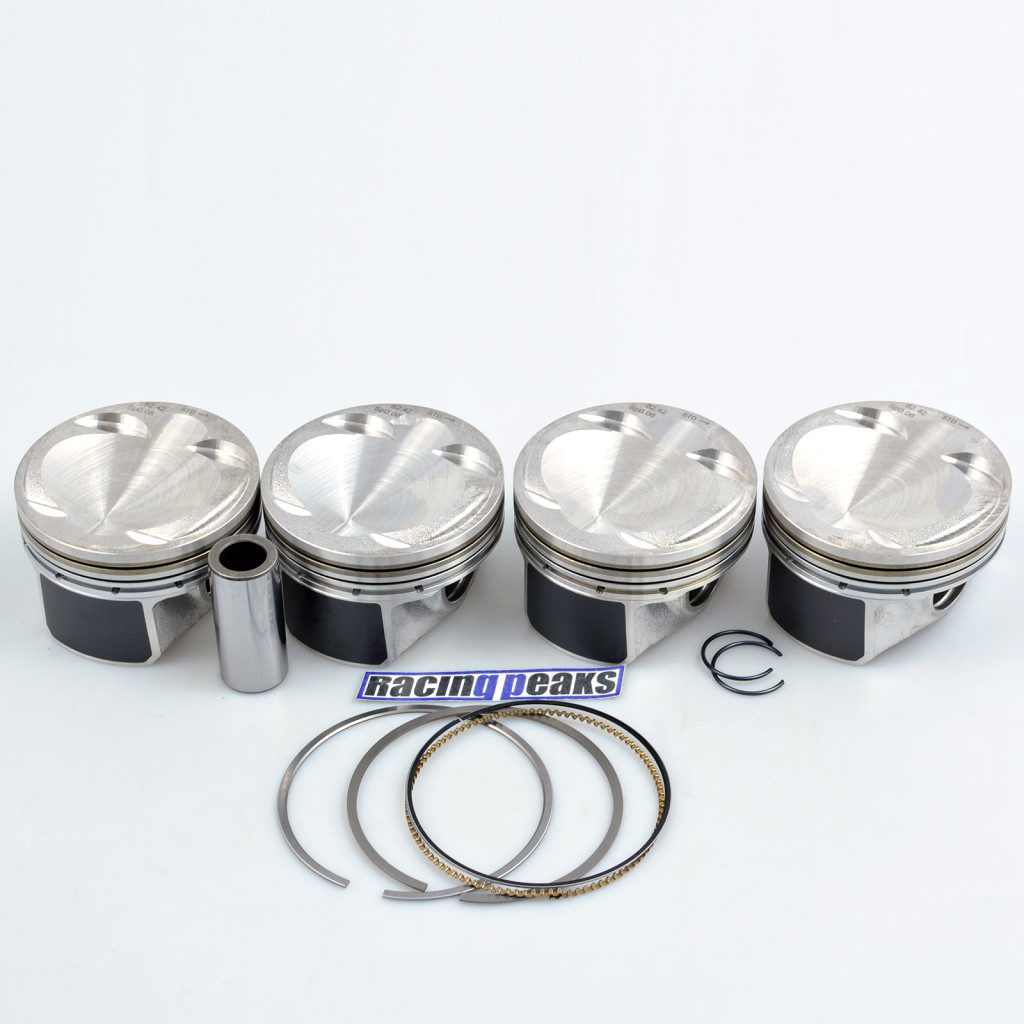

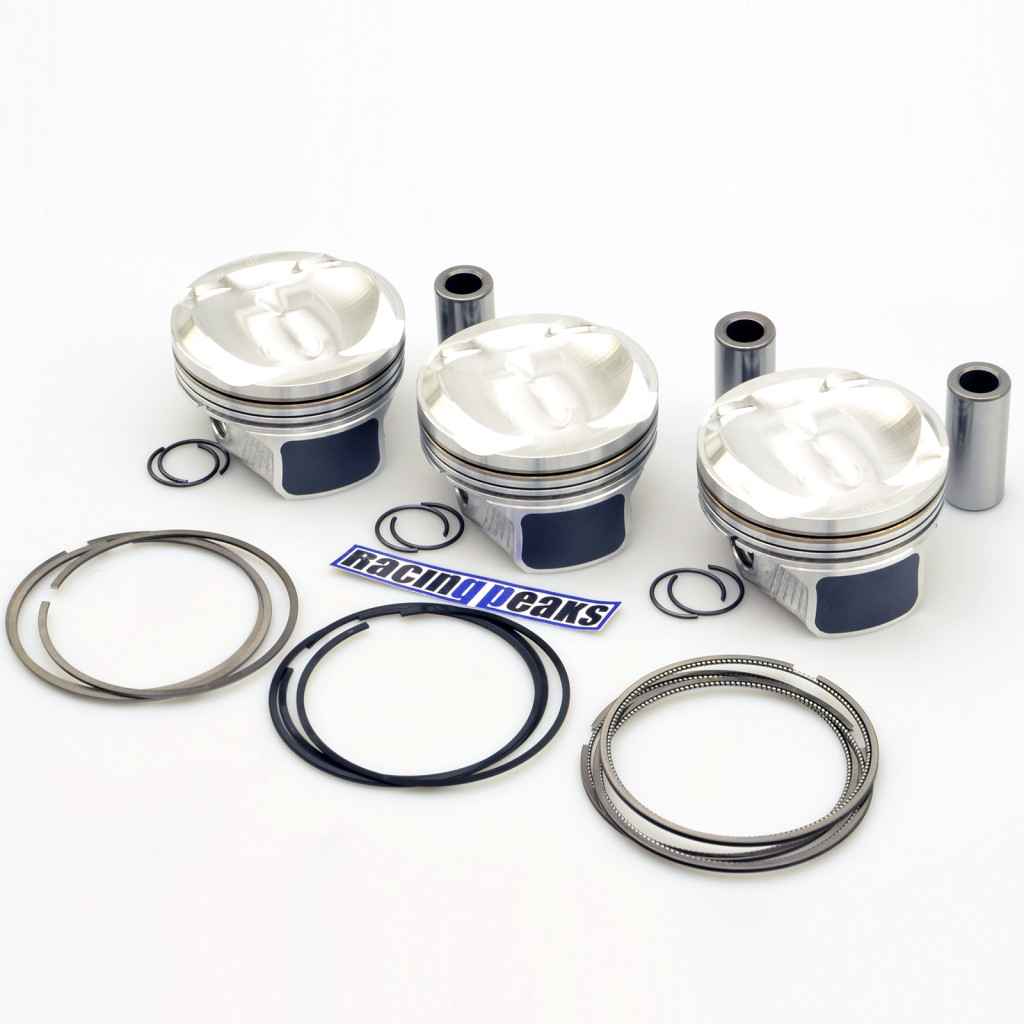

Bore: 87.51mm (stock 87.51mm) Stroke: 94.00mm Compression height: 32.80mm Compression ratio: 9.5 Pin: 22.5mm Rings: 1.20x1.20x2.80mm Hard Anodized Top Ring Groove For Extreme Duty Applications Crown volume: -6.5cc Weight: 376g Alloy: 2618 Clearance guide: Measuring point: .395 Min: .0016 Max: .0023/td> Package: 4 pistons with rings and pins Warning: check...

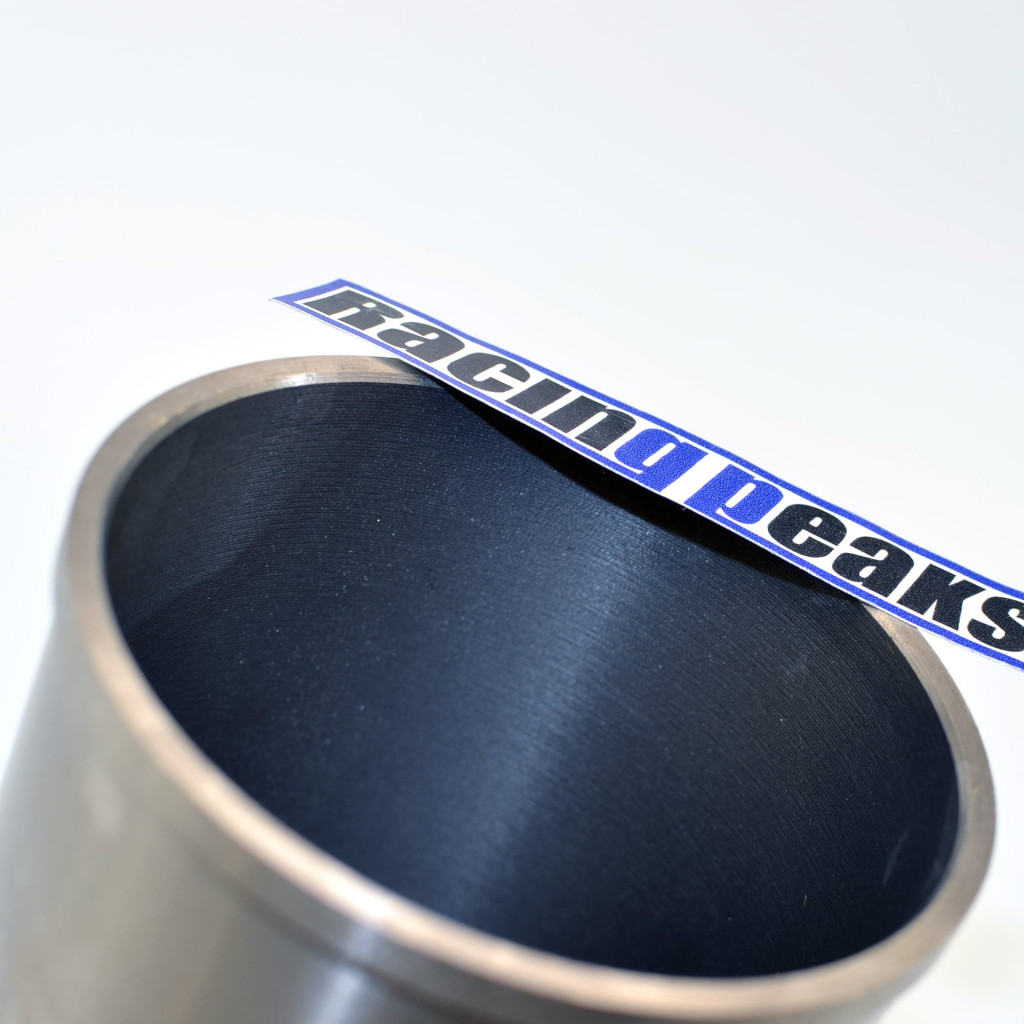

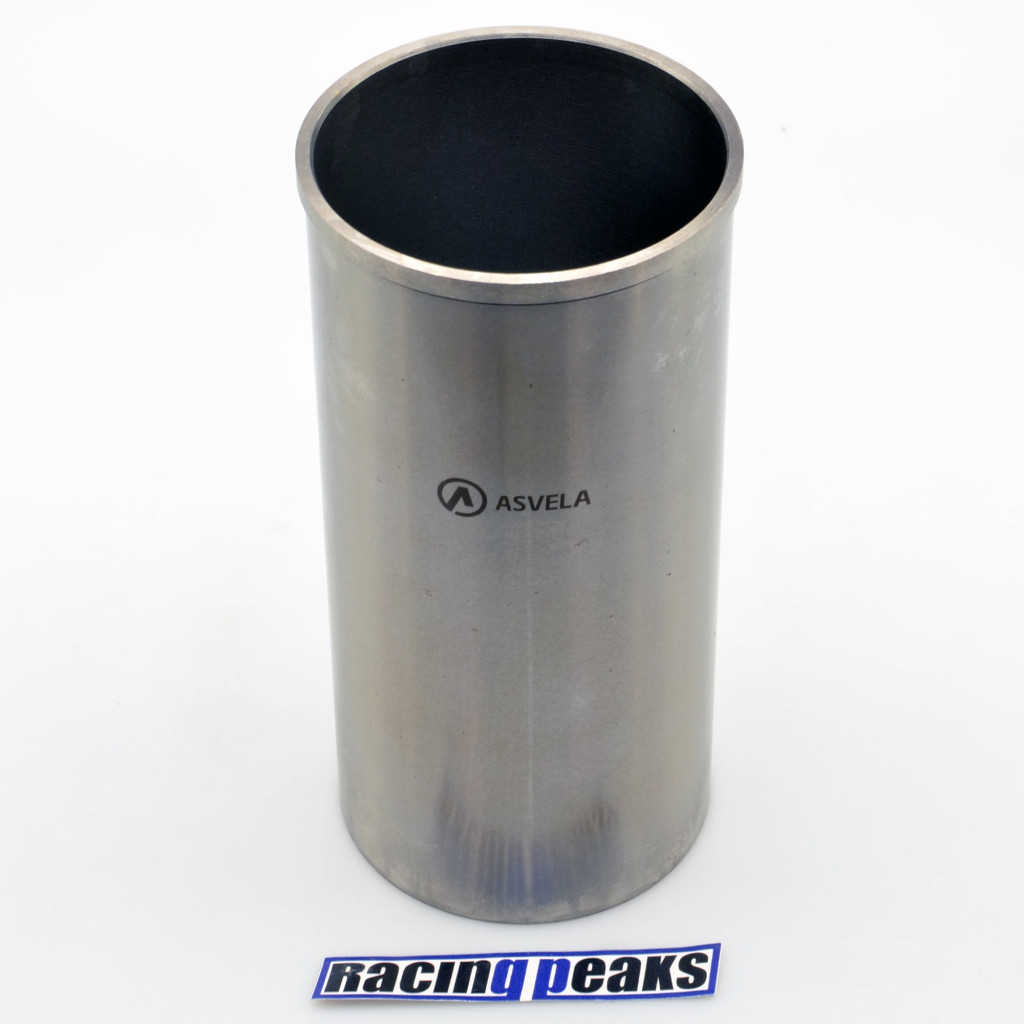

Inner diameter (B): 79.50mm for 80.00mm Outside diameter (O): 85.05mm Flange outside diameter (F): 88.00mm Flange height (H): 5.00mm Total length (L): 170.00mm

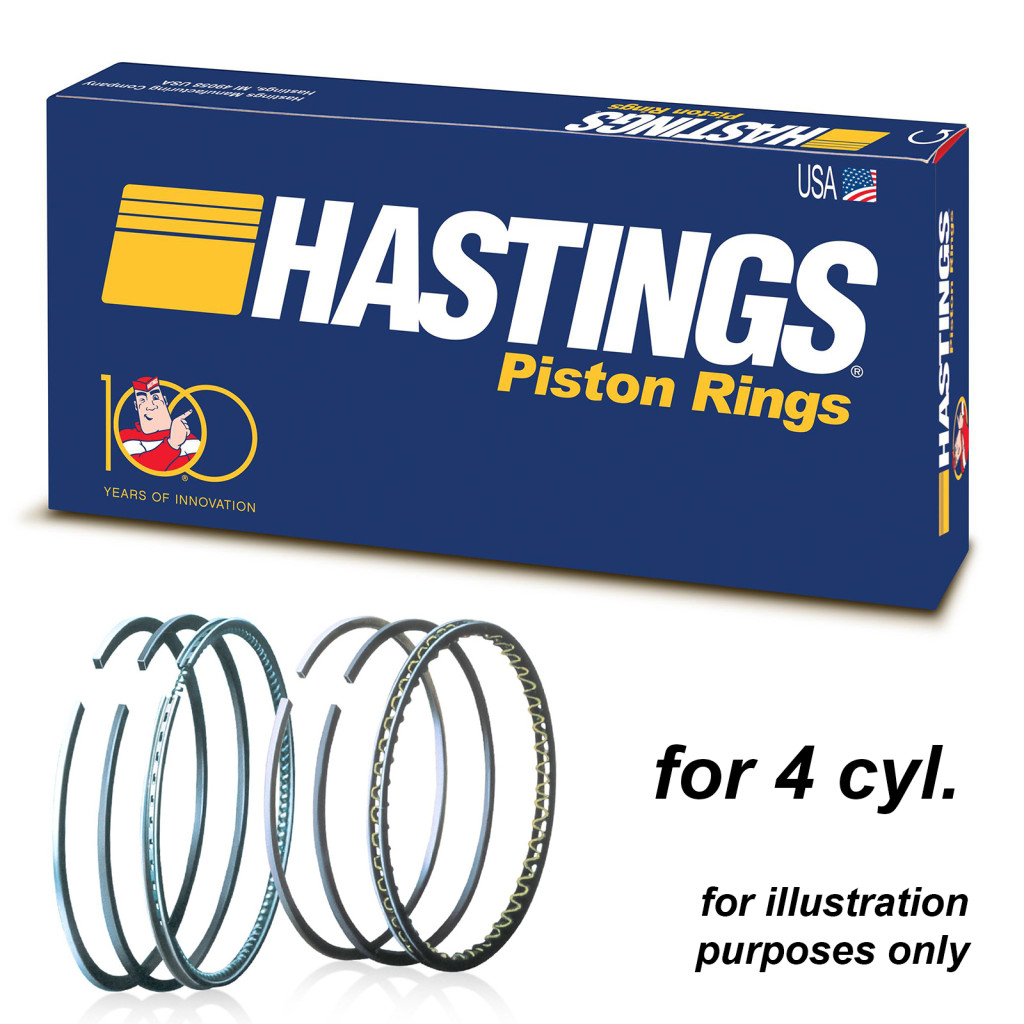

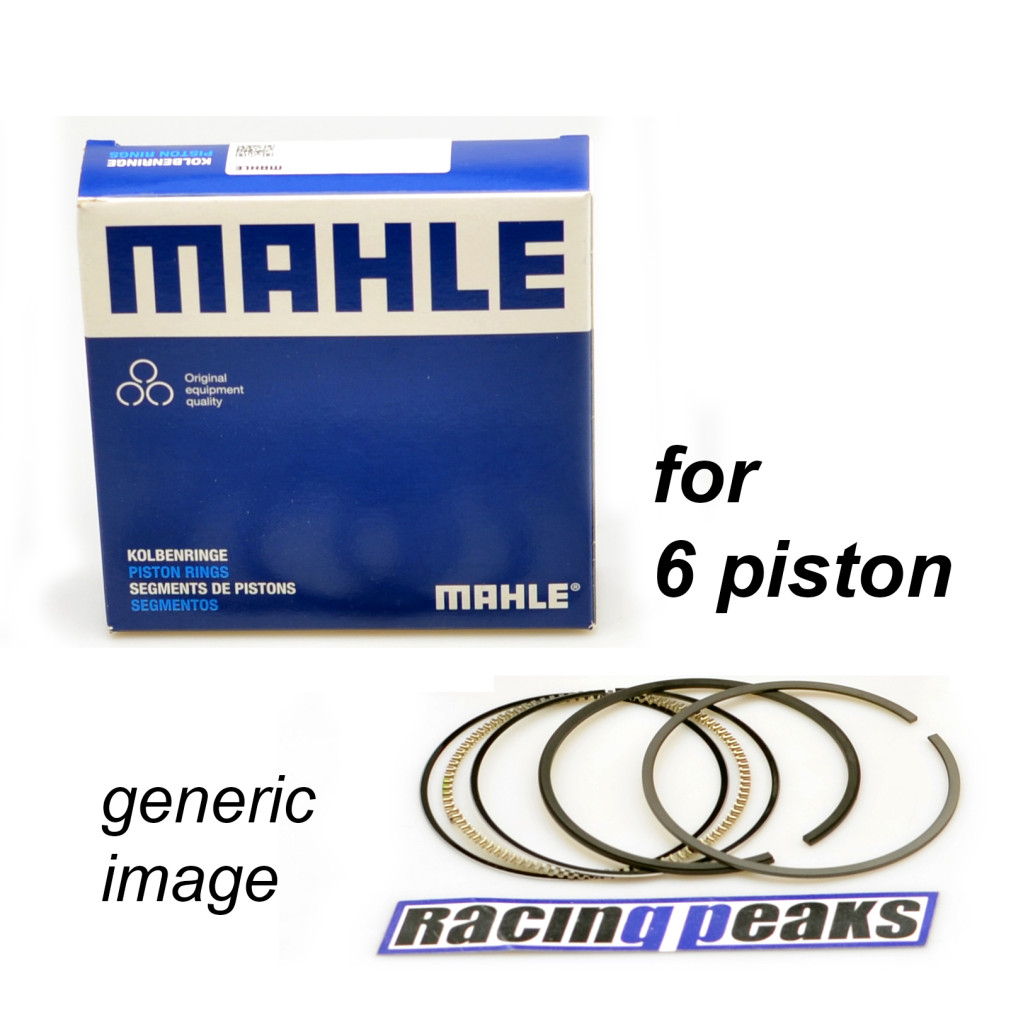

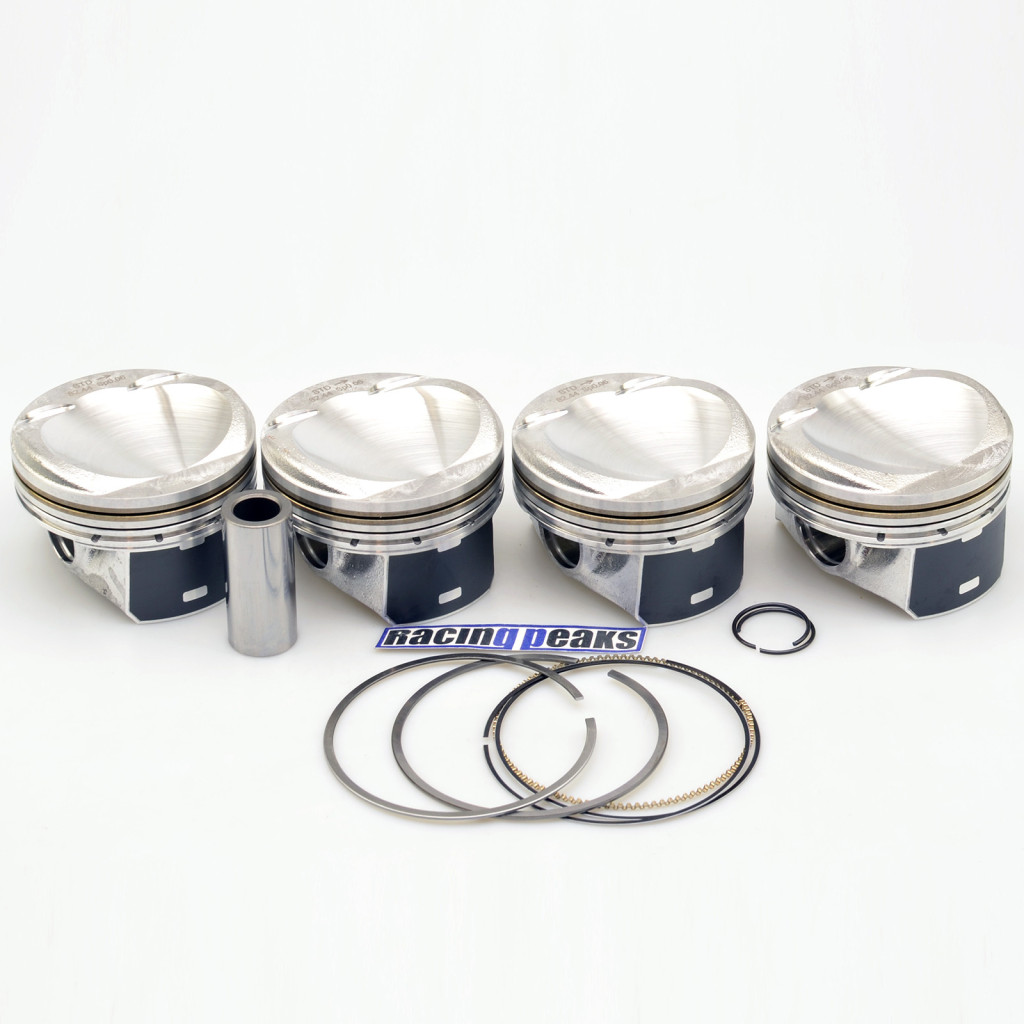

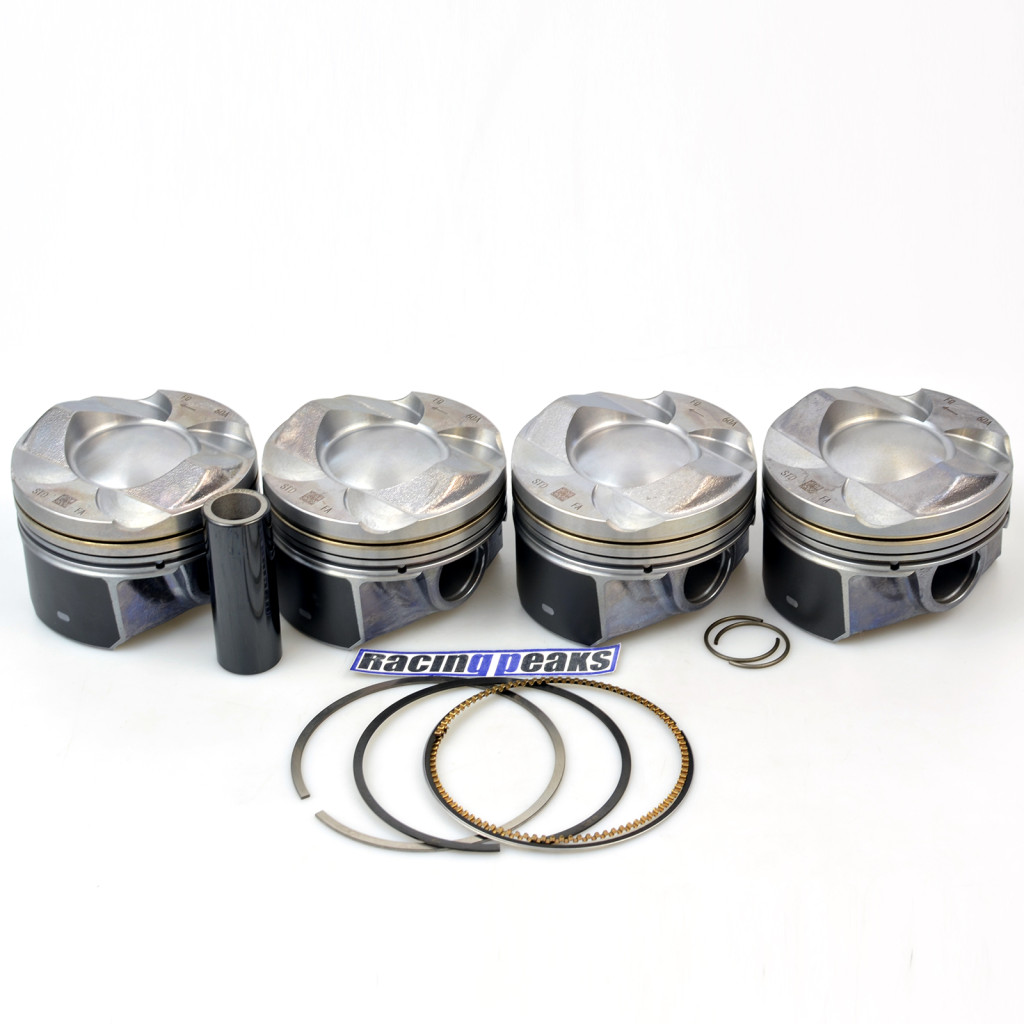

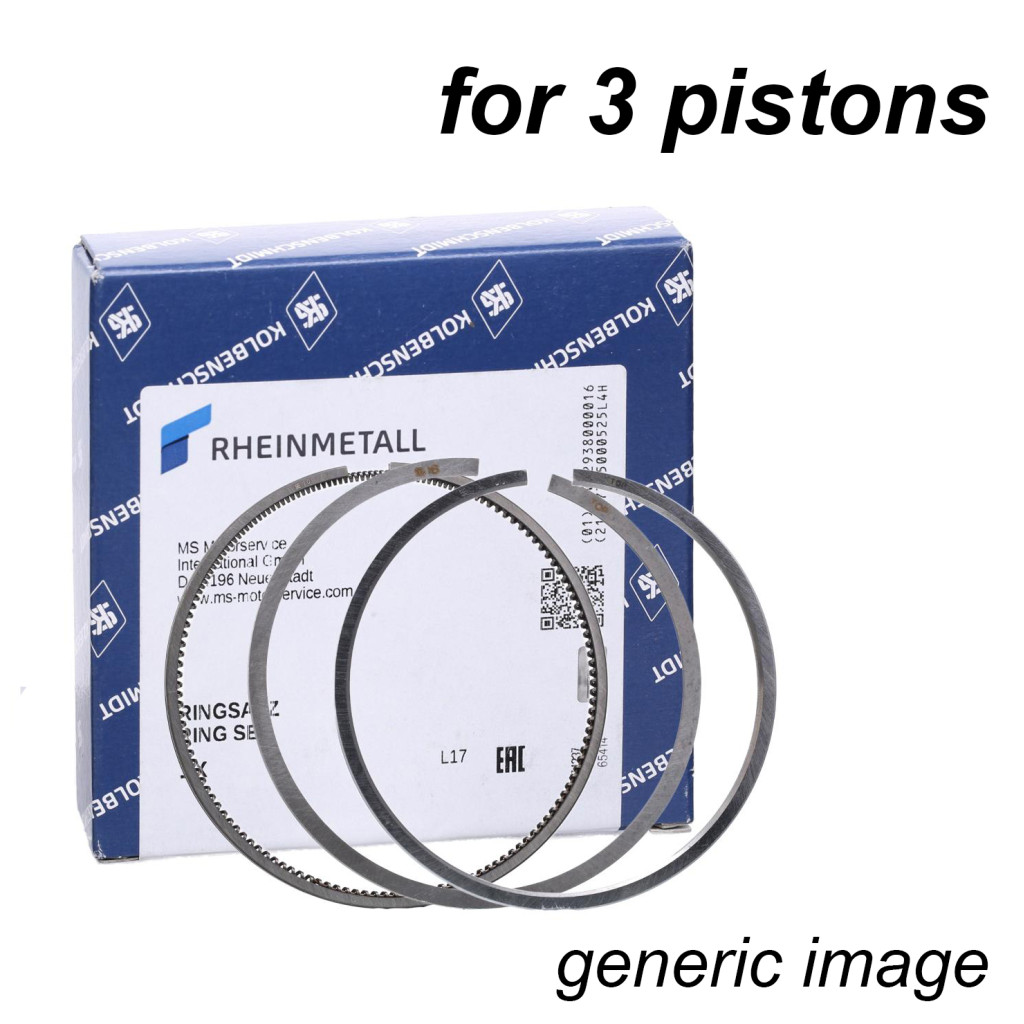

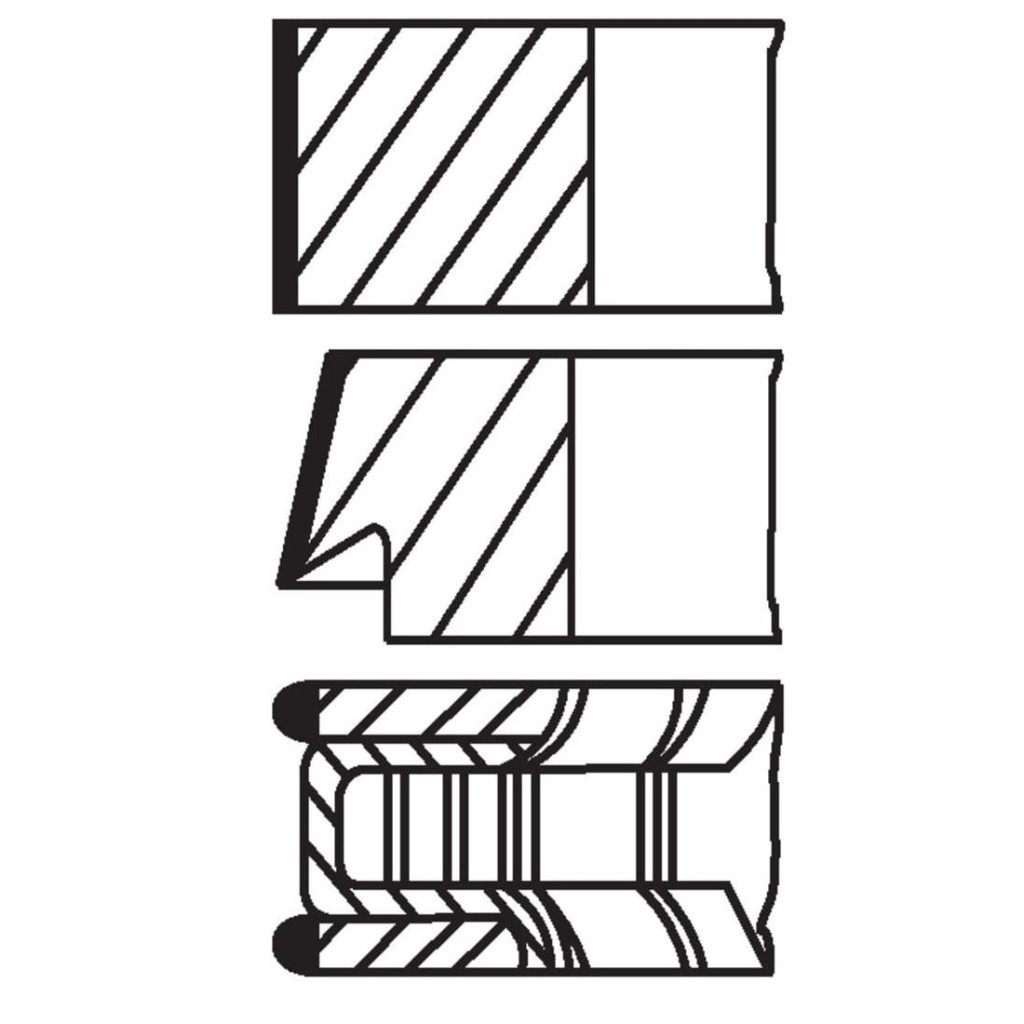

Bore: 82.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

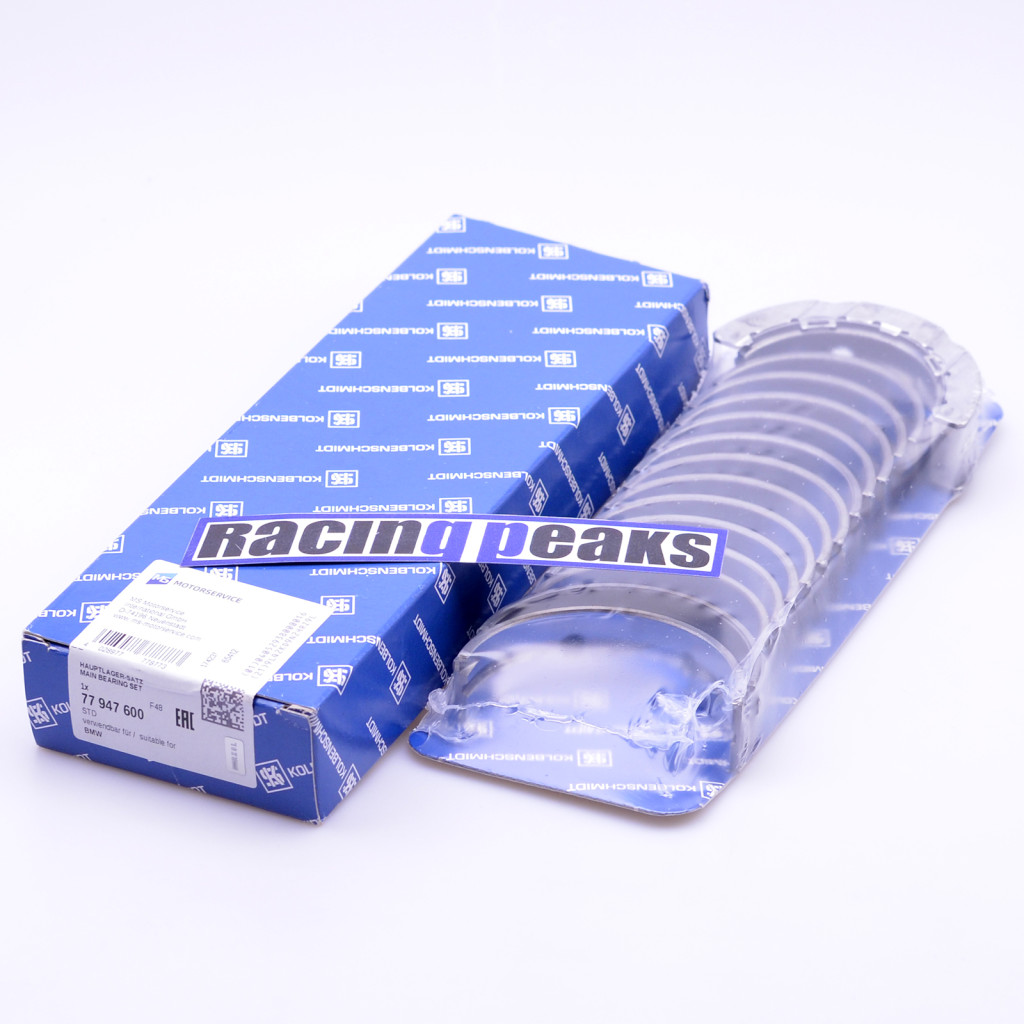

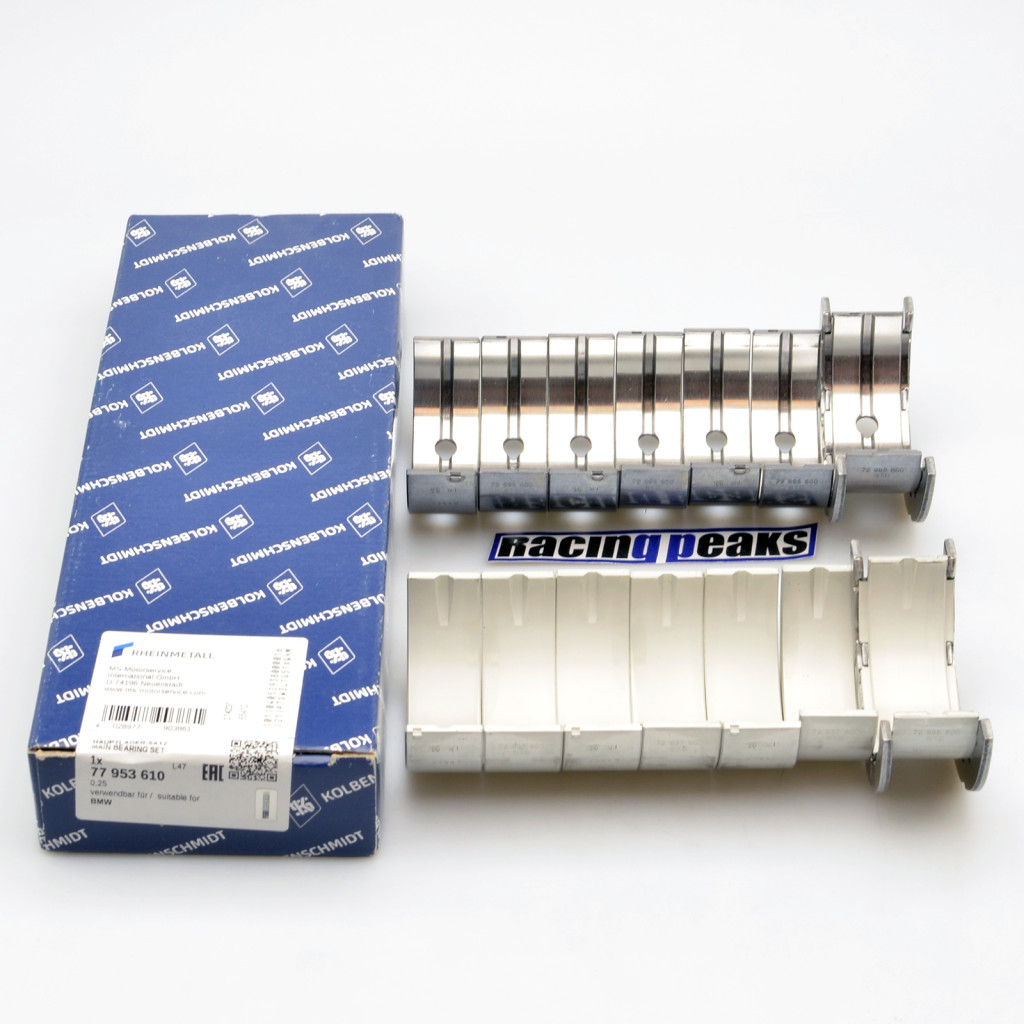

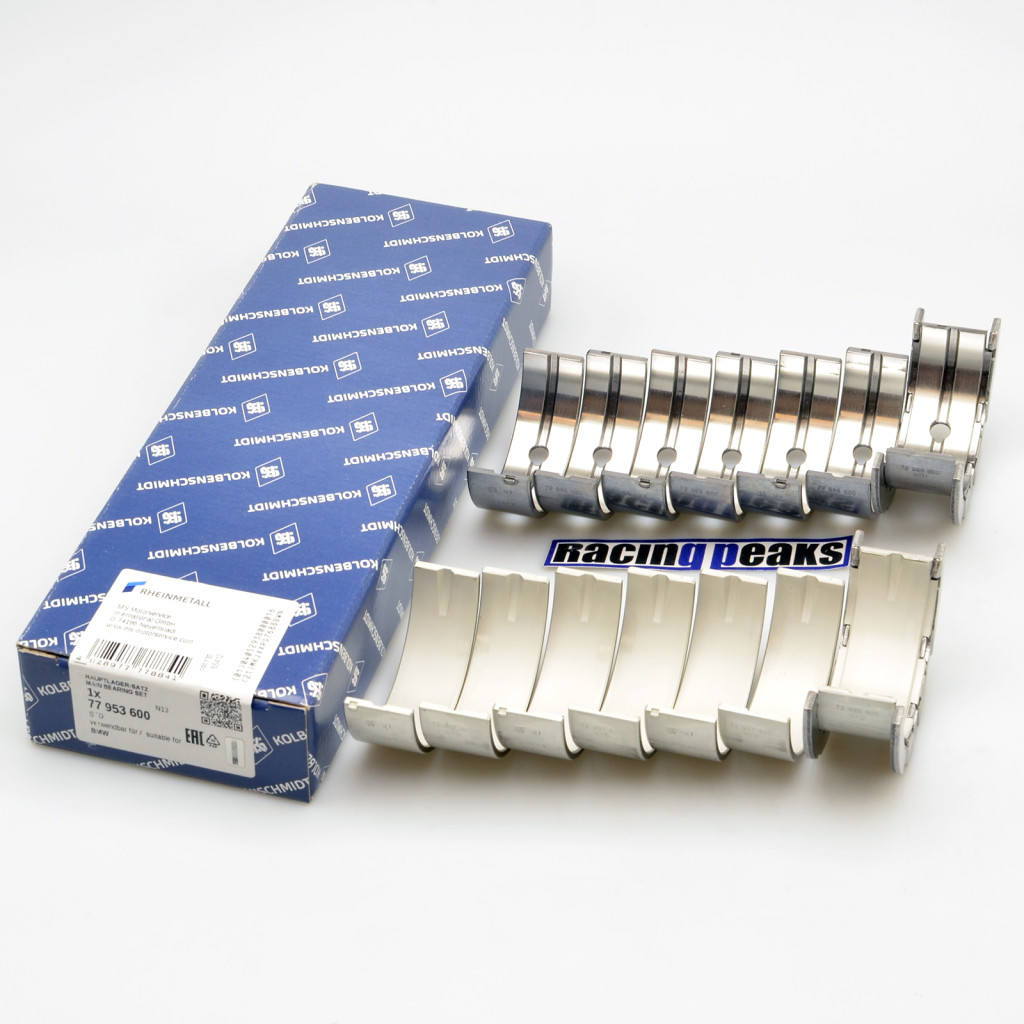

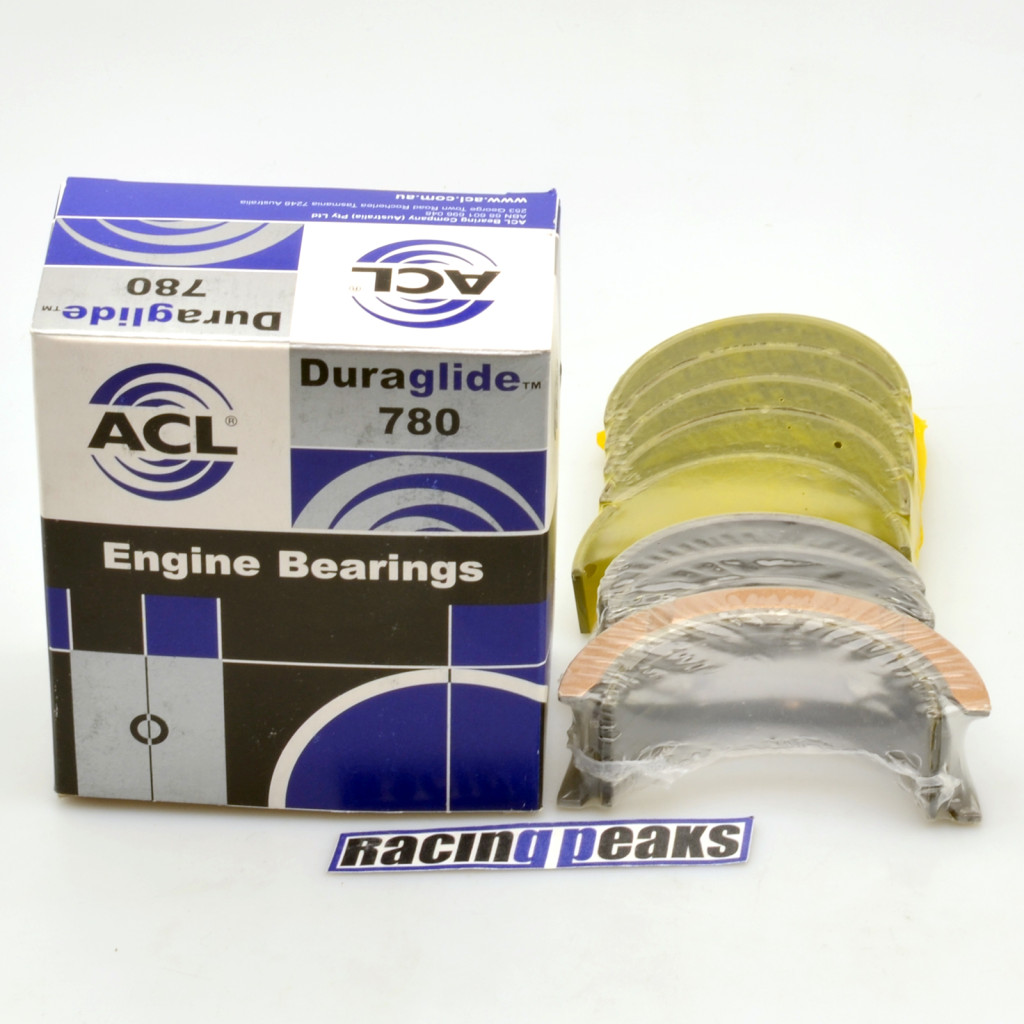

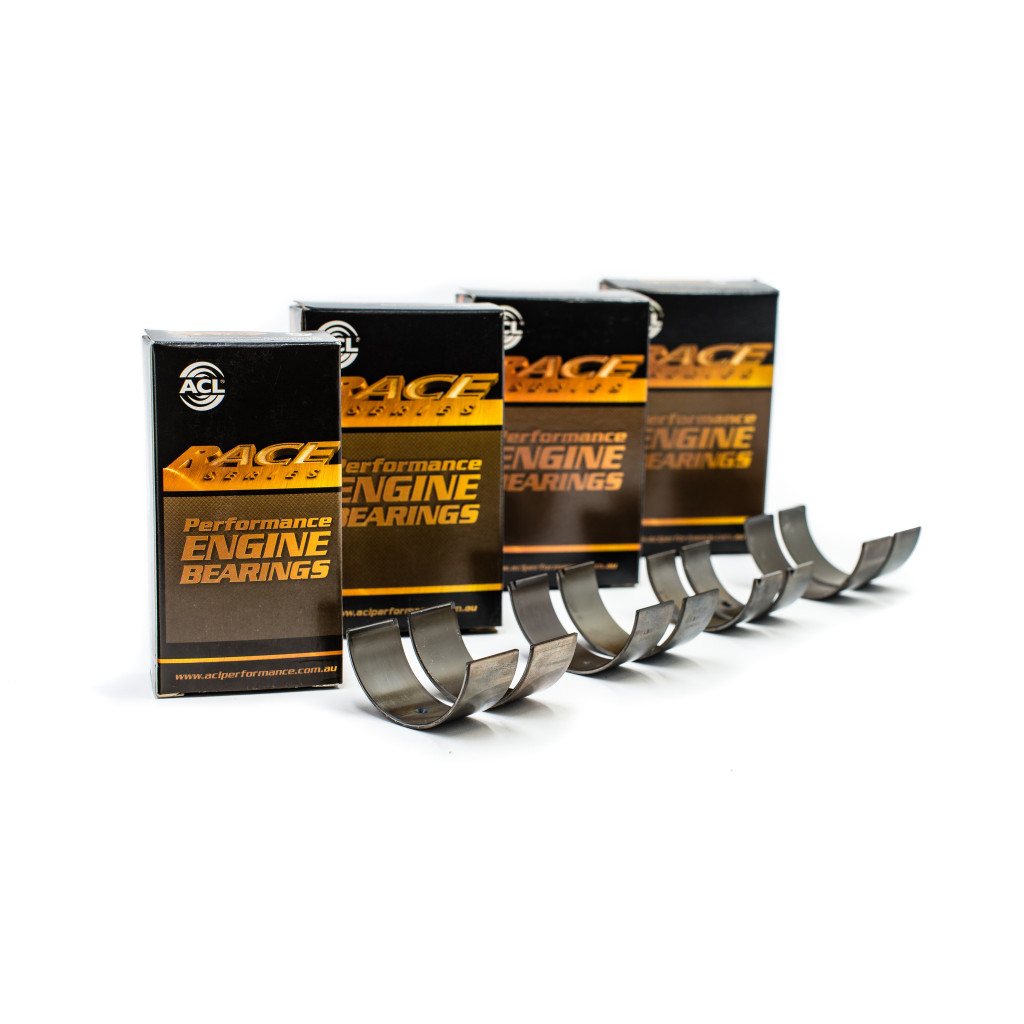

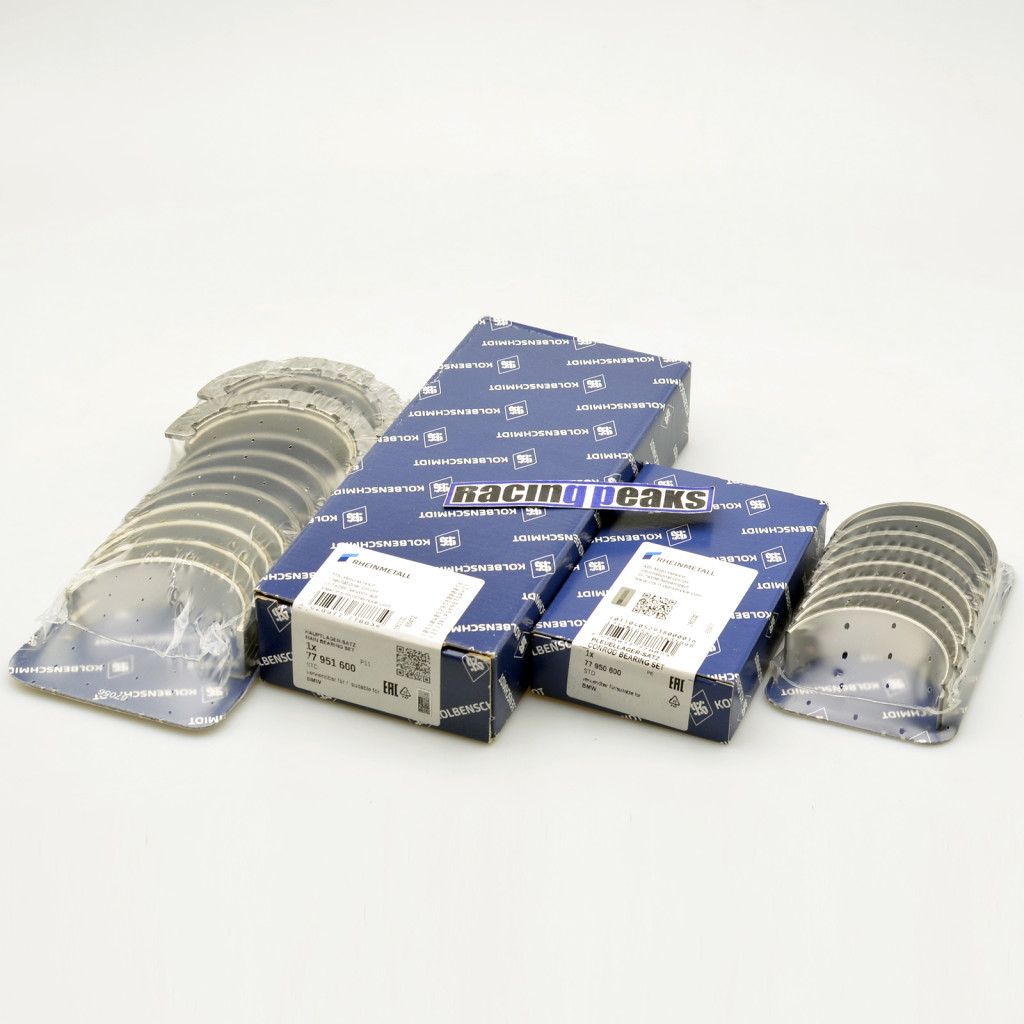

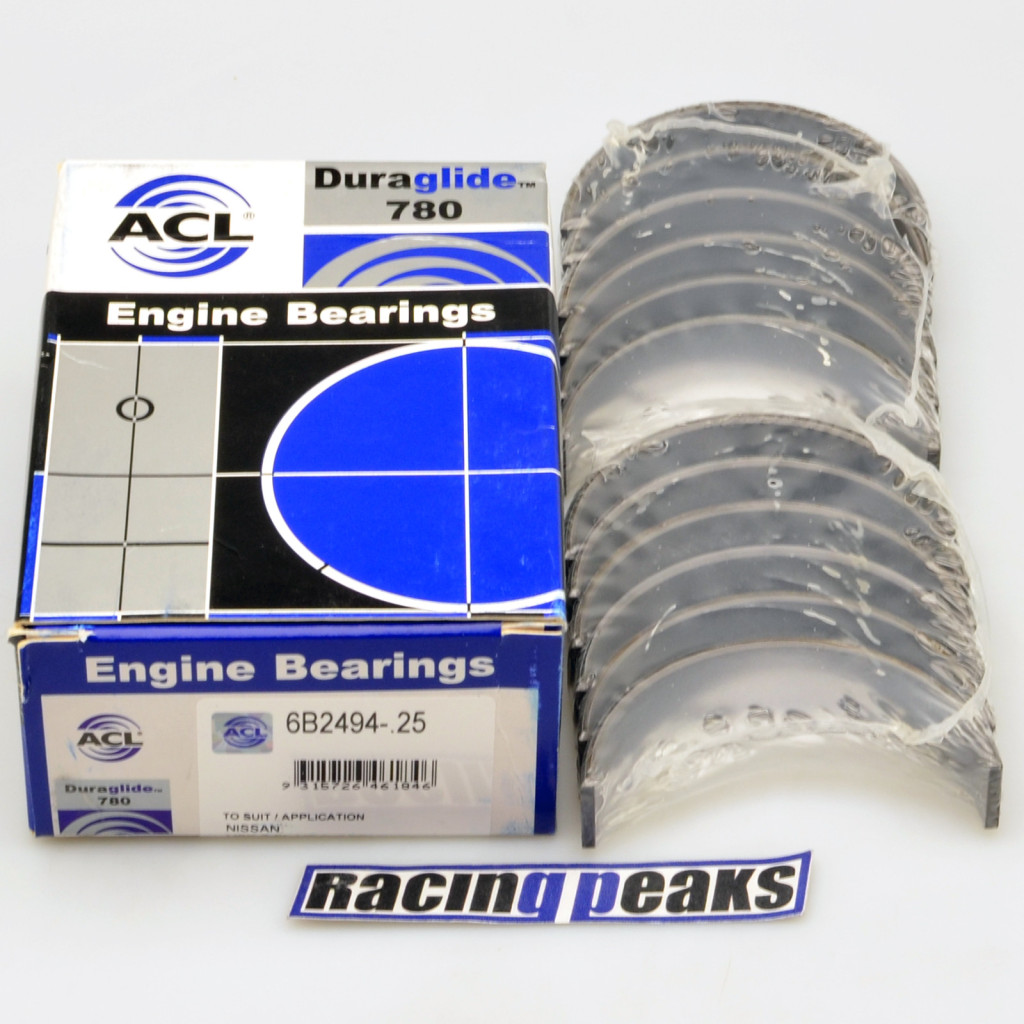

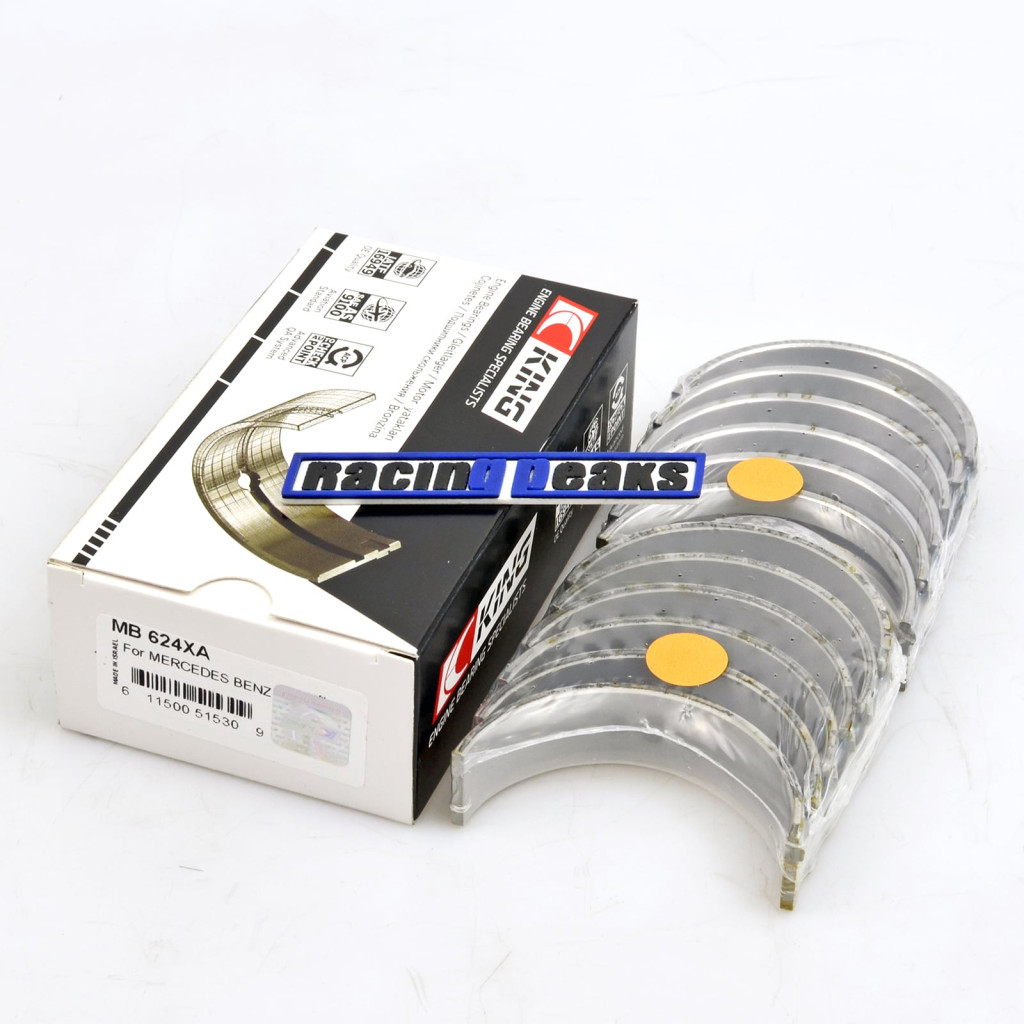

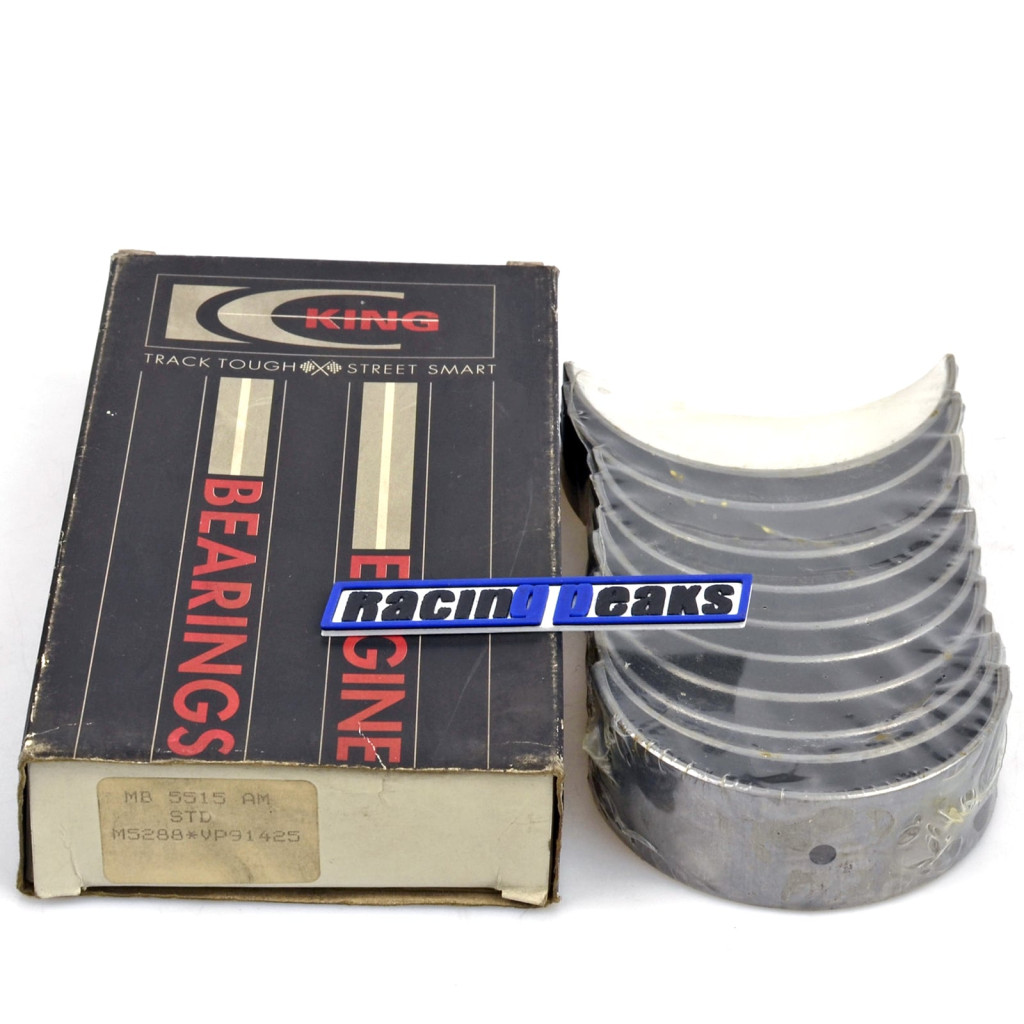

Position: Crankshaft Quantity: 6 pairs Shaft diameter: 57.963 / 57.978mm Housing bore: 64.000 / 64.019mm Wall thickness: 3.006mm Bearing width: 18.50mm

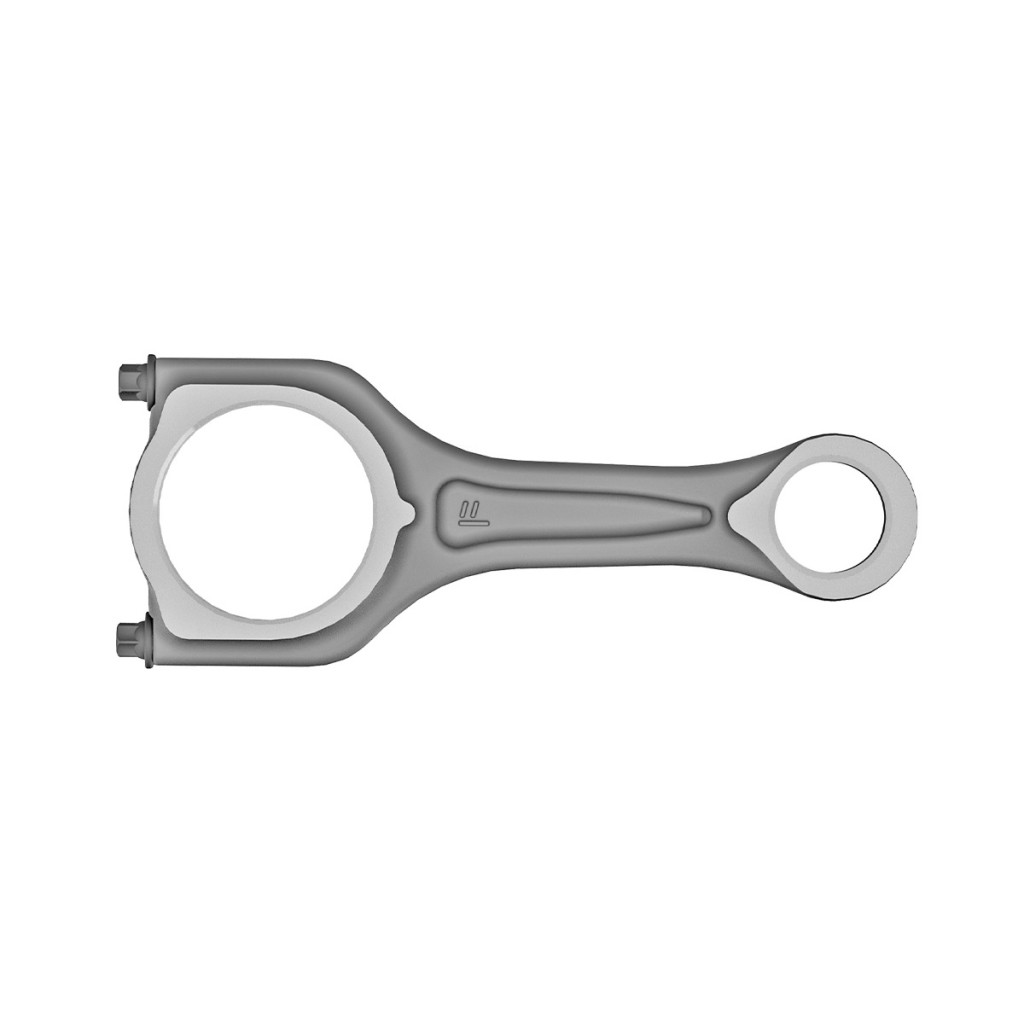

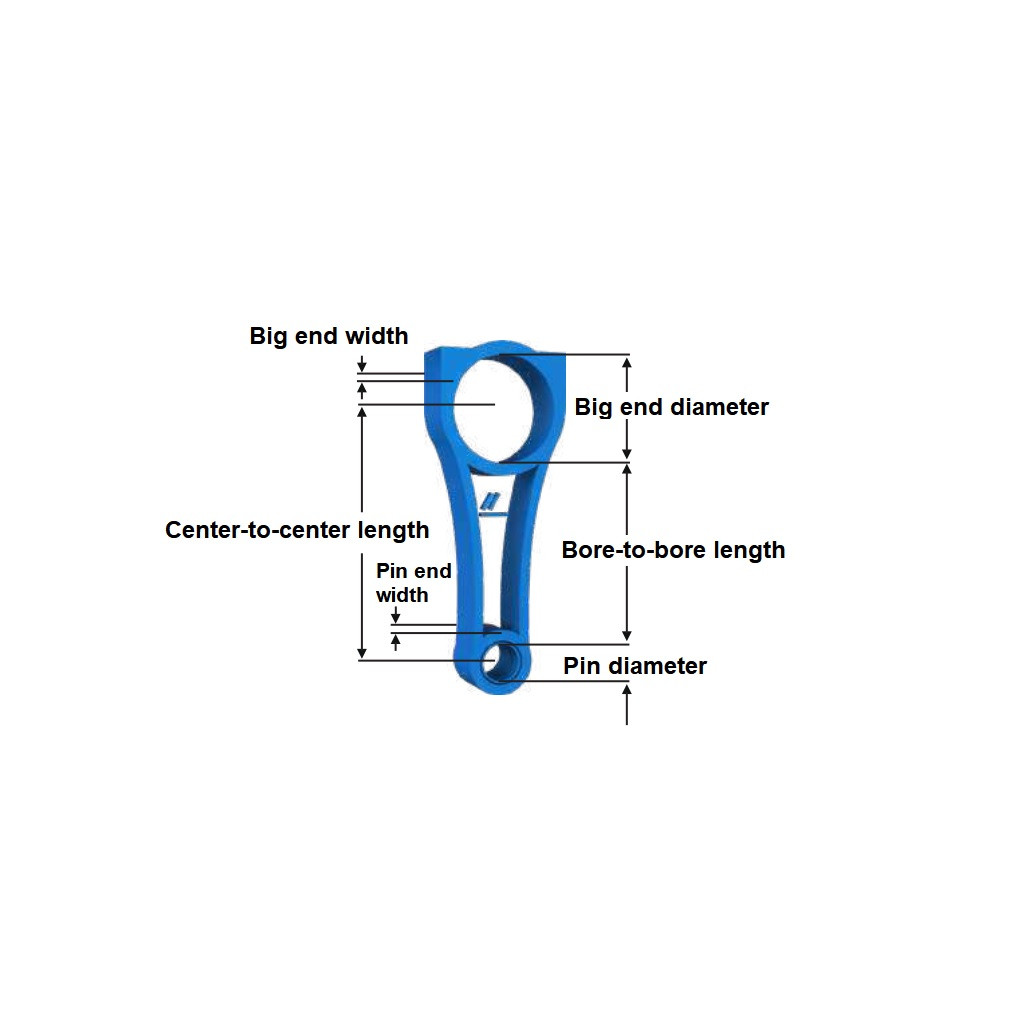

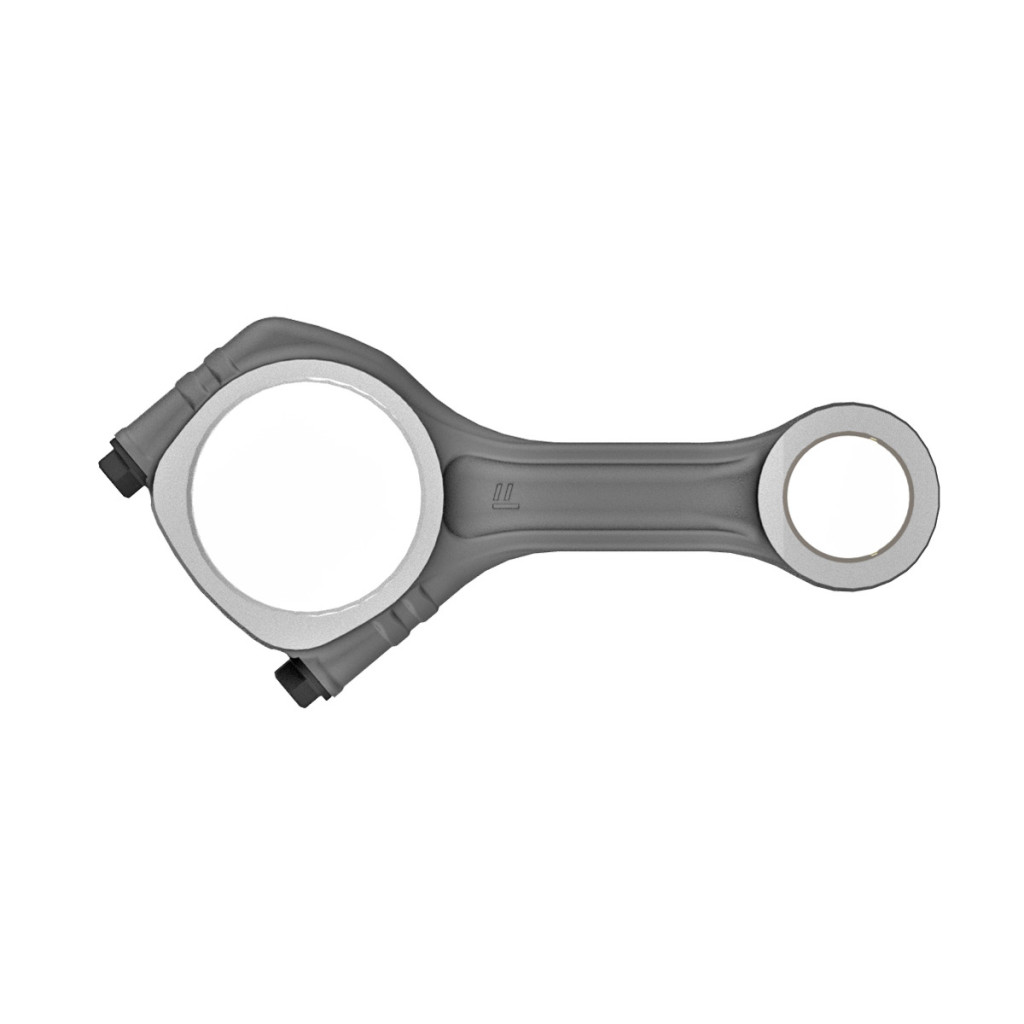

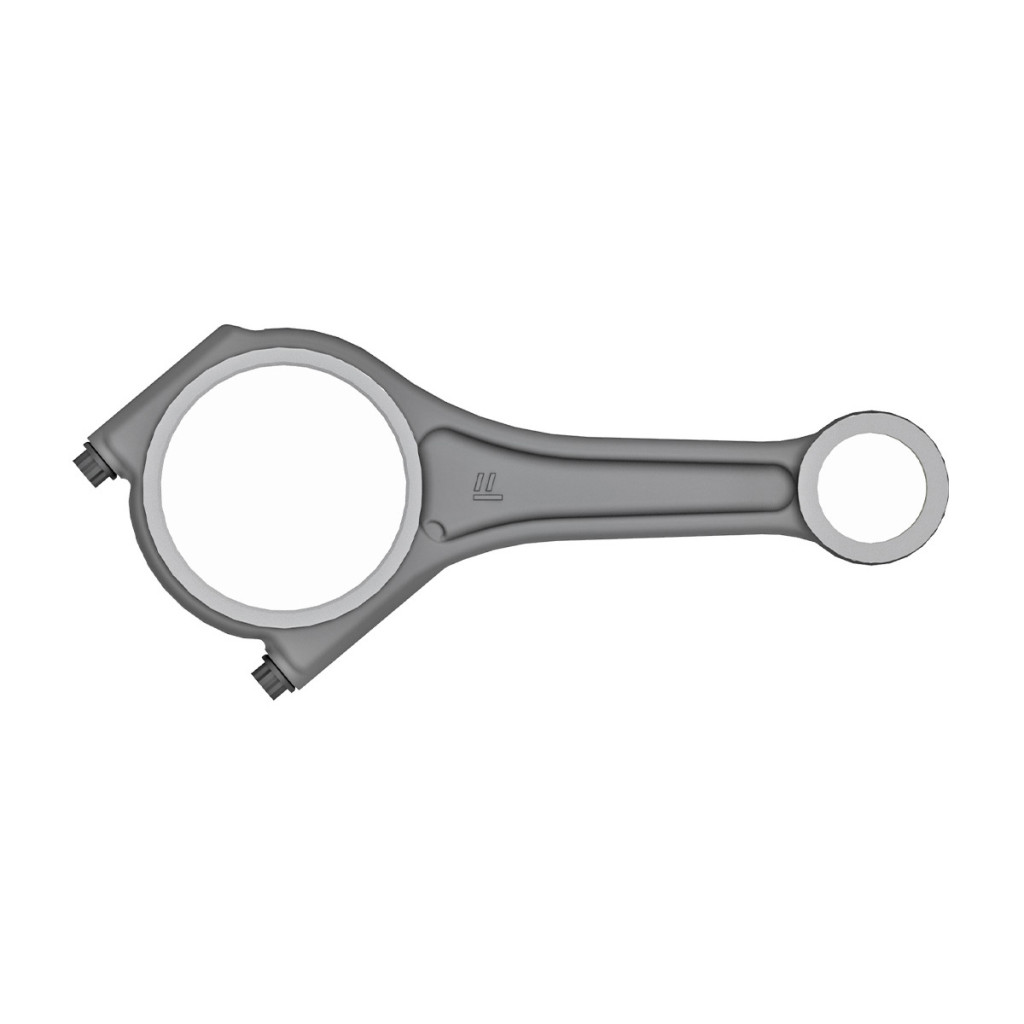

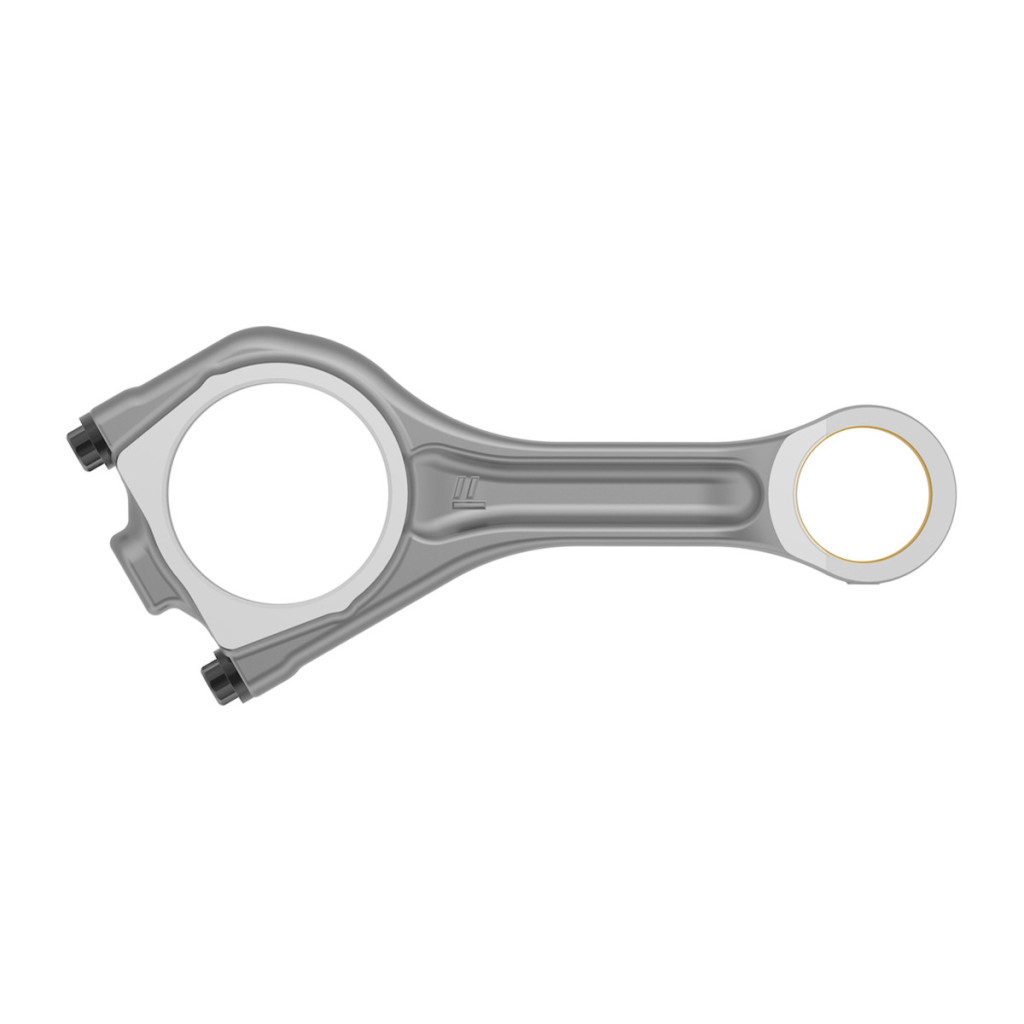

Number in pack: 1Big end width: 23.700 Big end diameter: 45.725-45.750 Center-to-center length: 131.350 Bore-to-bore length: 96.975 Pin end width: 23.700 Pin diameter: 23.020-23.040 Weight: 450 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 20 Nm + 40 degree

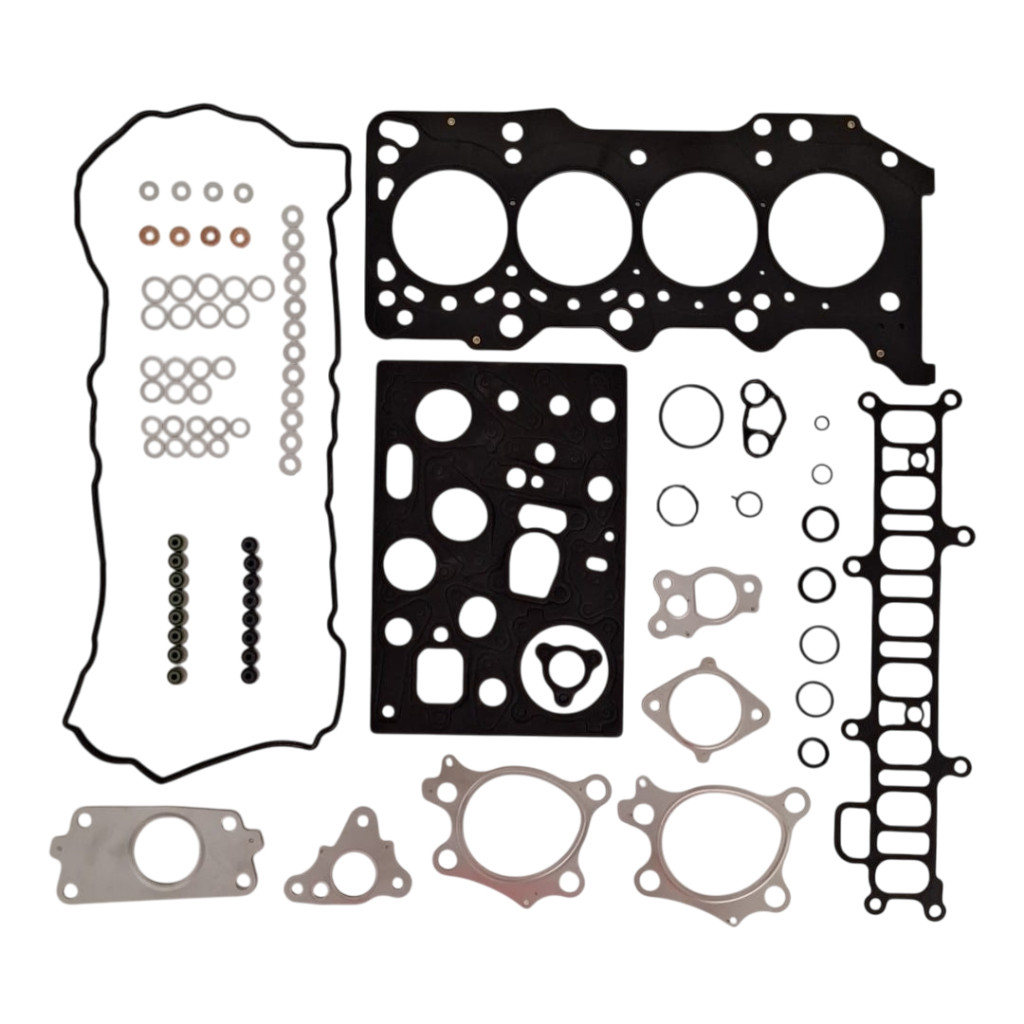

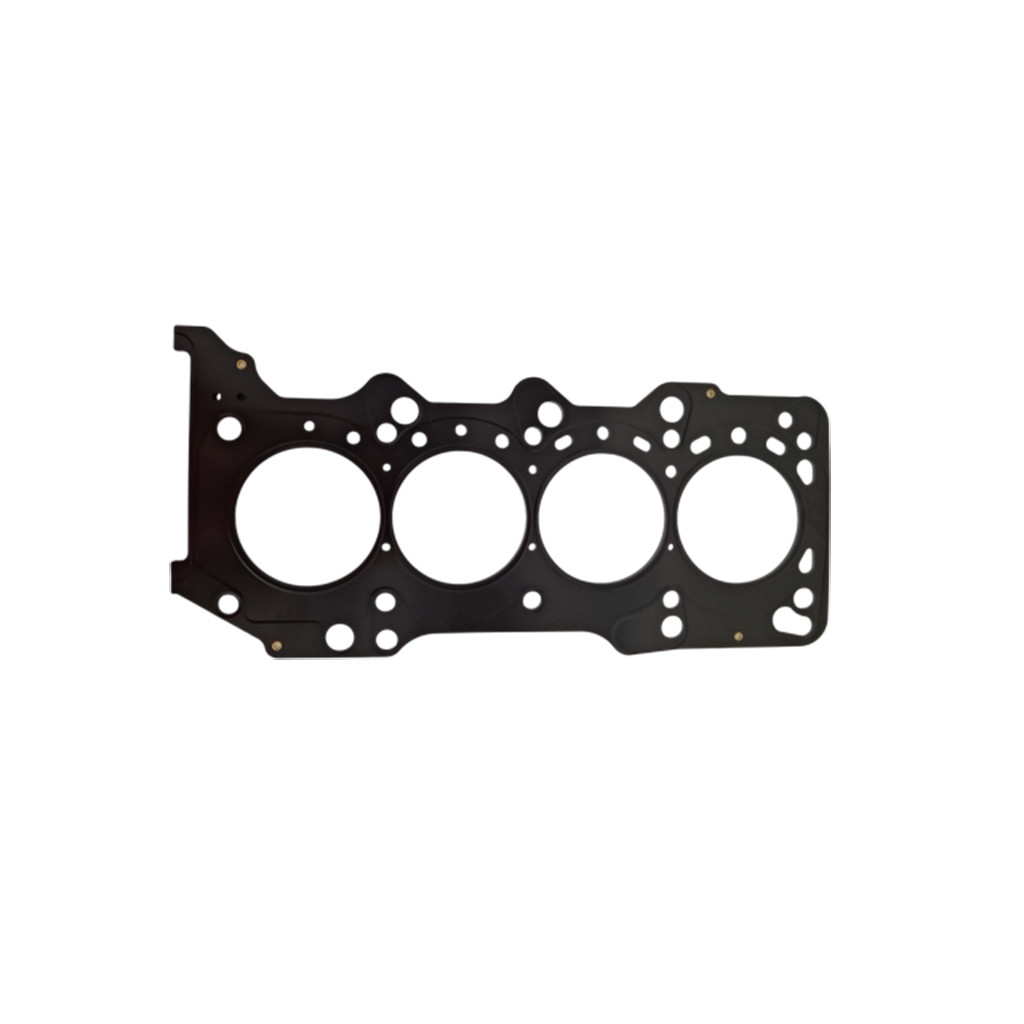

Gasket Design: Fibre Composite Thickness: 1.40 mm Bore diameter: 89.5 mm

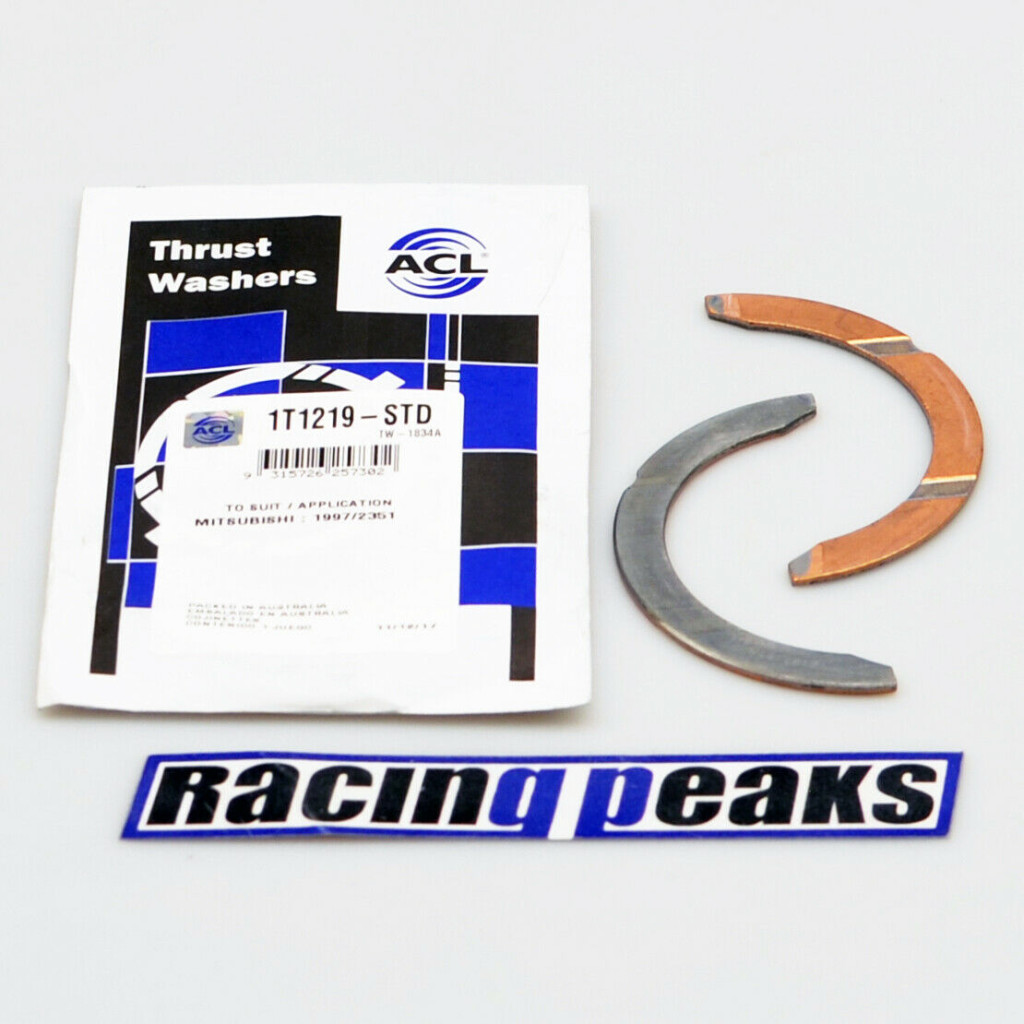

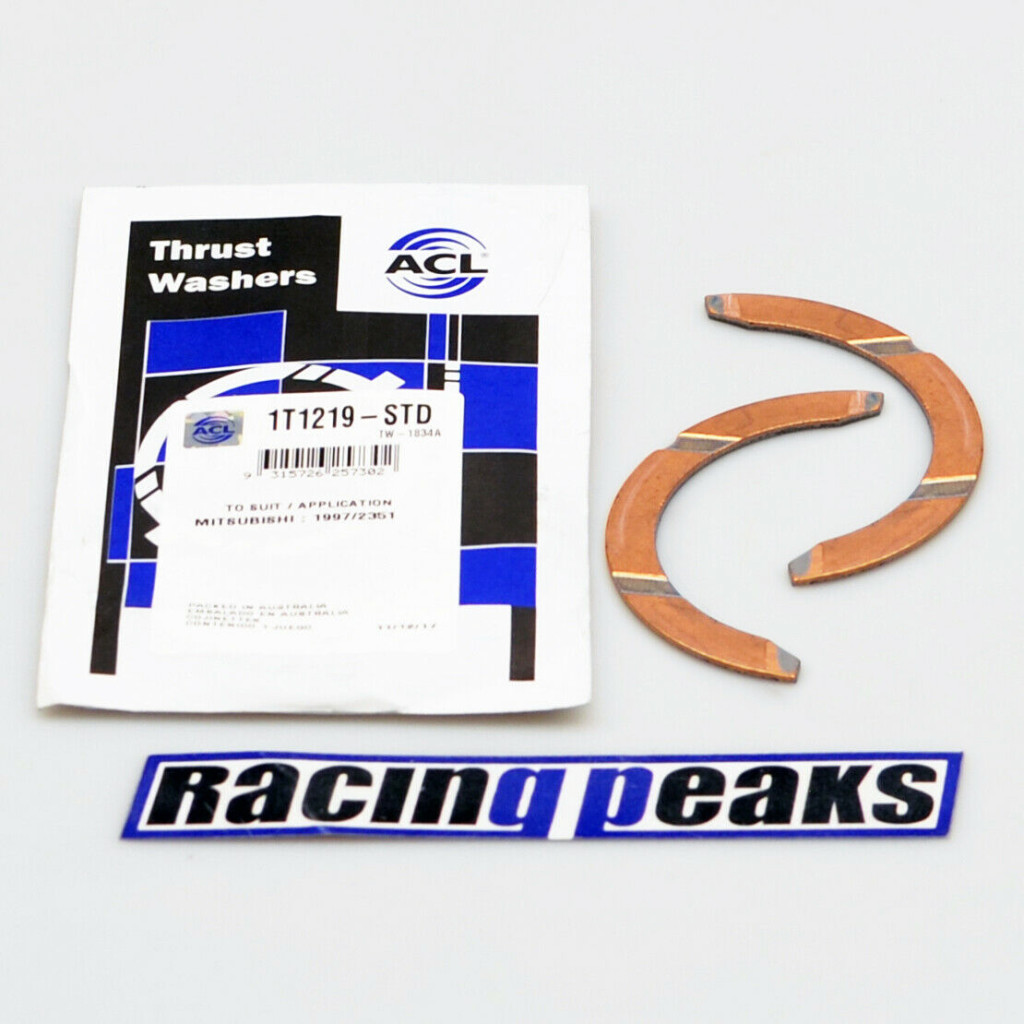

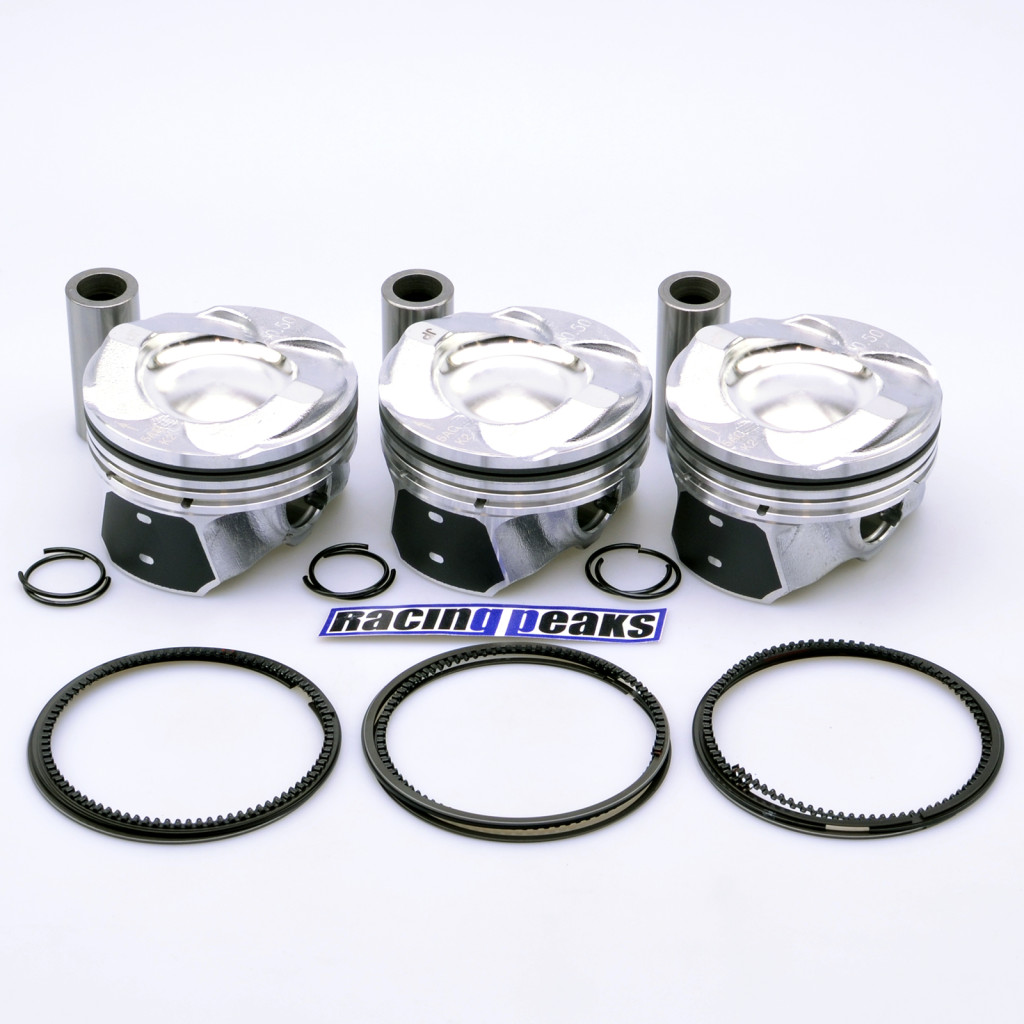

Component Number: 88389; 88405; 88406 Quantity: 3 Thickness [mm] 88389: 2,4 Height [mm] 88389: 1,2 Material 88389: Steel Surface 88389: Blank; Nitrified Cylinder Piston Diameter [mm] 88389: 66,5 Thickness [mm] 88405: 2,65 Height [mm] 88405: 2,5 Surface 88405: Nitrified Cylinder Piston Diameter [mm] 88405: 66,5 Thickness [mm] 88406: 2,4 Height [mm] 88406:...

Bore: 85.00mm Ring sizes: 1.50x1.50x4.00mm Oil ring type: N/A
