Bore: 83.00mm is STD size Compression Height: 45.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.40mm Valve Pocket Depth 1: 1.49mm Valve Pocket Depth 2: 1.33mm Length: 71.65mm Bolt diameter / pin: 30.00mm Bolt length / pin: 65.00mm Info: with cooling duct, with piston ring carrier Machined: with cut-out for oil jet

Piston size: 92.50mm; Ring size: 1.20x1.50x2.50mm

Supplementary Article/Info 2: with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.1 mm Recess Depth 2: 4.9 mm Oversize: 0.5 mm Compression Height: 53.08 mm Height: 83.1 mm Cyl.Bore: 89.5 mm Bolt d.: 31 mm Recess Diameter: 48 mm Bolt Length: 64.8 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 1.6 mm Component No.:...

Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 2.7 mm Oversize: 0.5 mm Compression Height: 29.78 mm Height: 50.7 mm Cyl.Bore: 81.5 mm Bolt d.: 19 mm Recess Diameter: 62.3 mm Bolt Length: 42 mm Component No.: 08-148307-00

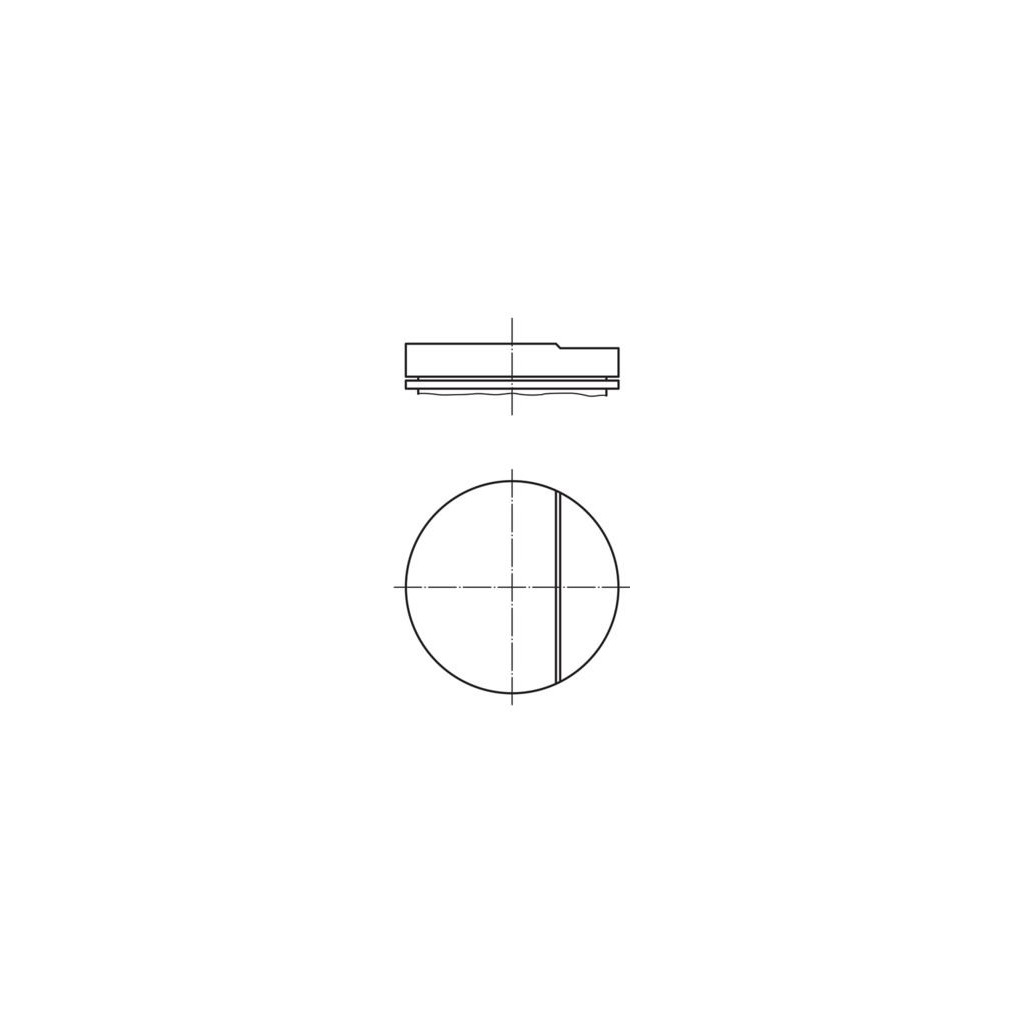

Production Number: 08762P Supplementary Article/Info 2: with cooling duct, with piston ring carrier Specification: conrod guided, in piston Recess Depth 1: 9.1 mm Oversize: 0.5 mm Compression Height: 44.85 mm Height: 74.9 mm Cyl.Bore: 87.5 mm Bolt d.: 28 mm Bolt Length: 70 mm Valve Pocket Depth 1: 1.05 mm Valve Pocket Depth 2: 1.25 mm Component No.:...

Supplementary Article/Info 2: for keystone connecting rod Oversize: 0.5 mm Piston Protrusion: 5.5 mm Compression Height: 27.3 mm Height: 50.8 mm Cyl.Bore: 72.4 mm Bolt d.: 20 mm Bolt Length: 46.9 mm Valve Pocket Depth 1: 9 mm Component No.: 08-424307-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: for keystone connecting rod Oversize: 0.5 mm Piston Protrusion: 1.4 mm Compression Height: 26.9 mm Height: 45.3 mm Cyl.Bore: 77.5 mm Bolt d.: 18 mm Bolt Length: 52.3 mm Valve Pocket Depth 1: 4.5 mm Component No.: 08-424807-30

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.35 mm Oversize: 0.5 mm Compression Height: 46 mm Height: 70.5 mm Cyl.Bore: 80.5 mm Bolt d.: 30 mm Recess Diameter: 46.5 mm Bolt Length: 60 mm Valve Pocket Depth 1: 0.3 mm Component No.: 08-424907-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.35 mm Oversize: 0.5 mm Compression Height: 46 mm Height: 70.5 mm Cyl.Bore: 80.5 mm Bolt d.: 30 mm Recess Diameter: 46.5 mm Bolt Length: 60 mm Valve Pocket Depth 1: 0.3 mm Component No.: 08-424907-00 Machined: with cut-out for oil jet

Fitting Position: for cylinder 1-3 Production Number: 08340F111 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Piston Clearance: 0.041 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket Depth 2:...

Fitting Position: for cylinder 1-3+4-6 Production Number: 08340F111+08340F211 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Oversize: 0.5 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83.5 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket...

Fitting Position: for cylinder 4-6 Production Number: 08340F211 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Piston Clearance: 0.041 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket Depth 2:...
