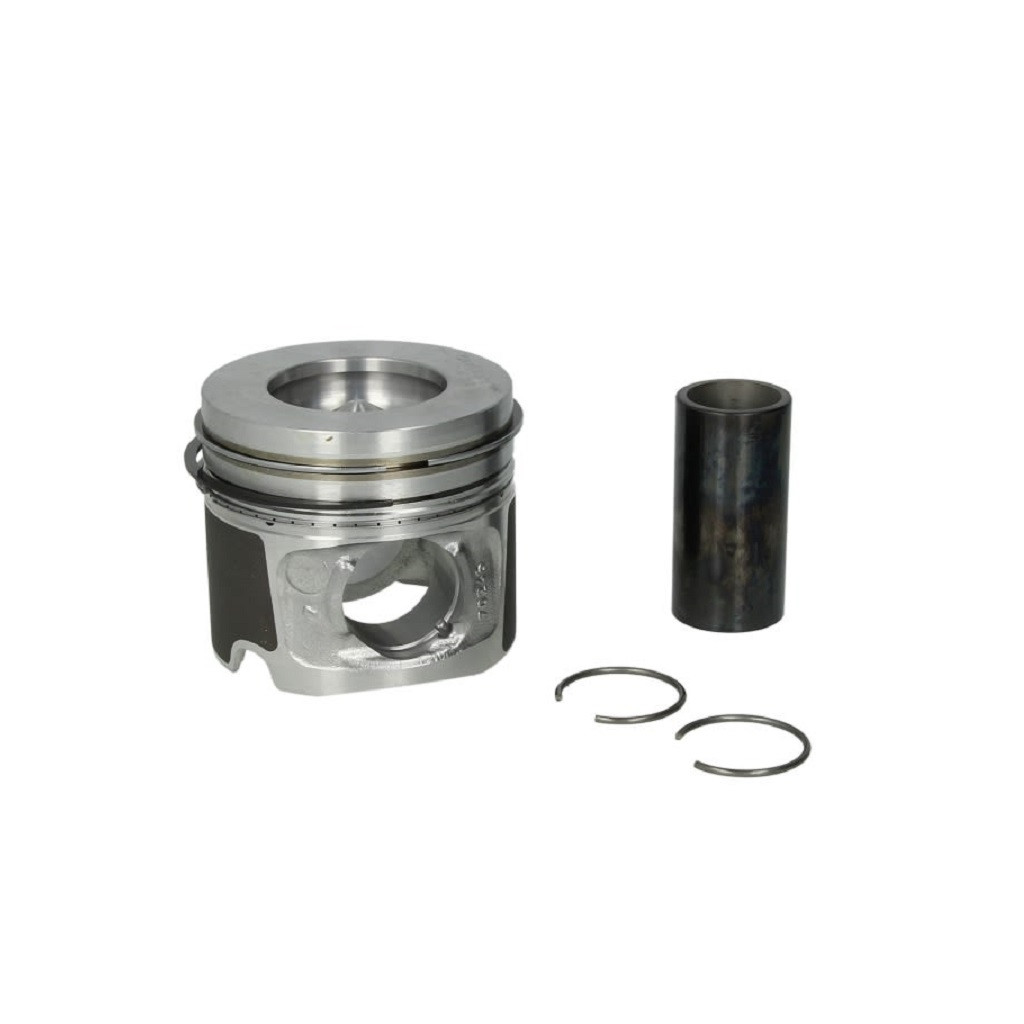

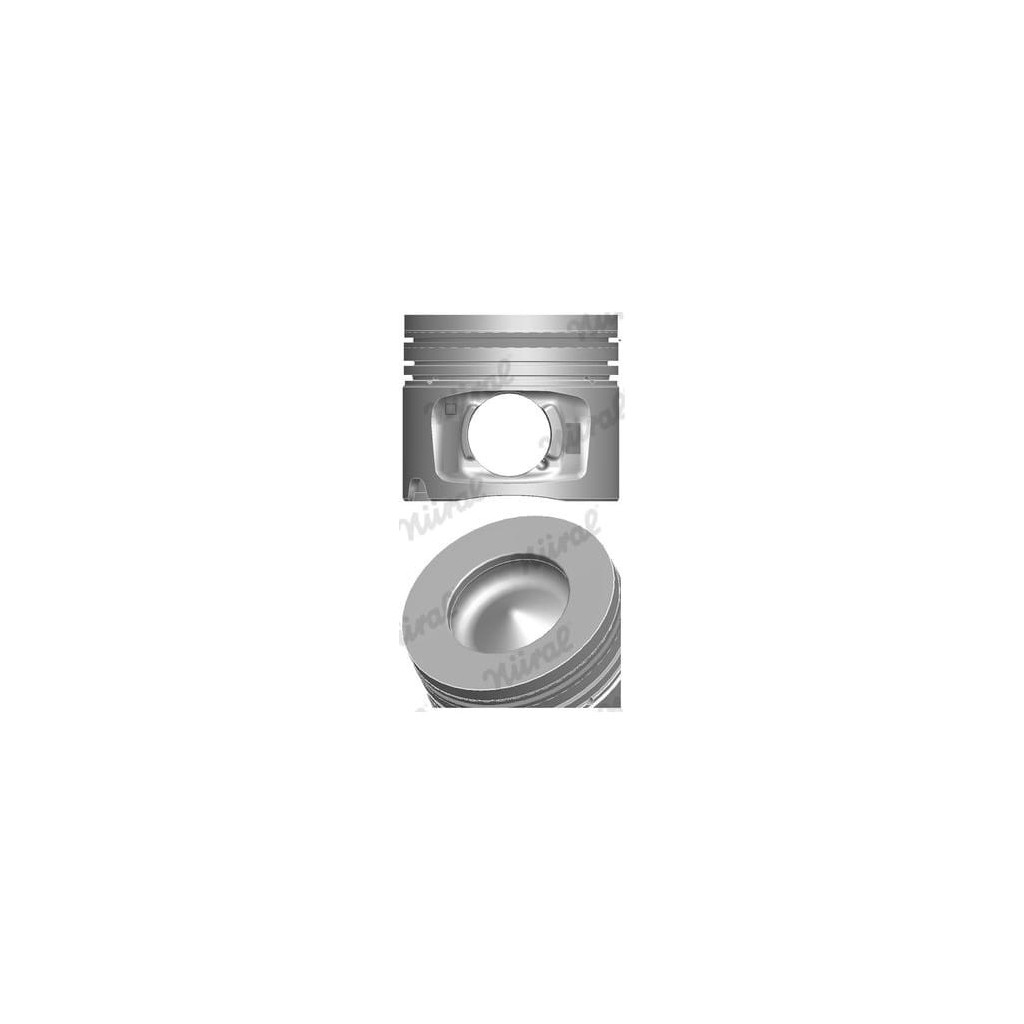

Engine piston fits BMW N47D20 120d 318d 320d 518d 520d X1 X3 20d 2007- 84.00 STD

€73.49

VAT included

Production Number: 7.0840bb170
Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod
Recess Depth 1: 15.25 mm
Piston Clearance: 0.05 mm
Compression Height: 47 mm
Height: 73 mm
Cyl.Bore: 84 mm
Bolt d.: 32 mm
Recess Diameter: 47.5 mm
Bolt Length: 63 mm
Component No.: 08-432200-10
Machined: with cut-out for oil jet

Last items in stock

Security policy

Delivery policy

Shipping outside the EU

Return policy

Description
Product Details

Nüral pistons fitted with Goetze rings, both from Federal-Mogul, offer OE-quality performance trusted by leading automotive manufacturers. Designed for durability and precision, they ensure optimal engine efficiency, sealing, and reliability..

BrandNural

Reference 87-432200-00

In stock4 Items

Data sheet

Region: Germany
Fitment: Direct Replacement
Reference OE/OEM Number: 7803033
11257803033
MPN: 87-432200-00

Compatibility With Cars

3 Estate V (E91 / E91N) 2004 - 2011

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 A)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 163 Hp / Diesel / N47 D20 A)

320 d (2.0L / 163 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 197 Hp / Diesel / N47 D20 C)

2.0 320 d xDrive (2.0L / 163 Hp / Diesel / N47 D20 C)

318 d (2.0L / 136 Hp / Diesel / N47 D20 A)

318 d (2.0L / 136 Hp / Diesel / N47 D20 C)

320 d (2.0L / 197 Hp / Diesel / N47 D20 A)

320 d (2.0L / 197 Hp / Diesel / N47 D20 C)

2 Coupe (F22 / F87) 2012 - current

225 d (2.0L / 218 Hp / Diesel / N47 D20 D)

220 d (2.0L / 184 Hp / Diesel / N47 D20 C)

218 d (2.0L / 143 Hp / Diesel / N47 D20 C)

3 Coupe V (E92 / E92N) 2005 - 2013

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

320 xd (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 197 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 163 Hp / Diesel / N47 D20 A)

320 d (2.0L / 163 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 197 Hp / Diesel / N47 D20 A)

320 d (2.0L / 197 Hp / Diesel / N47 D20 C)

4 Coupe (F32 / F82) 2013 - current

425 d (2.0L / 218 Hp / Diesel / N47 D20 D)

420 d (2.0L / 184 Hp / Diesel / N47 D20 C)

420 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

3 Cabrio V (E93 / E93N) 2006 - 2013

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 A)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 197 Hp / Diesel / N47 D20 A)

320 d (2.0L / 197 Hp / Diesel / N47 D20 C)

3 Saloon VI (F30 / F80) 2011 - 2018

325 d (2.0L / 218 Hp / Diesel / N47 D20 D)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d EfficientDynamics Edition (2.0L / 163 Hp / Diesel / N47 D20 C)

318 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

3 Gran Turismo VI (F34) 2012 - current

325 d (2.0L / 218 Hp / Diesel / N47 D20 D)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

4 Cabrio (F33 / F83) 2013 - current

425 d (2.0L / 218 Hp / Diesel / N47 D20 D)

420 d (2.0L / 184 Hp / Diesel / N47 D20 C)

X5 III (F15 / F85) 2013 - 2018

xDrive 25 d (2.0L / 218-220 Hp / Diesel / N47 D20 D)

sDrive 25 d (2.0L / 218 Hp / Diesel / N47 D20 D)

5 Saloon VI (F10 / F18) 2009 - 2016

525 d xDrive (2.0L / 218 Hp / Diesel / N47 D20 D)

525 d (2.0L / 218 Hp / Diesel / N47 D20 D)

520 d (2.0L / 184 Hp / Diesel / N47 D20 C)

518 d (2.0L / 143 Hp / Diesel / N47 D20 C)

520 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

5 Estate VI (F11) 2009 - current

520 d (2.0L / 184 Hp / Diesel / N47 D20 C)

520 d (2.0L / 200 Hp / Diesel / N47 D20 C)

520 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

518 d (2.0L / 143 Hp / Diesel / N47 D20 C)

520 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)

525 d (2.0L / 218 Hp / Diesel / N47 D20 D)

525 d xDrive (2.0L / 218 Hp / Diesel / N47 D20 D)

X1 (E84) 2009 - 2015

xDrive 23 d (2.0L / 204 Hp / Diesel / N47 D20 D)

sDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)

xDrive 25 d (2.0L / 218 Hp / Diesel / N47 D20 D)

sDrive 16 d (2.0L / 116 Hp / Diesel / N47 D20 C)

sDrive 20 d ed (2.0L / 163 Hp / Diesel / N47 D20 C)

sDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)

sDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)

4 Gran Coupe (F36) 2014 - current

418 d (2.0L / 143 Hp / Diesel / N47 D20 C)

420 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

420 d (2.0L / 184 Hp / Diesel / N47 D20 C)

1 Coupe (E82) 2006 - 2013

120 d (2.0L / 177 Hp / Diesel / N47 D20 C)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

123 d (2.0L / 204 Hp / Diesel / N47 D20 D)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

X3 II (F25) 2010 - 2017

xDrive 28 d (2.0L / 182 Hp / Diesel / N47 D20 C)

sDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)

1 Hatch 3-door (E81) 2004 - 2011

118 d (2.0L / 143 Hp / Diesel / N47 D20 A)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

123 d (2.0L / 204 Hp / Diesel / N47 D20 D)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

116 d (2.0L / 116 Hp / Diesel / N47 D20 A)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

5 Gran Turismo VI (F07) 2009 - 2017

520 d (2.0L / 184 Hp / Diesel / N47 D20 C)

1 Cabrio (E88) 2007 - 2013

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

118 d (2.0L / 143 Hp / Diesel / N47 D20 A)

123 d (2.0L / 204 Hp / Diesel / N47 D20 D)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

120 d (2.0L / 177 Hp / Diesel / N47 D20 C)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

X3 (E83 / E83N) 2003 - 2010

2.0 d (2.0L / 177 Hp / Diesel / N47 D20 A)

2.0 d (2.0L / 177 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 A)

xDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)

5 Estate V (E61 / E61N) 2004 - 2010

520 d (2.0L / 177 Hp / Diesel / N47 D20 C)

520 d (2.0L / 177 Hp / Diesel / N47 D20 A)

1 Hatch 5-door (E87 / E87N) 2003 - 2011

116 d (2.0L / 116 Hp / Diesel / N47 D20 A)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

118 d (2.0L / 143 Hp / Diesel / N47 D20 A)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

120 d (2.0L / 177 Hp / Diesel / N47 D20 C)

123 d (2.0L / 204 Hp / Diesel / N47 D20 D)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

5 Saloon V (E60 / E60N) 2001 - 2009

520 d (2.0L / 177 Hp / Diesel / N47 D20 C)

520 d (2.0L / 177 Hp / Diesel / N47 D20 A)

3 Estate VI (F31) 2012 - 2019

325 d (2.0L / 218 Hp / Diesel / N47 D20 D)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

318 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d EfficientDynamics Edition (2.0L / 163 Hp / Diesel / N47 D20 C)

1 Hatch 3-door II (F21) 2011 - current

125 d (2.0L / 218 Hp / Diesel / N47 D20 D)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

118 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d (2.0L / 184 Hp / Diesel / N47 D20 C)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

1 Hatch 5-door II (F20) 2011 - 2019

125 d (2.0L / 218 Hp / Diesel / N47 D20 D)

118 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d (2.0L / 184 Hp / Diesel / N47 D20 C)

3 Saloon V (E90 / E90N) 2004 - 2012

318 d (2.0L / 136 Hp / Diesel / N47 D20 A)

318 d (2.0L / 136 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 163 Hp / Diesel / N47 D20 C)

320 xd (2.0L / 177 Hp / Diesel / N47 D20 C)

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 A)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 163 Hp / Diesel / N47 D20 A)

320 d (2.0L / 163 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

Alpina

D3 Estate (E90) 2005 - 2013

2 (2.0L / 214 Hp / N47 D20 C)

2 (2.0L / 214 Hp / N47 D20 D)

D3 Saloon (E90) 2005 - 2014

2 (2.0L / 214 Hp / N47 D20 C)

2 (2.0L / 214 Hp / N47 D20 D)

D3 Coupe (E90) 2008 - 2013

2 (2.0L / 214 Hp / Diesel / N47 D20 C)

2 (2.0L / 214 Hp / Diesel / N47 D20 D)

Specific References

Condition New
