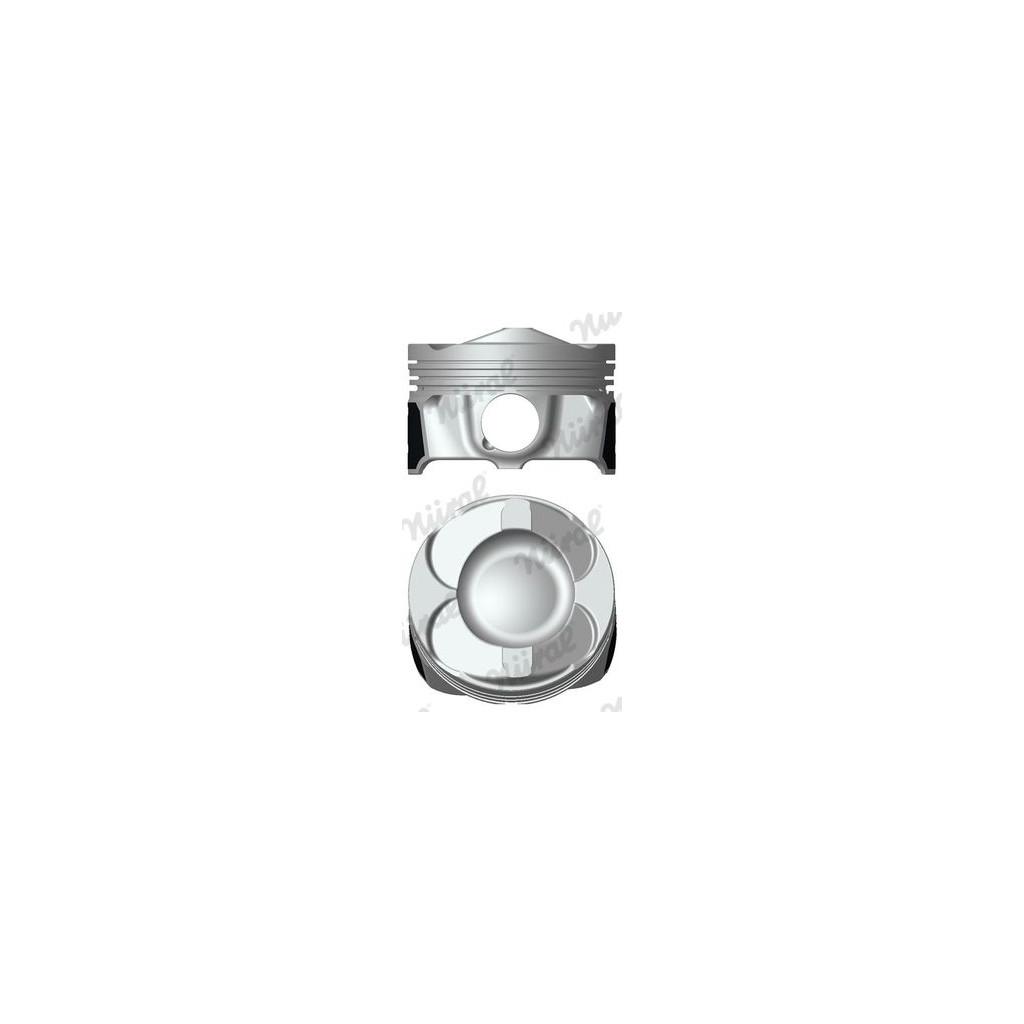

Supplementary Article/Info 2: for keystone connecting rod Oversize: 0.5 mm Piston Protrusion: 5.5 mm Compression Height: 27.3 mm Height: 50.8 mm Cyl.Bore: 72.4 mm Bolt d.: 20 mm Bolt Length: 46.9 mm Valve Pocket Depth 1: 9 mm Component No.: 08-424307-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 1.25 mm Compression Height: 31 mm Height: 48 mm Cyl.Bore: 74.5 mm Bolt d.: 19 mm Recess Diameter: 53.07 mm Bolt Length: 47 mm Valve Pocket Depth 1: 2.9 mm Valve Pocket Depth 2: 4.4 mm Component No.: 08-449500-00

Supplementary Article/Info 2: with piston ring carrier Recess Depth 1: 6.4 mm Piston Clearance: 0.05 mm Piston Protrusion: 1.85 mm Compression Height: 29 mm Height: 48 mm Cyl.Bore: 76.5 mm Bolt d.: 19 mm Bolt Length: 54 mm Valve Pocket Depth 1: 1 mm Valve Pocket Depth 2: 3.8 mm Component No.: 08-433900-00 Notice: Pistons to be replaced in Engine Sets only

Supplementary Article/Info 2: with piston ring carrier, for keystone connecting rod Recess Depth 1: 6.4 mm Oversize: 0.5 mm Piston Protrusion: 1.85 mm Compression Height: 29 mm Height: 48 mm Cyl.Bore: 77 mm Bolt d.: 19 mm Bolt Length: 53.5 mm Valve Pocket Depth 1: 1 mm Valve Pocket Depth 2: 3.8 mm Component No.: 08-433907-00 Notice: Pistons to be replaced in...

Supplementary Article/Info 2: for keystone connecting rod Oversize: 0.5 mm Piston Protrusion: 1.4 mm Compression Height: 26.9 mm Height: 45.3 mm Cyl.Bore: 77.5 mm Bolt d.: 18 mm Bolt Length: 52.3 mm Valve Pocket Depth 1: 4.5 mm Component No.: 08-424807-30

Supplementary Article/Info 2: with piston ring carrier, for keystone connecting rod Recess Depth 1: 9.3 mm Compression Height: 34.85 mm Height: 53.9 mm Cyl.Bore: 79 mm Bolt d.: 21 mm Recess Diameter: 53.5 mm Bolt Length: 49 mm Valve Pocket Depth 1: 3.53 mm Valve Pocket Depth 2: 3.47 mm Component No.: 08-452800-10

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.35 mm Oversize: 0.5 mm Compression Height: 46 mm Height: 70.5 mm Cyl.Bore: 80.5 mm Bolt d.: 30 mm Recess Diameter: 46.5 mm Bolt Length: 60 mm Valve Pocket Depth 1: 0.3 mm Component No.: 08-424907-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.35 mm Oversize: 0.5 mm Compression Height: 46 mm Height: 70.5 mm Cyl.Bore: 80.5 mm Bolt d.: 30 mm Recess Diameter: 46.5 mm Bolt Length: 60 mm Valve Pocket Depth 1: 0.3 mm Component No.: 08-424907-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 2.7 mm Oversize: 0.5 mm Compression Height: 29.78 mm Height: 50.7 mm Cyl.Bore: 81.5 mm Bolt d.: 19 mm Recess Diameter: 62.3 mm Bolt Length: 42 mm Component No.: 08-148307-00

Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 2 mm Compression Height: 33.3 mm Height: 52.7 mm Cyl.Bore: 82 mm Bolt d.: 22 mm Recess Diameter: 56.1 mm Bolt Length: 51.1 mm Valve Pocket Depth 1: 4.4 mm Valve Pocket Depth 2: 4.5 mm Component No.: 08-453400-00 Surface: Hard Anodized

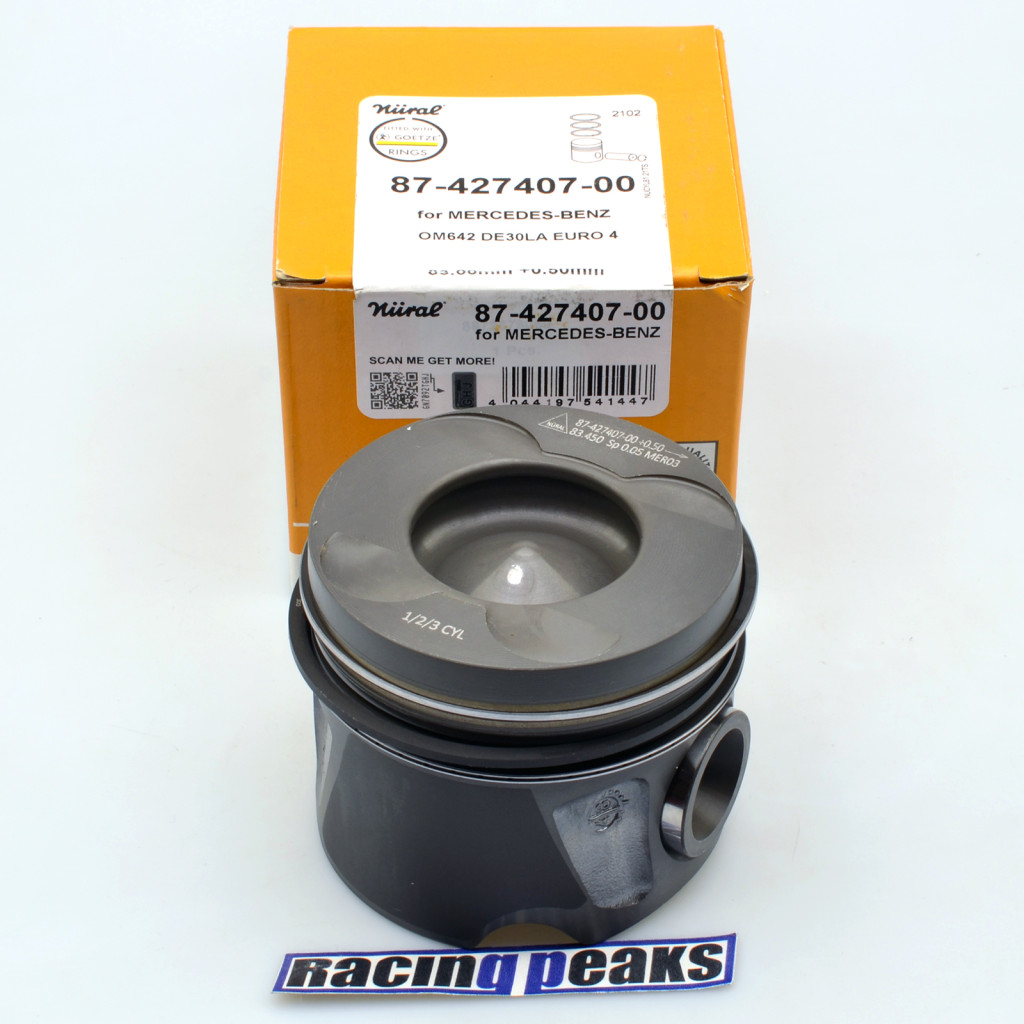

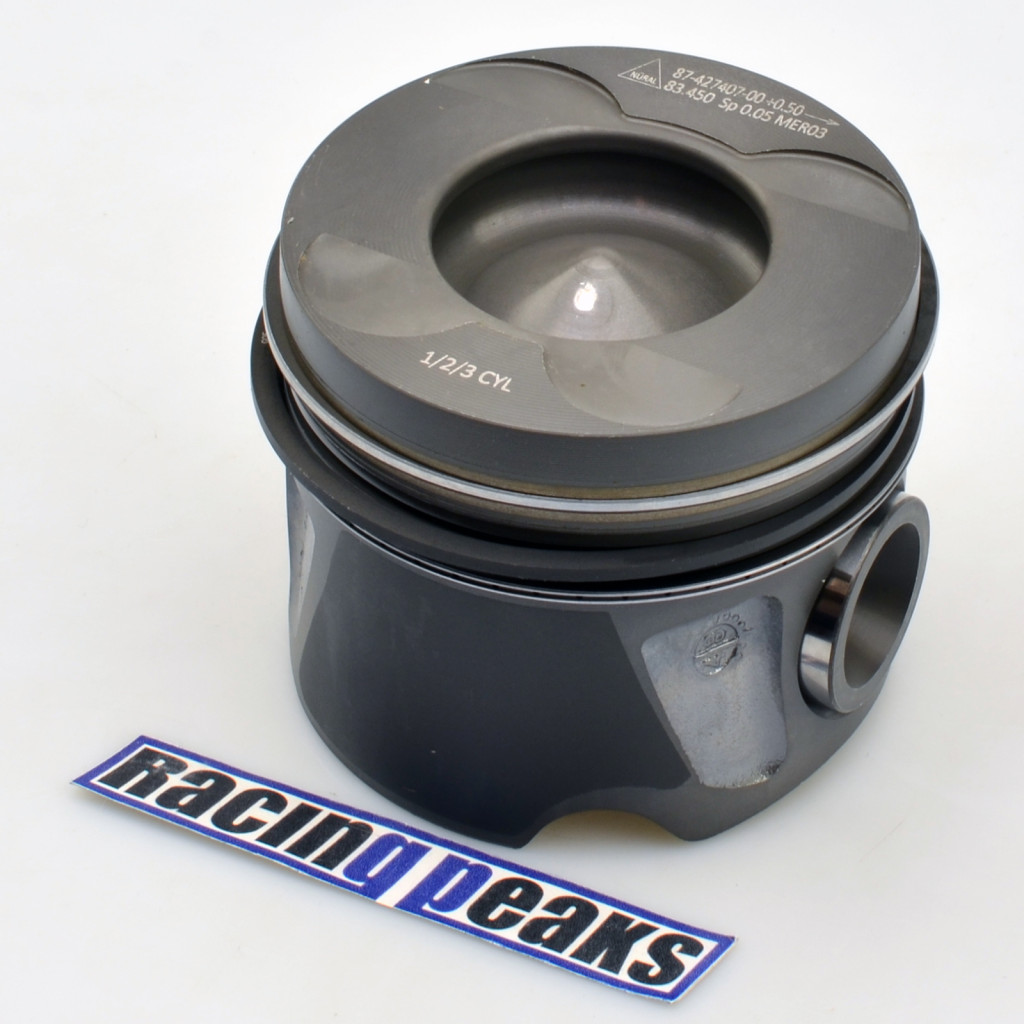

Fitting Position: for cylinder 1-3 Production Number: 08340F111 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Piston Clearance: 0.041 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket Depth 2:...

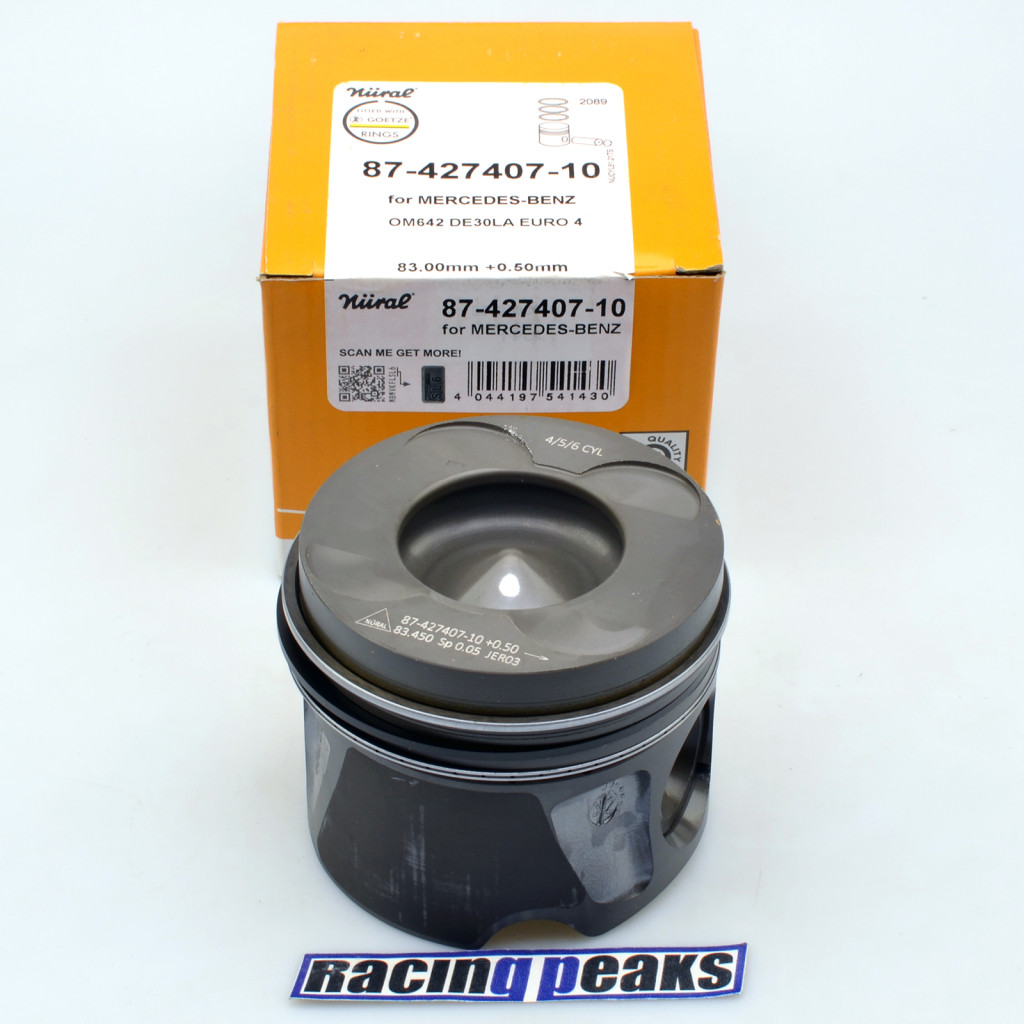

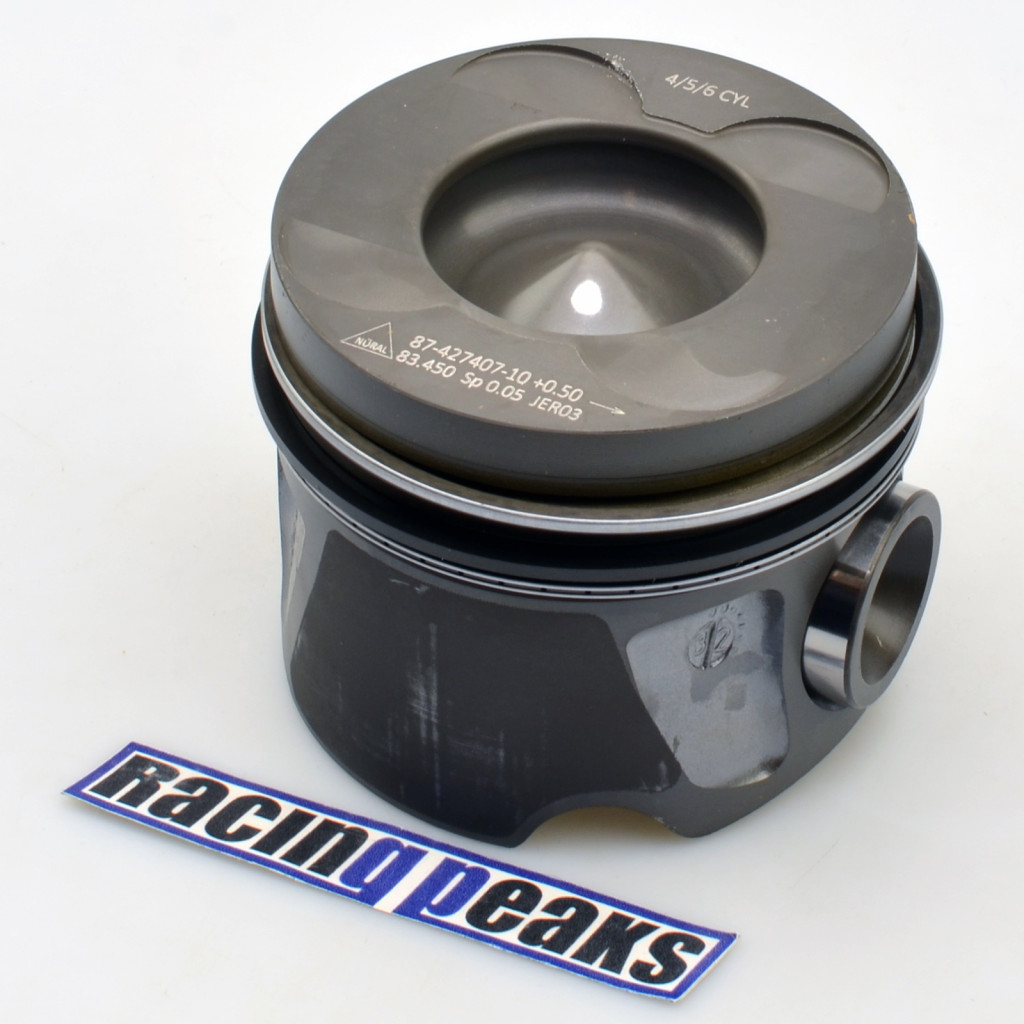

Fitting Position: for cylinder 4-6 Production Number: 08340F211 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Piston Clearance: 0.041 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket Depth 2:...
