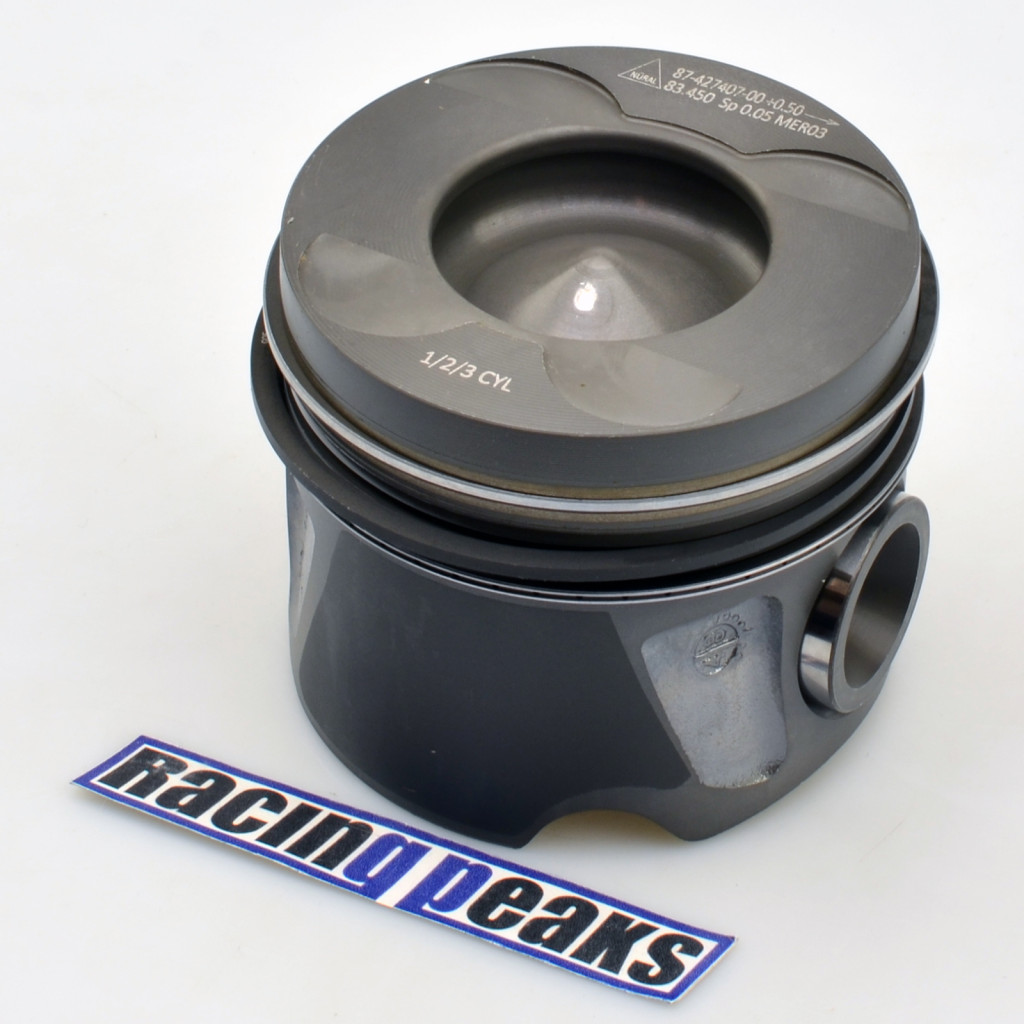

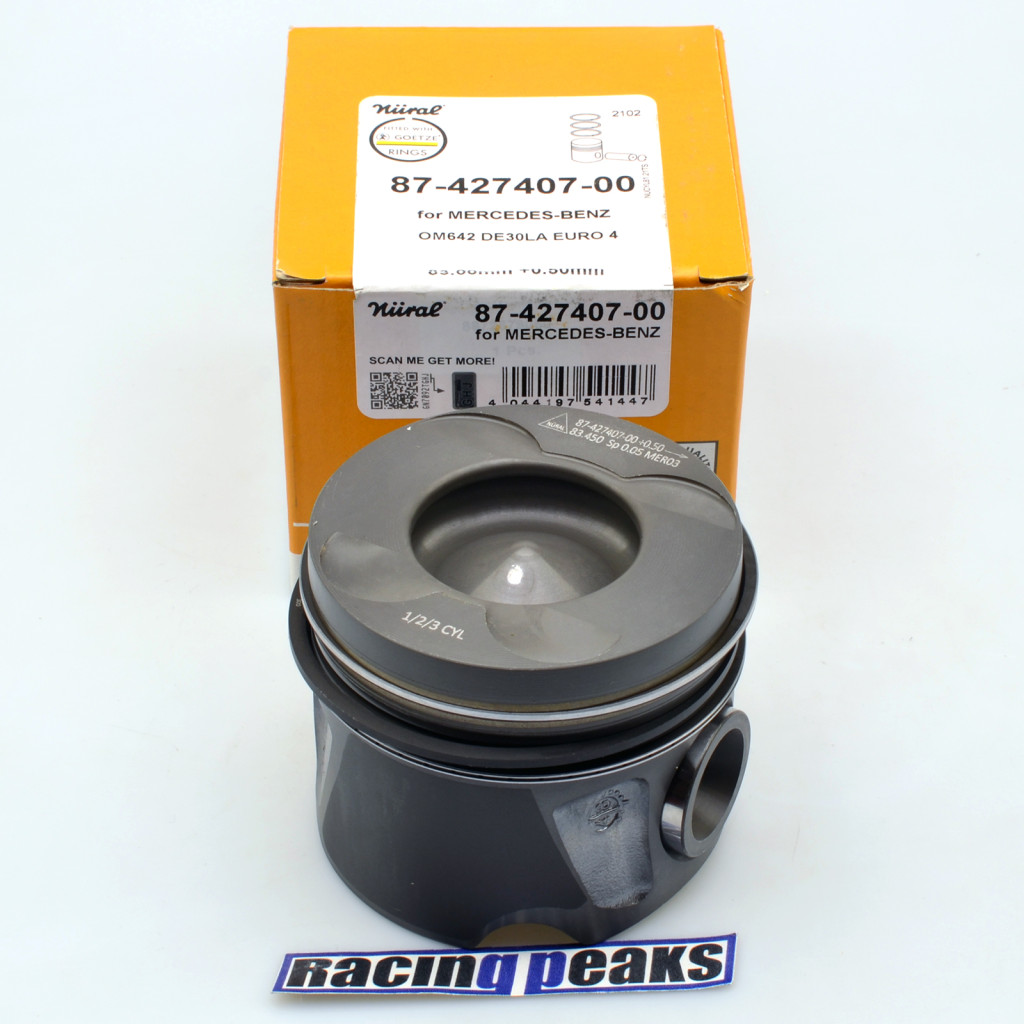

Fitting Position: for cylinder 1-3 Production Number: 08340F111 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Oversize: 0.5 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83.5 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket Depth 2: 1.33...

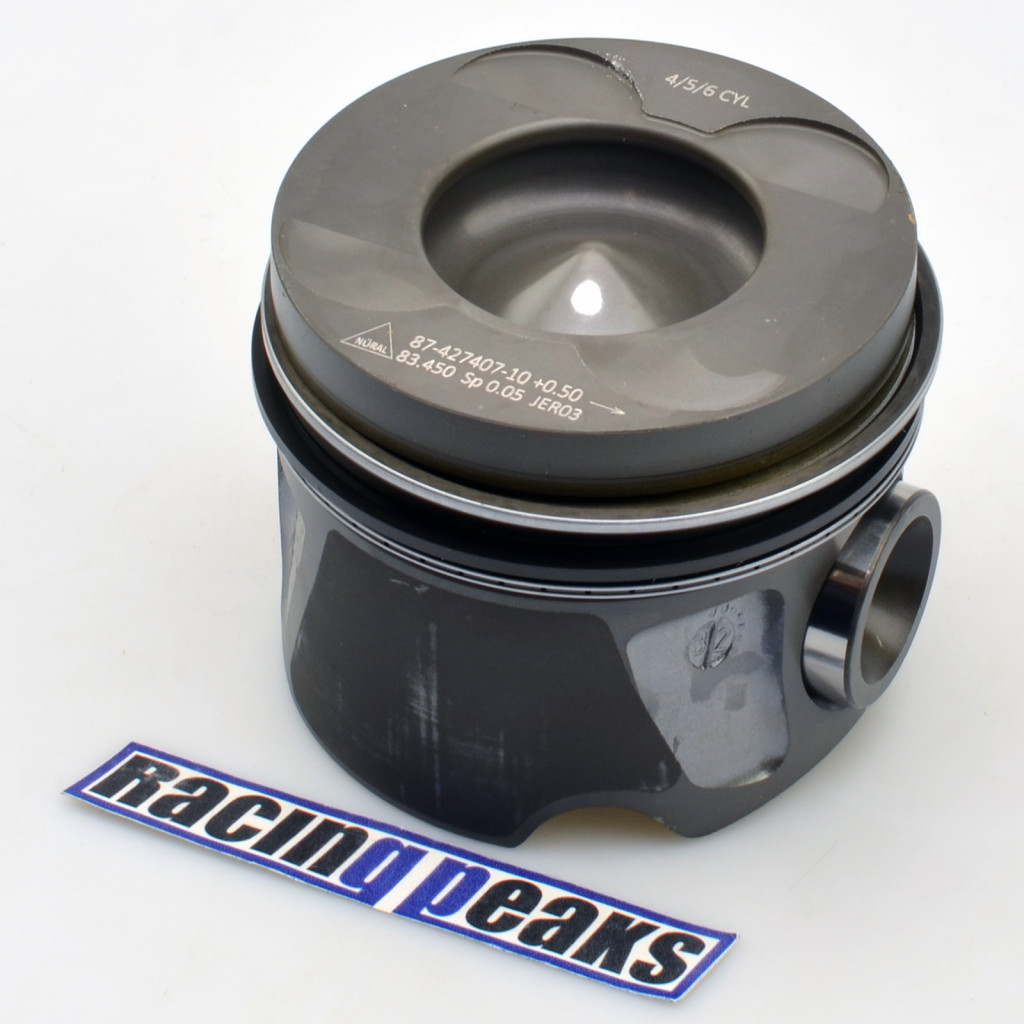

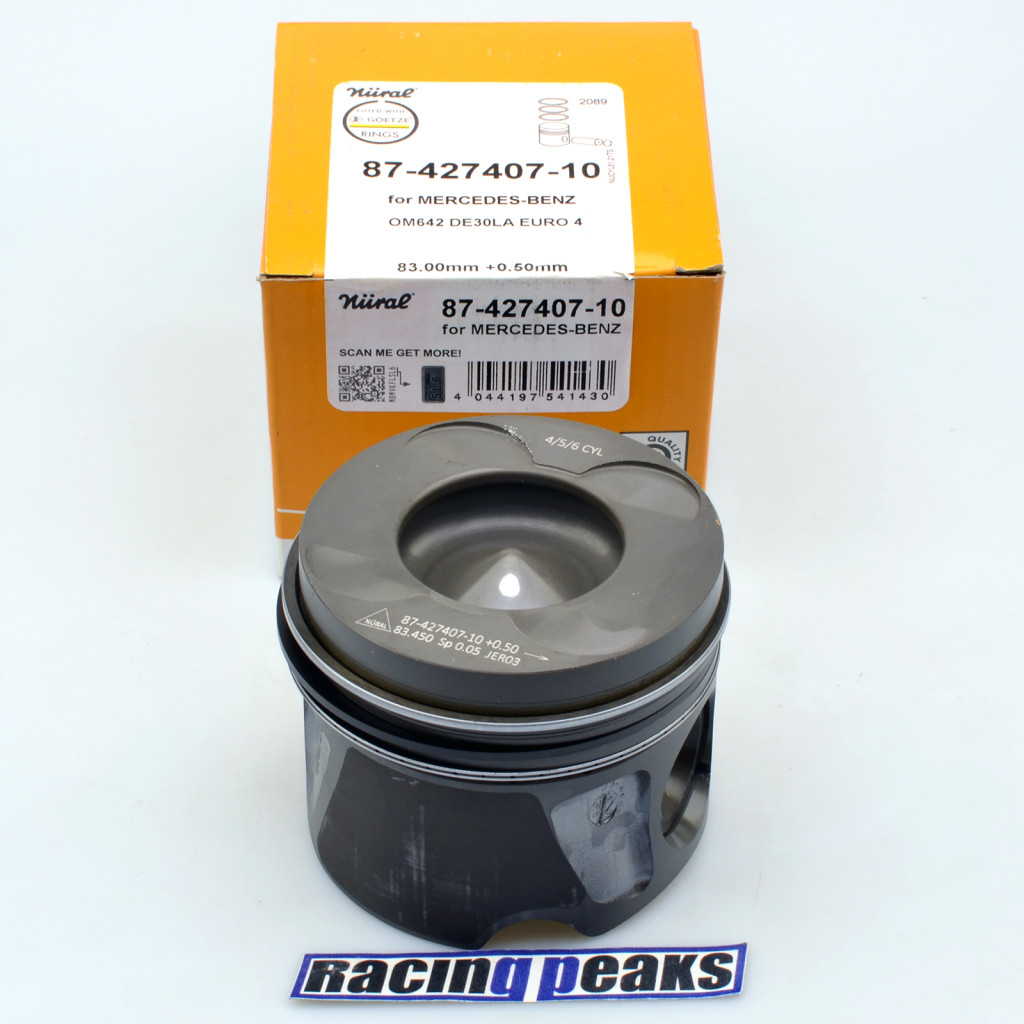

Fitting Position: for cylinder 4-6 Production Number: 08340F211 Supplementary Article/Info 2: with cooling duct, with piston ring carrier Recess Depth 1: 14.65 mm Oversize: 0.5 mm Compression Height: 45.65 mm Height: 71.7 mm Cyl.Bore: 83.5 mm Bolt d.: 30 mm Recess Diameter: 43.4 mm Bolt Length: 65 mm Valve Pocket Depth 1: 1.49 mm Valve Pocket Depth 2: 1.33...

Production Number: 08349F416 Supplementary Article/Info 2: with bush for piston pin boss, with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 13.25 mm Recess Depth 2: 4 mm Oversize: 0.5 mm Compression Height: 48.5 mm Height: 75.5 mm Cyl.Bore: 83.5 mm Bolt d.: 30.1 mm Recess Diameter: 49.4 mm Bolt Length: 65.5 mm Valve Pocket...

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 15.25 mm Oversize: 0.25 mm Compression Height: 47 mm Height: 73 mm Cyl.Bore: 84.25 mm Bolt d.: 32 mm Recess Diameter: 47.5 mm Bolt Length: 63 mm Component No.: 08-432205-10 Machined: with cut-out for oil jet

Supplementary Article/Info 2: with bush for piston pin boss, with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 14.4 mm Oversize: 0.5 mm Compression Height: 48.4 mm Height: 73.2 mm Cyl.Bore: 84.51 mm Bolt d.: 30 mm Recess Diameter: 48.23 mm Bolt Length: 63.65 mm Valve Pocket Depth 1: 0.06 mm Component No.:...

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.71 mm Recess Depth 2: 4.9 mm Oversize: 0.6 mm Compression Height: 46.61 mm Height: 72 mm Cyl.Bore: 85.6 mm Bolt d.: 30 mm Recess Diameter: 51.3 mm Bolt Length: 72 mm Component No.: 08-443108-00 Machined: with cut-out for oil jet Piston...

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.71 mm Recess Depth 2: 4.9 mm Oversize: 0.6 mm Compression Height: 46.61 mm Height: 72 mm Cyl.Bore: 85.6 mm Bolt d.: 30 mm Recess Diameter: 51.3 mm Bolt Length: 72 mm Component No.: 08-443108-00 Machined: with cut-out for oil jet Piston...

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Piston Clearance: 0.05 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 67 mm Component No.: 08-427700-00 Machined: with cut-out for oil...

Production Number: 08683-101 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 15.85 mm Oversize: 0.5 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86.5 mm Bolt d.: 30 mm Recess Diameter: 46.9 mm Bolt Length: 66 mm Component No.: 08-427707-00 Machined: with cut-out for oil jet

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Piston Clearance: 0.05 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 67 mm Component No.: 08-427700-00 Machined: with cut-out for oil...

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Oversize: 0.5 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86.5 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 66.85 mm Component No.: 08-427707-00 Machined: with cut-out for oil jet

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Oversize: 0.5 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86.5 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 66.85 mm Component No.: 08-427707-00 Machined: with cut-out for oil jet
