Engine piston 83.50 fits Mercedes OM651 CLA-C-E-200-220-250 CDI Sprinter 2.1 2007-

€92.99

VAT included

Production Number: 08349F416
Supplementary Article/Info 2: with bush for piston pin boss, with cooling duct, with piston ring carrier, for keystone connecting rod
Recess Depth 1: 13.25 mm
Recess Depth 2: 4 mm
Oversize: 0.5 mm
Compression Height: 48.5 mm
Height: 75.5 mm
Cyl.Bore: 83.5 mm
Bolt d.: 30.1 mm
Recess Diameter: 49.4 mm
Bolt Length: 65.5 mm
Valve Pocket Depth 1: 1.55 mm
Component No.: 08-433407-00
Machined: with cut-out for oil jet
Piston Chamber Volume: 25.52 cc
Power from: 125 kW

Security policy

Delivery policy

Shipping outside the EU

Return policy

Description
Product Details

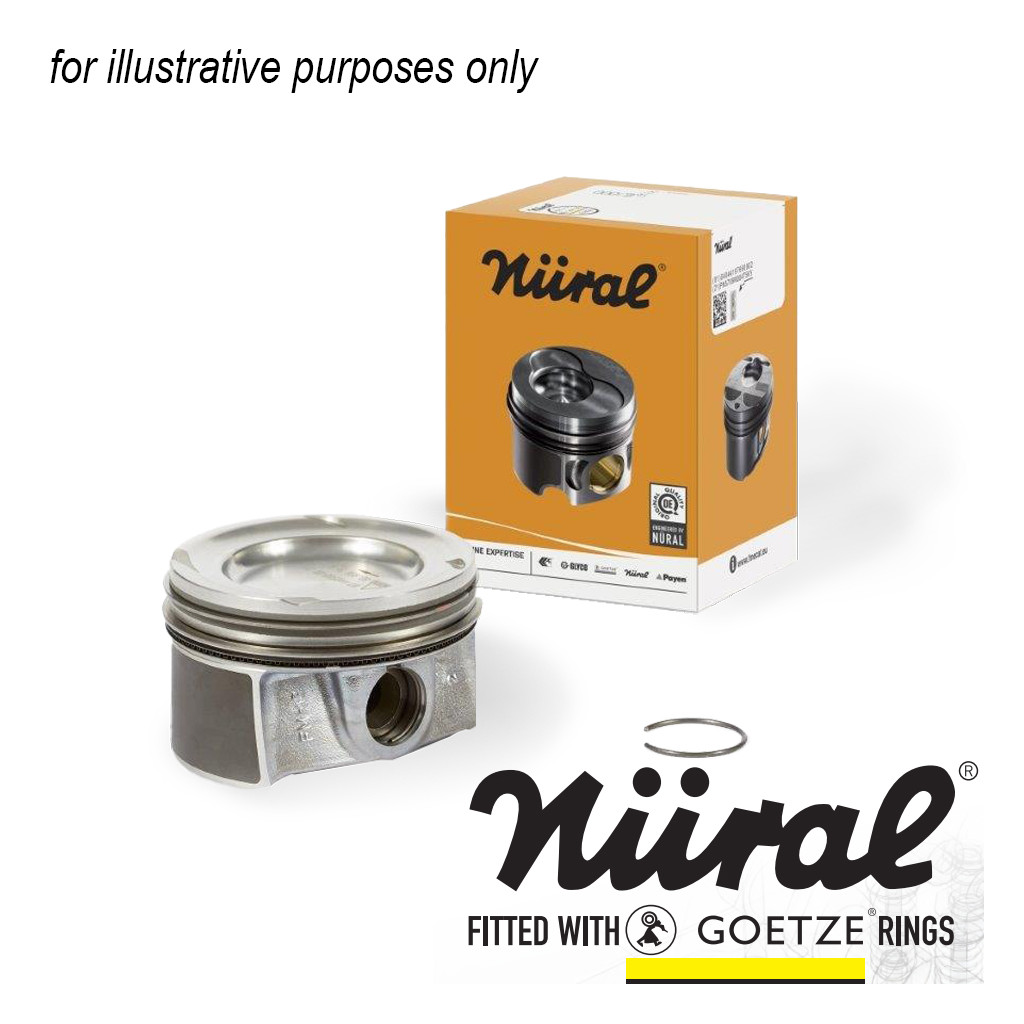

Nüral pistons fitted with Goetze rings, both from Federal-Mogul, offer OE-quality performance trusted by leading automotive manufacturers. Designed for durability and precision, they ensure optimal engine efficiency, sealing, and reliability..

BrandNural

Reference 87-433407-10

In stock10 Items

Data sheet

Region: Turkey
Fitment: Direct Replacement
Reference OE/OEM Number: A6510301017
A6510303217
MPN: 87-433407-10

Compatibility With Cars

Mercedes

GLC (X253) 2015 - current

GLC 220 D 4-matic ( / 170 Hp / Diesel / OM 651.921)

GLC 250 D 4-matic ( / 204 Hp / Diesel / OM 651.921)

GLE (W166) 2015 - 2019

GLE 250 CDI BlueTec 4-matic (2.1L / 204 Hp / Diesel / OM 651.960)

GLE 250 D (2.1L / 204 Hp / Diesel / OM 651.960)

GLC Coupe (C253) 2016 - current

GLC 220 D 4-matic (2.1L / 170 Hp / Diesel / OM 651.921)

GLC 250 D 4-matic (2.1L / 204 Hp / Diesel / OM 651.921)

ML III (W166) 2011 - 2015

ML 250 CDI BlueTec 4-matic (2.1L / 204 Hp / Diesel / OM 651.960)

C Estate IV (S205) 2014 - current

C 250 D BlueTEC 4-matic (2.1L / 204 Hp / Diesel / OM 651.921)

C 220 D 4-matic (2.1L / 170 Hp / Diesel / OM 651.921)

C 250 D BlueTEC (2.1L / 204 Hp / Diesel / OM 651.921)

C 300 BlueTEC Hybrid (2.1L / 204 Hp / Hybrid / OM 651.921)

C 200 D (2.1L / 136 Hp / Diesel / OM 651.921)

C 220 D BlueTEC (2.1L / 170 Hp / Diesel / OM 651.921)

C Estate III (S204) 2007 - 2014

C 250 CDI (2.1L / 204 Hp / Diesel / OM 651.911)

C 220 CDI (2.1L / 170 Hp / Diesel / OM 651.911)

C 220 CDI (2.1L / 163 Hp / Diesel / OM 651.911)

C 250 CDI 4-matic (2.1L / 204 Hp / Diesel / OM 651.912)

C 220 CDI 4-matic (2.1L / 170 Hp / Diesel / OM 651.912)

C Cabrio IV (A205) 2014 - current

C 220 D (2.1L / 163 Hp / Diesel / OM 651.921)

C 220 D 4-matic (2.1L / 170 Hp / Diesel / OM 651.921)

C 250 D (2.1L / 204 Hp / Diesel / OM 651.921)

C Saloon III (W204) 2007 - 2013

C 220 CDI (2.1L / 170 Hp / Diesel / OM 651.911)

C 250 CDI (2.1L / 204 Hp / Diesel / OM 651.911)

C 250 CDI 4-matic (2.1L / 204 Hp / Diesel / OM 651.912)

C 220 CDI 4-matic (2.1L / 170 Hp / Diesel / OM 651.912)

C Coupe III (C205) 2014 - current

C 250 BlueTEC (2.1L / 204 Hp / Diesel / OM 651.921)

C 250 D 4-matic (2.1L / 204 Hp / Diesel / OM 651.921)

C 220 D 4-matic (2.1L / 170 Hp / Diesel / OM 651.921)

C 220 D (2.1L / 170 Hp / Diesel / OM 651.921)

GLK (X204) 2008 - 2015

GLK 250 CDI 4-matic BlueTec (2.0L / 204 Hp / Diesel / OM 651.912)

GLK 250 CDI 4-matic (2.1L / 204 Hp / Diesel / OM 651.912)

GLK 220 CDI 4-matic (2.1L / 163 Hp / Diesel / OM 651.912)

GLK 220 CDI 4-matic (2.1L / 170 Hp / Diesel / OM 651.912)

SLK III (R172) 2011 - 2015

SLK 250 CDI (2.1L / 204 Hp / Diesel / OM 651.980)

E Coupe II (C207) 2009 - 2016

E 220 CDI (2.1L / 163 Hp / Diesel / OM 651.911)

E 220 BlueTEC (2.1L / 177 Hp / Diesel / OM 651.911)

E 220 CDI (2.1L / 170 Hp / Diesel / OM 651.911)

E 250 CDI (2.1L / 204 Hp / Diesel / OM 651.911)

SLC (R172) 2016 - current

SLC 250 D (2.1L / 204 Hp / Diesel / OM 651.980)

E Cabrio II (A207) 2010 - 2016

E 250 CDI (2.1L / 204 Hp / Diesel / OM 651.911)

E 220 CDI (2.1L / 170 Hp / Diesel / OM 651.911)

E 220 BlueTEC (2.1L / 177 Hp / Diesel / OM 651.911)

SLC (R172) 2015 - 2020

SLC 250 D (2.1L / 204 Hp / Diesel / OM 651.980)

E Estate IV (S212) 2009 - 2016

E 250 CDI (2.1L / 204 Hp / Diesel / OM 651.924)

E 250 CDI 4-matic (2.1L / 204 Hp / Diesel / OM 651.924)

E 220 CDI (2.1L / 163 Hp / Diesel / OM 651.924)

E 220 BlueTEC 4-matic (2.1L / 170 Hp / Diesel / OM 651.924)

E 220 CDI (2.1L / 170 Hp / Diesel / OM 651.924)

E 300 Hybrid (2.1L / 204 Hp / Hybrid / OM 651.924)

E Saloon IV (W212) 2009 - 2016

E 220 BlueTEC 4-matic (2.1L / 170 Hp / Diesel / OM 651.924)

E 250 CDI (2.1L / 197 Hp / Diesel / OM 651.924)

E 220 CDI (2.1L / 170 Hp / Diesel / OM 651.924)

E 250 CDI (2.1L / 204 Hp / Diesel / OM 651.924)

E 250 CDI 4-matic (2.1L / 204 Hp / Diesel / OM 651.924)

E 220 BlueTEC (2.1L / 177 Hp / Diesel / OM 651.924)

E 250 CDI/BlueTEC 4-matic (2.1L / 197 Hp / Diesel / OM 651.924)

E 220 CDI (2.1L / 136 Hp / Diesel / OM 651.924)

E 300 Hybrid (2.1L / 204 Hp / Hybrid / OM 651.924)

CLS Shooting Brake II (X218) 2012 - 2017

CLS 250 BlueTEC 4-matic (2.1L / 204 Hp / Diesel / OM 651.924)

CLS 250 CDI (2.1L / 204 Hp / Diesel / OM 651.924)

CLS 220 BlueTEC (2.1L / 170 Hp / Diesel / OM 651.924)

CLS II (C218) 2011 - 2017

CLS 250 CDI (2.1L / 204 Hp / Diesel / OM 651.924)

CLS 250 BlueTEC 4-matic (2.1L / 204 Hp / Diesel / OM 651.924)

CLS 220 BlueTEC (2.1L / 163-177 Hp / Diesel / OM 651.924)

S VII (W222) 2013 - 2020

S 300 L BlueTEC Hybrid (2.1L / 231 Hp / Hybrid / OM 651.921)

S 300 BlueTEC Hybrid (2.1L / 204 Hp / Hybrid / OM 651.921)

S VI (W221) 2005 - 2013

S 250 L CDI (2.1L / 204 Hp / Diesel / OM 651.961)

S 250 CDI (2.1L / 204 Hp / Diesel / OM 651.961)

C Coupe II (C204) 2011 - 2015

C 220 CDI (2.1L / 170 Hp / Diesel / OM 651.911)

C 250 CDI (2.1L / 204 Hp / Diesel / OM 651.911)

C Saloon IV (W205) 2013 - current

C 220 D 4-matic (2.1L / 170 Hp / Diesel / OM 651.921)

C 250 D BlueTEC (2.1L / 204 Hp / Diesel / OM 651.921)

C 300 BlueTEC Hybrid (2.1L / 204 Hp / Hybrid / OM 651.921)

C 220 D BlueTEC (2.1L / 170 Hp / Diesel / OM 651.921)

C 220 D (2.1L / 163 Hp / Diesel / OM 651.921)

C 220 CDI (2.1L / 170 Hp / Diesel / OM 651.921)

C 200 D (2.1L / 136 Hp / Diesel / OM 651.921)

C 250 D BlueTEC 4-matic (2.1L / 204 Hp / Diesel / OM 651.921)

Specific References

Condition New
