Bore: 85.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.50mm

Bore: 86.60mm Length: 58.4 mm Compression Height: 33.9 mm Pin Length: 62 mm Pin Diameter: 22 mm Recess Depth 1: 2 mm Recess Diameter: 71.92 mm Valve Pocket Depth 1: 1.74 mm Valve Pocket Depth 2: 1.35 mm Machined: with cut-out for oil jet Surface: Tin-plated Production Number: 86 L 32 Piston Clearance: 0.035 mm Piston rings: 1.50x1.50x3.00mm

Bore: 75.00mm Top ring: 1.20mm 2nd ring: 1.00mm 3rd ring: 2.00mm

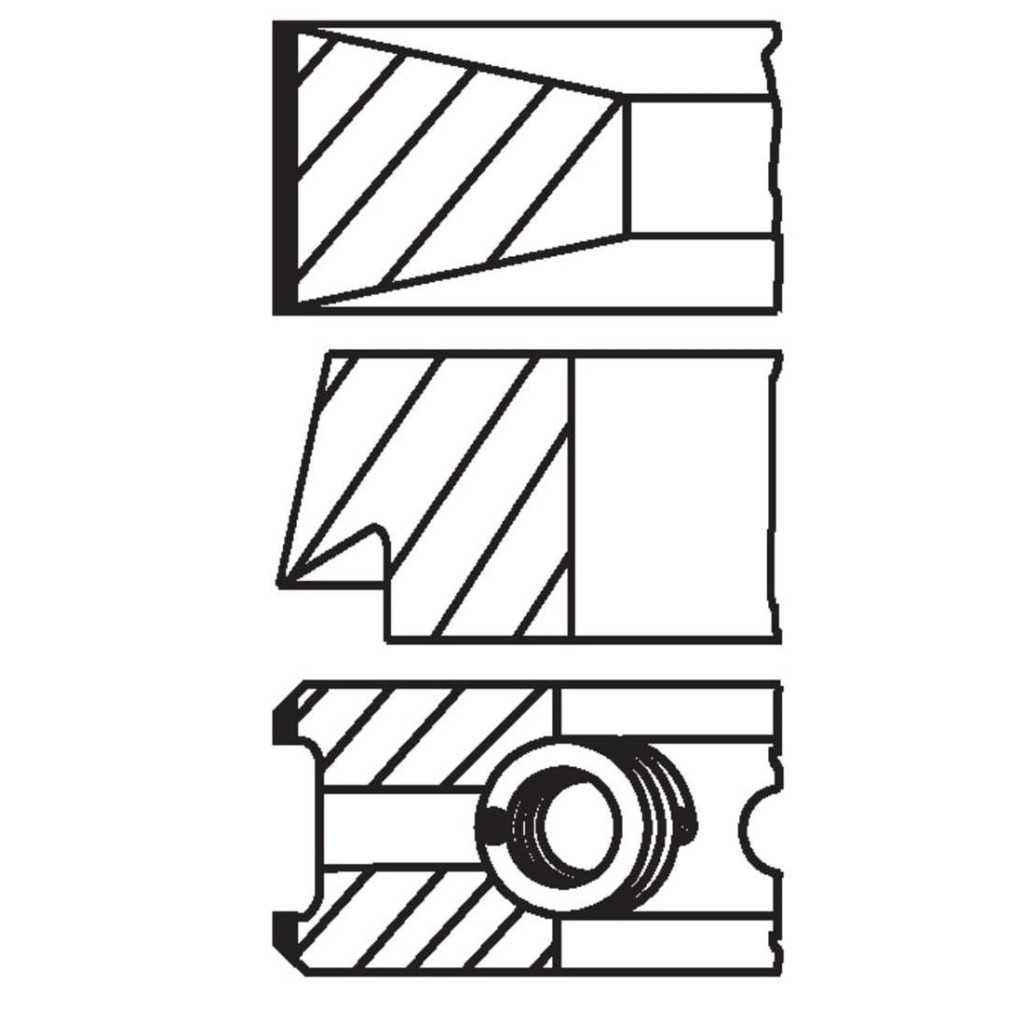

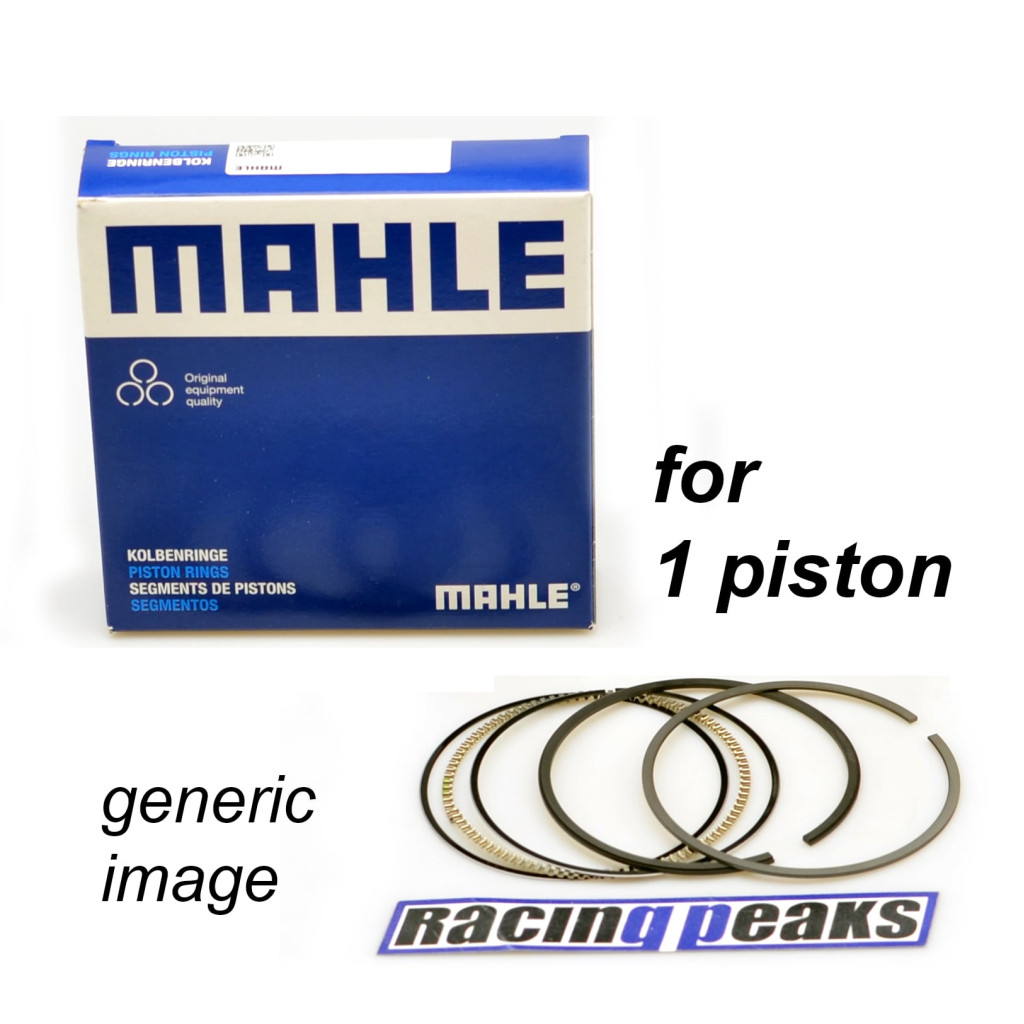

Bore: 100.00mm Top ring: 3.50mm 2nd ring: 2.50mm 3rd ring: 3.50mm

Bore: 127.00mm Top ring: 3.50mm 2nd ring: 2.38mm 3rd ring: 4.74mm

Bore: 84.50mm Length: 63.4 mm Compression Height: 34.2 mm Pin Length: 54 mm Pin Diameter: 22 mm Recess Depth 1: 6.7 mm Recess Diameter: 64.3 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 0.4 mm Surface: Tin-plated Top Land Height: 7.5 mm Production Number: 84 V 137 Piston Clearance: 0.02 mm Piston rings: 1.50x1.75x3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Quantity Unit: 5 Pairs Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm For wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm

Quantity Unit: 1 Pair Oversize: 0.00 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm Wall: 2.5 mm, until 2.506 mm for shaft diameter: 55.951 mm, until 55.97 mm Quantity Unit: 1 Pair Oversize: 0.00 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 70 mm, until...

Quantity Unit: 1 Pair Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm Wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm Quantity Unit: 1 Pair Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 70 mm, until...

Bore: 77.00mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...
