Bore: 77.00mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.25mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.25mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 2.05 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L182 Piston Rings: 1.20x1.50x2.00mm Piston rings: 1.20x1.50x2.00mm

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 3.57 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L177 Piston rings: 1.20x1.50x2.00mm

Length: 51.3 mm Cyl.Bore: 82 mm Bolt Ø: 22 mm Piston Clearance: 0.07 mm Production Number: 82 L 209 Compression Height: 33.27 mm Recess Diameter: 56 mm Bolt Length: 55 mm Recess Depth 1: 3.57 mm Top Land Height: 7 mm Piston Clearance: 0.07 mm

Quantity Unit: 1 Pair Oversize: 0.00 mm Surface: Galvanically coated for bearing clearance: 0.011 mm, until 0.063 mm for housing diameter: 53.6 mm, until 53.616 mm Width: 17.3 mm, until 17.55 mm For wall: 1.786 mm, until 1.796 mm for shaft diameter: 49.981 mm, until 49.997 mm

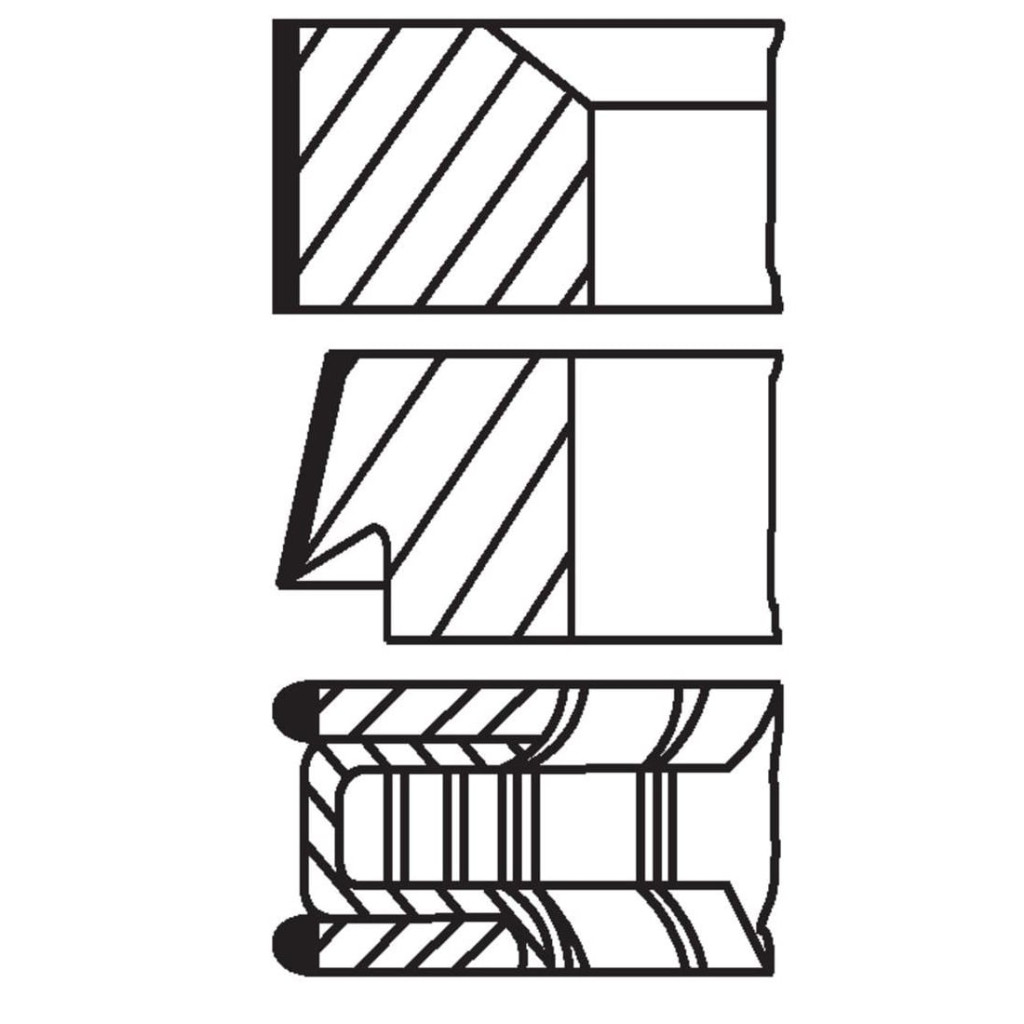

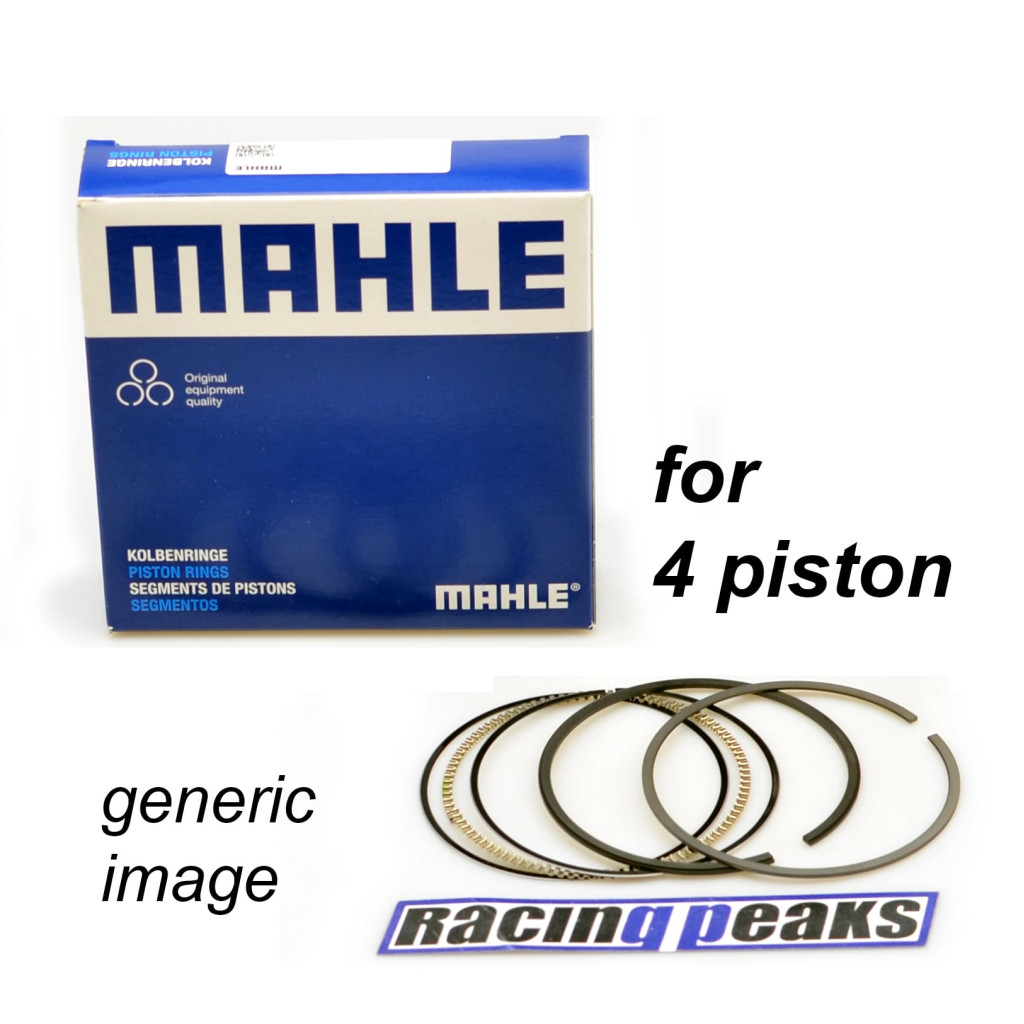

Bore: 84.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 77.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 77.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm
