Supplementary Info: with valve stem seals, with cylinder head gasket Head gasket thickness: 1.20 mm Head gasket hole: 83.8 mm Head gasket design: Multilayer Steel (MLS) Head gasket layers: 5 -layer

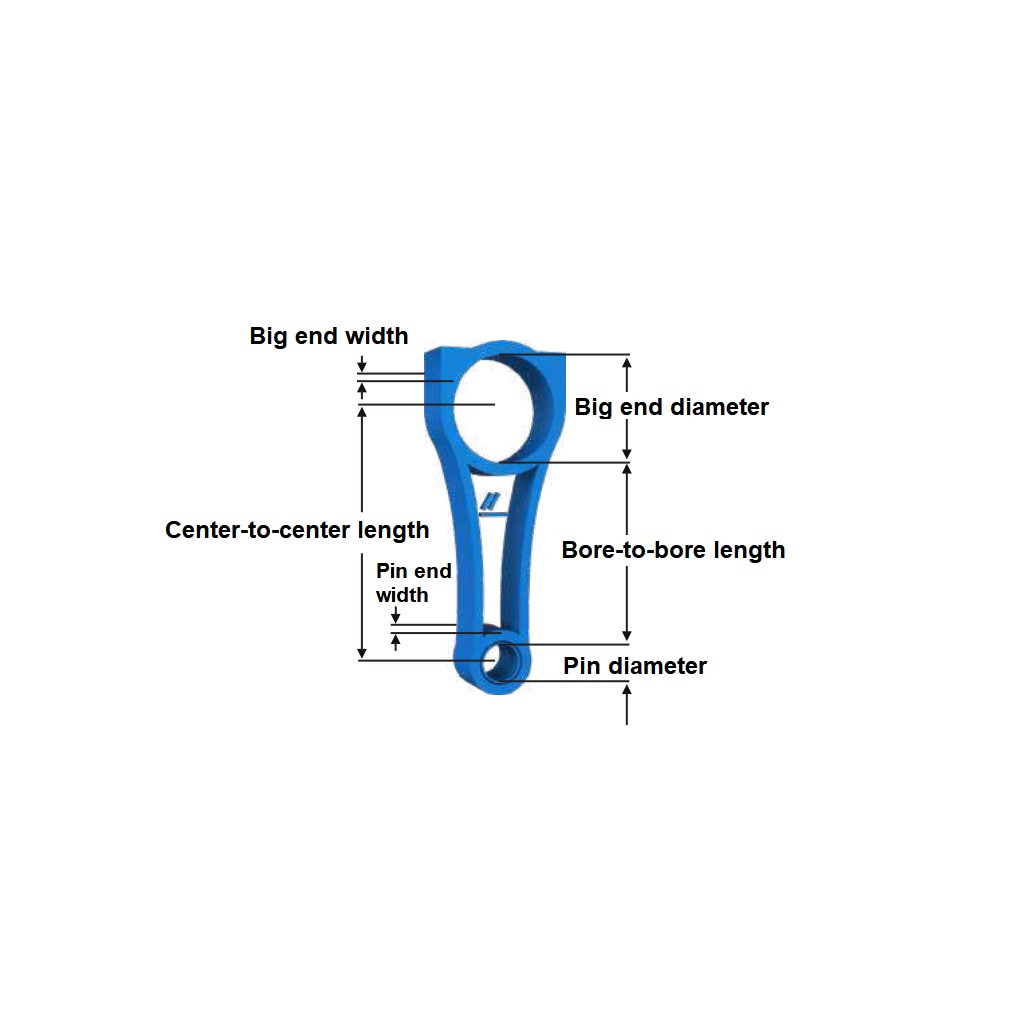

Number in pack: 1Big end width: 21.900 Big end diameter: 55.600-55.615 Center-to-center length: 143.500 Bore-to-bore length: 100.700 Pin end width: 21.900 Pin diameter: 30.028-30.035 Weight: 760 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 25 Nm + 90 degree

Number in pack: 1Big end width: 20.000 Big end diameter: 45.000-45.014 Center-to-center length: 152.150 Bore-to-bore length: 119.650 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 440 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm

Number in pack: 1Big end width: 20.000 Big end diameter: 45.000-45.014 Center-to-center length: 152.150 Bore-to-bore length: 119.650 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 440 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm

Number in pack: 1Big end width: 20.000 Big end diameter: 51.600-51.619 Center-to-center length: 152.200 Bore-to-bore length: 116.400 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 470 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm; 2nd Torque Option: 5Nm+15Nm+90°

Number in pack: 1Big end width: 20.000 Big end diameter: 51.600-51.619 Center-to-center length: 152.200 Bore-to-bore length: 116.400 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 470 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm; 2nd Torque Option: 5Nm+15Nm+90°

Number in pack: 1Big end width: 20.000 Big end diameter: 51.600-51.619 Center-to-center length: 152.200 Bore-to-bore length: 116.400 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 470 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm; 2nd Torque Option: 5Nm+15Nm+90°

Number in pack: 1Big end width: 20.200 Big end diameter: 55.600-55.614 Center-to-center length: 154.100 Bore-to-bore length: 111.300 Pin end width: 22.000 Pin diameter: 30.015-30.028 Weight: 715 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 25 Nm + 90 degree

Number in pack: 1Big end diameter: 47.614-47.625 Center-to-center length: 142.300 Bore-to-bore length: 105.500 Pin diameter: 26.020-26.035 Weight: 560 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: Used in forged-steel piston engines

Number in pack: 1Big end diameter: 47.614-47.625 Center-to-center length: 142.300 Bore-to-bore length: 105.500 Pin diameter: 26.020-26.035 Weight: 560 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: Used in forged-steel piston engines

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree
