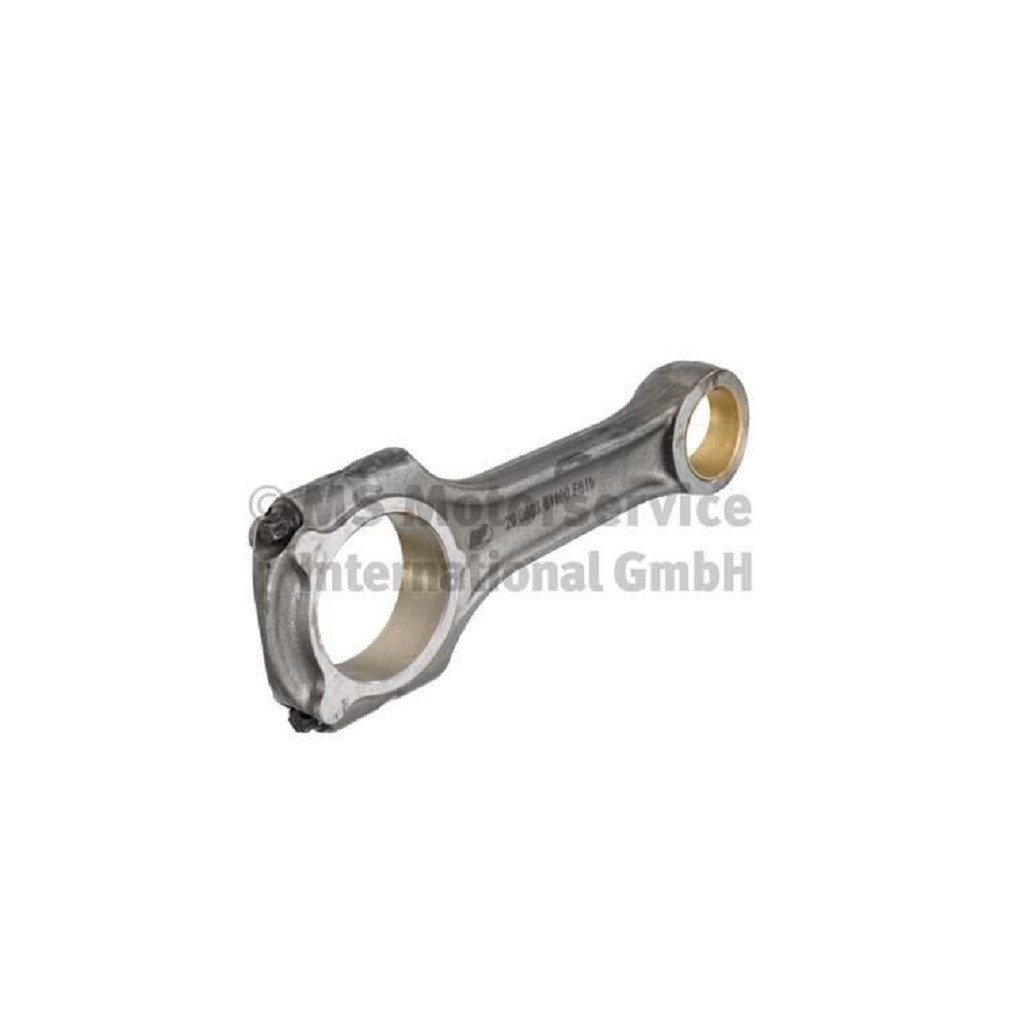

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: with oil hole

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: with oil hole

Conrod design: trapezoidal connecting rod Large connecting rod eye bore diameter: 51.6mm Small connecting rod eye diameter: 30.0mm Width big end: 22.0mm Width small end: 22.0mm Type of connecting rod separation: cracked Length: 149.0mm

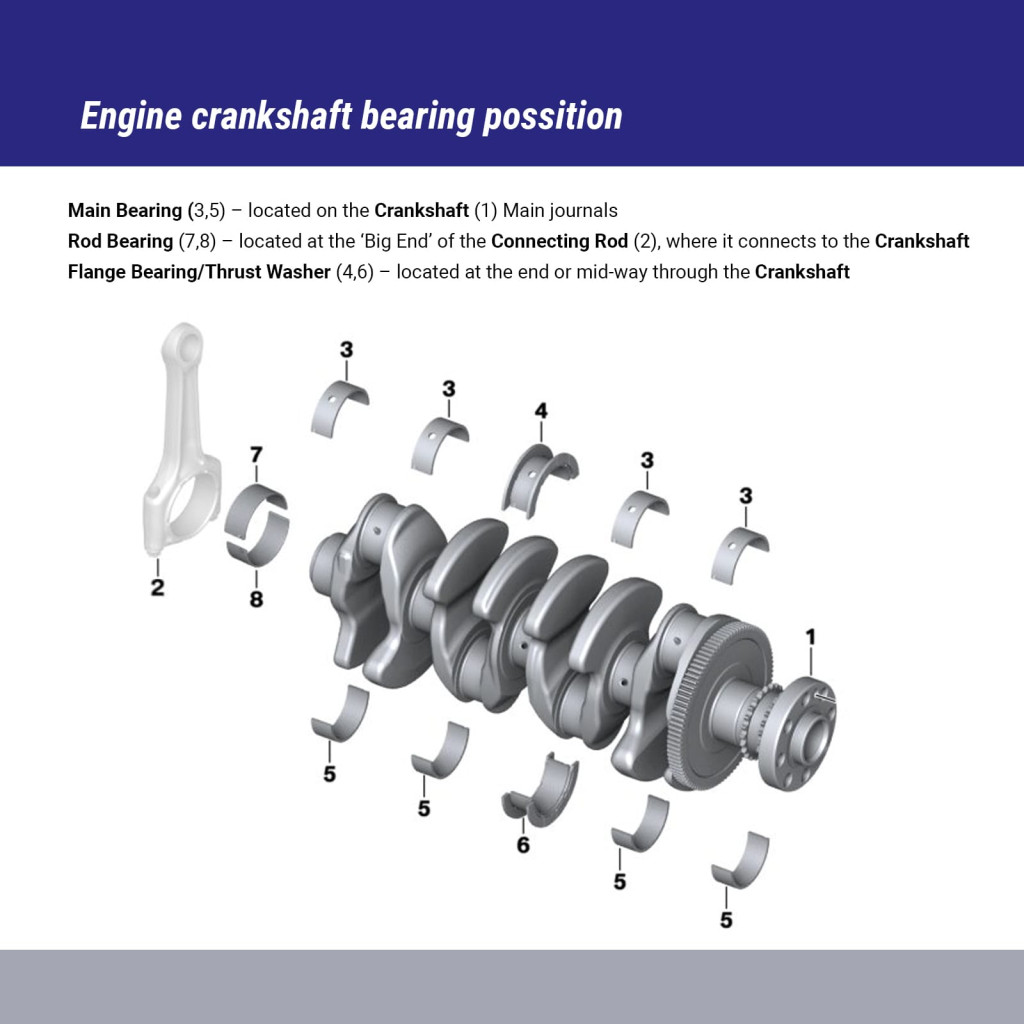

Position: Crankshaft Quantity: 1 pc Shaft diameter: 54.690 / 54.715mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.141mm Bearing width: 19.00mm Position: Crankshaft Quantity: 3 pcs Shaft diameter: 54.690 / 54.715mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.141mm Bearing width: 19.00mm Position: Crankshaft Quantity: 4 pcs Shaft...

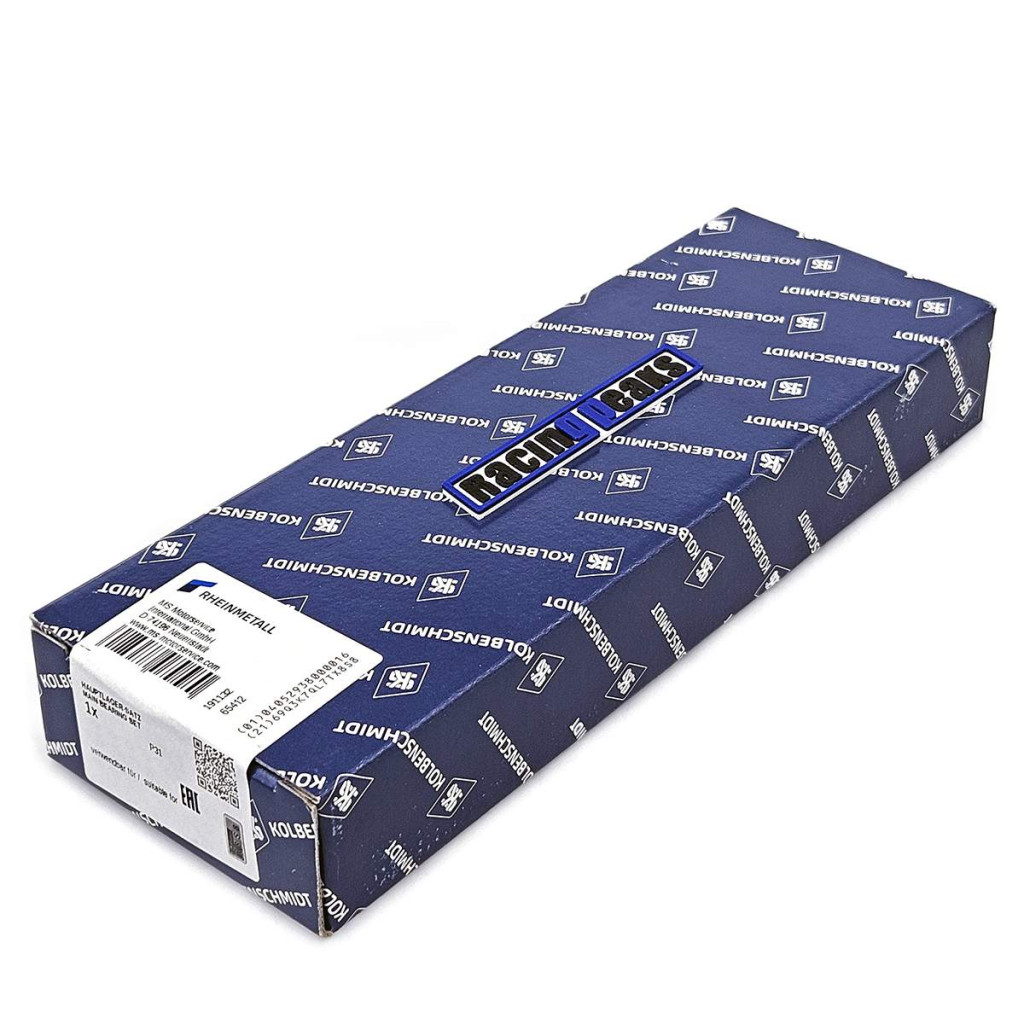

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 51.485 / 51.500mm Housing bore: 55.497 / 55.511 m Wall thickness: 1.985mm Bearing width: 17.00mm

Possition: Connecting rod Quantity: 4 pairs Shaft diameter : 39.990 mm / 40.010 mm Housing bore: 43.674 mm / 43.690 mm Wall thickness: 1.823 mm Bearing width: 18.30 mm

Possition: Connecting rod Quantity: 4 pairs Shaft diameter : 39.990 mm / 40.010 mm Housing bore: 43.674 mm / 43.690 mm Wall thickness: 1.823 mm Bearing width: 18.30 mm

Possition: Crankshaft Quantity: 1 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm Possition: Crankshaft Quantity: 4 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm

Possition: Crankshaft Quantity: 1 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm Possition: Crankshaft Quantity: 4 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm

Bolt length [mm]: 66 Bolt Ø [mm]: 30 Component Number: 60485; 60486; 61438 Compression Height [mm]: 45,65 Cylinder Piston Diameter [mm]: 83,01 Length [mm]: 71,65 Production Number: 083092 Quantity: 3 Recess Depth 1 [mm]: 14,65 Recess Diameter [mm]: 43,4 Thickness [mm] 60485: 3,6 Height [mm] 60485: 2 Material 60485: Grey Cast Iron Surface 60485:...

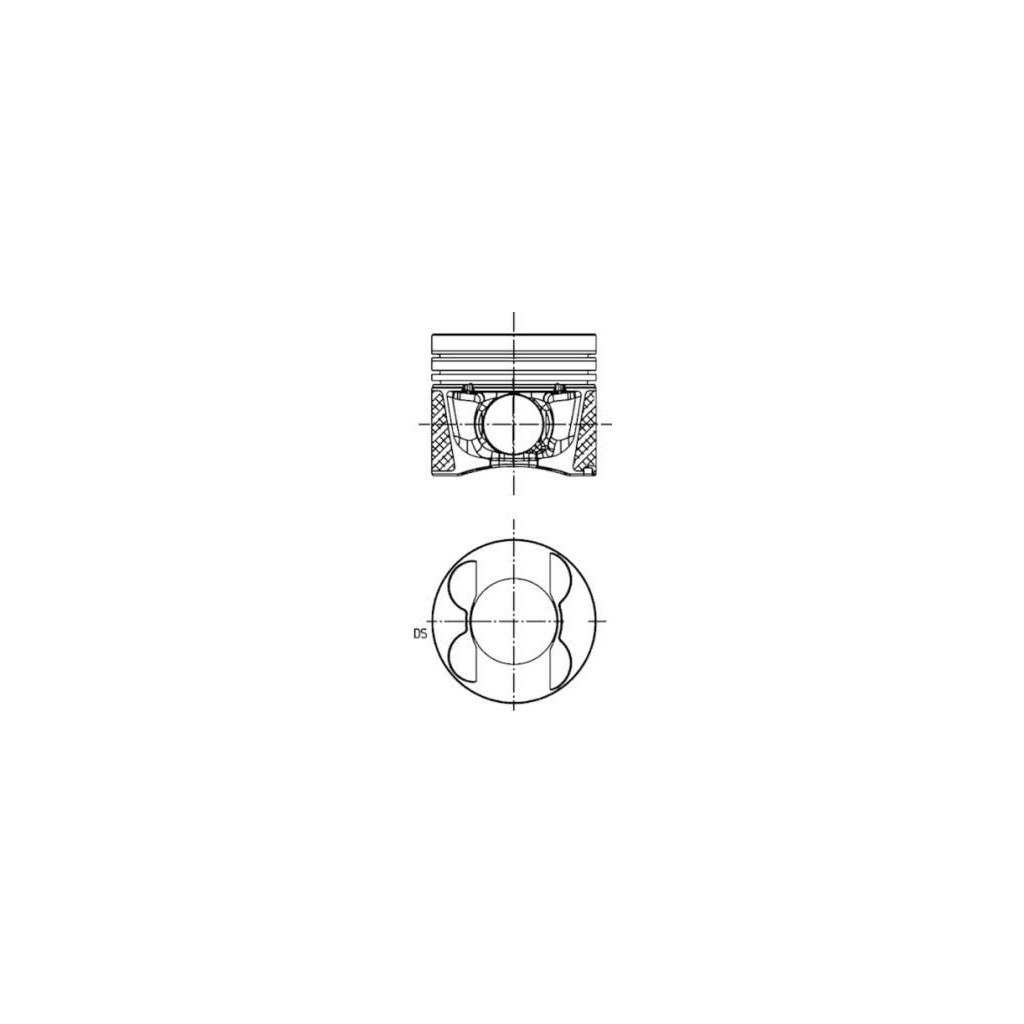

Cyl.Bore: 83.51mm Compression Height: 45.65mm Length: 71.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.4mm Component No.: 62409, 62408, 62591 Bolt d.: 30mm Bolt Length: 66mm Rep. Stage: 0.50 Fitment: for cylinder 1-3

Cyl.Bore: 83.51mm Compression Height: 45.65mm Length: 71.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.4mm Component No.: 62409, 62408, 62591 Bolt d.: 30mm Bolt Length: 66mm Rep. Stage: 0.50 Fitment: for cylinder 1-3
