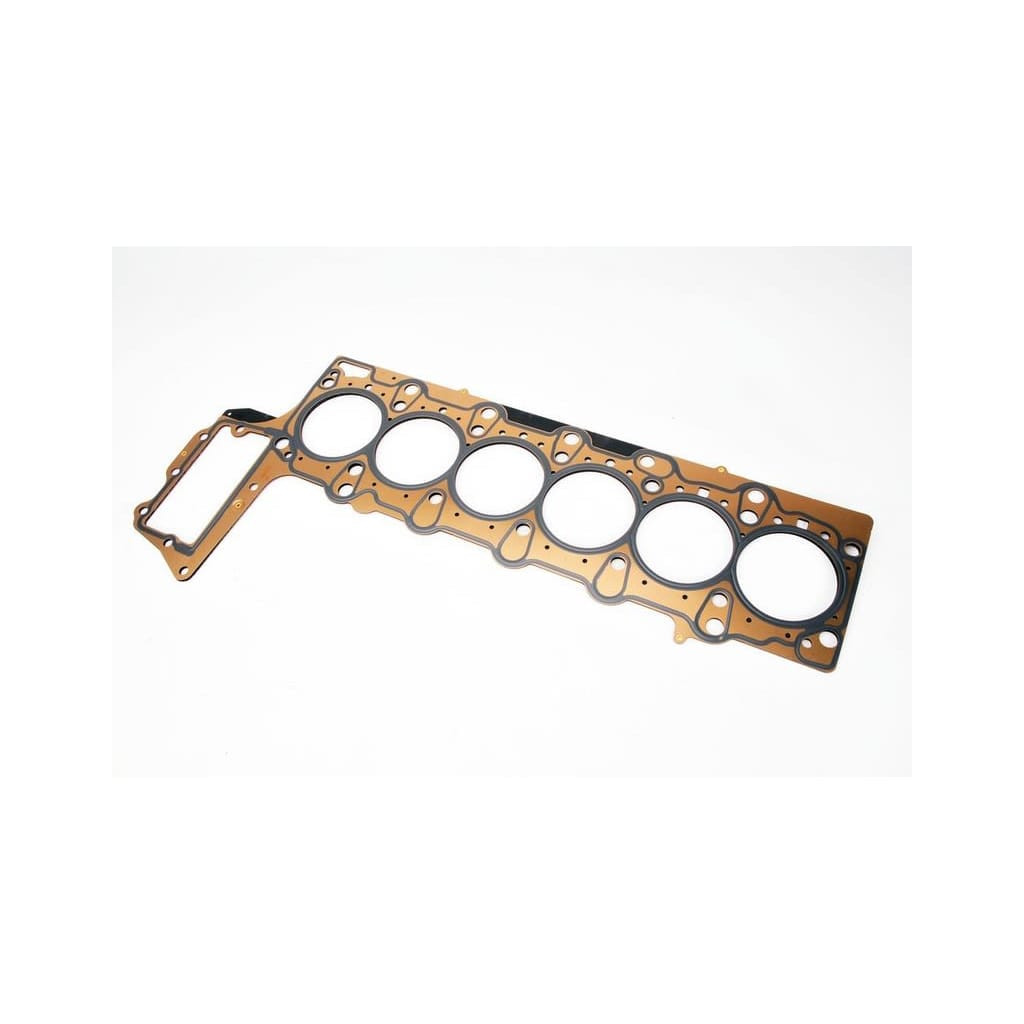

Thickness: 1.47 mm Installed Thickness: 1.47 mm Notches/Holes Number: 1 Diameter: 84.7 mm Gasket Design: Multilayer Steel (MLS) Number of layers: 3-layered

Thickness: 1.57 mm Installed Thickness: 1.57 mm Notches/Holes Number: 2 Diameter: 84.7 mm Gasket Design: Multilayer Steel (MLS) Number of layers: 3-layered

Supplementary Info: with crankshaft seal, with oil pan gasket for OE no.: 11112159389

Supplementary Info: with crankshaft seal, with oil pan gasket for OE no.: 11112158085

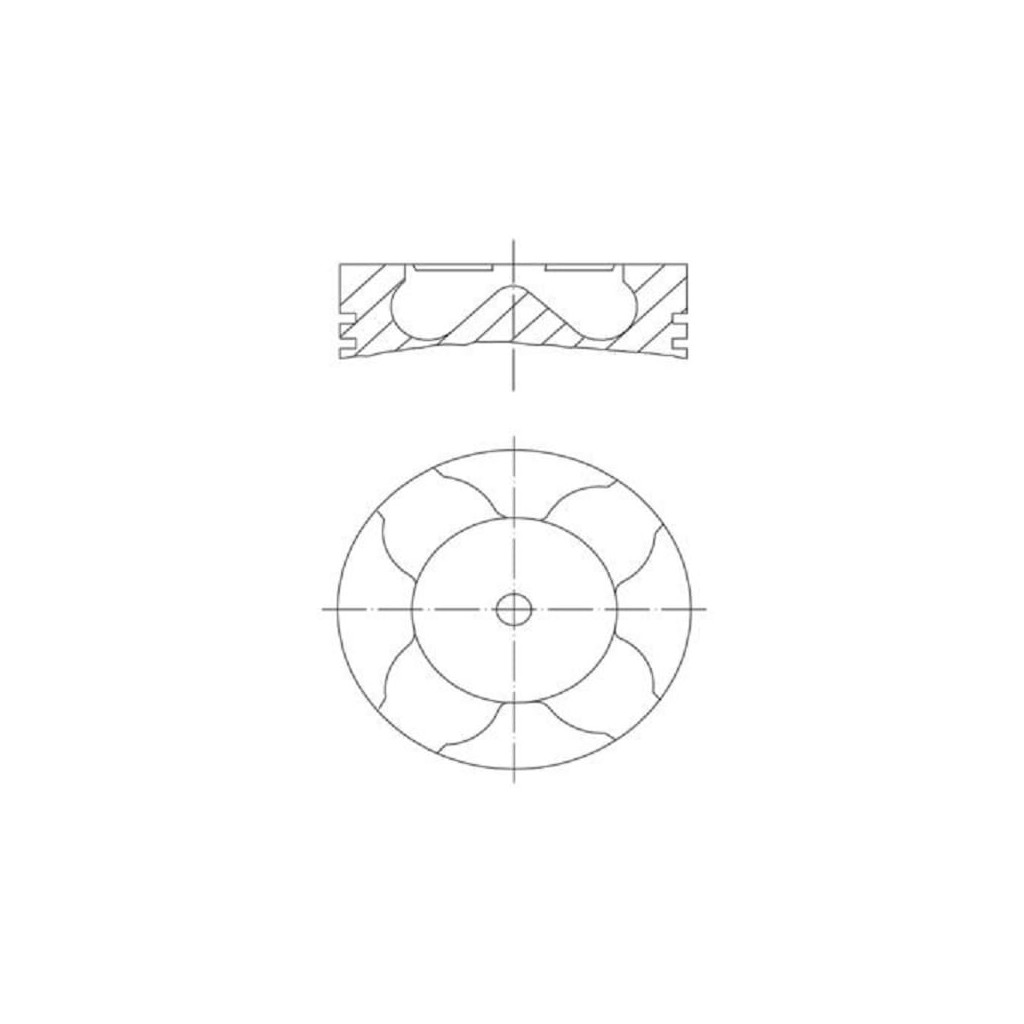

Bore: 84.50mm Length: 63.4 mm Compression Height: 34.2 mm Pin Length: 54 mm Pin Diameter: 22 mm Recess Depth 1: 6.7 mm Recess Diameter: 64.3 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 0.4 mm Surface: Tin-plated Top Land Height: 7.5 mm Production Number: 84 V 137 Piston Clearance: 0.02 mm Piston rings: 1.50x1.75x3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Quantity Unit: 5 Pairs Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm For wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm

Quantity Unit: 1 Pair Oversize: 0.00 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm Wall: 2.5 mm, until 2.506 mm for shaft diameter: 55.951 mm, until 55.97 mm Quantity Unit: 1 Pair Oversize: 0.00 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 70 mm, until...

Quantity Unit: 1 Pair Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm Wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm Quantity Unit: 1 Pair Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 70 mm, until...

Construction Year: up to 06/2006 Cyl.Bore: 84 mm Length: 70.6 mm Compression Height: 44.87 mm Bolt Length: 68 mm Bolt Ø: 30 mm Recess Depth 1: 14.5 mm Recess Diameter: 47.5 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 1.4 mm Machined: with cut-out for oil jet Surface: Phosphated and graphite-coated Supplementary Article/Supplementary Info 2: with...

Construction Year: up to 06/2006 Cyl.Bore: 84 mm Length: 70.6 mm Compression Height: 44.87 mm Bolt Length: 68 mm Bolt Ø: 30 mm Recess Depth 1: 14.5 mm Recess Diameter: 47.5 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 1.4 mm Machined: with cut-out for oil jet Surface: Phosphated and graphite-coated Supplementary Article/Supplementary Info 2: with...
