Cyl.Bore: 76.51mm Compression Height: 28.92mm Length: 49.92mm Recess Depth 1: 1.98mm Valve Pocket Depth 1: 2.2mm Valve Pocket Depth 2: 2.2mm Component No.: 85724, 84762, 82611 Standard Size [STD]: Bolt d.: 17mm Bolt Length: 54mm

Bolt length [mm]: 42 Bolt Ø [mm]: 19 Component Number: 61937; 61938; 85712 Compression Height [mm]: 29,7 Cylinder Piston Diameter [mm]: 81,01 Length [mm]: 50,7 Production Number: 081178 Quantity: 3 Recess Depth 1 [mm]: 2,7 Thickness [mm] 61937: 2,75 Height [mm] 61937: 1 Material 61937: Steel Surface 61937: Blank; Nitrified Cylinder Piston Diameter [mm]...

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4

Bore: 83.00mm Ring sizes: 1.75x2.00x3.00mm Oil ring type: 2 PC. CONFORMATIC

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 10

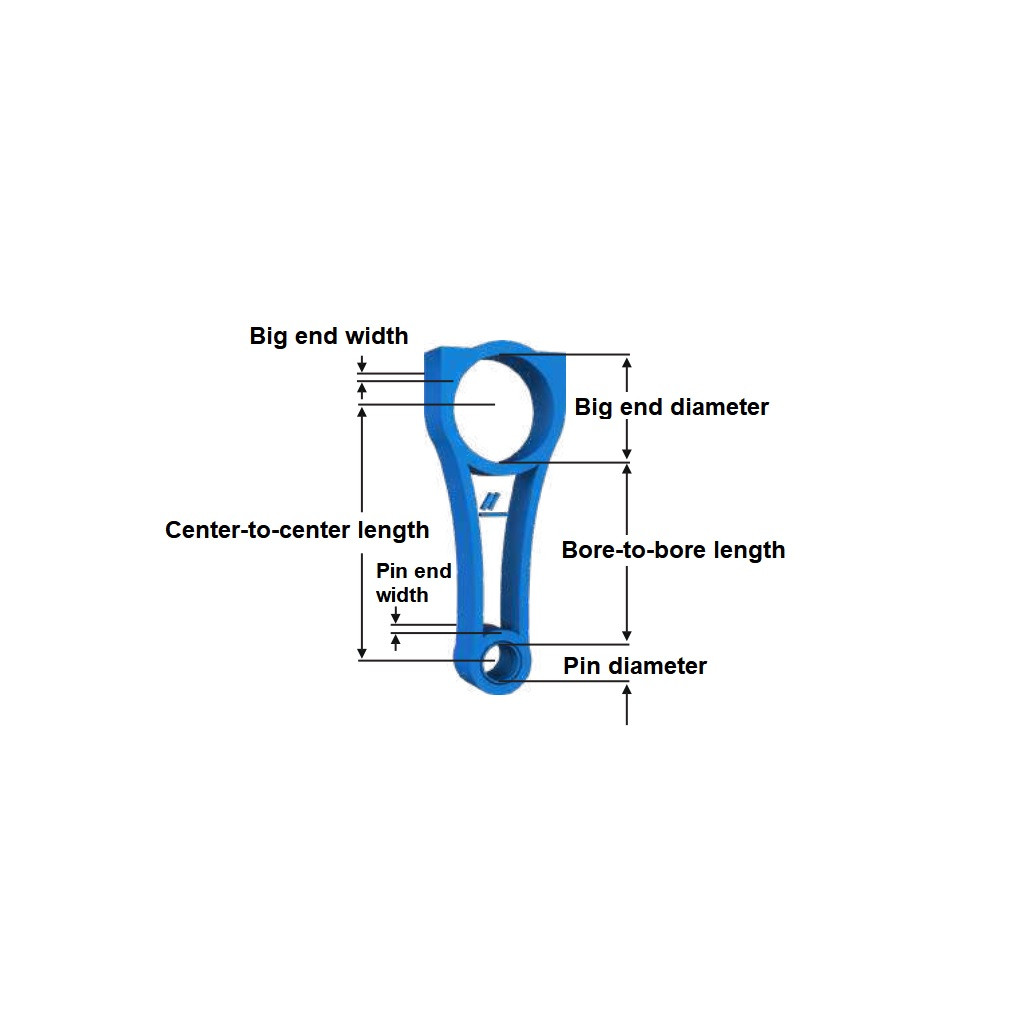

Number in pack: 1Big end width: 28.850 Big end diameter: 55.995-56.016 Center-to-center length: 155.000 Bore-to-bore length: 112.000 Pin end width: 28.850 Pin diameter: 30.020-30.035 Weight: 882 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 30 Nm + 100 degree Notice: Suitable for pistons with a compression height of 48.42 mm
