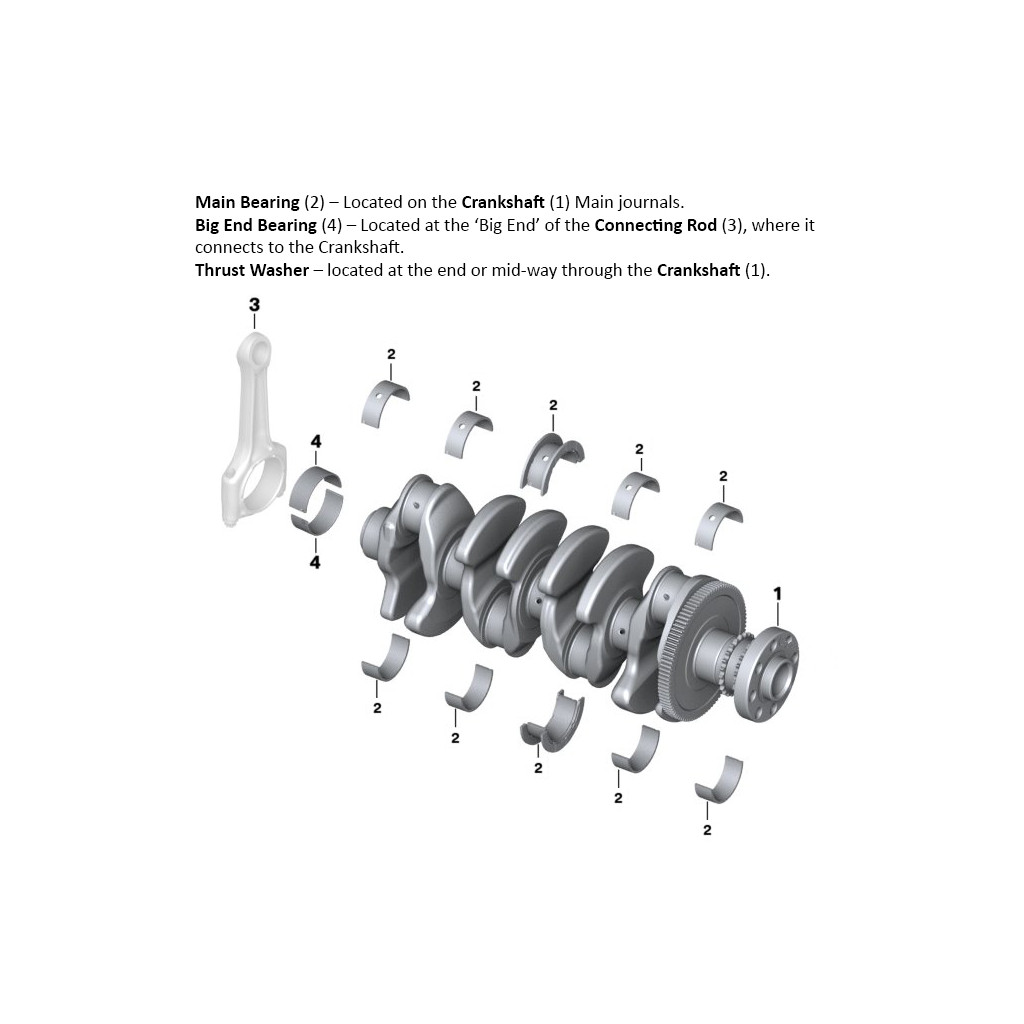

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 59.981 / 60.000mm Housing bore: 63.731 / 63.750mm Wall thickness: 1.845mm Bearing width: 20.29mm

Piston diameter: 72.50mm Compression ring: 1.20mm Second ring: 1.20mm Oil ring: 2.00mm

Piston diameter: 72.50mm Compression ring: 1.20mm Second ring: 1.20mm Oil ring: 2.00mm

Quantity Unit: Pair Oversize: 0.00 mm Surface: Galvanically coated for bearing clearance: from 0.027 mm, until 0.073 mm for housing diameter: from 45.734 mm, until 45.744 mm Width: from 19.75 mm, until 20 mm for wall: from 1.544 mm, until 1.554 mm for shaft diameter: from 42.582 mm, until 42.6 mm

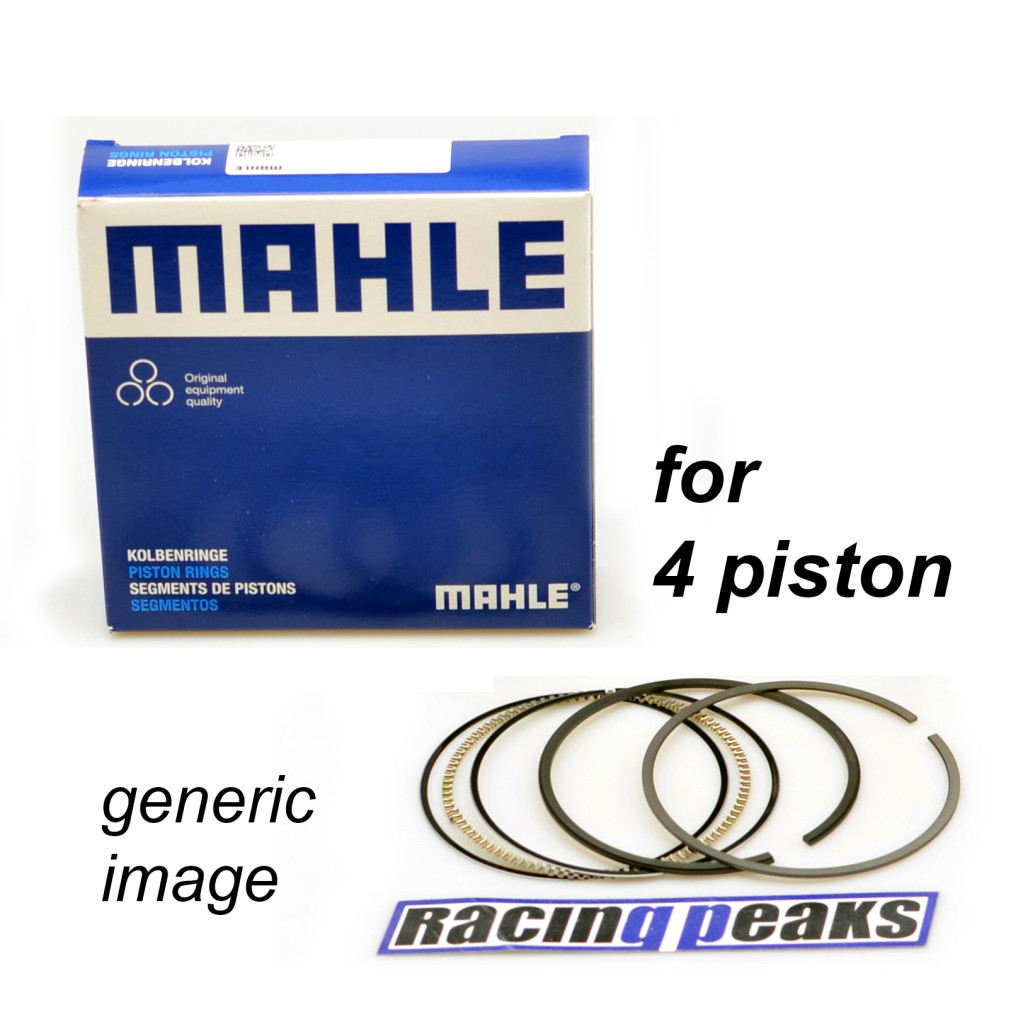

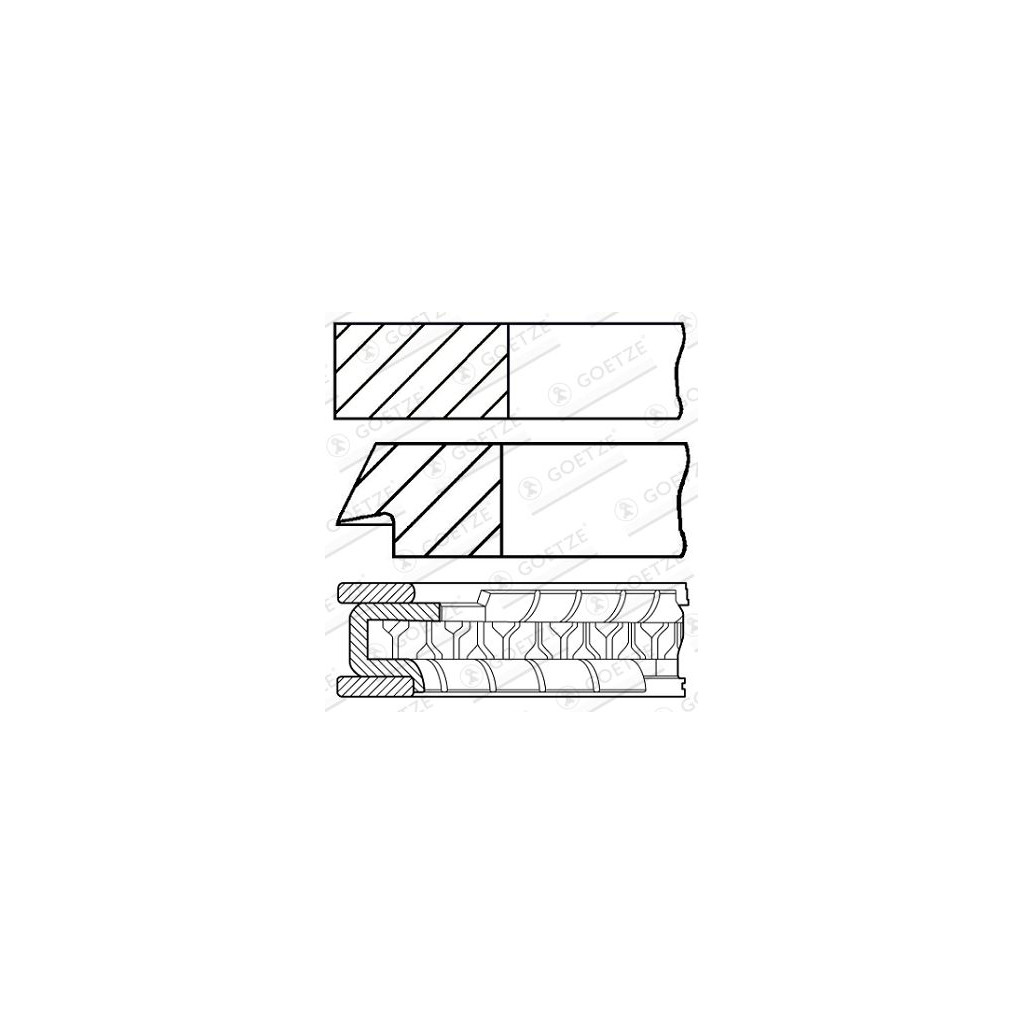

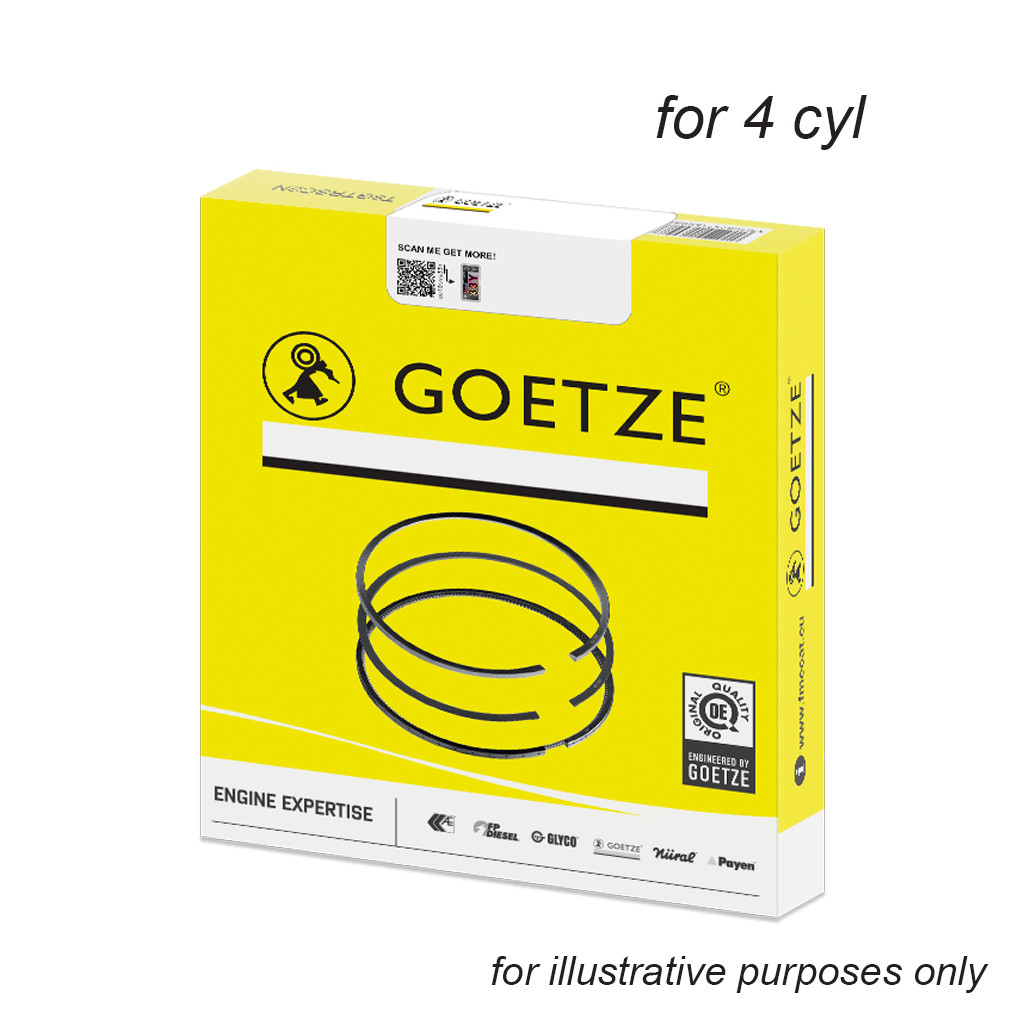

Bore: 72.00mm Top ring: 1.00mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 86.00mm Top ring: 1.50mm 2nd ring: 1.50mm 3rd ring: 3.00mm

Bore: 72.50mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 70.00mm Length: 62.4 mm Compression Height: 40.43 mm Pin Length: 56.7 mm Pin Diameter: 23 mm Recess Depth 1: 12.4 mm Recess Diameter: 37 mm Top Land Height: 7.5 mm Production Number: 69 L 46 Piston rings: 1.50x1.50x2.00mm

Bore: 70.00mm Length: 62.4 mm Compression Height: 40.43 mm Pin Length: 56.7 mm Pin Diameter: 23 mm Recess Depth 1: 12.4 mm Recess Diameter: 37 mm Top Land Height: 7.5 mm Production Number: 69 L 46 Piston rings: 1.50x1.50x2.00mm

Bore: 73.40mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 86.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.50mm

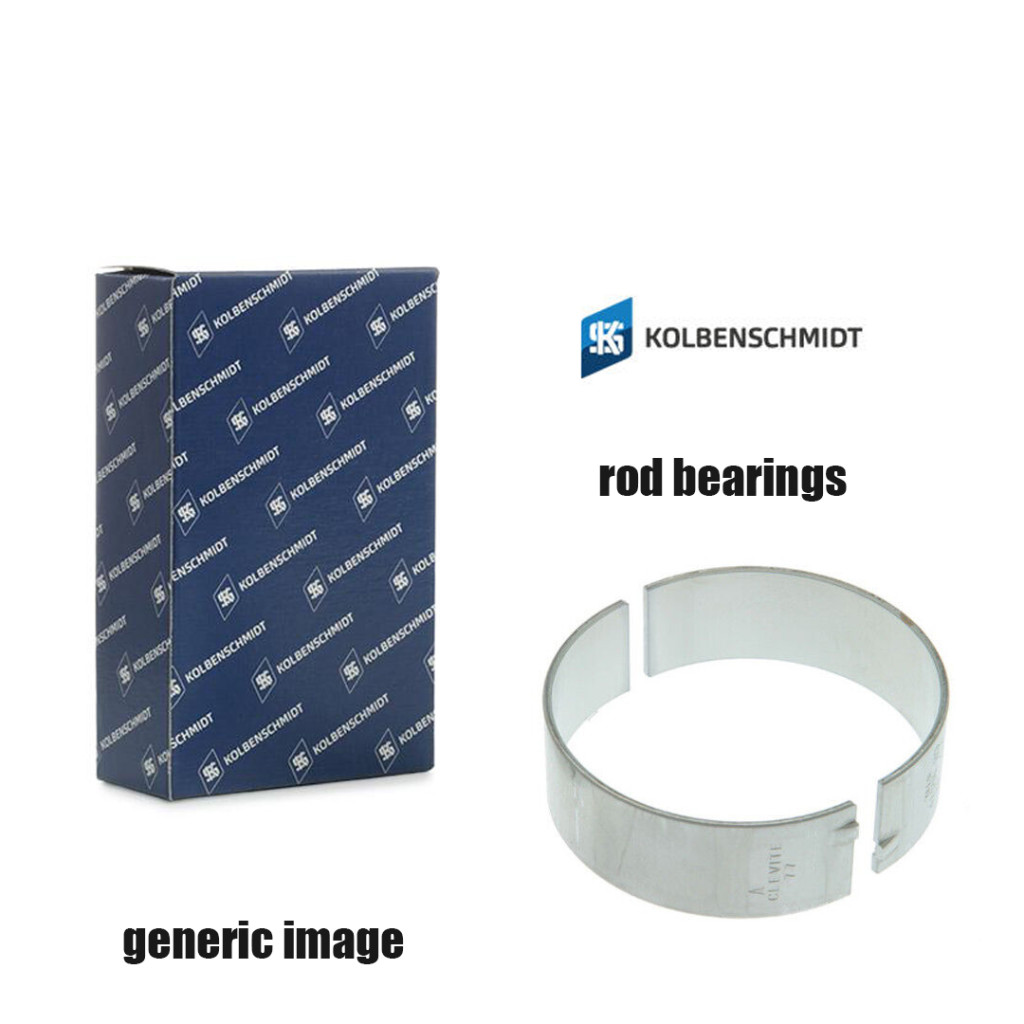

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 42.582 / 42.600mm Housing bore: 45.734 / 45.744mm Wall thickness: 1.552mm Bearing width: 20.00mm
