Bore: 89.00mm Ring sizes: 1.50x2.00x3.50mm Oil ring type: 3 PC. FLEX-VENT

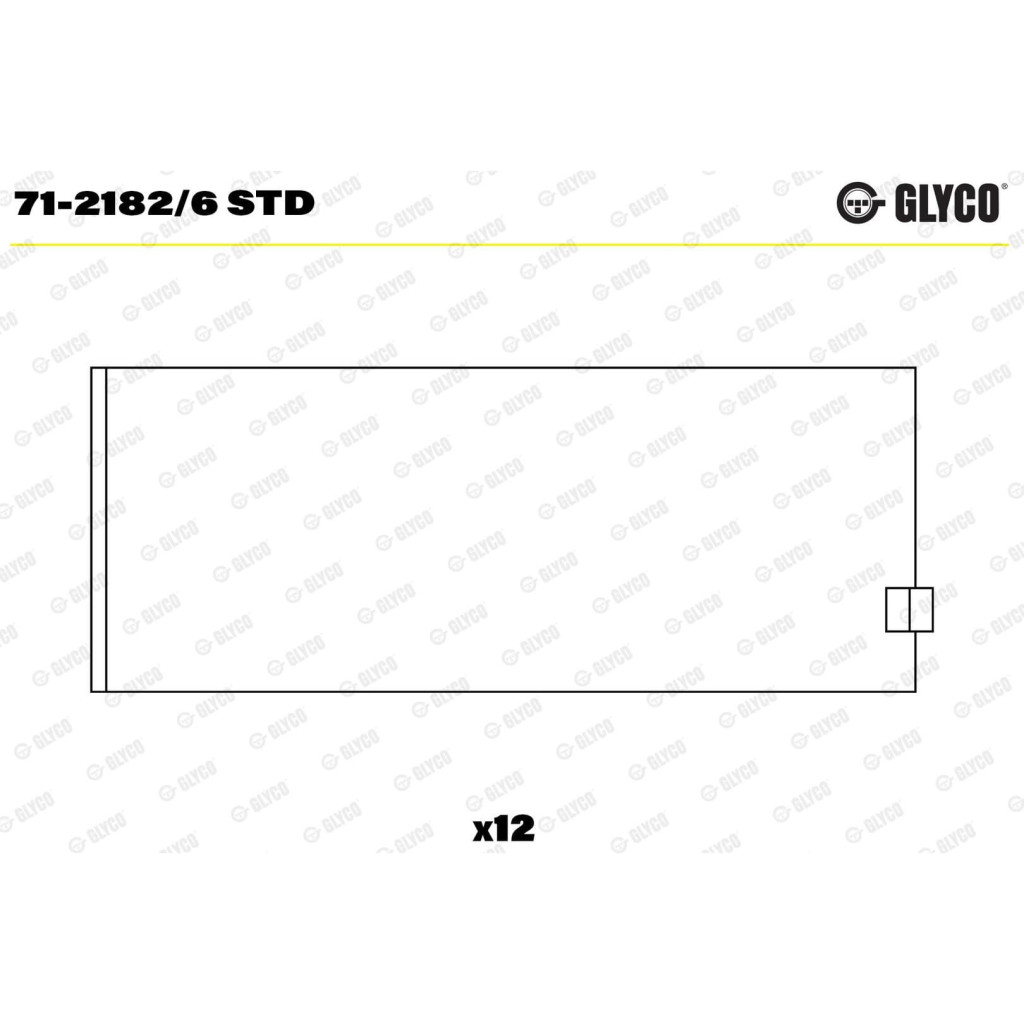

Width: 20 mm for bearing clearance from: 0.02 mm, until 0.08 mm for housing diameter from: 52 mm, until 52.015 mm for shaft diameter from: 47.975 mm, until 47.991 mm Component No.: 71-2182 Standard Size [STD]: Thickness: 1.993 mm

Bore: 89.00mm Top ring: 1.50mm 2nd ring: 2.00mm 3rd ring: 4.00mm

Crankshaft: 47.99 / 47.98mm Housing: 52.01 / 52.00mm Max Wall Thickness: 1.994mm Max Length: 20mm Quantity: 6

Quantity Unit: 7 pairs Oversize: 0.50 mm for bearing clearance: from 0.03 mm, until 0.09 mm for housing diameter: from 65.000 mm, until 65.019 mm Width: 24 mm / 24.94 mm thickness: 2.755 mm for shaft diameter: from 59.471 mm, until 59.490 mm

Crankshaft: 59.99 / 59.97 | 59.99 / 59.97mm Housing: 65.02 / 65.00 | 65.02 / 65.00mm Max Wall Thickness: 2.487 | 2.487mm Max Length: 24 | See AVAILABLE SIZESmm Quantity: 6 | 1

Crankshaft: 59.99 / 59.97 | 59.99 / 59.97mm Housing: 65.02 / 65.00 | 65.02 / 65.00mm Max Wall Thickness: 2.494 | 2.494mm Max Length: 20 | See AVAILABLE SIZESmm Quantity: 6 | 1
