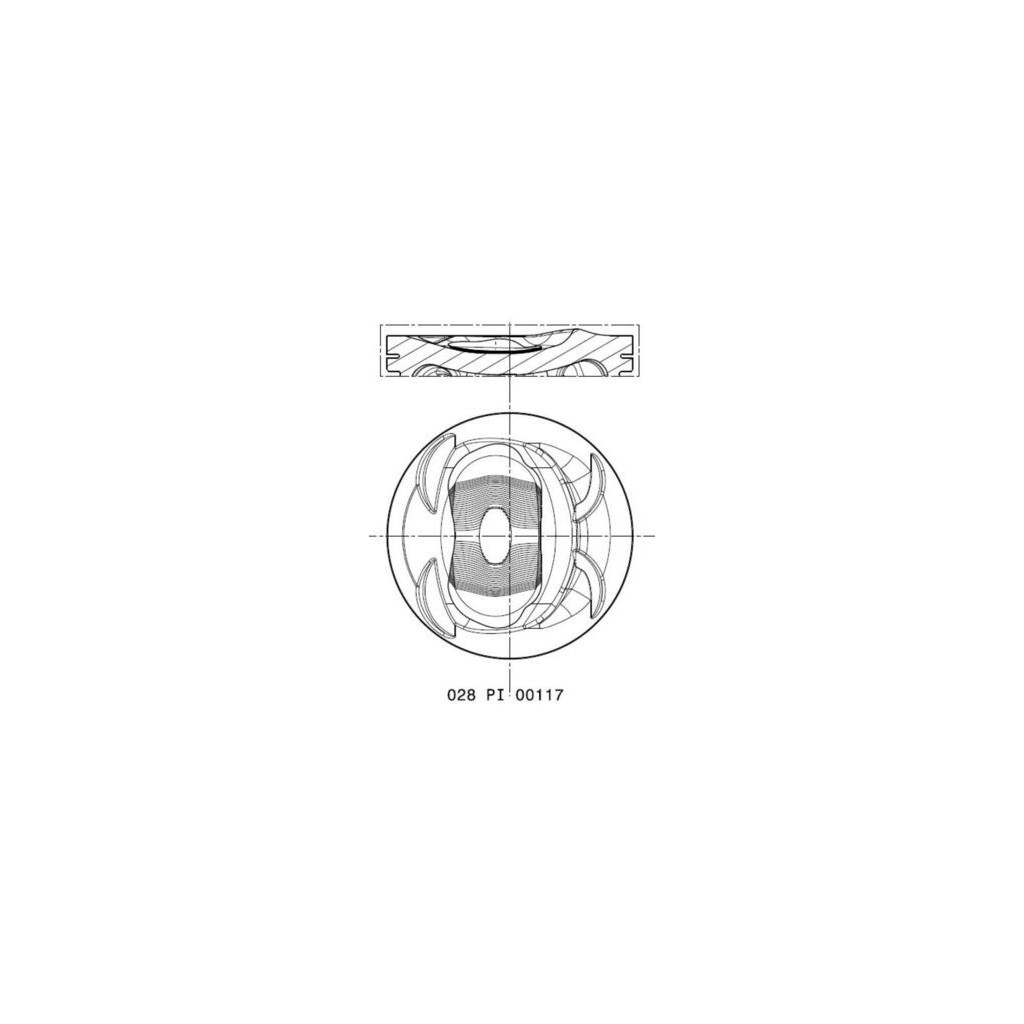

Bore: 76.51mm Length: 50.1 mm Compression Height: 29.12 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 5.6 mm Valve Pocket Depth 1: 3.8 mm Valve Pocket Depth 2: 1.1 mm Surface: Coated Top Land Height: 5.8 mm Production Number: 76 L 92 Piston Clearance: 0.07 mm Piston rings: 1.20x1.50x2.00mm

Bore: 76.76mm Length: 50.1 mm Compression Height: 29.12 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 5.6 mm Valve Pocket Depth 1: 3.8 mm Valve Pocket Depth 2: 1.1 mm Surface: Coated Top Land Height: 5.8 mm Production Number: 76 L 92 Piston Clearance: 0.07 mm Piston rings: 1.20x1.50x2.00mm

Bore: 77.01mm Length: 50.1 mm Compression Height: 29.12 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 5.6 mm Valve Pocket Depth 1: 3.8 mm Valve Pocket Depth 2: 1.1 mm Surface: Coated Top Land Height: 5.8 mm Production Number: 76 L 92 Piston Clearance: 0.07 mm Piston rings: 1.20x1.50x2.00mm

Bore: 82.51mm Length: 50.1 mm Compression Height: 29.6 mm Pin Length: 56 mm Pin Diameter: 21 mm Recess Depth 1: 6.2 mm Valve Pocket Depth 1: 3.5 mm Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 82 L 210 Piston Clearance:...

Bore: 83.01mm Length: 50.1 mm Compression Height: 29.6 mm Pin Length: 56 mm Pin Diameter: 21 mm Recess Depth 1: 6.2 mm Valve Pocket Depth 1: 3.5 mm Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 82 L 210 Piston Clearance:...

Bore: 71.01mm Length: 46.9 mm Compression Height: 28.94 mm Pin Length: 42 mm Pin Diameter: 19 mm Recess Depth 1: 4.35 mm Recess Diameter: 39.5 mm Surface: Hard Anodized Production Number: 71 L 55 Piston Clearance: 0.055 mm Piston rings: 1.20x1.20x2.00mm

Bore: 71.00mm Length: 44.5 mm Compression Height: 28 mm Pin Length: 49 mm Pin Diameter: 17 mm Valve Pocket Depth 1: 0.7 mm Surface: Hard Anodized Production Number: 71 L 99 Piston rings: 1.20x1.20x2.00mm

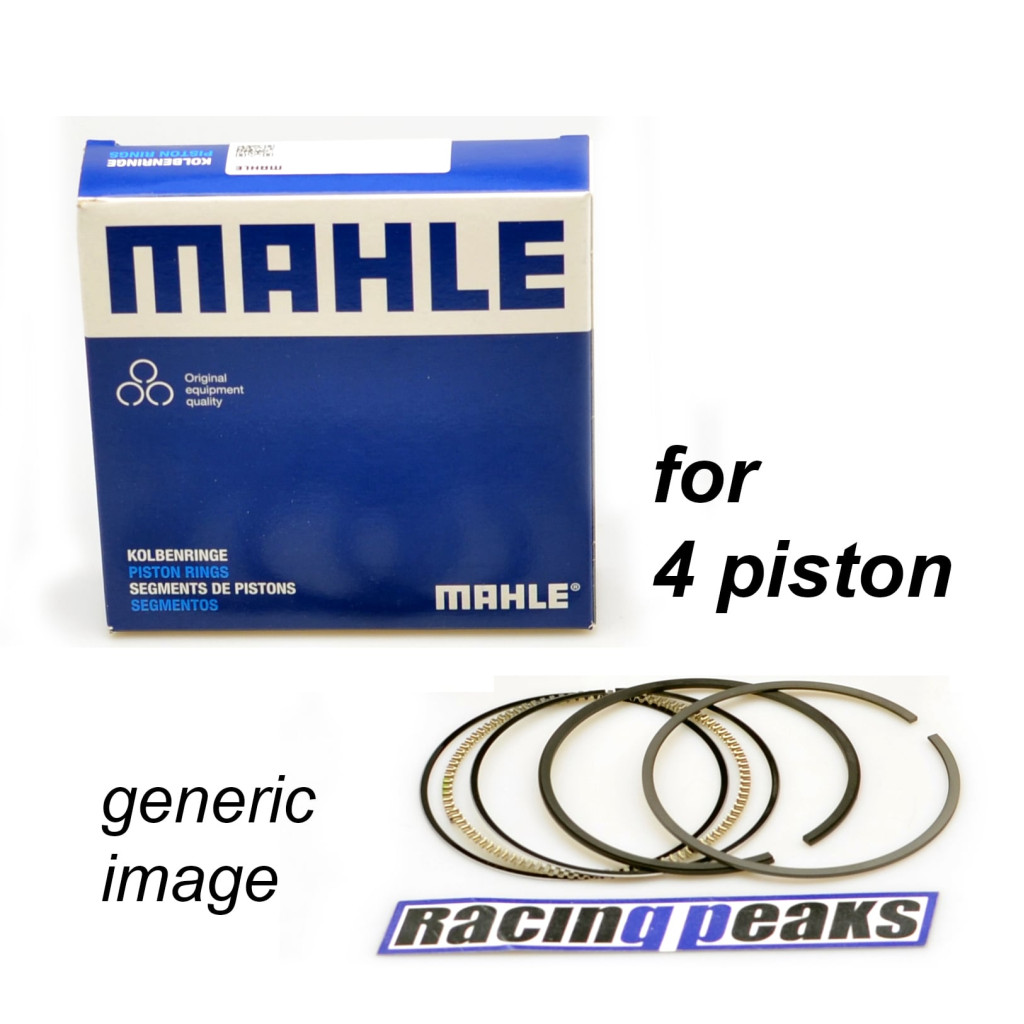

Bore: 71.00mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 82.51mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

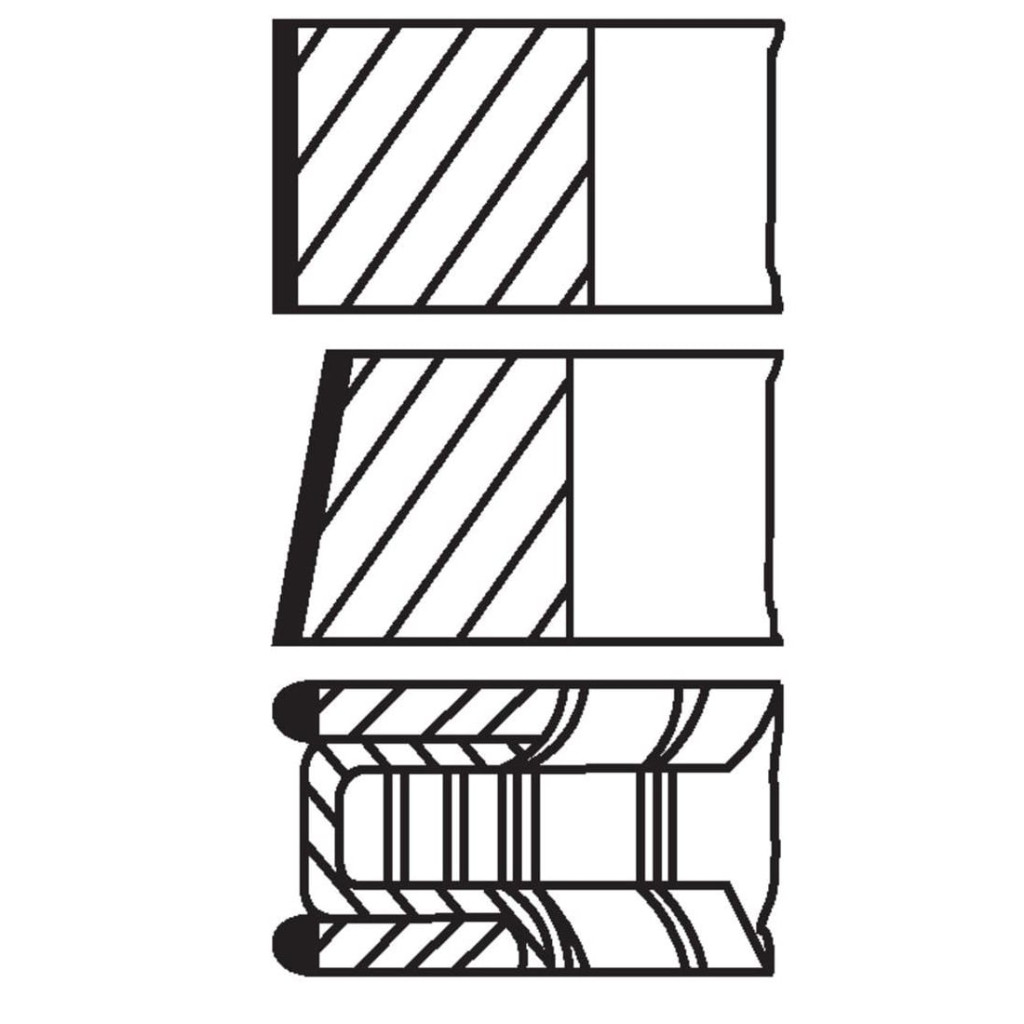

Bore: 74.50mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 81.01mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 3.00mm

Bore: 83.00mm (stock 82.50mm) Stroke: 92.80mm Compression height: 29.60mm Compression ratio: 9.6 Pin: 21mm Rings: 1.20x1.50x2.00mm Hard Anodized Top Ring Groove For Extreme Duty Applications Crown volume: -7.1cc Weight: 328g Alloy: M142P Clearance guide: Measuring point: .250 Min: .0010 Max: .0018/td> Package: 4 pistons with rings and pins Warning: check...
