Bearing structure: Tri-Metal; Number in pack: 8

Crankshaft: 47.757 / 47.777mm Housing: 50.599 / 50.620mm Max Wall Thickness: 1,405mm Max Length: 17,399mm Quantity: 4

Crankshaft: 47.98 / 47.96mm Housing: 53.02 / 53.00mm Max Wall Thickness: 2,51mm Max Length: 15,5mm Quantity: 5

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 47.963 / 47.978mm Housing bore: 53.000 / 53.019mm Wall thickness: 2.51mm Bearing width: 15.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 17.50mm

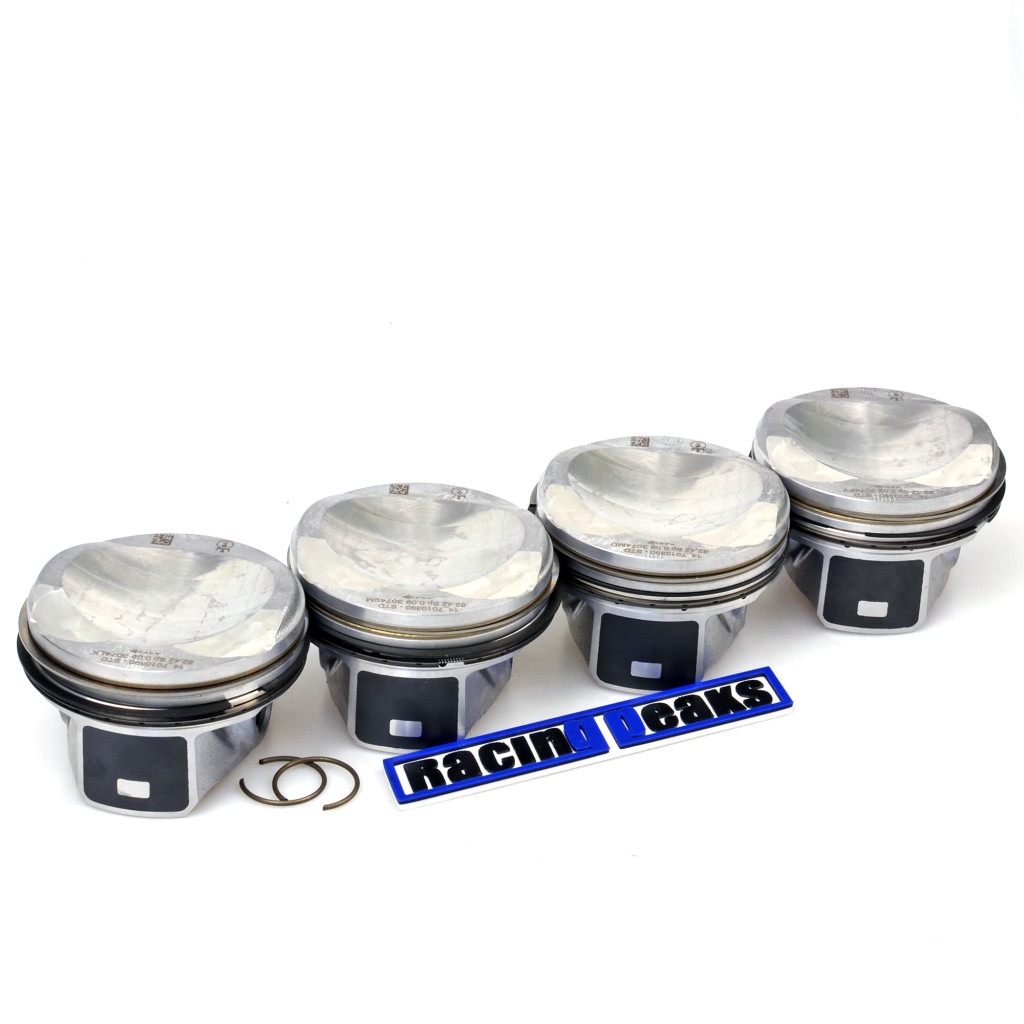

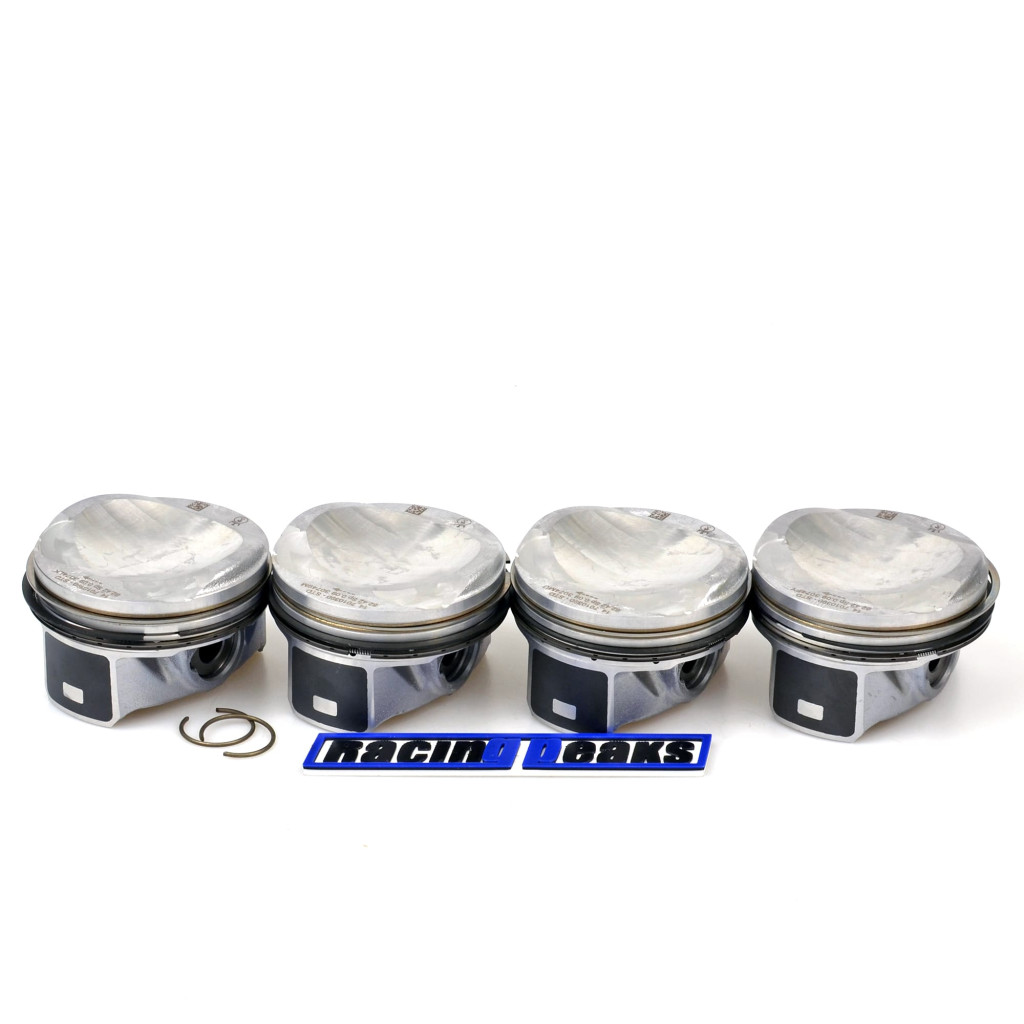

Cyl.Bore: 83.01mm Compression Height: 29.8mm Length: 55.98mm Piston Crown Clearance: 5.68mm Recess Depth 1: 4.75mm Valve Pocket Depth 1: 3.47mm Component No.: 66010, 66344, 66009 Bolt d.: 23mm Bolt Length: 51mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bore: 82.50mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Component Number: 66009; 66010; 66344 Construction year from: 201110; 201508; 201512; 201606; 201610 Oversize [mm]: 0,50 Quantity: 3 Thickness [mm] 66009: 3,2 Height [mm] 66009: 1,2 Material 66009: Steel Surface 66009: Blank; Physical Vapor Deposition (PVD) Cylinder Piston Diameter [mm] 66009: 83 Thickness [mm] 66010: 3,2 Height [mm] 66010: 1,2 Material 66010:...

Number in pack: 1Big end width: 21.750 Big end diameter: 50.595-50.620 Center-to-center length: 148.000 Bore-to-bore length: 111.200 Pin end width: 21.750 Pin diameter: 23.005-23.015 Weight: 565 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 21.750 Big end diameter: 50.595-50.620 Center-to-center length: 148.000 Bore-to-bore length: 111.200 Pin end width: 21.750 Pin diameter: 23.005-23.015 Weight: 565 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

A=29.800 B=55.980 C=4.750 D=5.680 E=-3.470

A=29.800 B=55.980 C=4.750 D=5.680 E=-3.470
