Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.984 / 50.000mm Housing bore: 53.695 / 53.708mm Wall thickness: 1.838mm Bearing width: 20.00mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 46.975 / 46.991mm Housing bore: 50.655 / 50.674mm Wall thickness: 1.82mm Bearing width: 17.00mm

Component Number: 60679; 65940; 80493 Quantity: 3 Thickness [mm] 60679: 3,35 Height [mm] 60679: 1,2 Material 60679: Cast Iron with Ductile Iron Surface 60679: Molybdenum coated; Phosphatized Cylinder Piston Diameter [mm] 60679: 85 Thickness [mm] 65940: 2,87 Height [mm] 65940: 2,5 Material 65940: Steel Surface 65940: Chromed; Phosphatized Cylinder Piston Diameter...

Component Number: 62509; 66124; 66125 Quantity: 3 Thickness [mm] 62509: 3,3 Height [mm] 62509: 1,95 Material 62509: Grey Cast Iron Surface 62509: Phosphatized Cylinder Piston Diameter [mm] 62509: 75 Thickness [mm] 66124: 3,1 Height [mm] 66124: 2,5 Material 66124: Cast Iron with Ductile Iron Surface 66124: Blank; Chrome ceramic coated Cylinder Piston Diameter...

Component Number: 66181; 66182; 66183 Quantity: 3 Thickness [mm] 66181: 3,4 Height [mm] 66181: 2 Material 66181: Cast Iron with Ductile Iron Surface 66181: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm] 66181: 85 Thickness [mm] 66182: 3,3 Height [mm] 66182: 2 Surface 66182: Blank Cylinder Piston Diameter [mm] 66182: 85 Thickness [mm] 66183:...

Bore: 77.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bolt length [mm]: 70 Bolt Ø [mm]: 28 Component Number: 83532; 83643; 85930 Compression Height [mm]: 46,705 Cylinder Piston Diameter [mm]: 85 Length [mm]: 80,705 Production Number: 085190 Quantity: 3 Recess Depth 1 [mm]: 15,4 Recess Diameter [mm]: 44,8 Valve pocket depth 1 [mm]: 0,52 Thickness [mm] 83532: 3,65 Height [mm] 83532: 3 Surface 83532: Blank;...

Bearing structure: Tri-Metal; Number in pack: 8

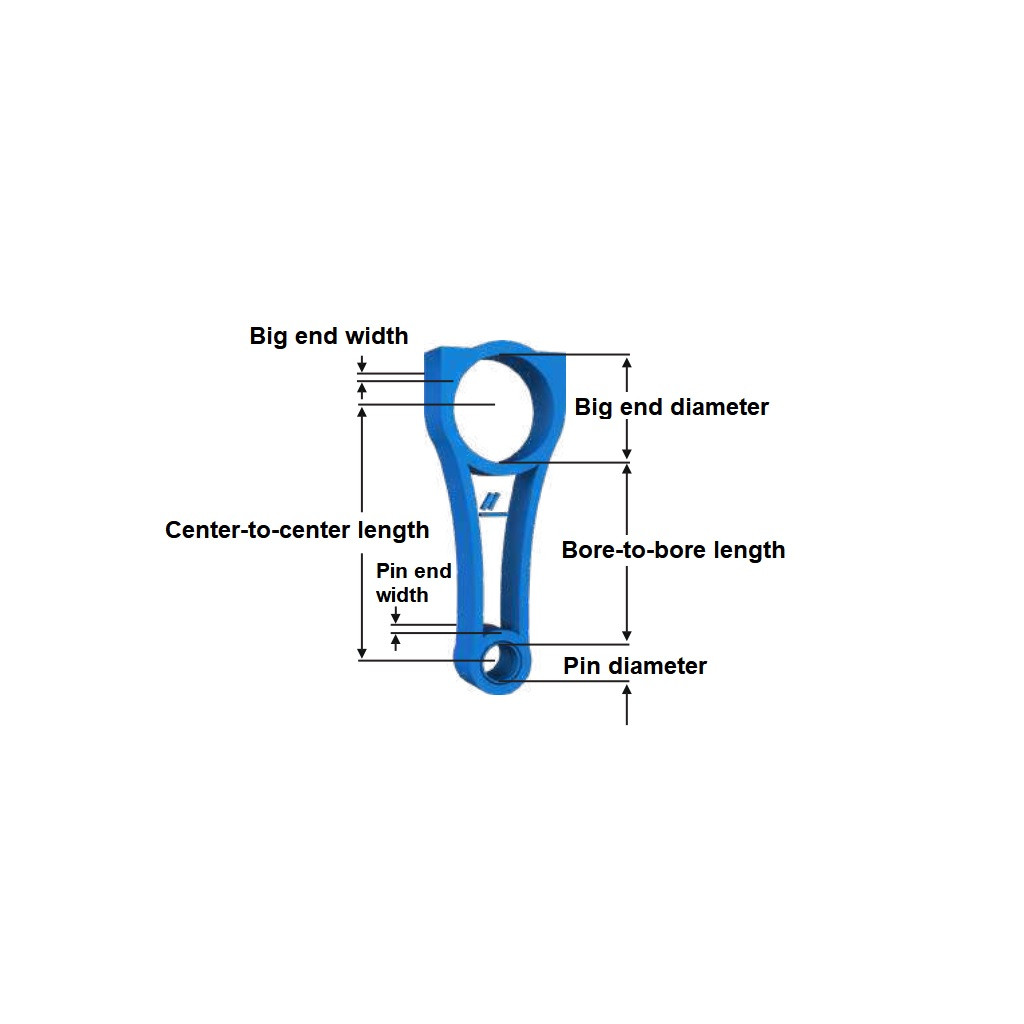

Number in pack: 1Big end width: 20.800 Big end diameter: 50.655-50.670 Center-to-center length: 136.800 Bore-to-bore length: 98.470 Pin end width: 20.800 Pin diameter: 26.020-26.032 Weight: 600 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 10 Nm + 130 degree

Number in pack: 1Big end width: 20.800 Big end diameter: 50.655-50.670 Center-to-center length: 136.800 Bore-to-bore length: 98.470 Pin end width: 20.800 Pin diameter: 26.020-26.032 Weight: 600 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 10 Nm + 130 degree

Number in pack: 1Big end width: 20.850 Big end diameter: 47.995-48.020 Center-to-center length: 138.550 Bore-to-bore length: 104.530 Pin end width: 20.800 Pin diameter: 20.020-20.040 Weight: 465 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 15 Nm + 130 degree

Number in pack: 1Big end width: 20.850 Big end diameter: 47.995-48.020 Center-to-center length: 138.550 Bore-to-bore length: 104.530 Pin end width: 20.800 Pin diameter: 20.020-20.040 Weight: 465 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 15 Nm + 130 degree
