Bore: 79.50mm Ring sizes: 1.50x1.50x2.50mm Oil ring type: 3 PC. FLEX-VENT

Bore: 69.00mm Ring sizes: 1.20x1.50x2.50mm Oil ring type: 3 PC. FLEX-VENT

Bore: 76.00mm Ring sizes: 2.00x2.00x2.50mm Oil ring type: 2 PC. CONFORMATIC

Bore: 72.21mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT

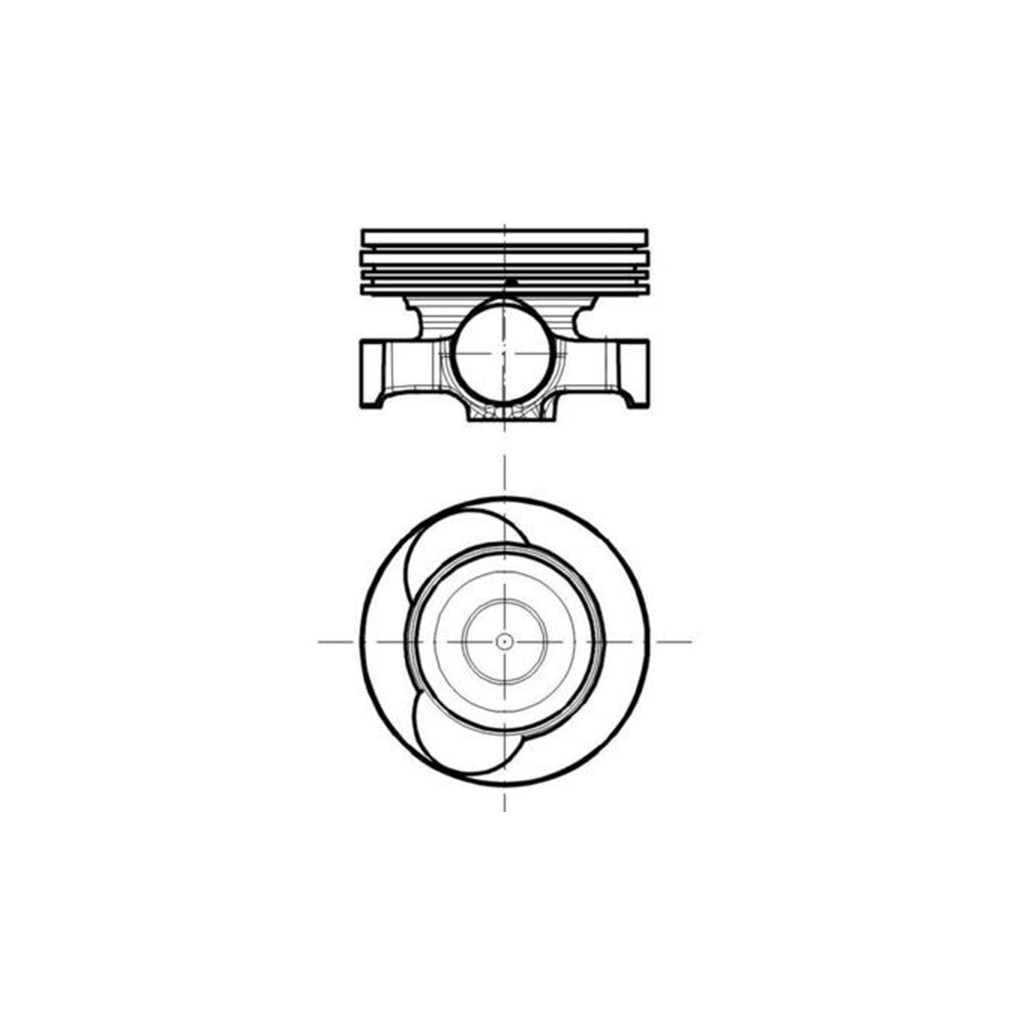

Bore: 76.00 mm Length: 50 mm Compression Height: 32.458 mm Bolt Length: 42 mm Pin Diameter: 26 mm Recess Depth 1: 12.86 mm Recess Diameter: 47 mm Valve Pocket Depth 1: 0.25 mm Valve Pocket Depth 2: 0.43 mm Surface: EvoGlide® coated Supplementary Article/Supplementary Info 2: with cooling duct Top Land Height: 3.8 mm Production Number: 76 MT 1 Piston...

Bore: 76.00 mm Length: 50 mm Compression Height: 32.458 mm Bolt Length: 42 mm Pin Diameter: 26 mm Recess Depth 1: 12.86 mm Recess Diameter: 47 mm Valve Pocket Depth 1: 0.25 mm Valve Pocket Depth 2: 0.43 mm Surface: EvoGlide® coated Supplementary Article/Supplementary Info 2: with cooling duct Top Land Height: 3.8 mm Production Number: 76 MT 1 Piston...

Bore: 76.00 mm Length: 50 mm Compression Height: 32.458 mm Bolt Length: 42 mm Pin Diameter: 26 mm Recess Depth 1: 12.86 mm Recess Diameter: 47 mm Valve Pocket Depth 1: 0.25 mm Valve Pocket Depth 2: 0.43 mm Surface: EvoGlide® coated Supplementary Article/Supplementary Info 2: with cooling duct Top Land Height: 3.8 mm Production Number: 76 MT 1 Piston...

Bore: 76.00 mm Length: 50 mm Compression Height: 32.458 mm Bolt Length: 42 mm Pin Diameter: 26 mm Recess Depth 1: 12.86 mm Recess Diameter: 47 mm Valve Pocket Depth 1: 0.25 mm Valve Pocket Depth 2: 0.43 mm Surface: EvoGlide® coated Supplementary Article/Supplementary Info 2: with cooling duct Top Land Height: 3.8 mm Production Number: 76 MT 1 Piston...

Bore: 72.20mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 72.45mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 72.70mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Cyl.Bore: 72.20mm is STD Compression Height: 27.6mm Length: 47.6mm Recess Depth: -2.0mm Bolt d.: 18.0mm Bolt Length: 43.0mm Info: Skirt MoS2 treated, fits tapered connecting rod Piston rings: 1.20x1.50x2.00mm
