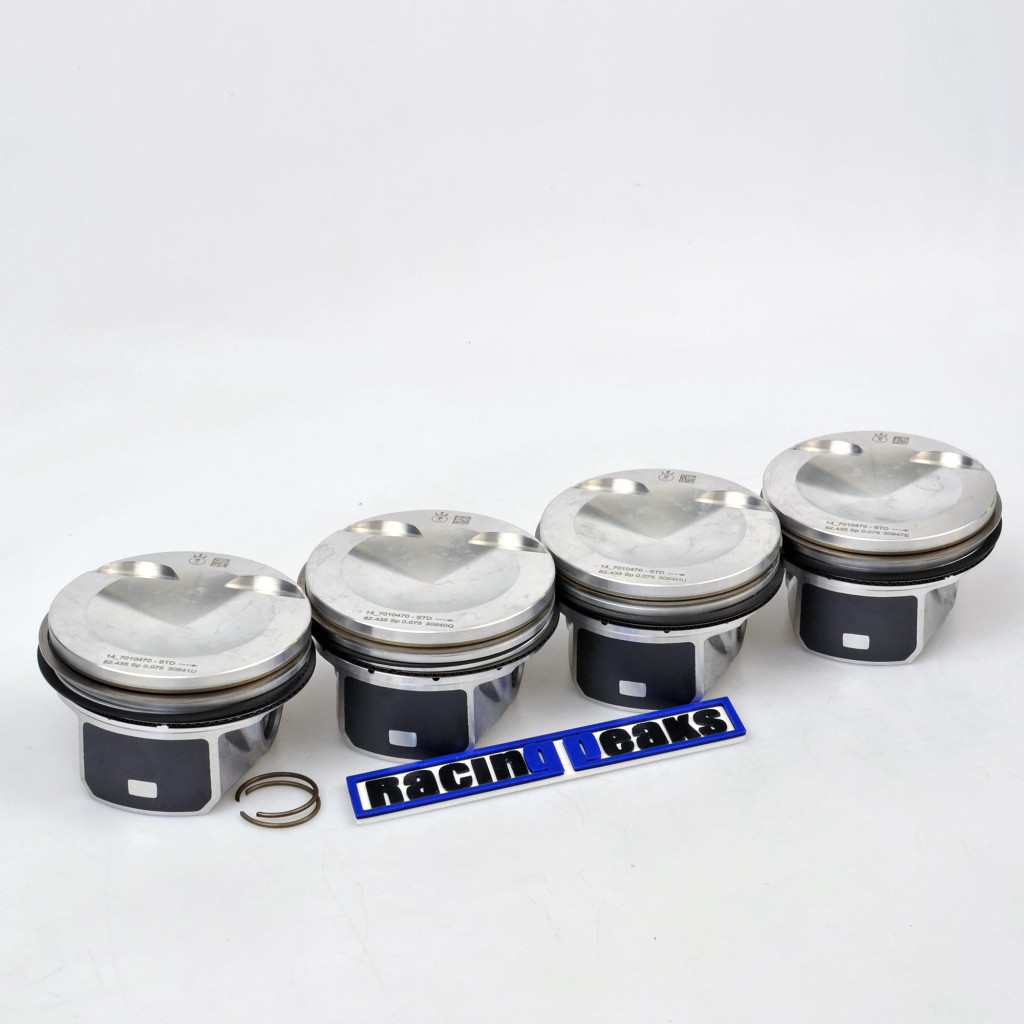

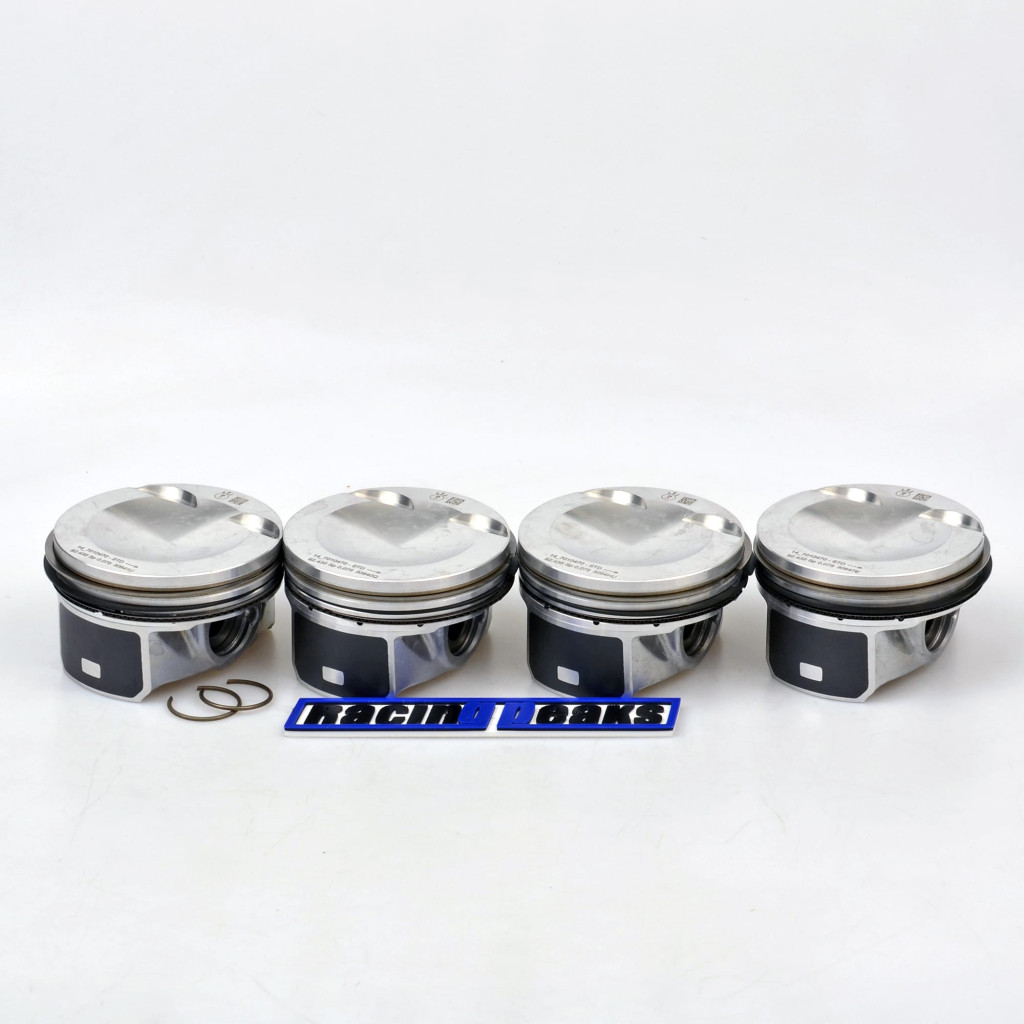

Bore: 83.00mm (stock 82.50mm) Stroke: 92.80mm Compression height: 29.6mm Compression ratio: 9.6 Pin: 23mm Rings: 1.20x1.50x2.00mm Hard Anodized Top Ring Groove For Extreme Duty Applications Crown volume: -7.1cc Weight: 318g Alloy: M142P Clearance guide: Measuring point .250 Min .0010 Max .0018 Package: 4 pistons with rings and pins Warning: check for...

Bore: 83.00mm (stock 82.50mm) Stroke: 92.80mm Compression height: 29.6mm Compression ratio: 9.6 Pin: 23mm Rings: 1.20x1.50x2.00mm Hard Anodized Top Ring Groove For Extreme Duty Applications Crown volume: -7.1cc Weight: 318g Alloy: M142P Clearance guide: Measuring point .250 Min .0010 Max .0018 Package: 4 pistons with rings and pins Warning: check for...

Bore: 82.51mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 82.51mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

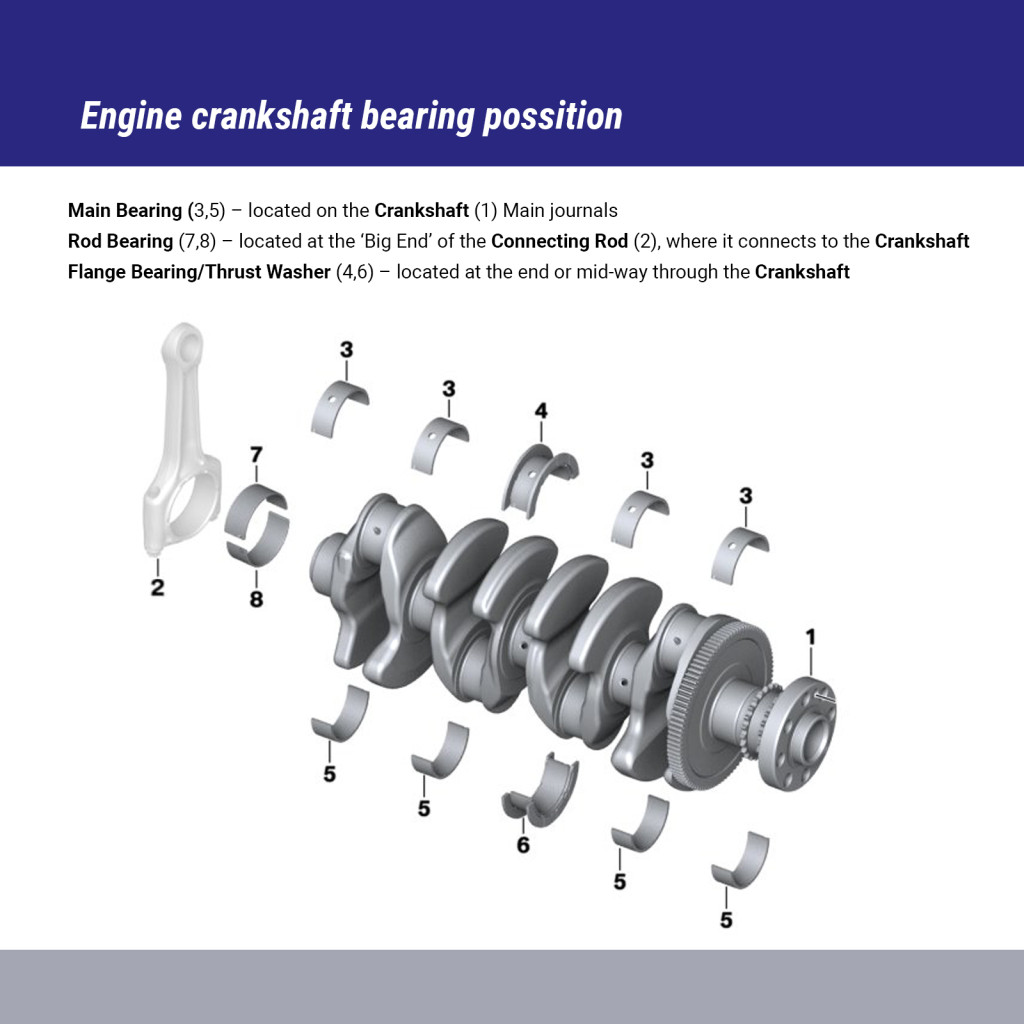

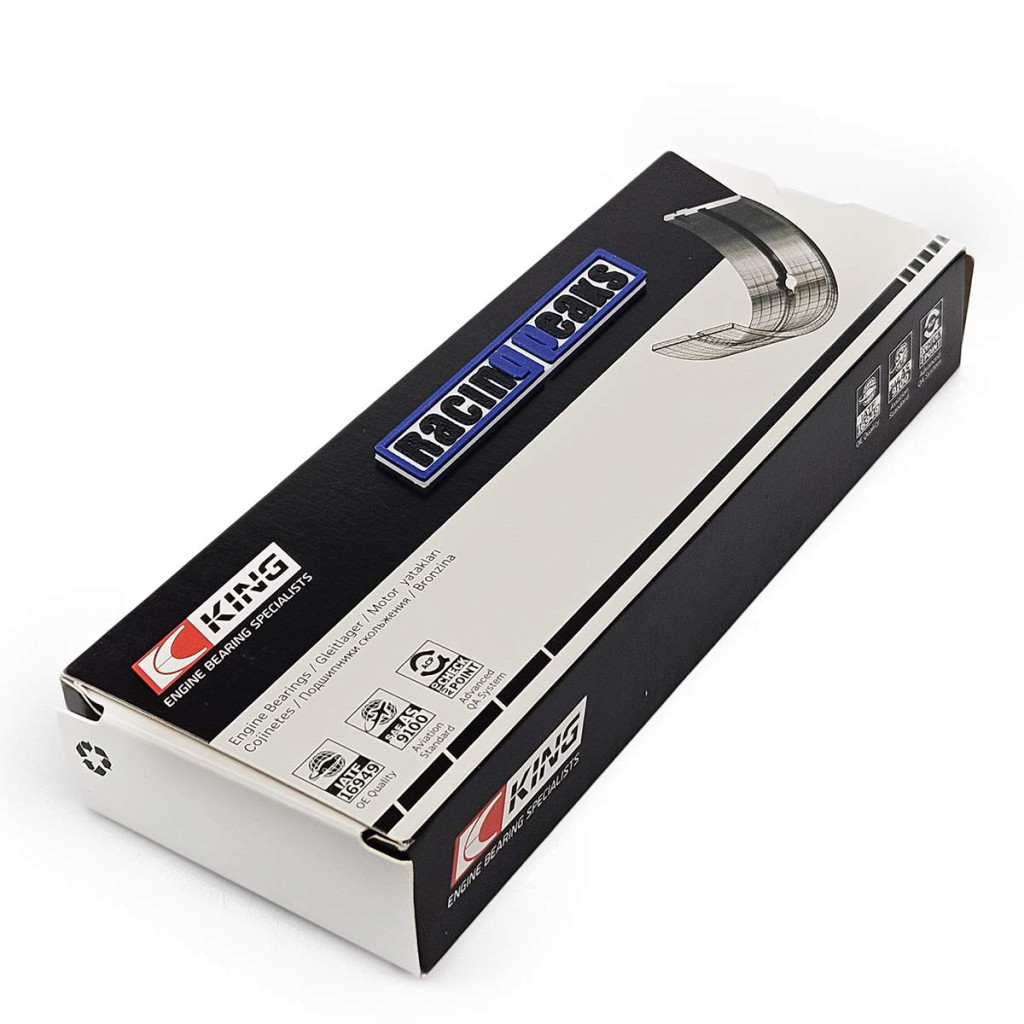

Crankshaft: 47.98 / 47.96mm Housing: 53.02 / 53.00mm Max Wall Thickness: 2,51mm Max Length: 15,5mm Quantity: 5

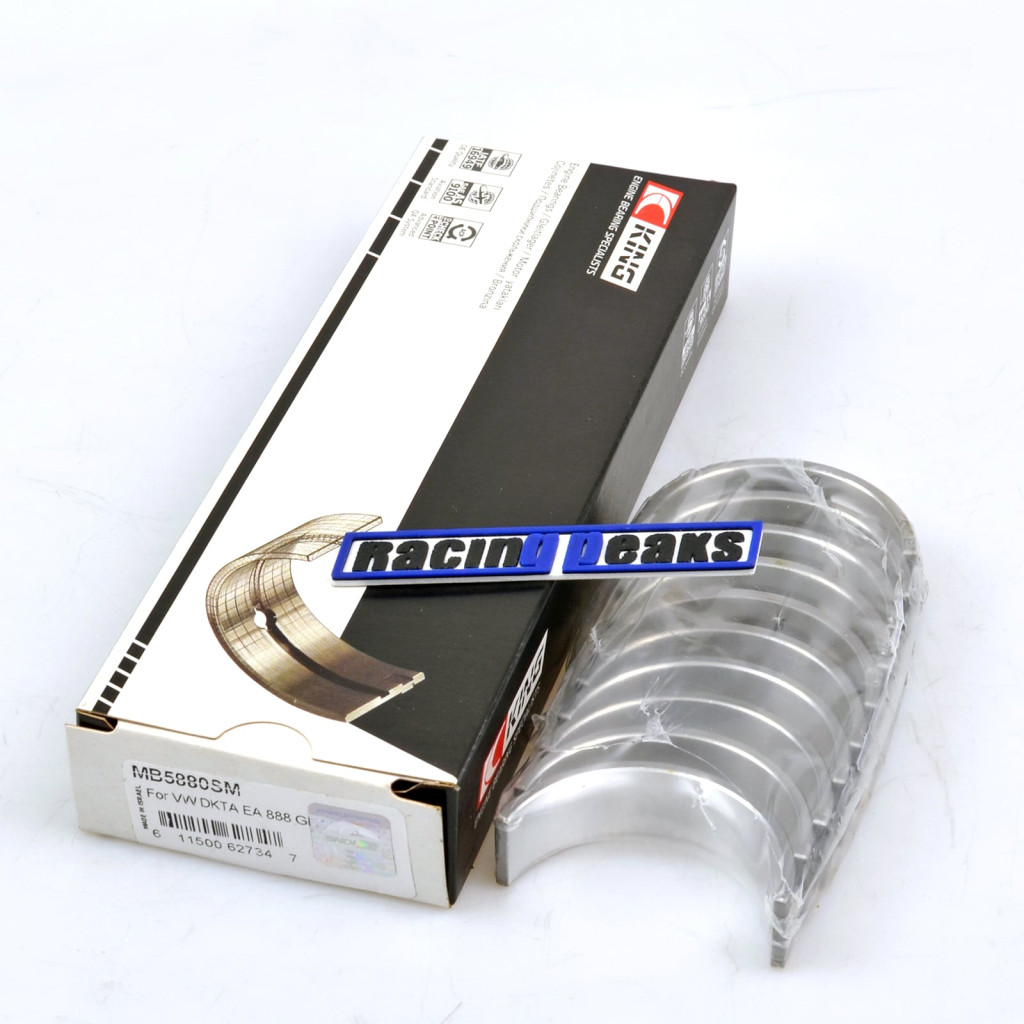

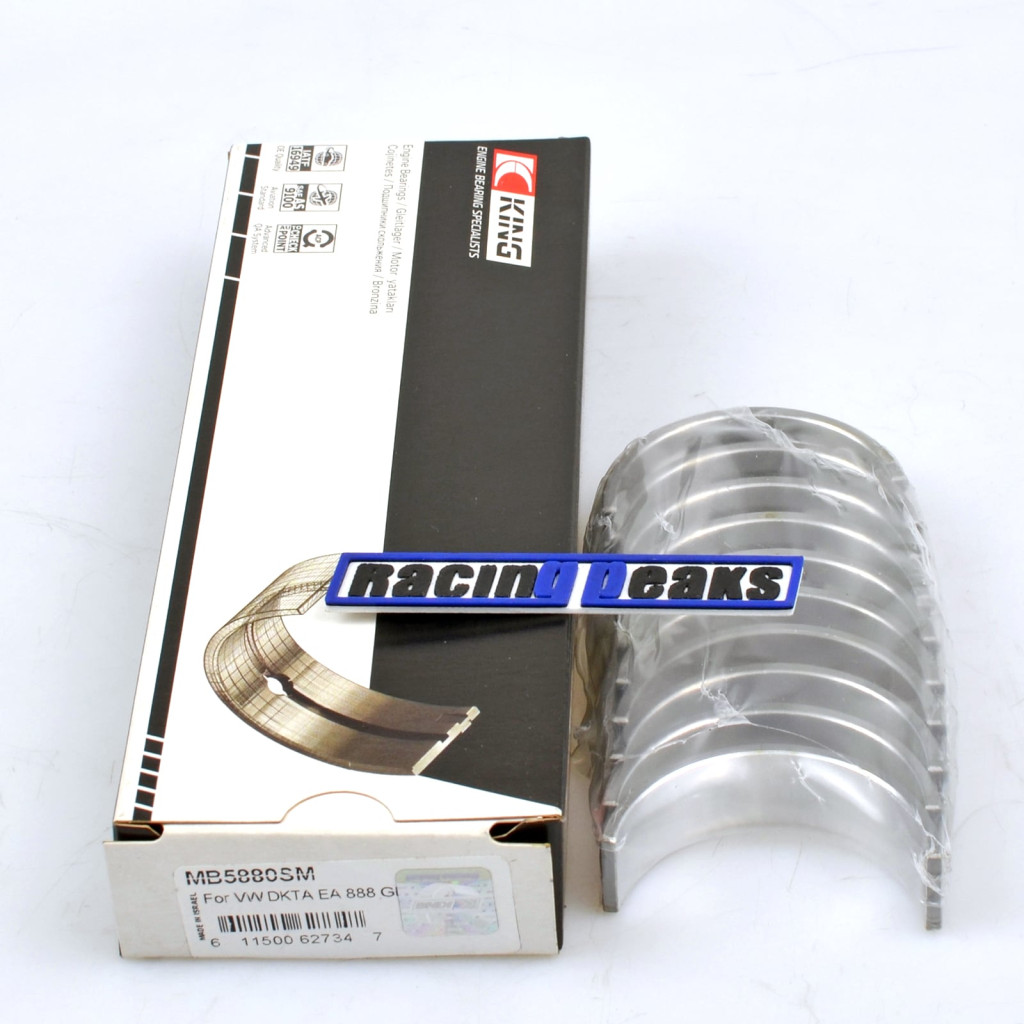

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 47.963 / 47.978mm Housing bore: 53.000 / 53.019mm Wall thickness: 2.51mm Bearing width: 15.50mm

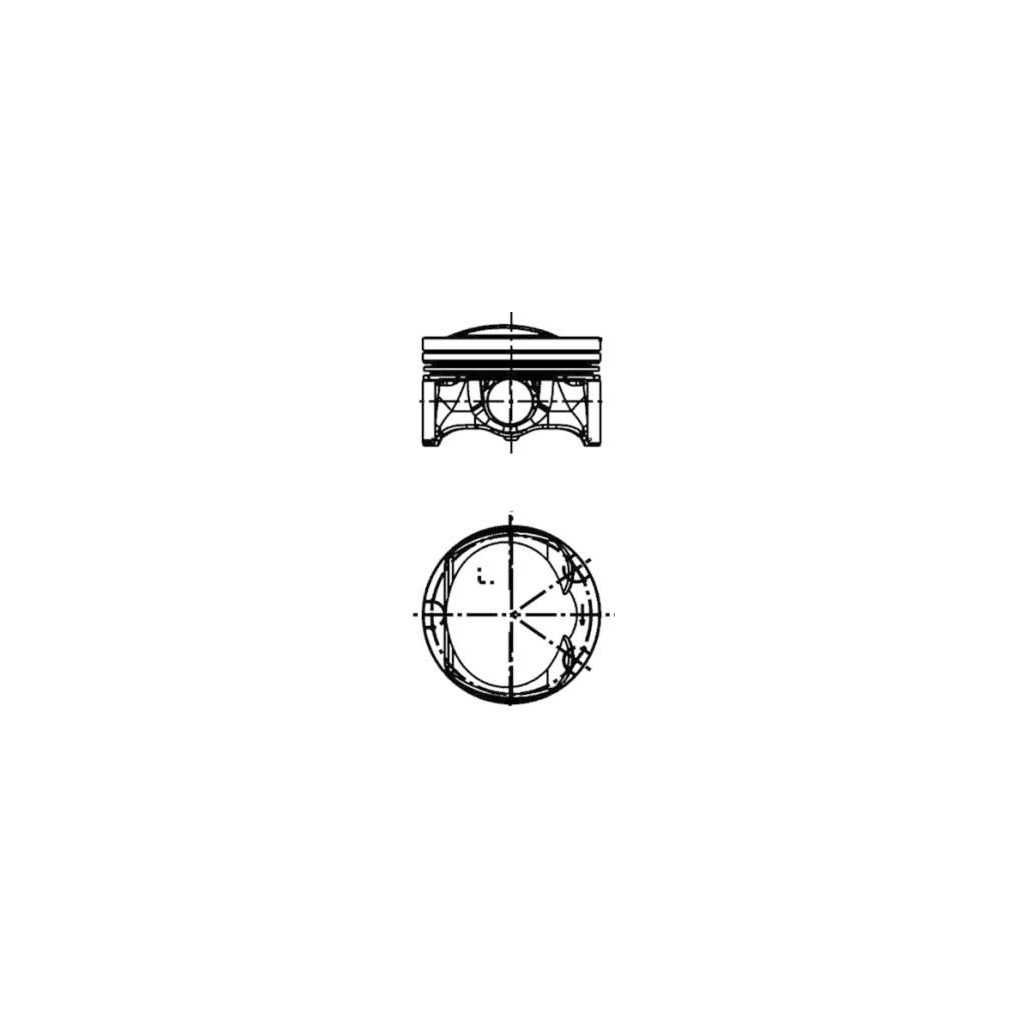

Cyl.Bore: 83.01mm Compression Height: 29.8mm Length: 55.98mm Piston Crown Clearance: 5.68mm Recess Depth 1: 4.75mm Valve Pocket Depth 1: 3.47mm Component No.: 66010, 66344, 66009 Bolt d.: 23mm Bolt Length: 51mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Cyl.Bore: 83.01mm Compression Height: 29.6mm Length: 50.1mm Recess Depth 1: 6.2mm Valve Pocket Depth 1: 3.6mm Recess Diameter: 57.5mm Component No.: 66009, 66010, 66344 Bolt Ø: 23mm Bolt Length: 51mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bore: 82.50mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm
