Position: Crankshaft Quantity: 4 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Package contains: 4 pistons with rings, pins Cyl.Bore: 84.50mm is STD Compression Height: 42.0mm Length: 65.9mm Recess Depth: -4.6/-14.4mm Bolt d.: 28.0mm Bolt Length: 62.0mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 1.75x1.75x2.00mm

Crankshaft: 49.975 / 49.990mm Housing: 53.599 / 53.619mm Max Wall Thickness: 1,801mm Max Length: 18,199mm Quantity: for 1 journal only

Crankshaft: 49.99 / 49.97mm Housing: 53.62 / 53.60mm Max Wall Thickness: 1,801mm Max Length: 18,2mm Quantity: 4

Crankshaft: 49.99 / 49.97mm Housing: 53.62 / 53.60mm Max Wall Thickness: 1,801mm Max Length: 18,2mm Quantity: 6

Crankshaft: 49.99 / 49.97mm Housing: 53.62 / 53.60mm Max Wall Thickness: 1,801mm Max Length: 18,2mm Quantity: for 1 journal only

Crankshaft: 54.971 / 54.991 | 54.971 / 54.991mm Housing: 60.000 / 60.020 | 60.000 / 60.020mm Max Wall Thickness: 2,497 | 2,497mm Max Length: 18,799 | 24,9mm Quantity: 4 | 1

Crankshaft: 54.971 / 54.991 | 54.971 / 54.991mm Housing: 60.500 / 60.521 housing is +0.5mm | 60.500 / 60.521 housing is +0.5mmmm Max Wall Thickness: 2,746 | 2,746mm Max Length: 18,699 | 24,9mm Quantity: 4 | 1

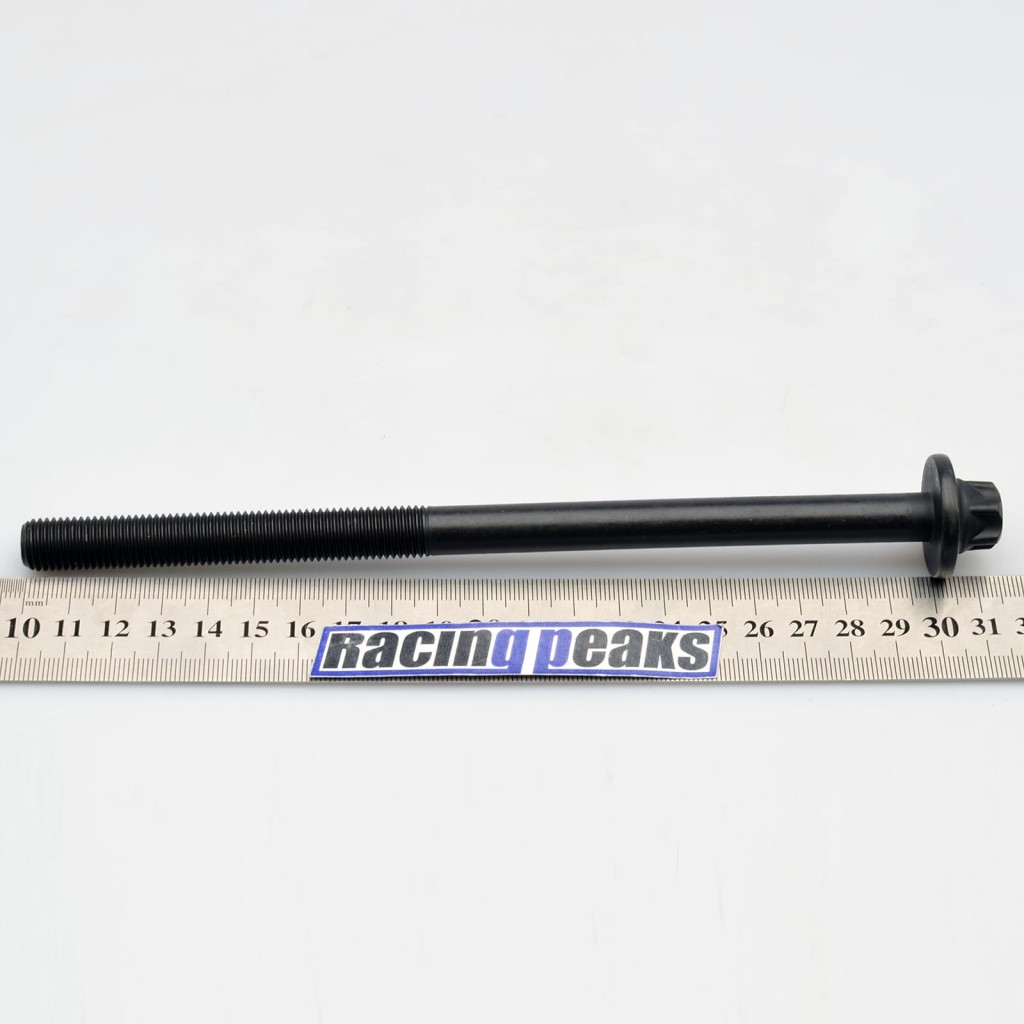

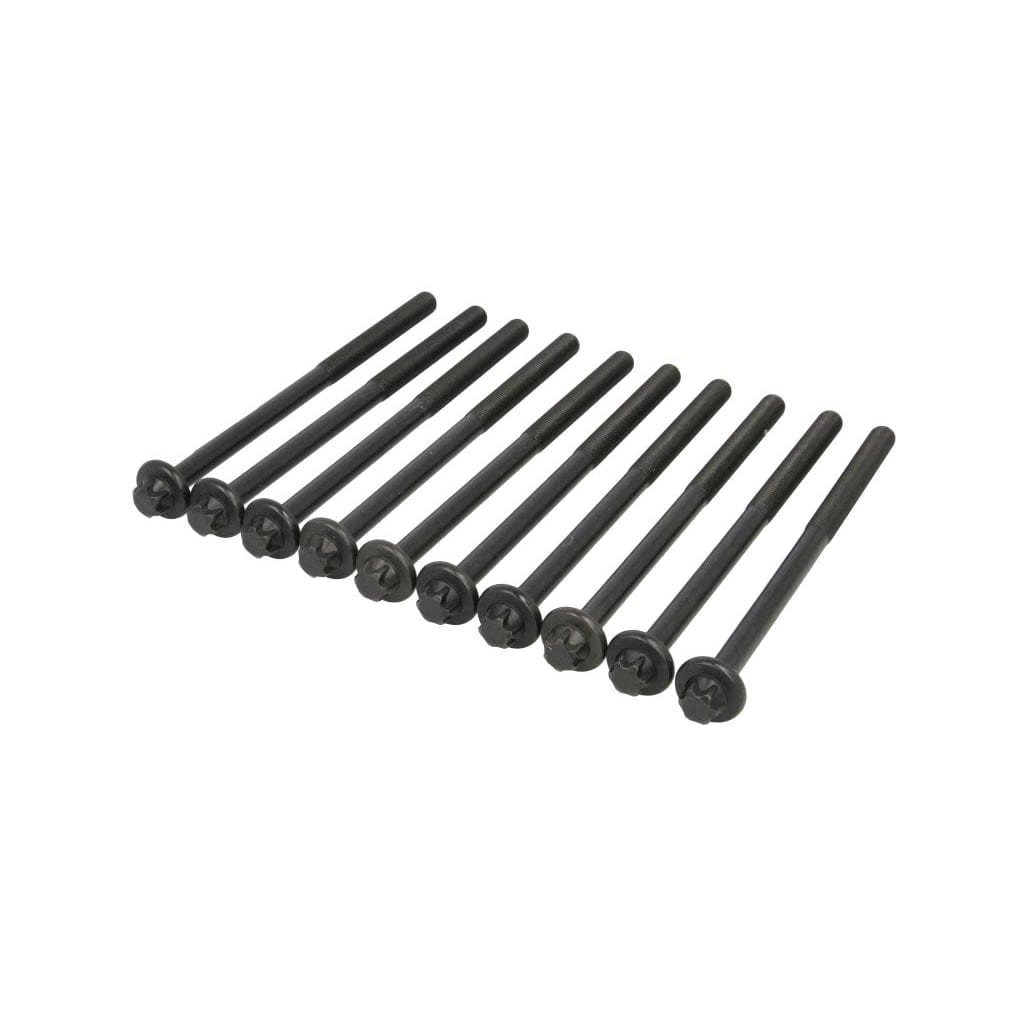

Thread Size: M12 Thread Pitch: 1.5 mm Length: 200 mm Bolt Head-/Nut Design: Male Torx

Gasket Design: Multilayer Steel (MLS) Thickness: 1.45 mm Bore diameter: 84.7 mm Num. of holes: 1-hole

Gasket Design: Multilayer Steel (MLS) Thickness: 1.55 mm Bore diameter: 84.7 mm Num. of holes: 2-hole

Gasket Design: Multilayer Steel (MLS) Thickness: 1.65 mm Bore diameter: 84.7 mm Num. of holes: 3-hole
