Cyl.Bore: 71.00mm is STD Compression Height: 26.2mm Length: 42.2mm Recess Depth: +2.6/-1.6mm Bolt d.: 17.0mm Bolt Length: 44.0mm Info: Top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod Recommended piston to bore clearance is 0.05mm when measured at 7.0mm above the skirt Piston rings: 1.00x1.00x2.00mm

Bearing structure: Tri-Metal; Number in pack: 12

Cyl.Bore: 75.00mm is STD Compression Height: 28.4mm Length: 50.2mm Recess Depth: +4.9/-2.4mm Bolt d.: 19.5mm Bolt Length: 45.0mm Info: Alfin, skirt MoS2 treated, fits tapered connecting rod Recommended piston to bore clearance is 0.05mm when measured at 7.0mm above the skirt Piston rings: 1.20x1.00x2.00mm

Bore: 87.00mm Ring sizes: 2.50x2.00x3.00mm Oil ring type: 2 PC. CONFORMATIC

Cyl.Bore: 71.90mm is STD Compression Height: 27.3mm Length: 50.9mm Recess Depth: +5.6/-3.2mm Recess Diameter: 42.8mm Bolt d.: 20.0mm Bolt Length: 47.0mm Info: Top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod Piston rings: 1.00x1.20x2.00mm

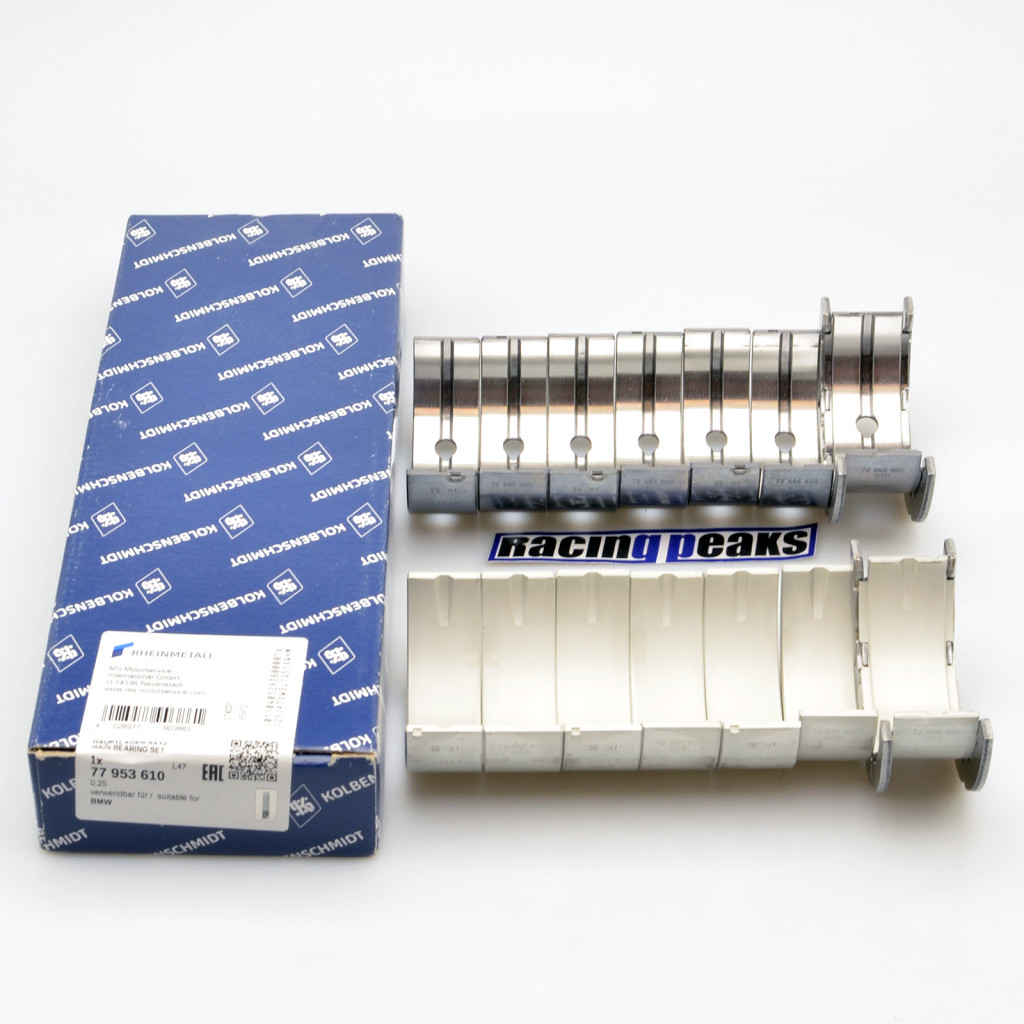

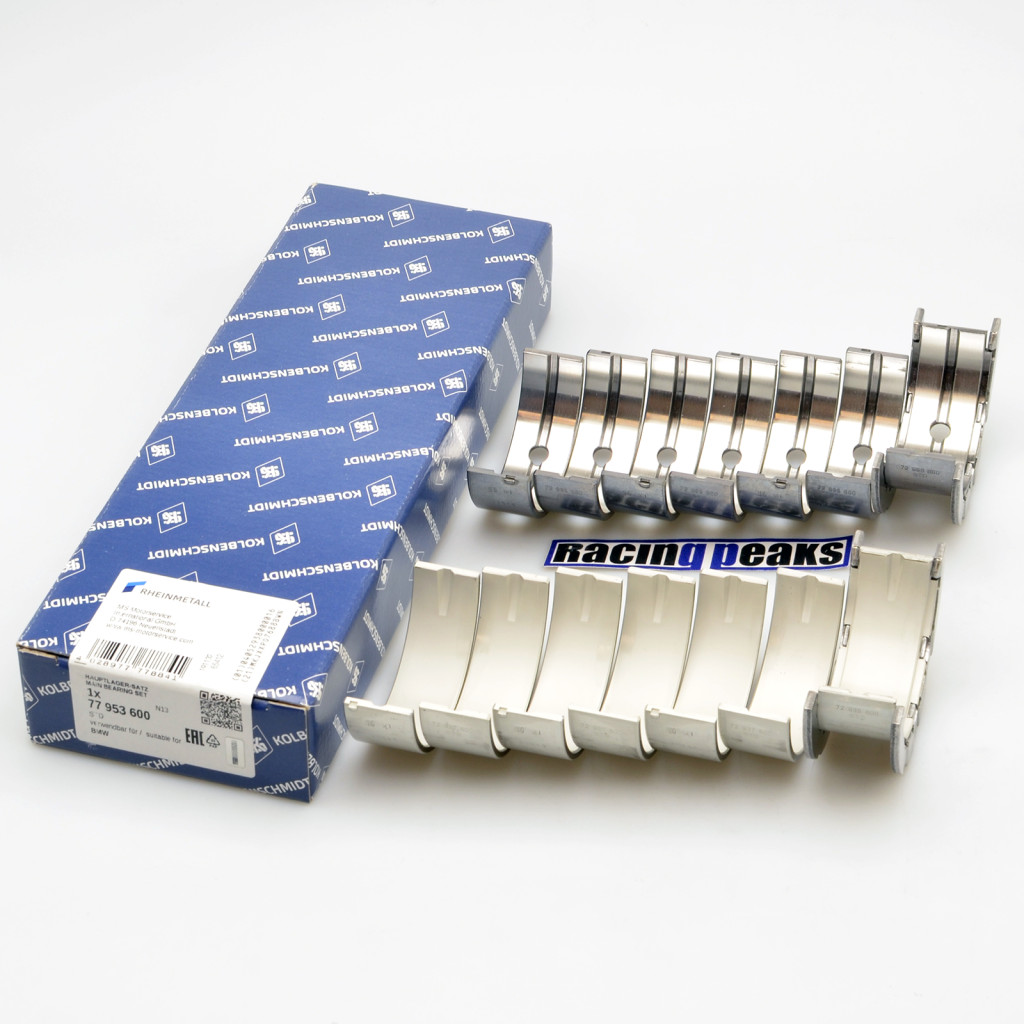

Position: Crankshaft Quantity: 6 pairs Shaft diameter: 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter: 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm

Position: Crankshaft Quantity: 6 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Bearing structure: Tri-Metal; Number in pack: 16

Cyl.Bore: 86.50mm Compression Height: 42.65mm Length: 89.04mm Piston Crown Clearance: 14.34mm Valve Pocket Depth 1: 3.8mm Component No.: 21117, 21110, 21119 Bolt d.: 23mm Bolt Length: 69mm Rep. Stage: 0.50

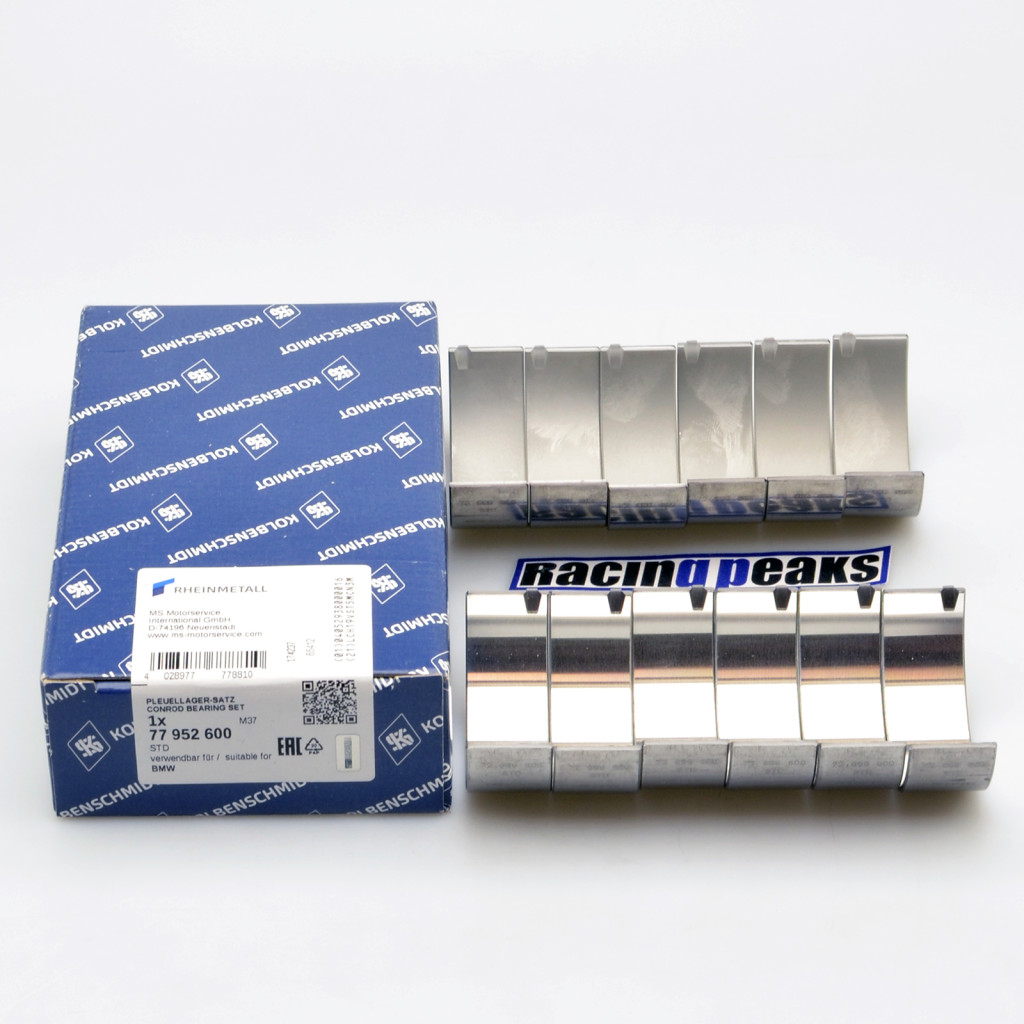

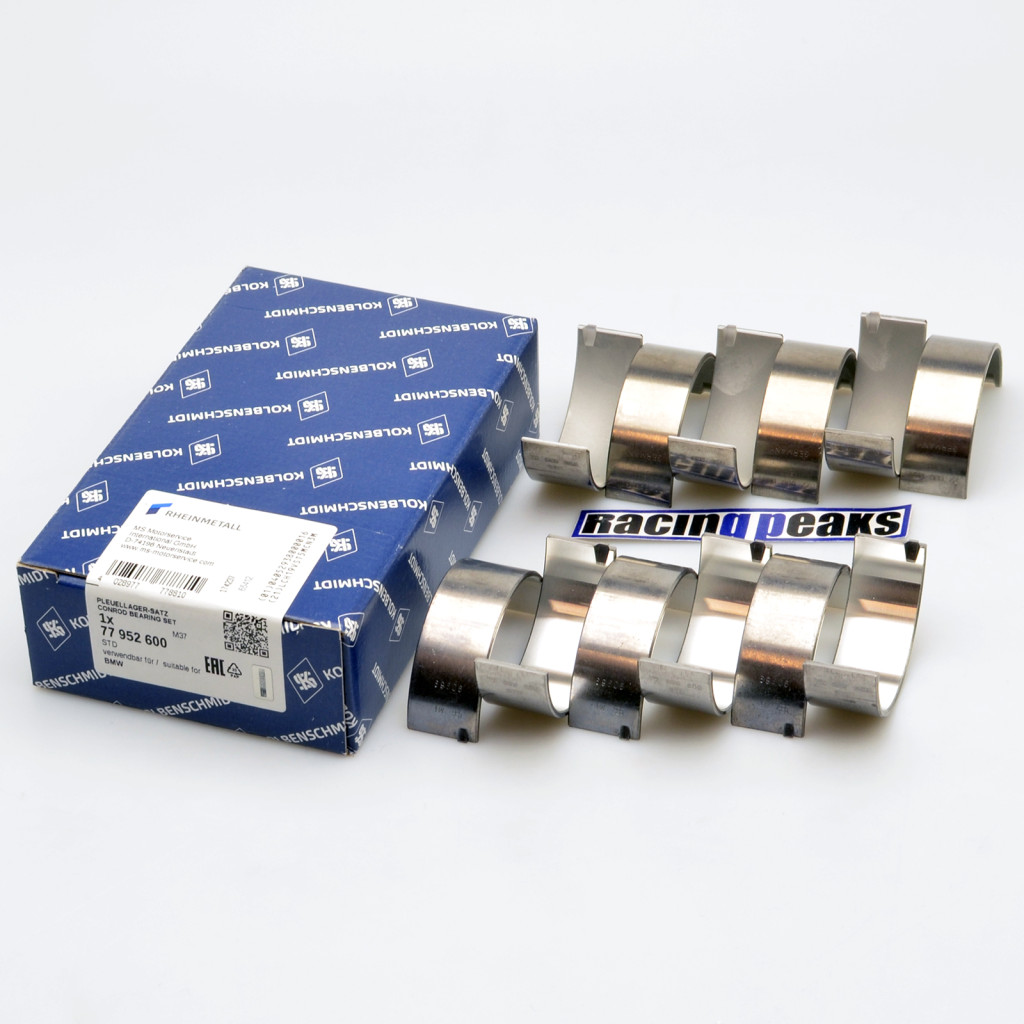

Position: Connecting rod Quantity: 6 pairs Shaft diameter: 49.975 / 49.991mm Housing bore: 53.600 / 53.619mm Wall thickness: 1.8mm Bearing width: 18.30mm

Position: Crankshaft Quantity: 6 pairs Shaft diameter: 65.000 / 65.019mm Housing bore: / Wall thickness: 59.971mm Bearing width: 2.498mm Position: Flanged bearing Quantity: 1 pair Shaft diameter: 65.000 / 65.019mm Housing bore: 25.020 / 25.053mm Wall thickness: 59.971mm Bearing width: 2.498mm

Cyl.Bore: 86.50mm is STD Compression Height: 43.4mm Length: 69.8mm Recess Depth: -6.0/-15.8mm Bolt d.: 30.0mm Bolt Length: 66.8mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 2.00x2.00x2.00mm
