Bore: 83.00mm Ring sizes: 2.00x2.00x2.00mm Oil ring type: 2 PC. CONFORMATIC

Bore: 83.01mm Ring sizes: 1.50x1.50x2.80mm Oil ring type: 3 PC. FLEX-VENT

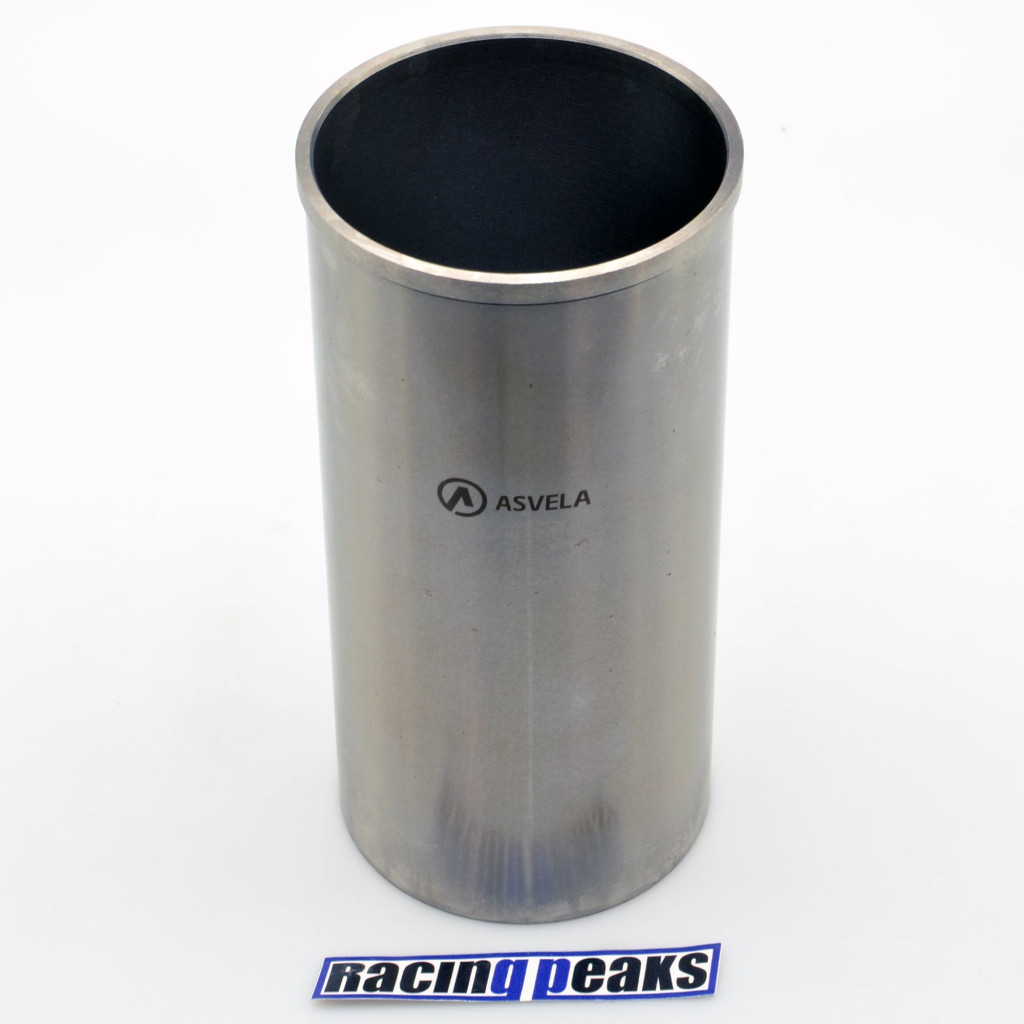

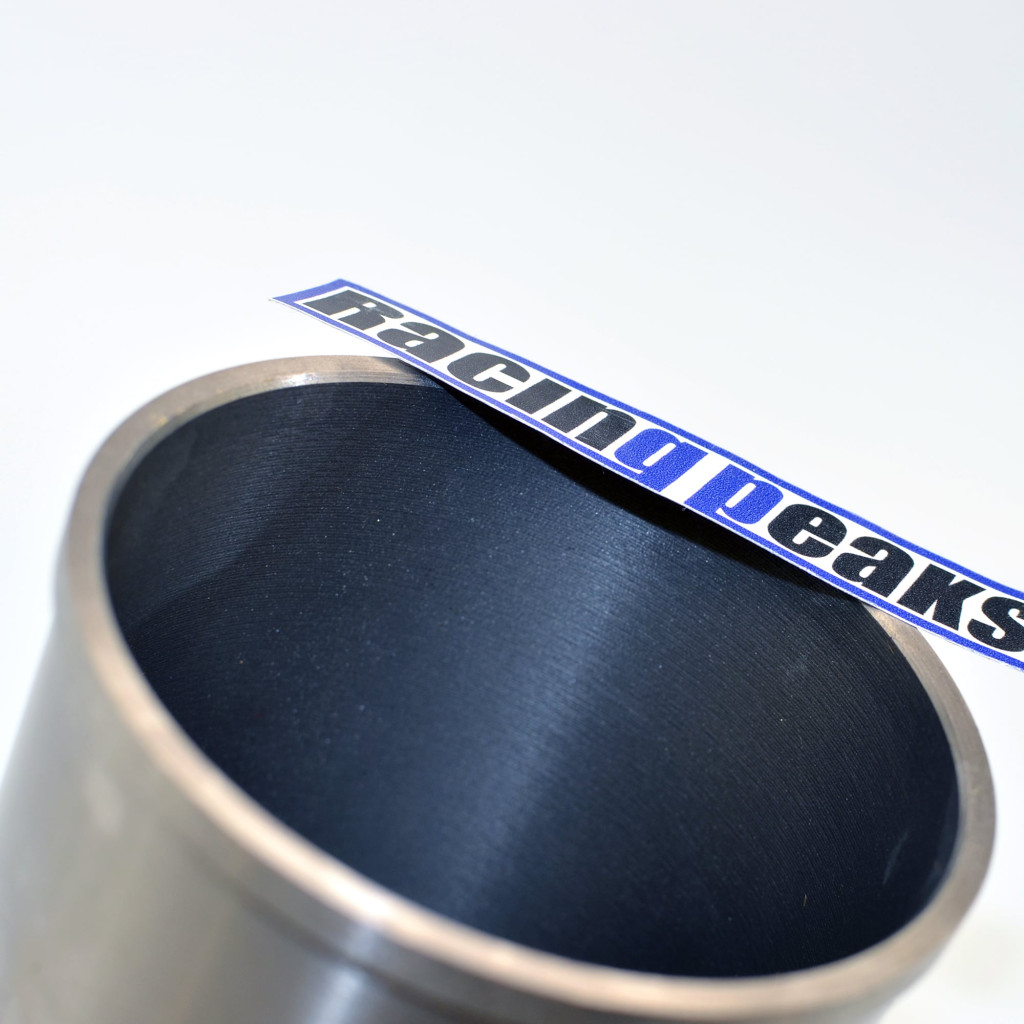

Inner diameter (B): 82.50mm for 83.00mm Outside diameter (O): 88.05mm Flange outside diameter (F): 91.00mm Flange height (H): 5.00mm Total length (L): 180.00mm

Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 2 mm Compression Height: 33.3 mm Height: 52.7 mm Cyl.Bore: 82 mm Bolt d.: 22 mm Recess Diameter: 56.1 mm Bolt Length: 51.1 mm Valve Pocket Depth 1: 4.4 mm Valve Pocket Depth 2: 4.5 mm Component No.: 08-453400-00 Surface: Hard Anodized

More details coming soon.

Bearing structure: Tri-Metal; Number in pack: 8

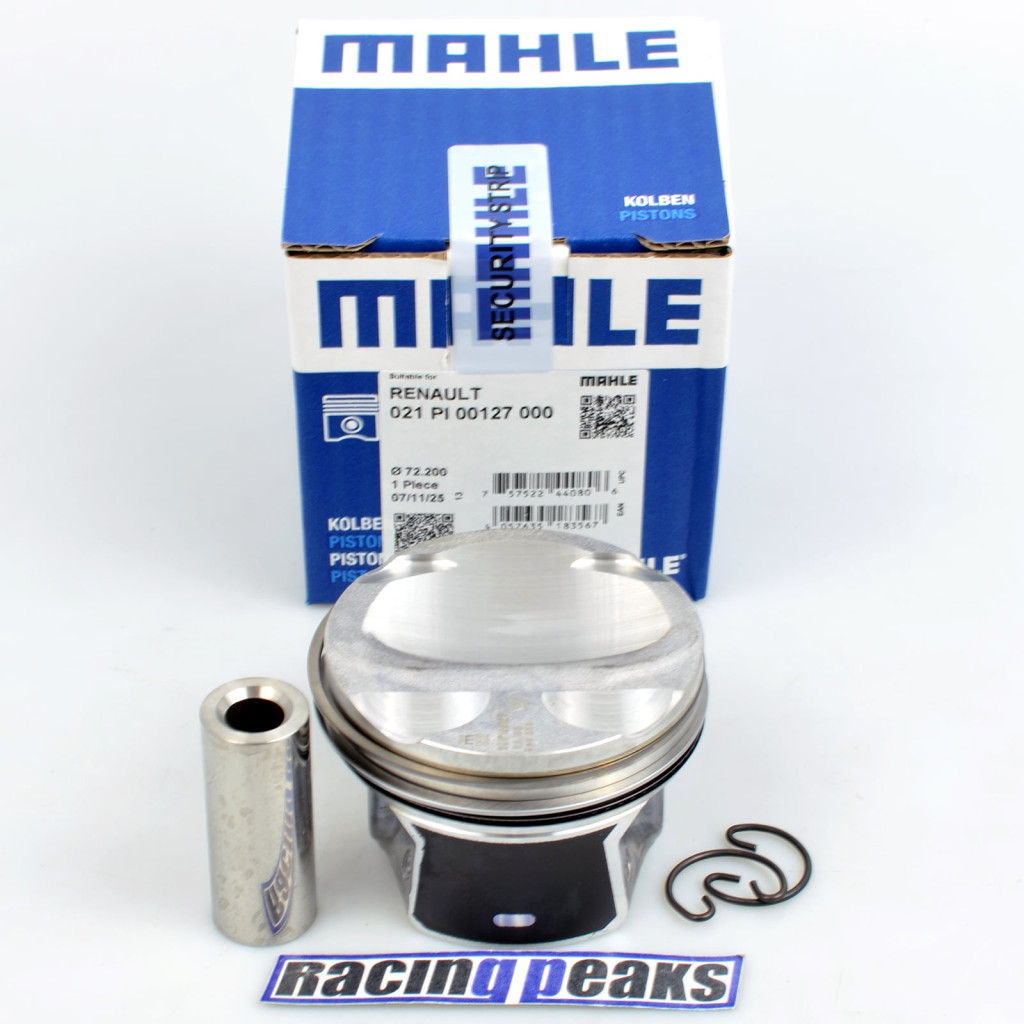

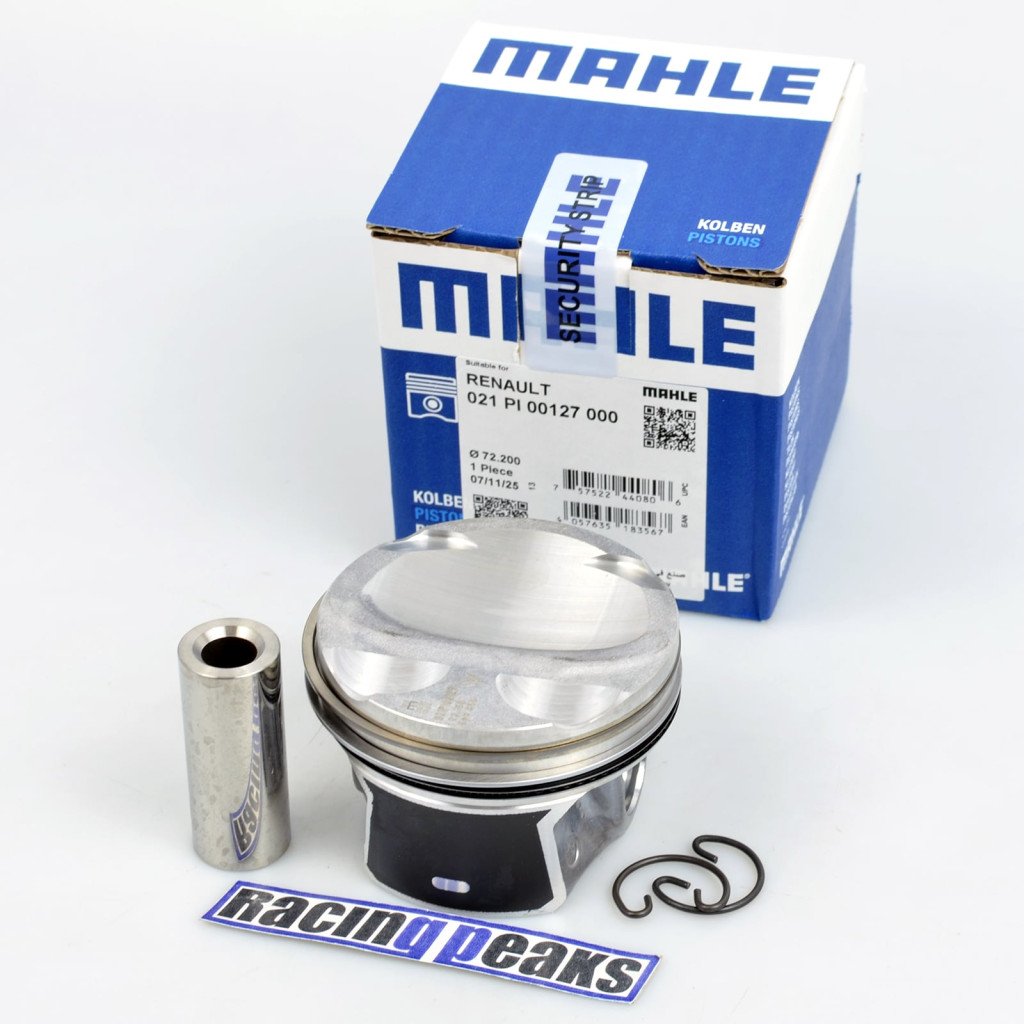

Bore: 72.20mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Position: Crankshaft Quantity: 6 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Piston size: 84.00mm; Ring size: 1.20x1.50x2.00mm

Piston size: 89.00mm; Ring size: 1.20x1.50x2.00mm

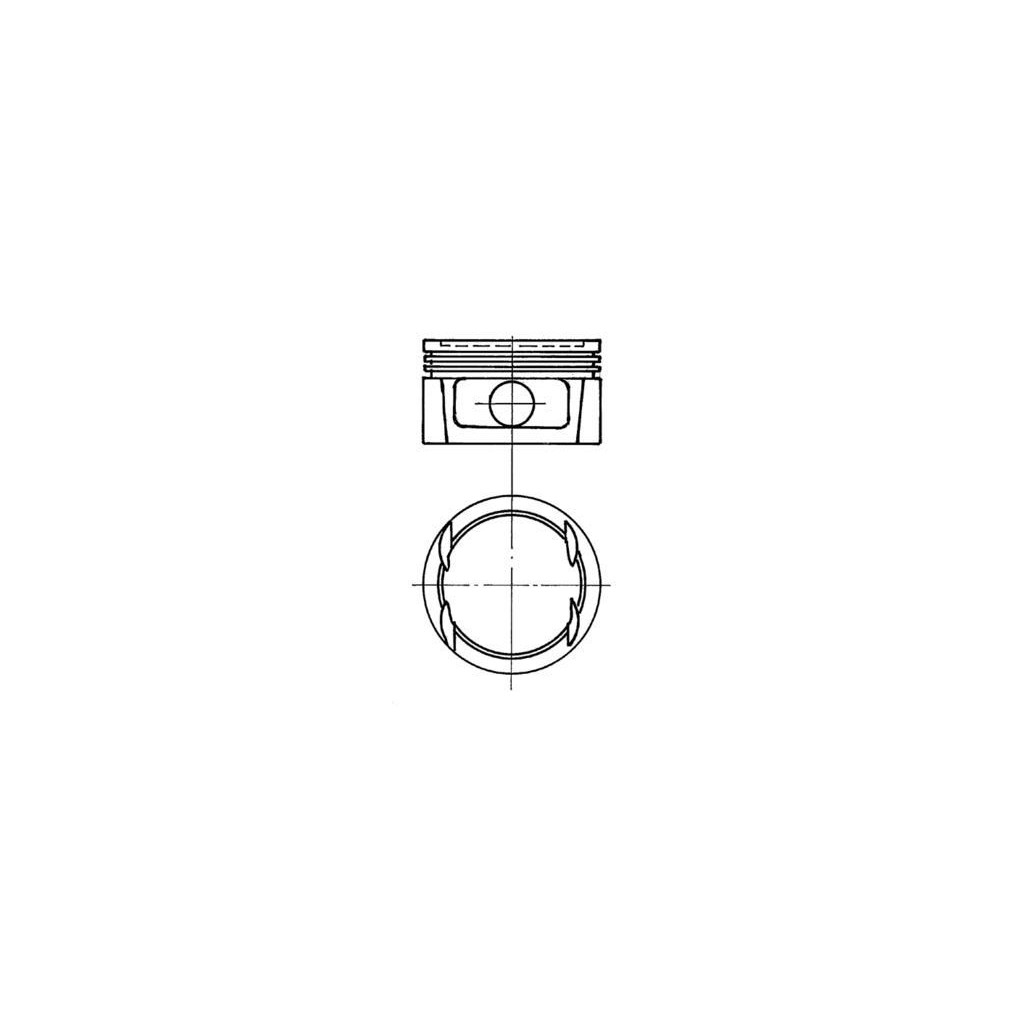

Cyl.Bore: 86.50mm Compression Height: 30.43mm Length: 55.43mm Recess Depth 1: 0.85mm Valve Pocket Depth 1: 1.93mm Component No.: 70872, 70876, 70874 Bolt d.: 21mm Bolt Length: 61.5mm Rep. Stage: 0.50

Bore: 84.00mm Top ring: 1.75mm 2nd ring: 1.75mm 3rd ring: 2.00mm
