Connecting rod fits Ford Transit Ranger Edge Galaxy Focus Mondeo 2.0 EcoBlue
€58.09
VAT included
Number in pack:

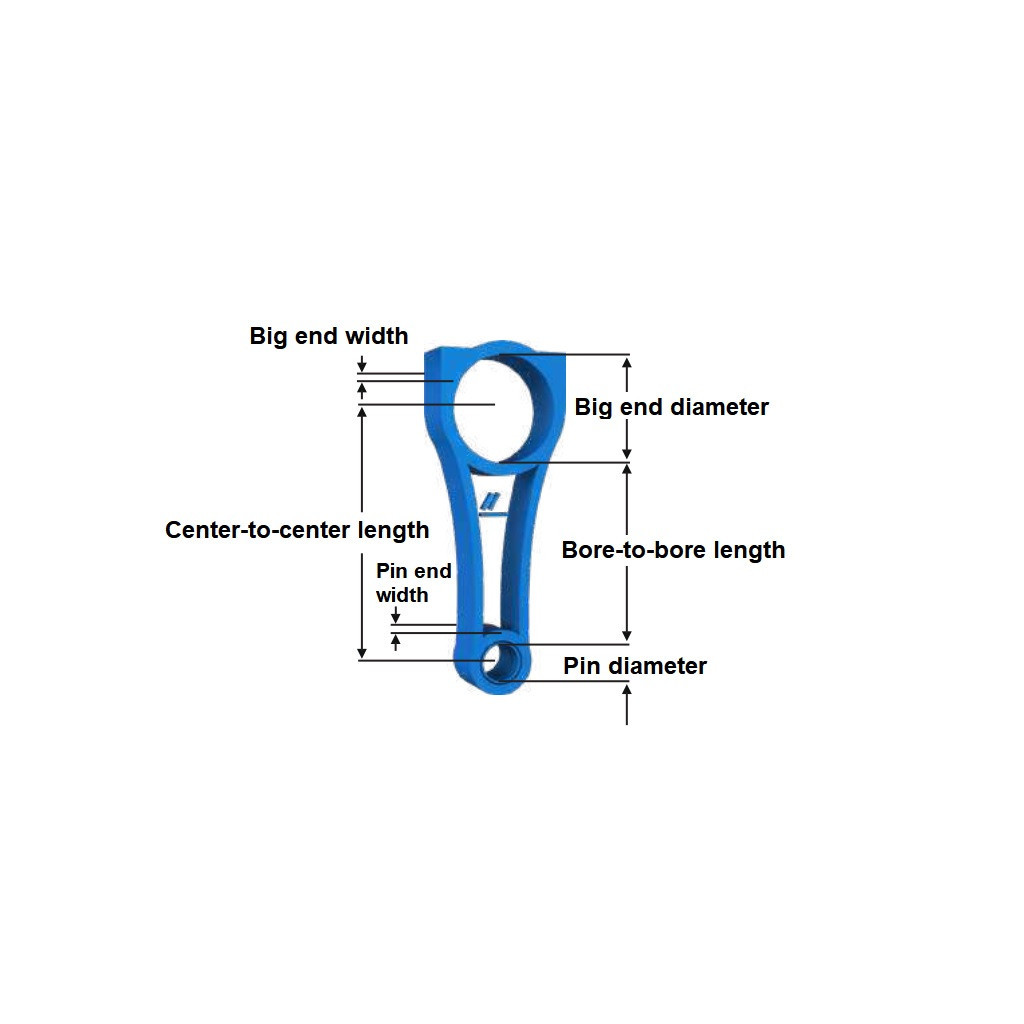

1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 142.500
Bore-to-bore length: 101.000
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 715 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 142.500
Bore-to-bore length: 101.000
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 715 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm

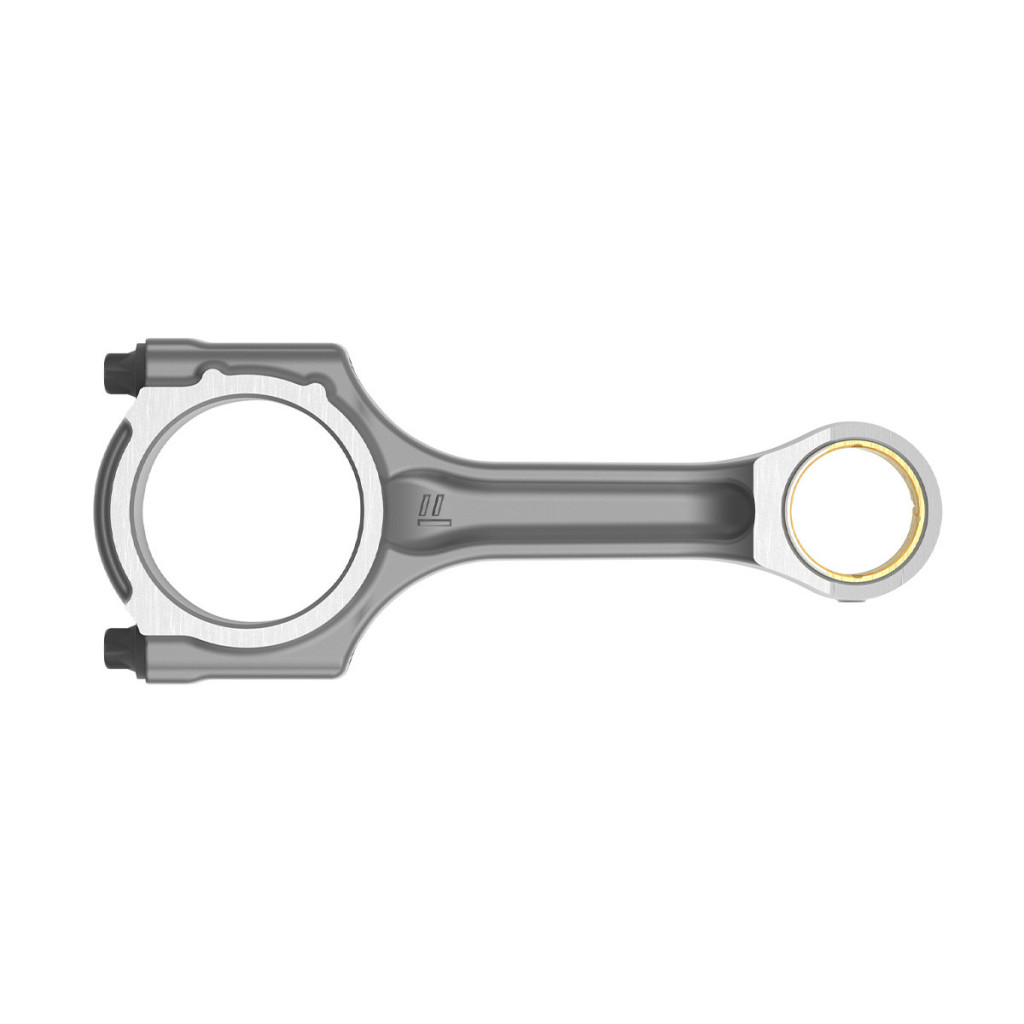

Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY1106 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY1106
16 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- GK2Q6205BA
RFGK206205BA
Specific References
New
Number in pack:
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 142.500
Bore-to-bore length: 101.000
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 715 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 142.500
Bore-to-bore length: 101.000
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 715 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
