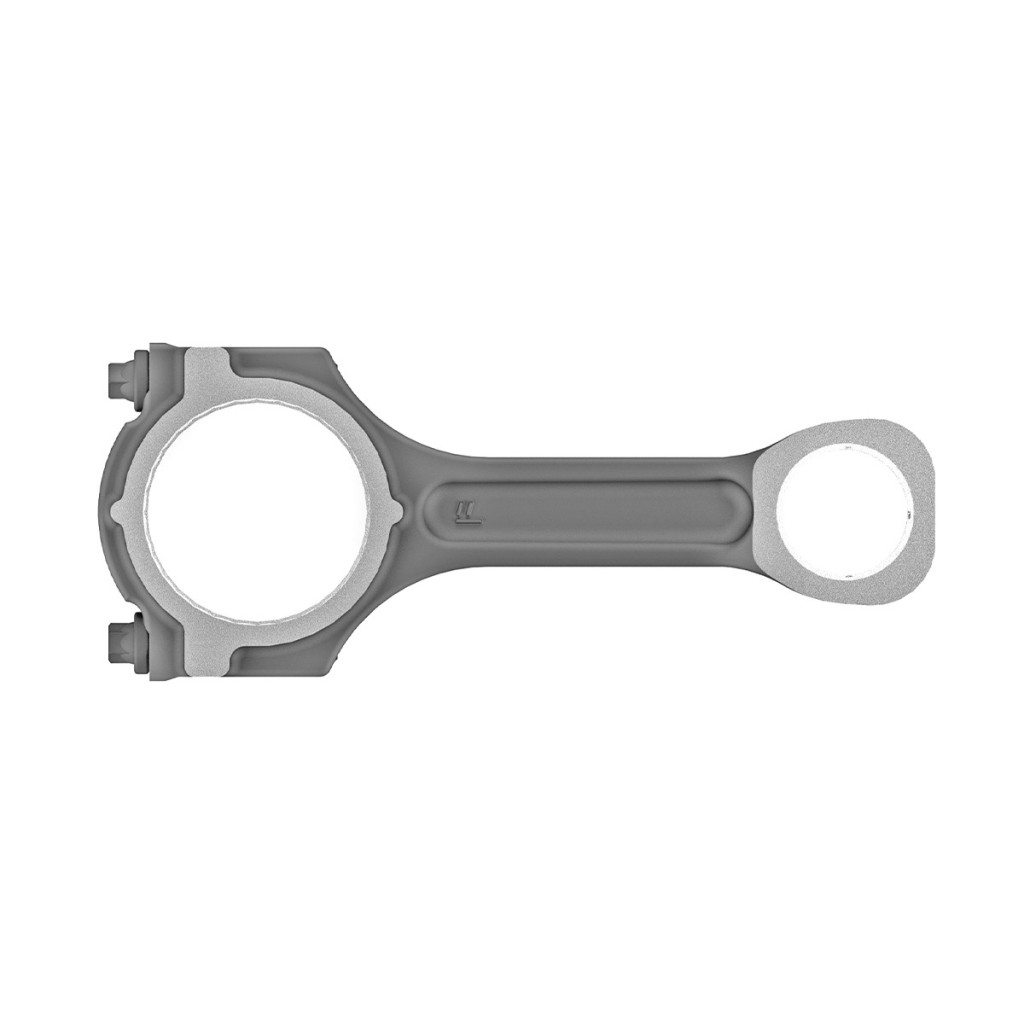

Connecting rod fits Ford Transit 2.4 TDCi 2000-2014 D2FA H9FB
€58.19
VAT included
Number in pack:

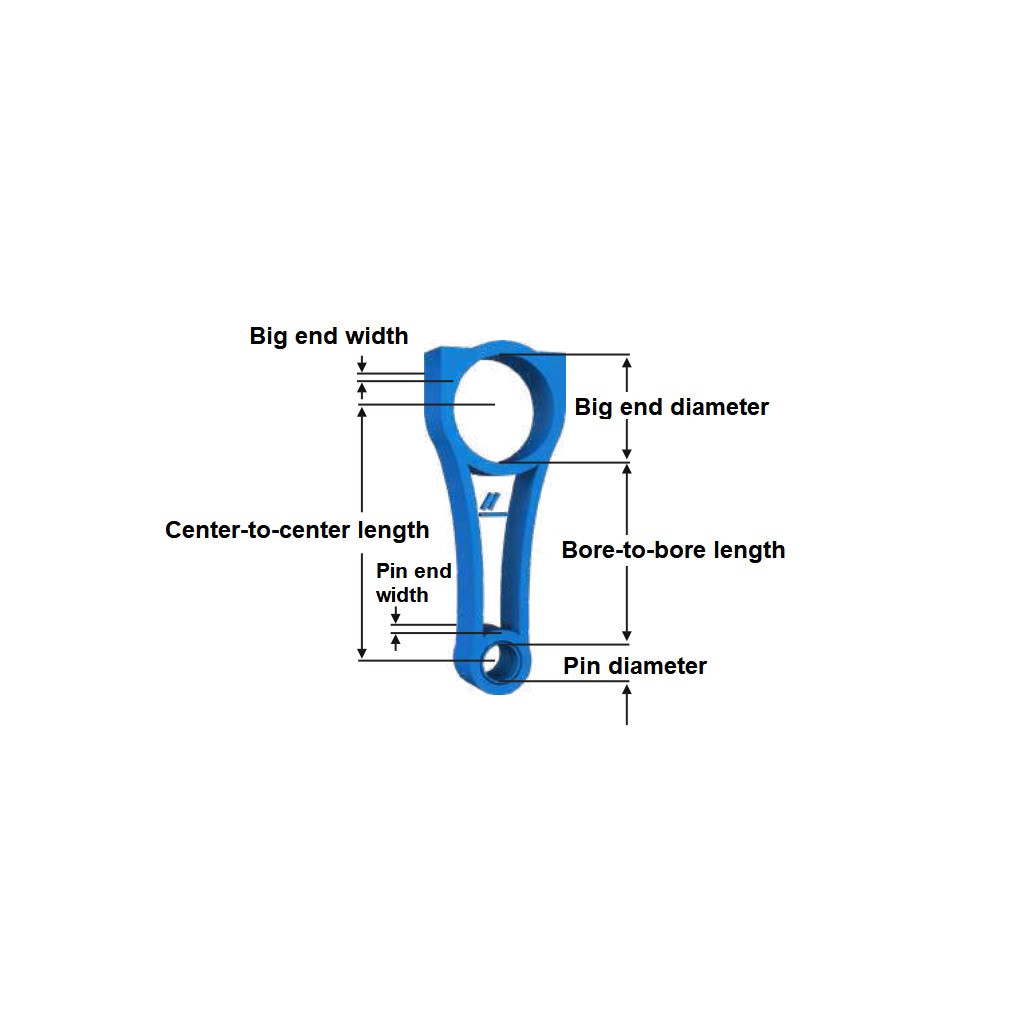

1Big end width: 28.800
Big end diameter: 55.995-56.020
Center-to-center length: 149.750
Bore-to-bore length: 105.750
Pin end width: 28.800
Pin diameter: 32.020-32.035
Weight: 950 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
Last items in stock1Big end width: 28.800
Big end diameter: 55.995-56.020
Center-to-center length: 149.750
Bore-to-bore length: 105.750
Pin end width: 28.800
Pin diameter: 32.020-32.035
Weight: 950 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY1103 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY1103
4 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- 5C10-6200-AA
1406170
Specific References
New
Number in pack:
1Big end width: 28.800
Big end diameter: 55.995-56.020
Center-to-center length: 149.750
Bore-to-bore length: 105.750
Pin end width: 28.800
Pin diameter: 32.020-32.035
Weight: 950 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
1Big end width: 28.800
Big end diameter: 55.995-56.020
Center-to-center length: 149.750
Bore-to-bore length: 105.750
Pin end width: 28.800
Pin diameter: 32.020-32.035
Weight: 950 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
