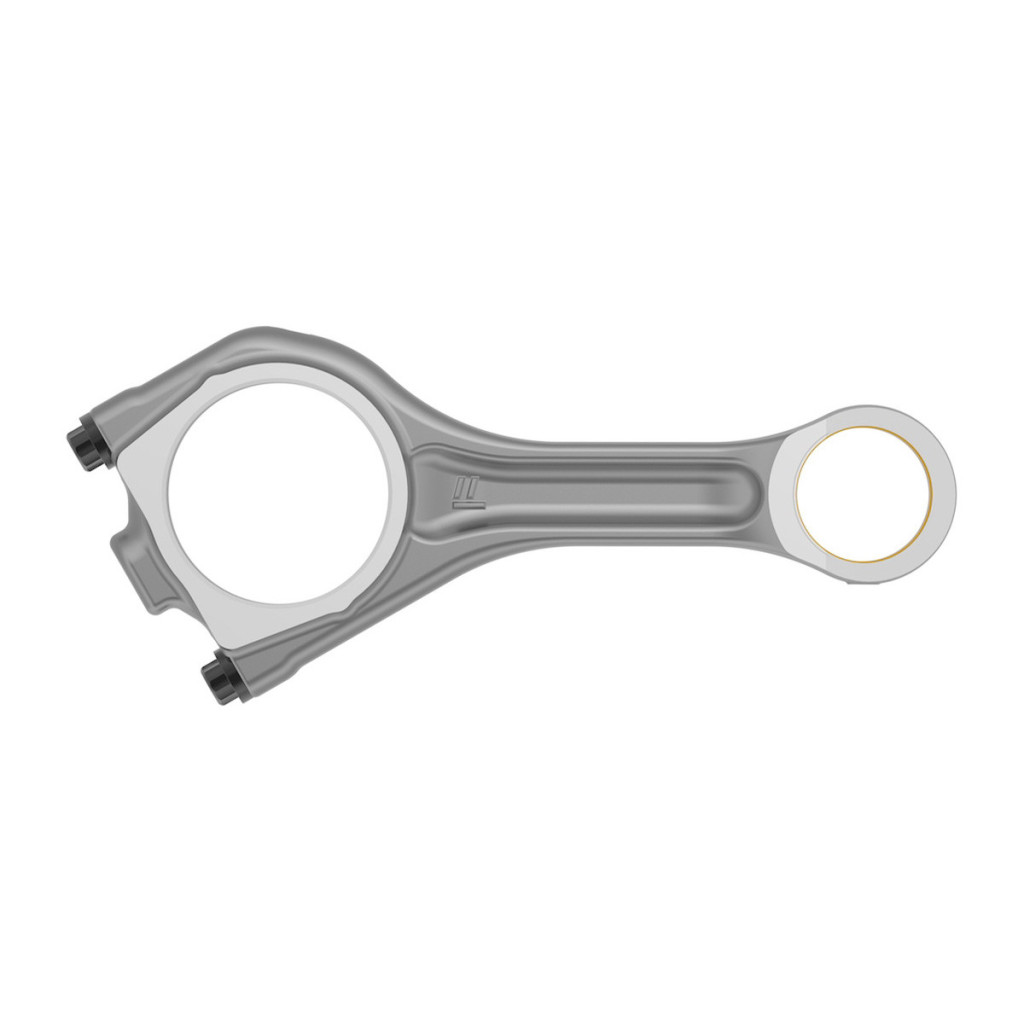

Connecting rod fits Land Rover Velar Evoque Discovery E-F-Pace XE 2014- 204DTD
€78.69
VAT included
Number in pack:

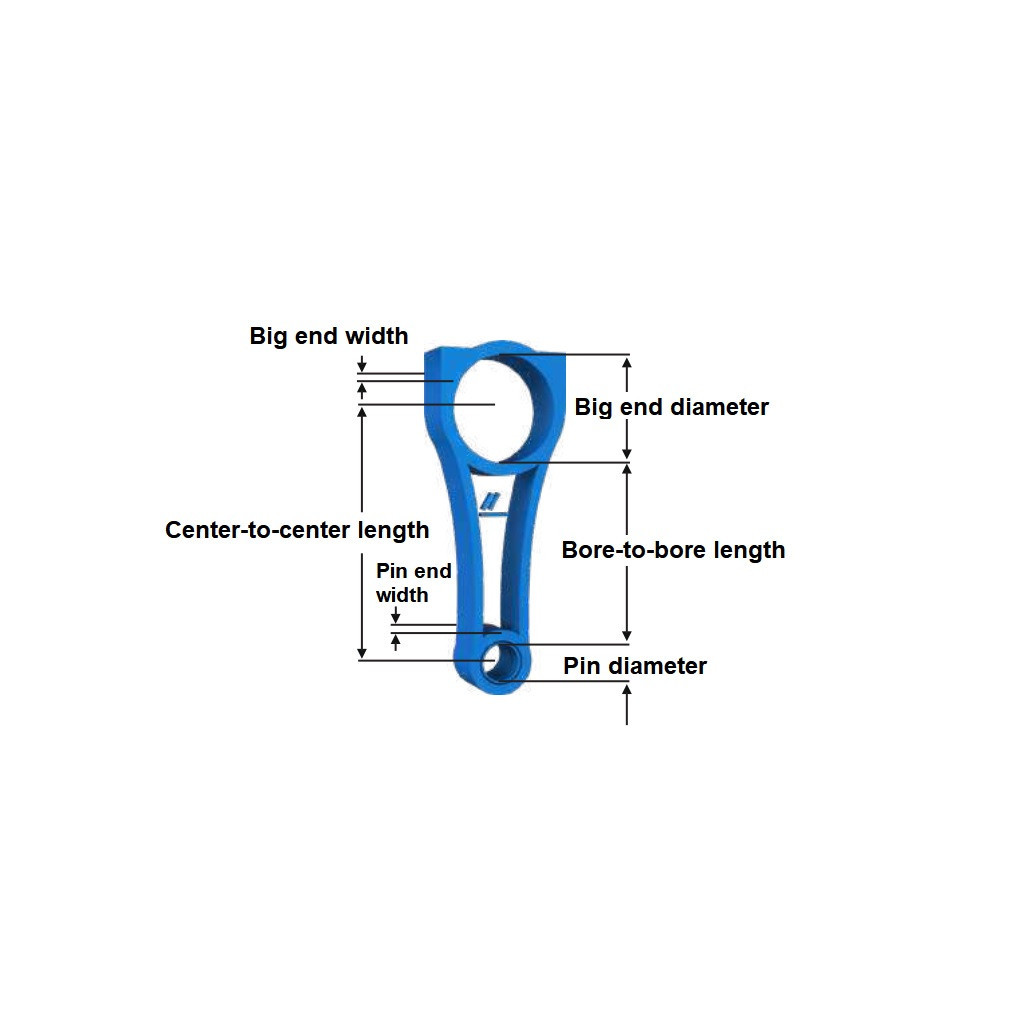

1Big end width: 24.700
Big end diameter: 53.017-53.030
Center-to-center length: 140.000
Bore-to-bore length: 97.500
Pin end width: 24.700
Pin diameter: 30.020-30.035
Weight: 755 gr

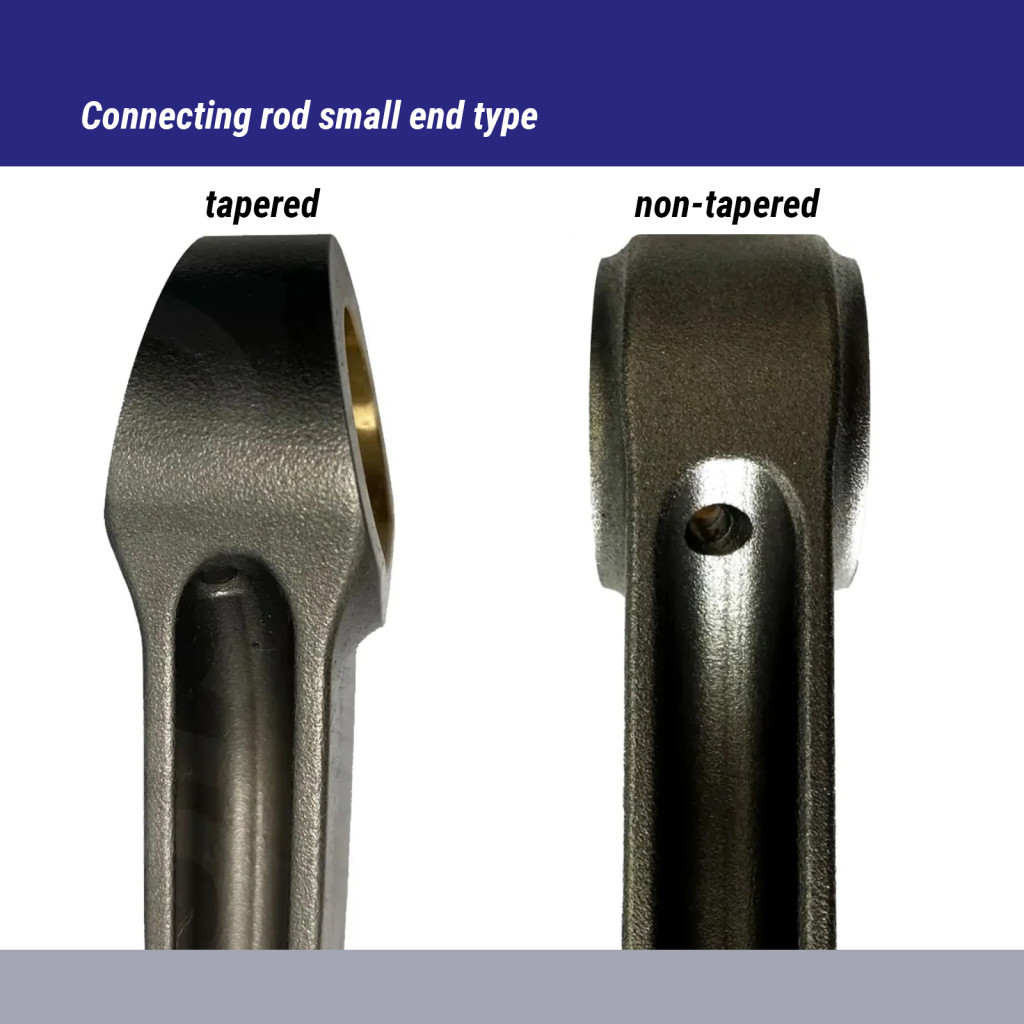

Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 80 degree
1Big end width: 24.700
Big end diameter: 53.017-53.030
Center-to-center length: 140.000
Bore-to-bore length: 97.500
Pin end width: 24.700
Pin diameter: 30.020-30.035
Weight: 755 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 80 degree
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0204 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0204
16 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- AJ813171
LR082540
Specific References
New
Number in pack:
1Big end width: 24.700
Big end diameter: 53.017-53.030
Center-to-center length: 140.000
Bore-to-bore length: 97.500
Pin end width: 24.700
Pin diameter: 30.020-30.035
Weight: 755 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 80 degree
1Big end width: 24.700
Big end diameter: 53.017-53.030
Center-to-center length: 140.000
Bore-to-bore length: 97.500
Pin end width: 24.700
Pin diameter: 30.020-30.035
Weight: 755 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 80 degree
