Cyl.Bore: 81.51mm Compression Height: 45.5mm Length: 68.5mm Recess Depth 1: 16.6mm Recess Diameter: 46mm Component No.: 63506, 63509, 63747 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Cyl.Bore: 80.01mm Compression Height: 39.4mm Length: 65.7mm Recess Depth 1: 1.9mm Component No.: 80009, 80006, 80002 Bolt d.: 24mm Bolt Length: 64mm Rep. Stage: 0.50

Bore: 83.50mm Top ring: 2.00mm 2nd ring: 1.75mm 3rd ring: 2.00mm

Component Number: 88389; 88405; 88406 Quantity: 3 Thickness [mm] 88389: 2,4 Height [mm] 88389: 1,2 Material 88389: Steel Surface 88389: Blank; Nitrified Cylinder Piston Diameter [mm] 88389: 66,5 Thickness [mm] 88405: 2,65 Height [mm] 88405: 2,5 Surface 88405: Nitrified Cylinder Piston Diameter [mm] 88405: 66,5 Thickness [mm] 88406: 2,4 Height [mm] 88406:...

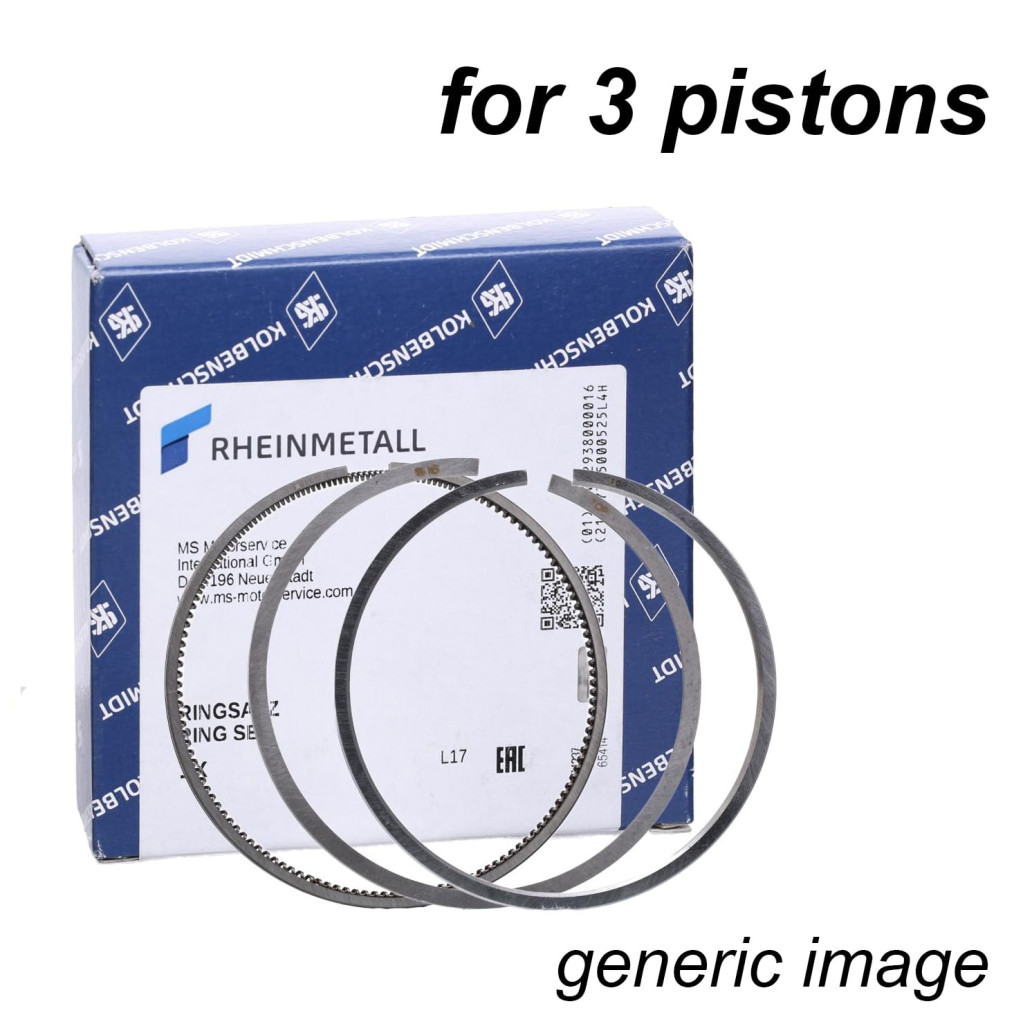

Component Number: 60484; 62748; 62750 Oversize [mm]: 0,50 Quantity: 3 Thickness [mm] 60484: 2,87 Height [mm] 60484: 2,5 Surface 60484: Chromed Cylinder Piston Diameter [mm] 60484: 69,5 Thickness [mm] 62748: 2,65 Height [mm] 62748: 1,2 Material 62748: Cast Iron with Ductile Iron Surface 62748: Molybdenum coated; Phosphatized Cylinder Piston Diameter [mm] 62748:...

Component Number: 63558; 66236; 66237 Quantity: 3 Thickness [mm] 63558: 2,7 Height [mm] 63558: 2 Material 63558: Cast Iron with Ductile Iron Surface 63558: Blank; Chromed Cylinder Piston Diameter [mm] 63558: 69,6 Thickness [mm] 66236: 2,85 Height [mm] 66236: 1,5 Material 66236: Cast Iron with Ductile Iron Surface 66236: Blank; Diamond-coated Cylinder Piston...

Oversize [mm]: 0,50

Component Number: 66335; 66639; 66640 Construction year to: 201205 Quantity: 3 Thickness [mm] 66335: 2,95 Height [mm] 66335: 2 Material 66335: Steel Surface 66335: Blank; Nitrified Cylinder Piston Diameter [mm] 66335: 71 Thickness [mm] 66639: 2,6 Height [mm] 66639: 1 Material 66639: Steel Surface 66639: Blank; Nitrified Cylinder Piston Diameter [mm] 66639:...

Component Number: 61927; 65908; 65910 Quantity: 3 Thickness [mm] 61927: 3,2 Height [mm] 61927: 1,95 Material 61927: Grey Cast Iron Surface 61927: Blank Cylinder Piston Diameter [mm] 61927: 73,71 Thickness [mm] 65908: 3,15 Height [mm] 65908: 2 Material 65908: Cast Iron with Ductile Iron Surface 65908: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm]...

Component Number: 62509; 66124; 66125 Quantity: 3 Thickness [mm] 62509: 3,3 Height [mm] 62509: 1,95 Material 62509: Grey Cast Iron Surface 62509: Phosphatized Cylinder Piston Diameter [mm] 62509: 75 Thickness [mm] 66124: 3,1 Height [mm] 66124: 2,5 Material 66124: Cast Iron with Ductile Iron Surface 66124: Blank; Chrome ceramic coated Cylinder Piston Diameter...

Component Number: 27821; 33303; 33350 Quantity: 3 Thickness [mm] 27821: 3,25 Height [mm] 27821: 2 Surface 27821: Phosphatized Cylinder Piston Diameter [mm] 27821: 75 Thickness [mm] 33303: 3,25 Height [mm] 33303: 1,75 Material 33303: Cast Iron with Ductile Iron Surface 33303: Chromed; Phosphatized Cylinder Piston Diameter [mm] 33303: 75 Thickness [mm] 33350:...

Component Number: 20830; 32919; 39239 Oversize [mm]: 0,50 Quantity: 3 Thickness [mm] 20830: 3,4 Height [mm] 20830: 2 Surface 20830: Phosphatized Cylinder Piston Diameter [mm] 20830: 77 Thickness [mm] 32919: 3,3 Height [mm] 32919: 1,75 Material 32919: Cast Iron with Ductile Iron Surface 32919: Chromed; Phosphatized Cylinder Piston Diameter [mm] 32919:...
