Position: Crankshaft Quantity: 6 pairs Shaft diameter: 65.000 / 65.019mm Housing bore: / Wall thickness: 59.971mm Bearing width: 2.498mm Position: Flanged bearing Quantity: 1 pair Shaft diameter: 65.000 / 65.019mm Housing bore: 25.020 / 25.053mm Wall thickness: 59.971mm Bearing width: 2.498mm Position: Connecting rod Quantity: 6 pairs Shaft...

Position: Crankshaft Quantity: 4 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Position: Crankshaft Quantity: 6 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 54.979 / 55.000mm Housing bore: 59.014 / 59.032mm Wall thickness: 2.003mm Bearing width: 21.50mm Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.982 / 50.000mm Housing bore: 53.017 / 53.030mm Wall thickness: 1.503mm Bearing width: 21.20mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 41.981 / 42.000mm Housing bore: 45.600 / 45.619mm Wall thickness: 1.795mm Bearing width: 16.19mm Position: Connecting rod Quantity: 3 pairs Shaft diameter: 41.984 / 42.000mm Housing bore: 45.000 / 45.012mm Wall thickness: 1.49mm Bearing width: 16.00mm

Operating Mode: Mechanical Pump Type: Tandem Pump Fuel Type: Diesel Supplementary Info: without gasket/seal

Operating Mode: Mechanical Pump Type: Tandem Pump Fuel Type: Diesel Supplementary Info: without gasket/seal

Number of Teeth: 61 Pump Type: Vane Pump

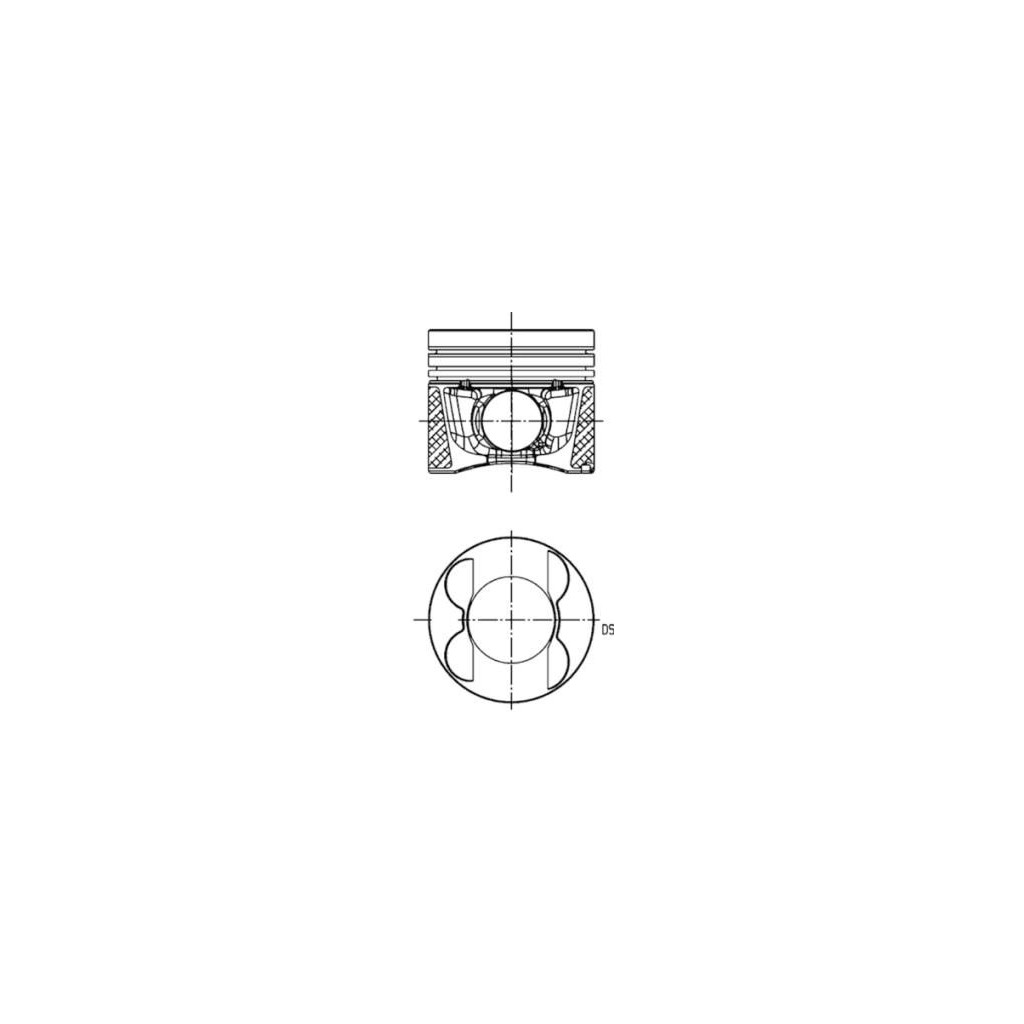

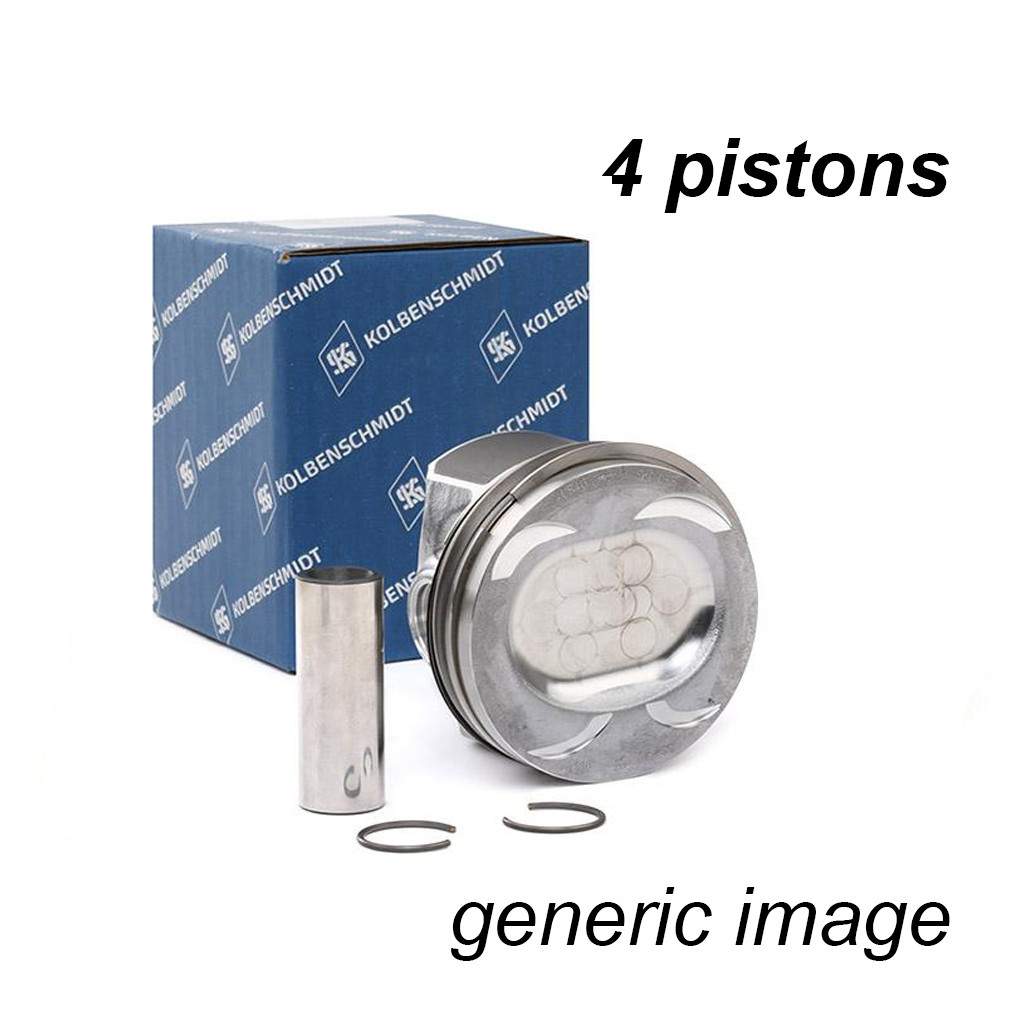

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm
