Bore: 92.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 83.00mm Top ring: 1.20mm 2nd ring: 1.00mm 3rd ring: 2.00mm

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 3.57 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L177 Piston rings: 1.20x1.50x2.00mm

Bore: 76.51mm Length: 50.1 mm Compression Height: 29.12 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 5.6 mm Valve Pocket Depth 1: 3.8 mm Valve Pocket Depth 2: 1.1 mm Surface: Coated Top Land Height: 5.8 mm Production Number: 76 L 92 Piston Clearance: 0.07 mm Piston rings: 1.20x1.50x2.00mm

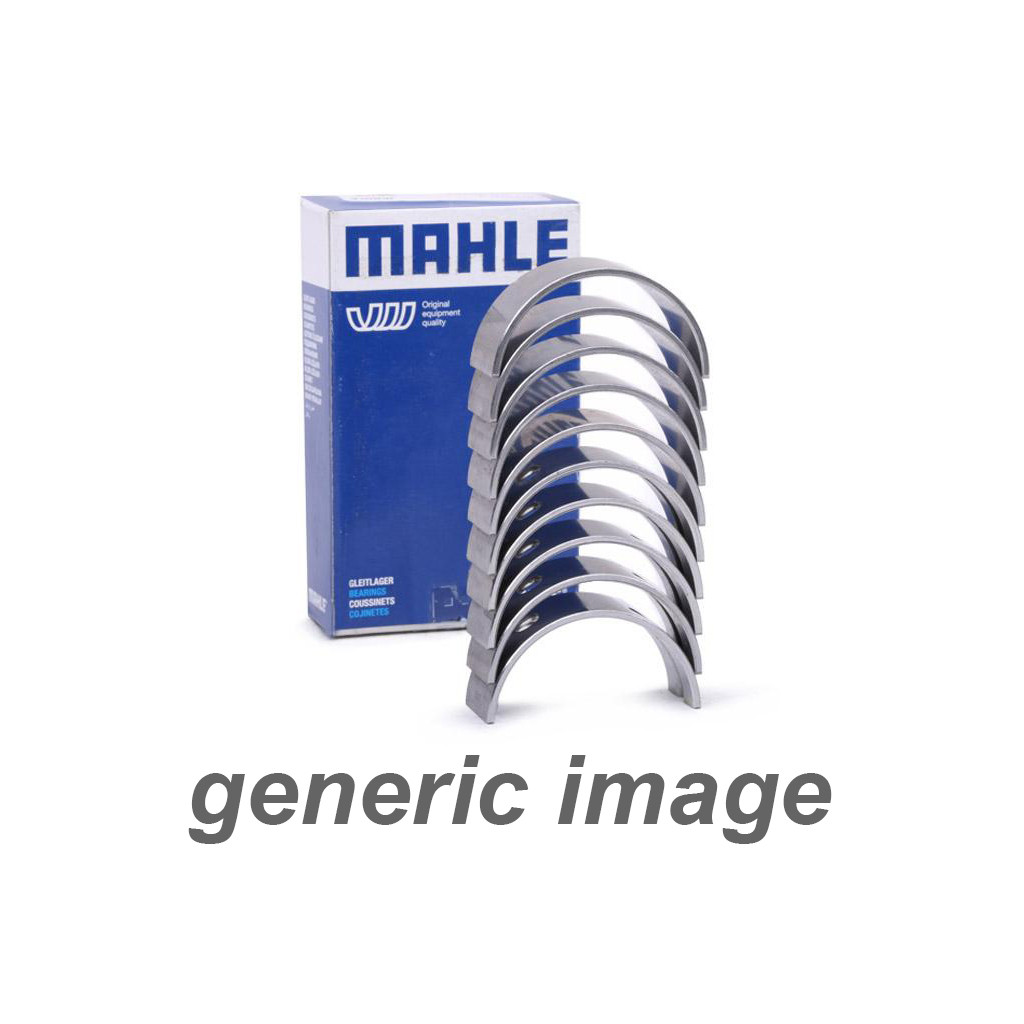

Quantity Unit: Pair Oversize: 0.00 mm Surface: Galvanically coated for bearing clearance: from 0.027 mm, until 0.073 mm for housing diameter: from 45.734 mm, until 45.744 mm Width: from 19.75 mm, until 20 mm for wall: from 1.544 mm, until 1.554 mm for shaft diameter: from 42.582 mm, until 42.6 mm

Quantity Unit: 1 pair Oversize: 0.00 mm for bearing clearance: from 0.006 mm, until 0.03 mm for housing diameter: from 51.6 mm, until 51.619 mm Width: from 21.5 mm, until 21.8 mm for wall: from 1.805 mm, until 1.811 mm for shaft diameter: from 47.95 mm, until 47.965 mm

Quantity Unit: 4 pairs Oversize: 0.00 mm for bearing clearance: from 0.006 mm, until 0.03 mm for housing diameter: from 51.6 mm, until 51.619 mm Width: from 21.5 mm, until 21.8 mm for wall: from 1.805 mm, until 1.811 mm for shaft diameter: from 47.95 mm, until 47.965 mm

Quantity Unit: 5 pairs Oversize: 0.00 mm for bearing clearance: from 0.006 mm, until 0.03 mm for housing diameter: from 51.6 mm, until 51.619 mm Width: from 21.5 mm, until 21.8 mm for wall: from 1.805 mm, until 1.811 mm for shaft diameter: from 47.95 mm, until 47.965 mm

Bore: 82.51mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 82.51mm Top ring: 1.00mm 2nd ring: 1.20mm 3rd ring: 2.00mm
