Bore: 77.50mm (stock 77.00mm) Stroke: 85.80mm Compression height: 28.50mm Compression ratio: 10.3 Pin: 20x50.8mm Rings: 1.00x1.20x2.80mm Crown volume: -1.1cc Weight: 273g Alloy: M142P Clearance guide: Measuring point: .385 Min: .0008 Max: .0016 Package: 4 pistons with rings and pins Warning: check for interference to piston motion from valves, oil squirters,...

Bore: 83.00mm (stock 82.50mm) Stroke: 92.80mm Compression height: 29.6mm Compression ratio: 9.6 Pin: 23mm Rings: 1.20x1.50x2.00mm Hard Anodized Top Ring Groove For Extreme Duty Applications Crown volume: -7.1cc Weight: 318g Alloy: M142P Clearance guide: Measuring point .250 Min .0010 Max .0018 Package: 4 pistons with rings and pins Warning: check for...

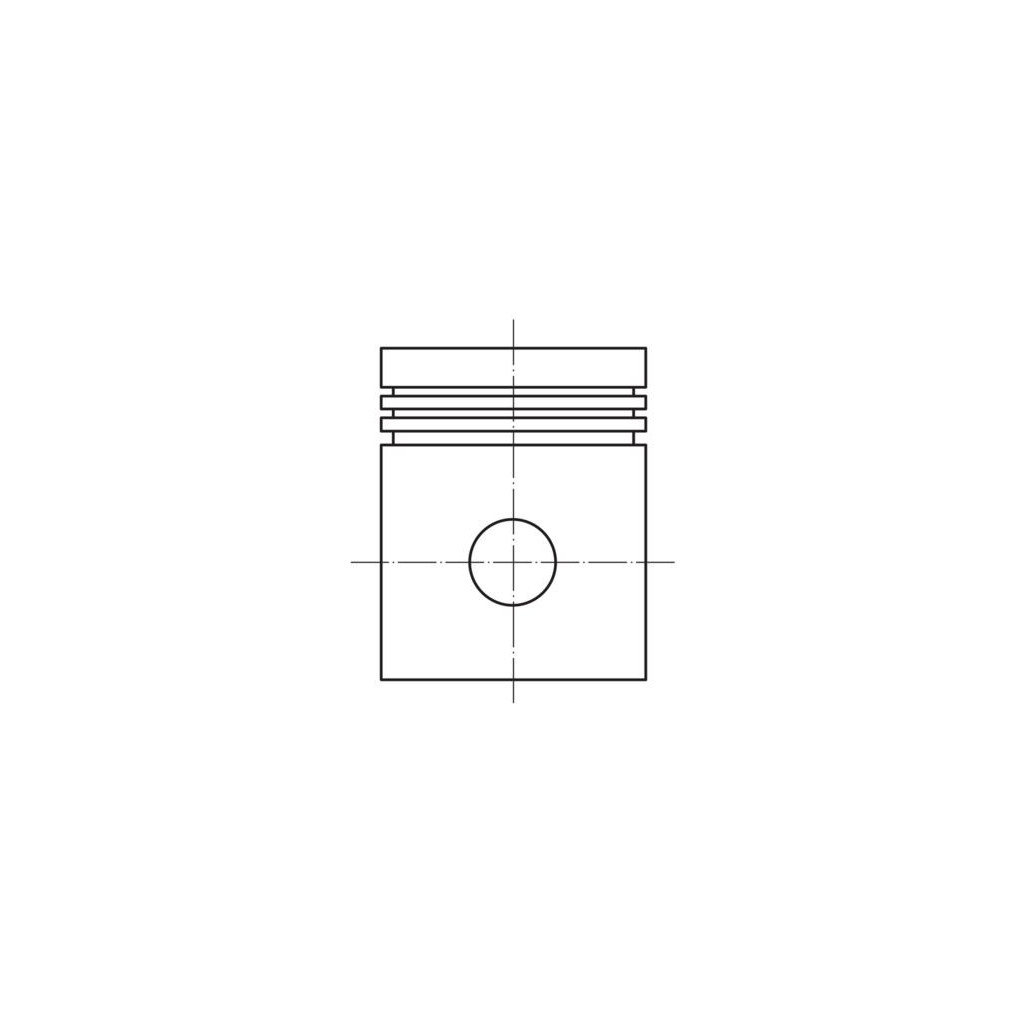

Bore: 70.00mm Length: 62.4 mm Compression Height: 40.43 mm Pin Length: 56.7 mm Pin Diameter: 23 mm Recess Depth 1: 12.4 mm Recess Diameter: 37 mm Top Land Height: 7.5 mm Production Number: 69 L 46 Piston rings: 1.50x1.50x2.00mm

Bore: 70.00mm Length: 62.4 mm Compression Height: 40.43 mm Pin Length: 56.7 mm Pin Diameter: 23 mm Recess Depth 1: 12.4 mm Recess Diameter: 37 mm Top Land Height: 7.5 mm Production Number: 69 L 46 Piston rings: 1.50x1.50x2.00mm

Bore: 71.01mm Length: 46.9 mm Compression Height: 28.94 mm Pin Length: 42 mm Pin Diameter: 19 mm Recess Depth 1: 4.35 mm Recess Diameter: 39.5 mm Surface: Hard Anodized Production Number: 71 L 55 Piston Clearance: 0.055 mm Piston rings: 1.20x1.20x2.00mm

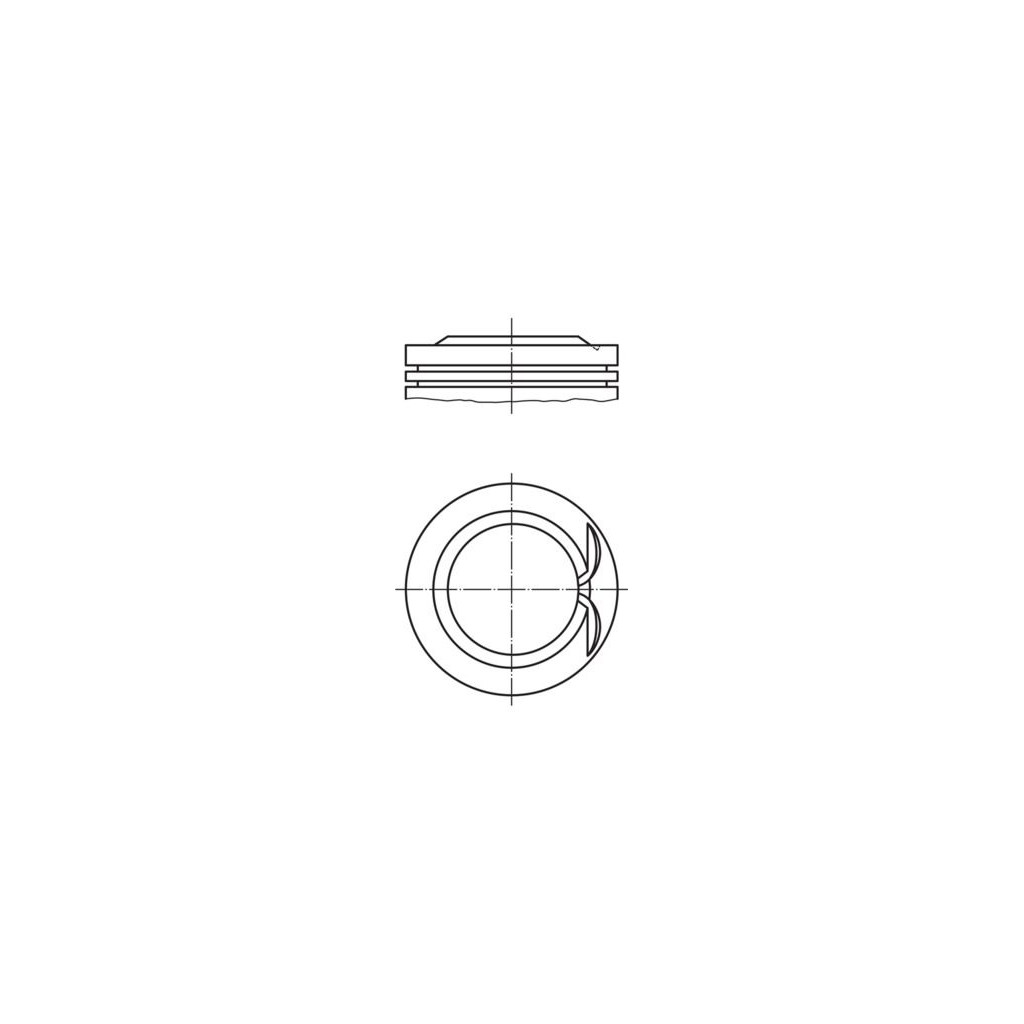

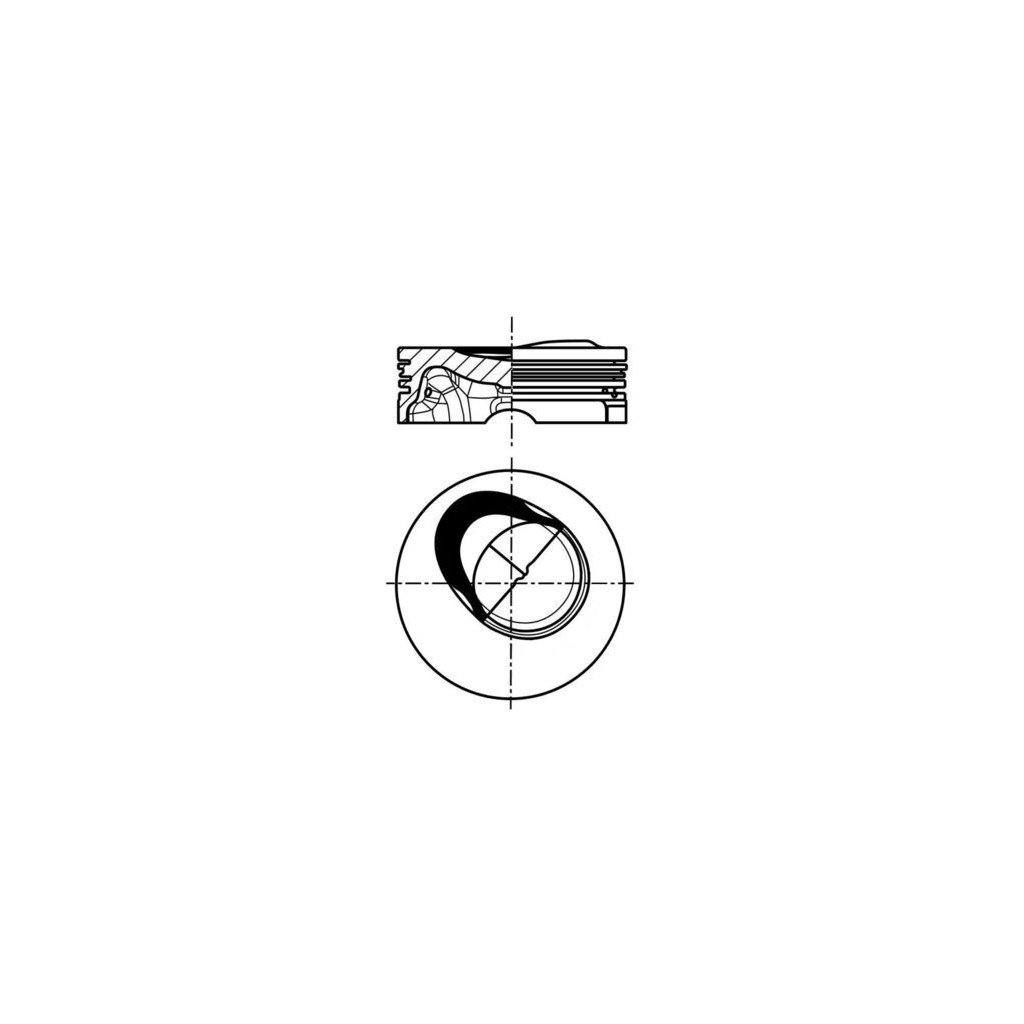

Bore: 71.00mm Length: 44.5 mm Compression Height: 28 mm Pin Length: 49 mm Pin Diameter: 17 mm Valve Pocket Depth 1: 0.7 mm Surface: Hard Anodized Production Number: 71 L 99 Piston rings: 1.20x1.20x2.00mm

Bore: 72.20mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 72.45mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 72.70mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 75.00mm Length: 50.2 mm Compression Height: 28.4 mm Pin Length: 45 mm Pin Diameter: 19.5 mm Surface: Coated Top Land Height: 6.56 mm Production Number: 75 L 186 Piston rings: 1.20x1.00x2.00mm

Bore: 75.00mm Length: 44 mm Compression Height: 26 mm Pin Length: 51 mm Pin Diameter: 17 mm Surface: Hard Anodized Top Land Height: 5.51 mm Production Number: 75 L 175 Piston rings: 1.00x1.00x2.00mm

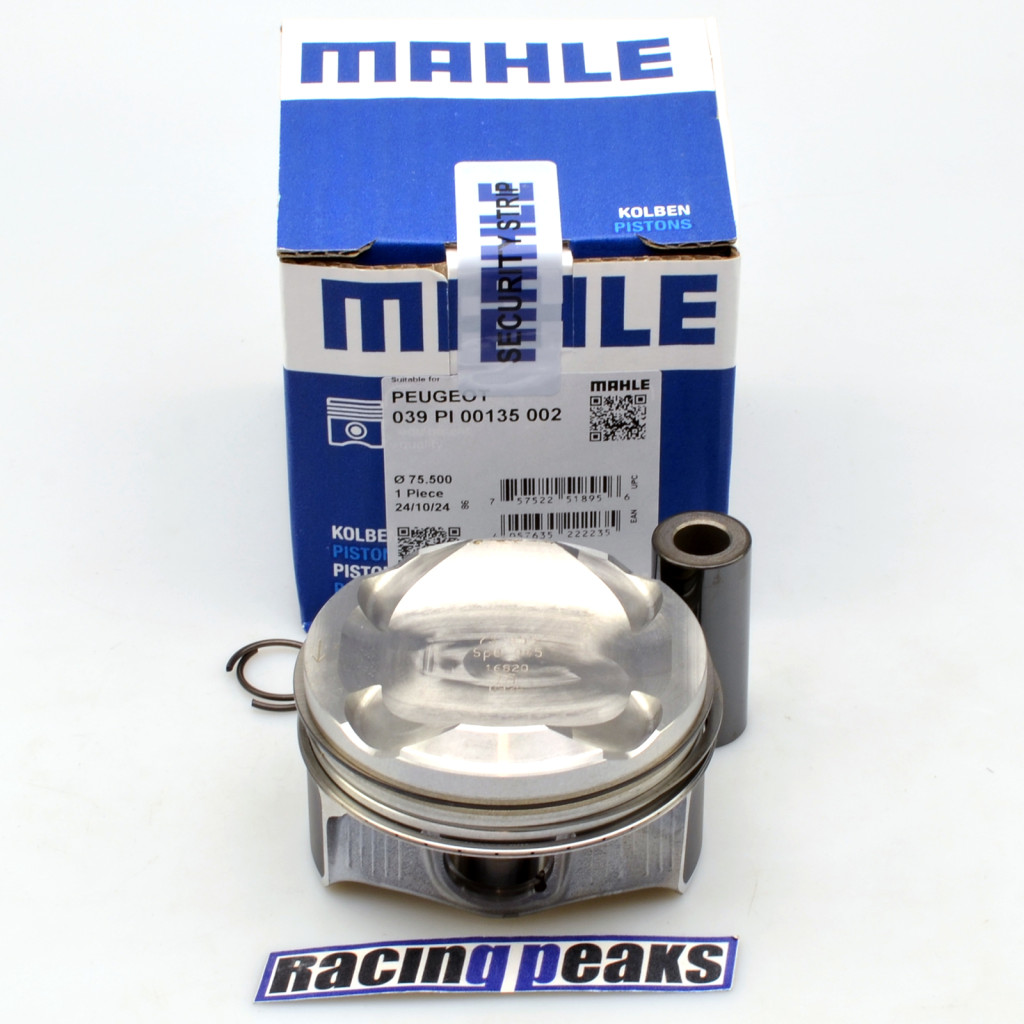

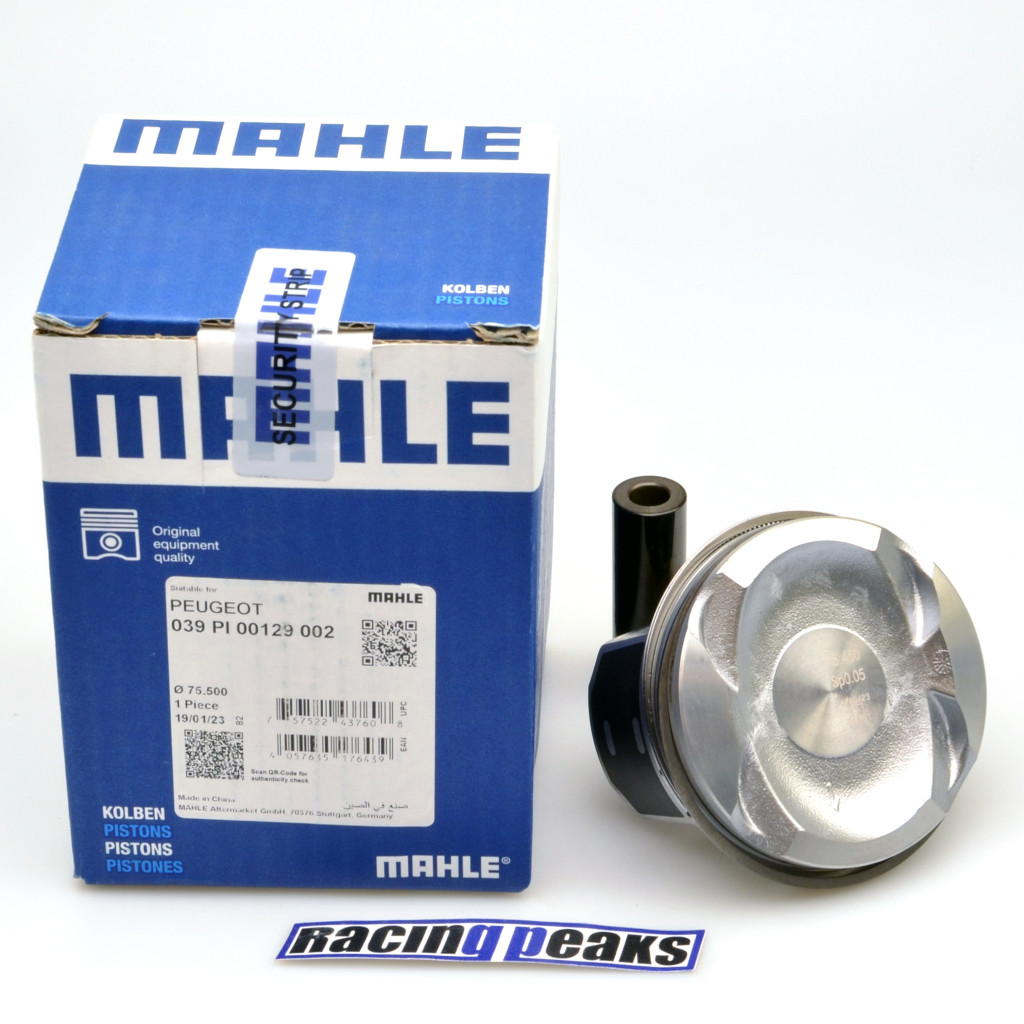

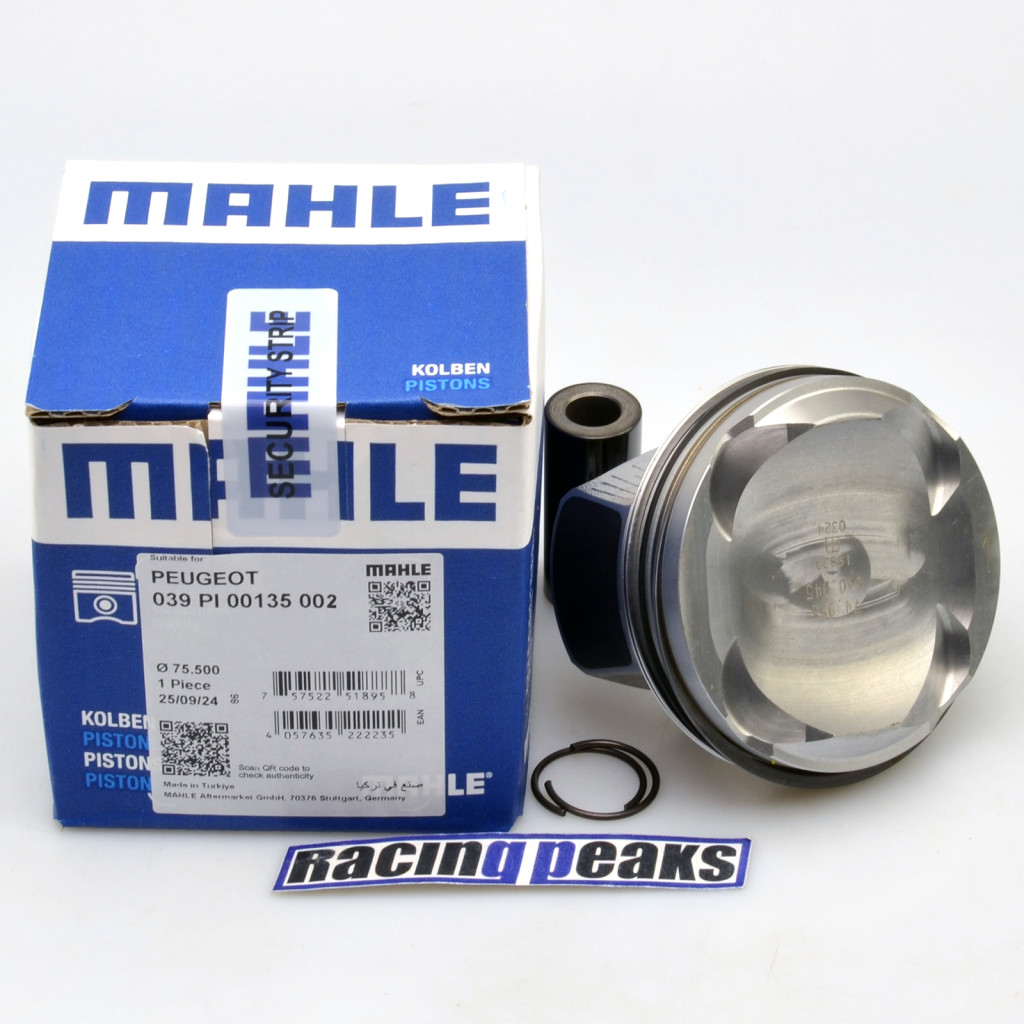

Bore: 75.50mm Length: 50.2 mm Compression Height: 28.4 mm Pin Length: 45 mm Pin Diameter: 19.5 mm Surface: Coated Top Land Height: 6.56 mm Production Number: 75 L 186 Piston rings: 1.20x1.00x2.00mm
