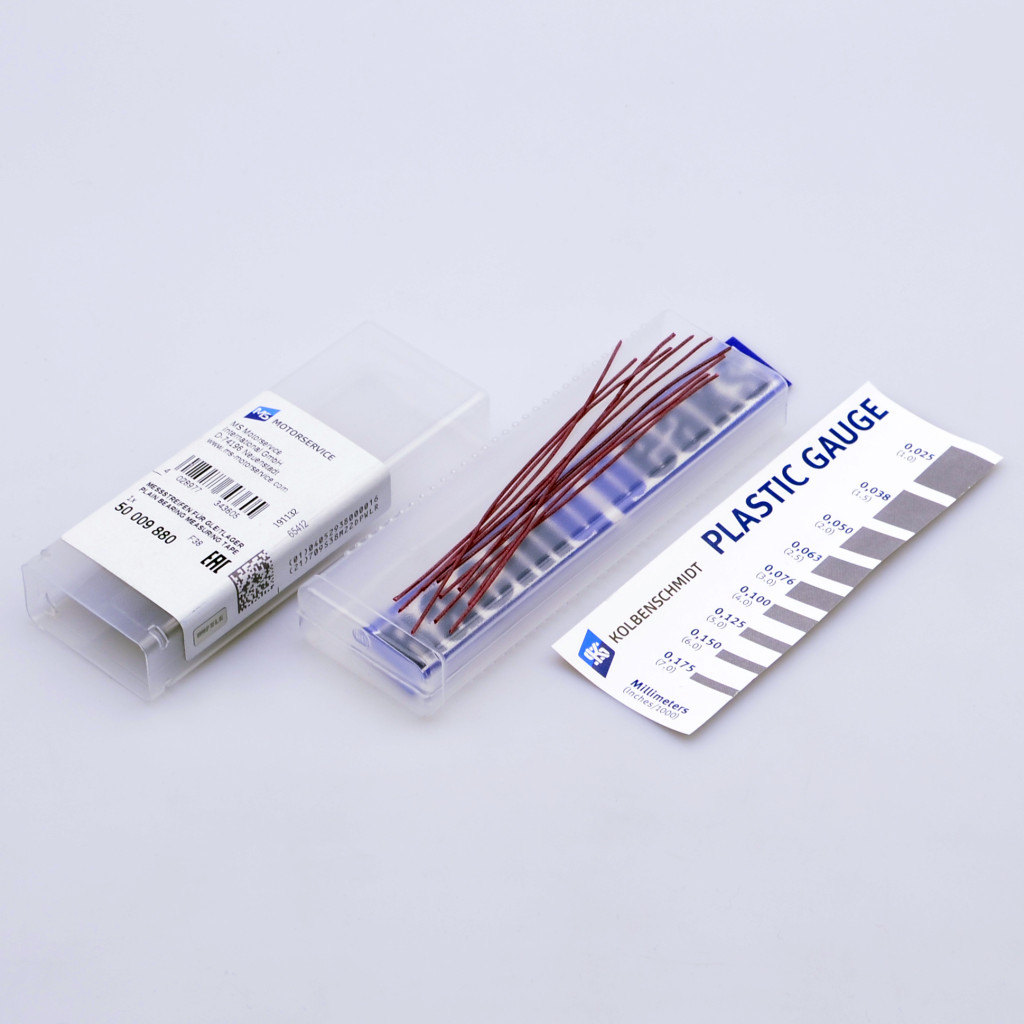

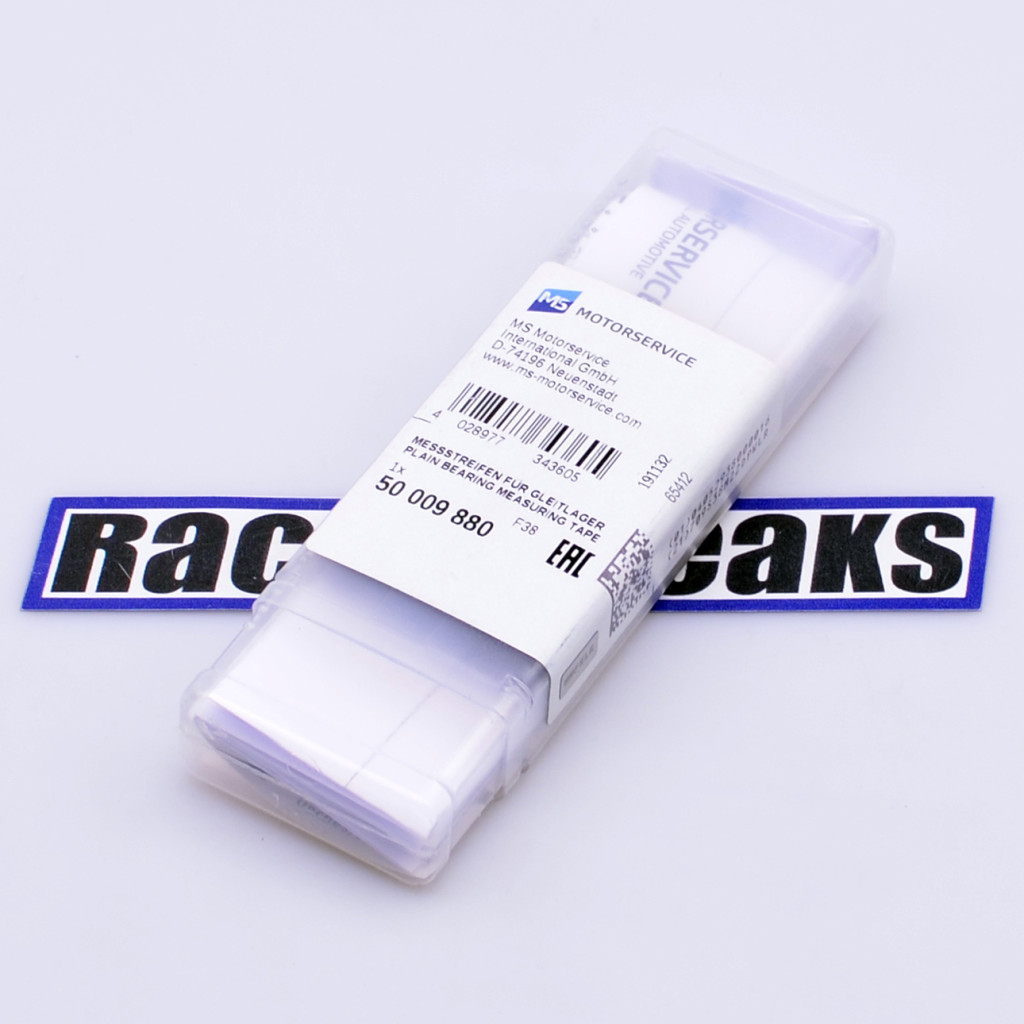

Enables swift and accurate checking of the bearing clearance on cross-divided plain bearings. It is especially well suited for checking the clearance of crankshaft main, con-rod and camshaft bearings on the engines of passenger cars and commercial vehicles. 'KS Plastic Gauge' is a thin, calibrated plastic strip which is inserted into the oil-free bearing position to measure the bearing...

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 54.979 / 55.000mm Housing bore: 59.014 / 59.032mm Wall thickness: 2.003mm Bearing width: 21.50mm Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.982 / 50.000mm Housing bore: 53.017 / 53.030mm Wall thickness: 1.503mm Bearing width: 21.20mm

Position: Main bearing with one excentric oil hole Quantity: 6 pairs Shaft diameter: 59.971 / 59.990mm Housing bore: 65.000 / 65.019mm Wall thickness: 2.498mm Bearing width: 20.00mm Position: Flanged bearing Quantity: 1 pair Shaft diameter: 59.971 / 59.990mm Housing bore: 65.000 / 65.019mm Wall thickness: 2.498mm Bearing width: 24.94mm Position: Connecting...

Position: Main bearing with one excentric oil hole Quantity: 6 pairs Shaft diameter : 59.971 / 59.990mm Housing bore: 65.000 / 65.019mm Wall thickness: 2.498mm Bearing width: 20.00mm Position: Flanged bearing Quantity: 1 pair Shaft diameter : 59.971 / 59.990mm Housing bore: 65.000 / 65.019mm Wall thickness: 2.498mm Bearing width: 24.94mm Position:...

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 41.981 / 42.000mm Housing bore: 45.600 / 45.619mm Wall thickness: 1.795mm Bearing width: 16.19mm Position: Connecting rod Quantity: 3 pairs Shaft diameter: 41.984 / 42.000mm Housing bore: 45.000 / 45.012mm Wall thickness: 1.49mm Bearing width: 16.00mm

Position: Main bearing, pos 1 Quantity: 1 pair Shaft diameter: 64.951 / 64.970mm Housing bore: 70.000 / 70.019mm Wall thickness: 2.508mm Bearing width: 19.85mm Position: Main bearing, pos 2 lower Quantity: 1 item Shaft diameter: 55.951 / 55.970mm Housing bore: 61.000 / 61.019mm Wall thickness: 2.508mm Bearing width: 18.85mm Position: Main bearing, pos 3, 4,...

Position: Main bearing, pos 1 Quantity: 1 pair Shaft diameter: 64.951 / 64.970mm Housing bore: 70.000 / 70.019mm Wall thickness: 2.508mm Bearing width: 19.85mm Position: Main bearing, pos 2, 3, 5, 6, 7 Quantity: 5 pairs Shaft diameter: 55.951 / 55.97mm Housing bore: 61.000 / 61.019mm Wall thickness: 2.508mm Bearing width: 18.85mm Position: Main bearing, pos 4...

Position: Main bearing, pos 1 Quantity: 1 pair Shaft diameter: 64.951 / 64.970mm Housing bore: 70.000 / 70.019mm Wall thickness: 2.508mm Bearing width: 19.85mm Position: Main bearing, pos 2, 3, 5, 6, 7 Quantity: 5 pairs Shaft diameter: 55.951 / 55.97mm Housing bore: 61.000 / 61.019mm Wall thickness: 2.508mm Bearing width: 18.85mm Position: Main bearing, pos 4...

Position: Crankshaft Quantity: 4 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Position: Crankshaft Quantity: 4 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Position: Crankshaft Quantity: 6 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Position: Crankshaft Quantity: 6 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...
