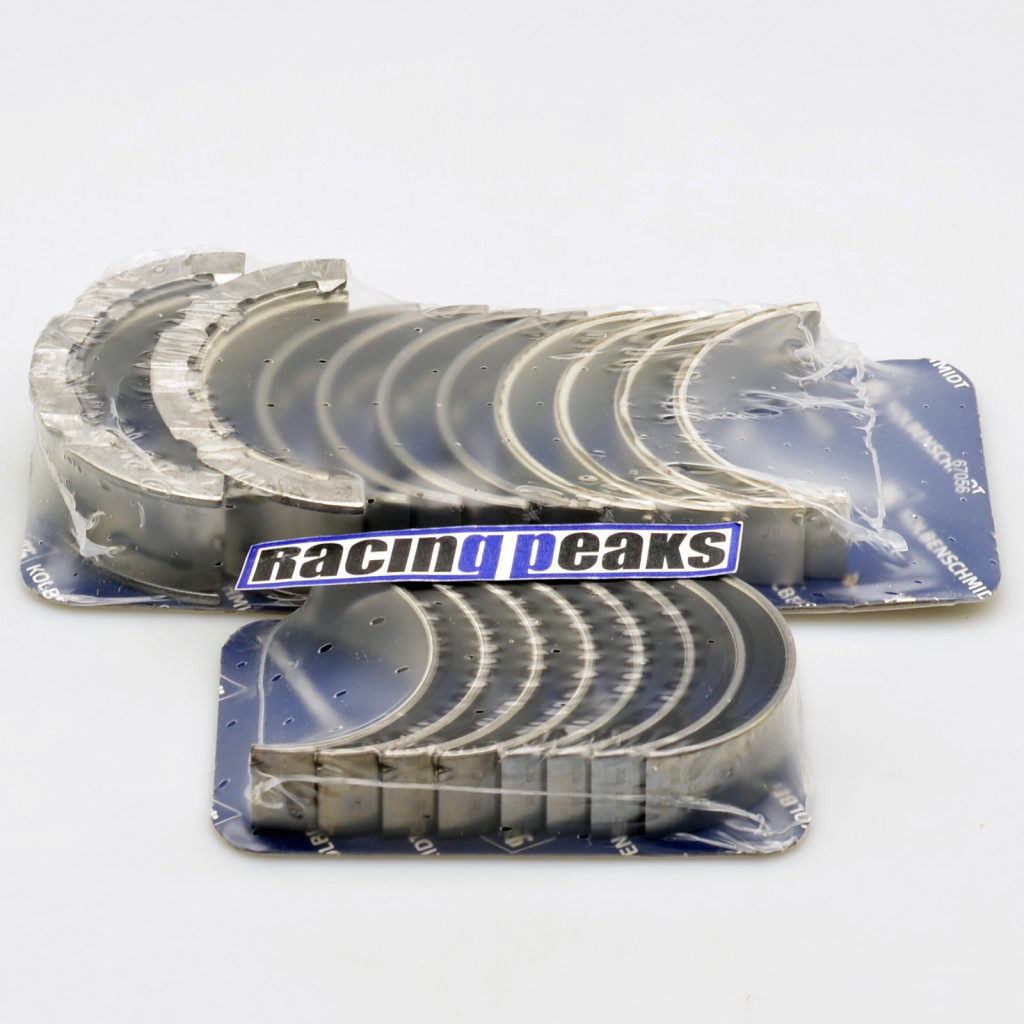

Main rod bearings for BMW N47D20 118d 320d 328d 520d X1 X3 18d 20d 28d 2007-2014
€113.39
VAT included

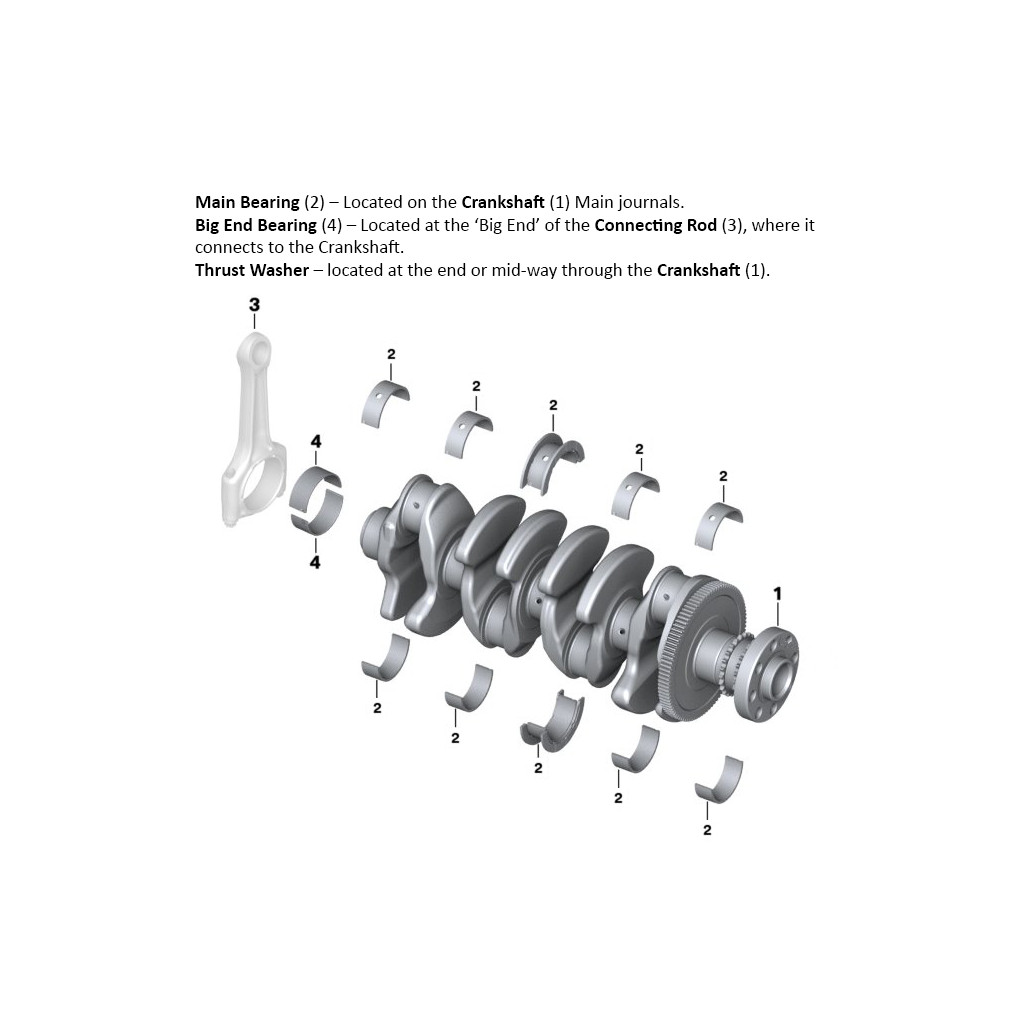

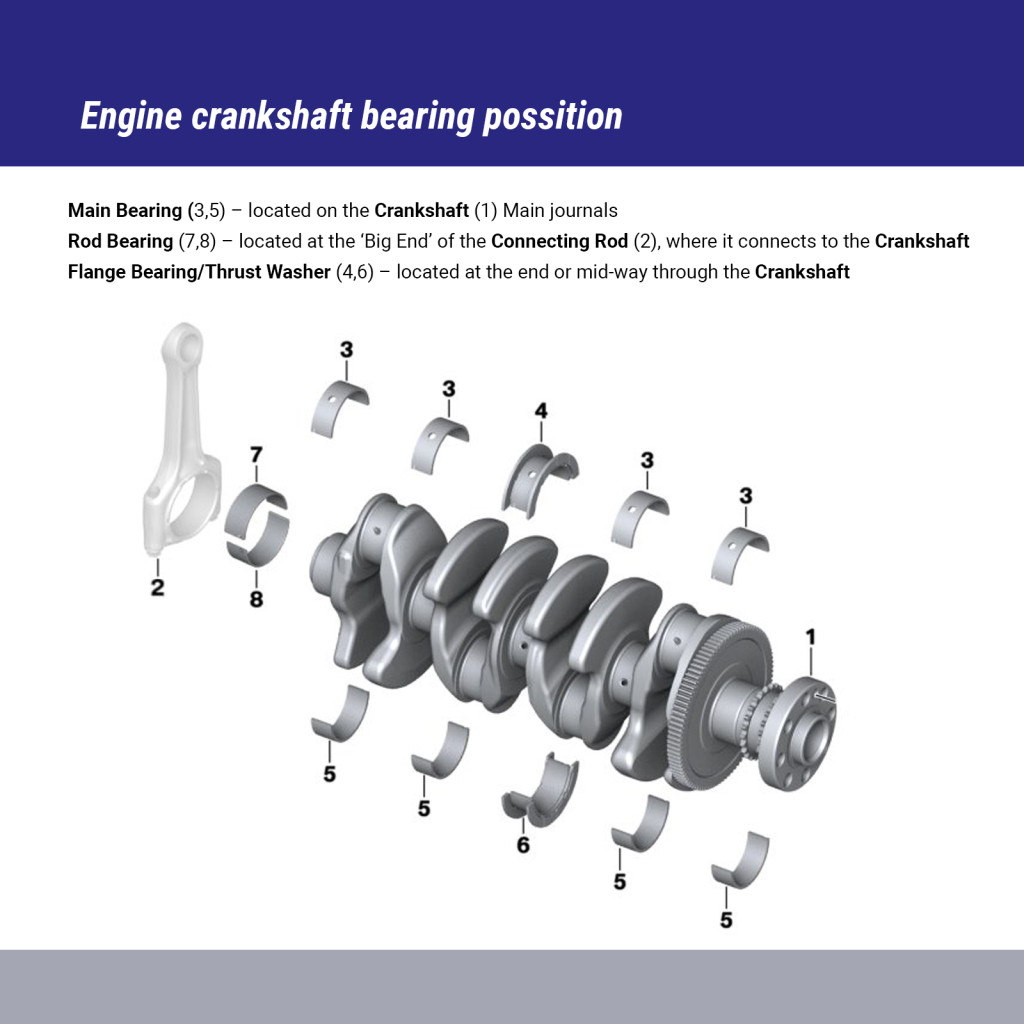

Position: Crankshaft
Quantity: 4 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 18.80mm
Position: Flanged bearings
Quantity: 1 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 24.93mm
:
Position: Connecting rod bearing
Quantity: 4 pairs
Shaft diameter : 49.975 / 49.991mm
Housing bore: 53.600 / 53.619mm
Wall thickness: 1.8mm
Bearing width: 18.30mm
Quantity: 4 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 18.80mm
Position: Flanged bearings
Quantity: 1 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 24.93mm
:
Position: Connecting rod bearing
Quantity: 4 pairs
Shaft diameter : 49.975 / 49.991mm
Housing bore: 53.600 / 53.619mm
Wall thickness: 1.8mm
Bearing width: 18.30mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy

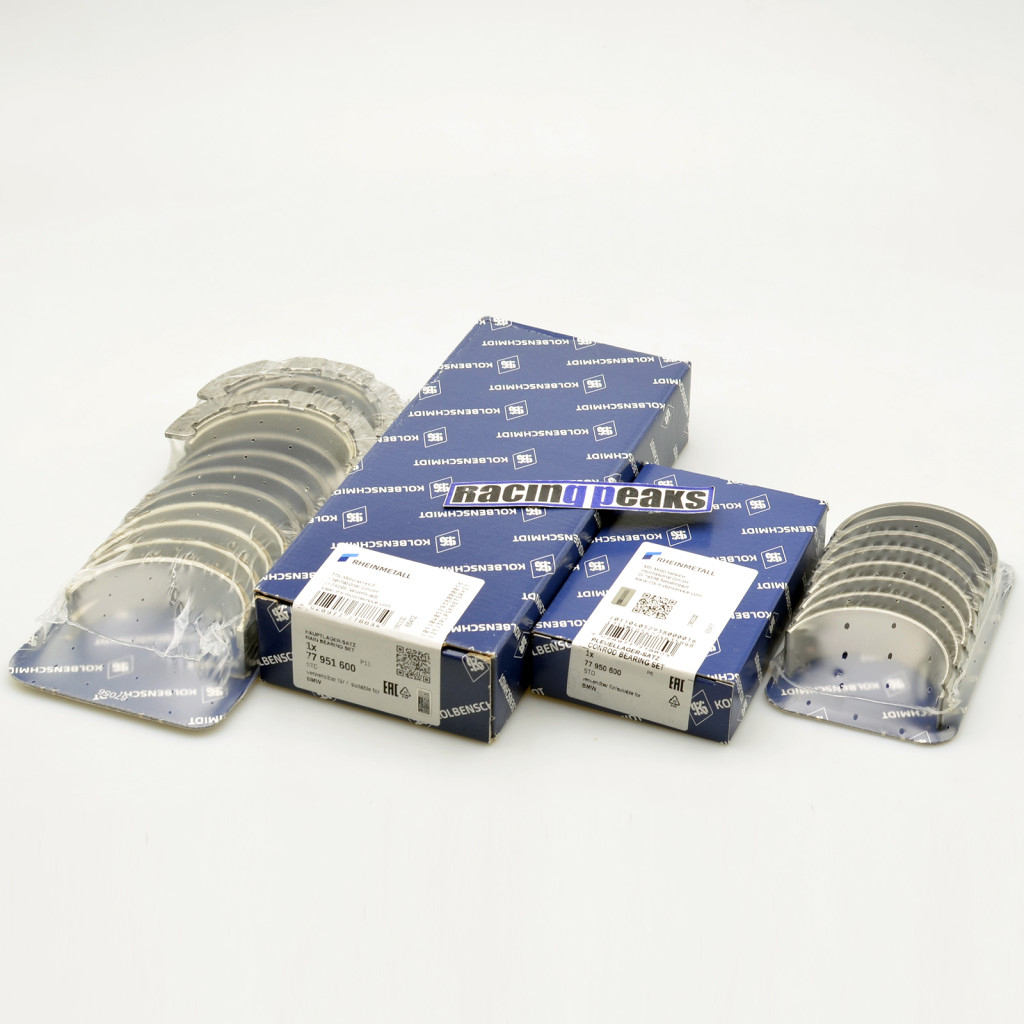

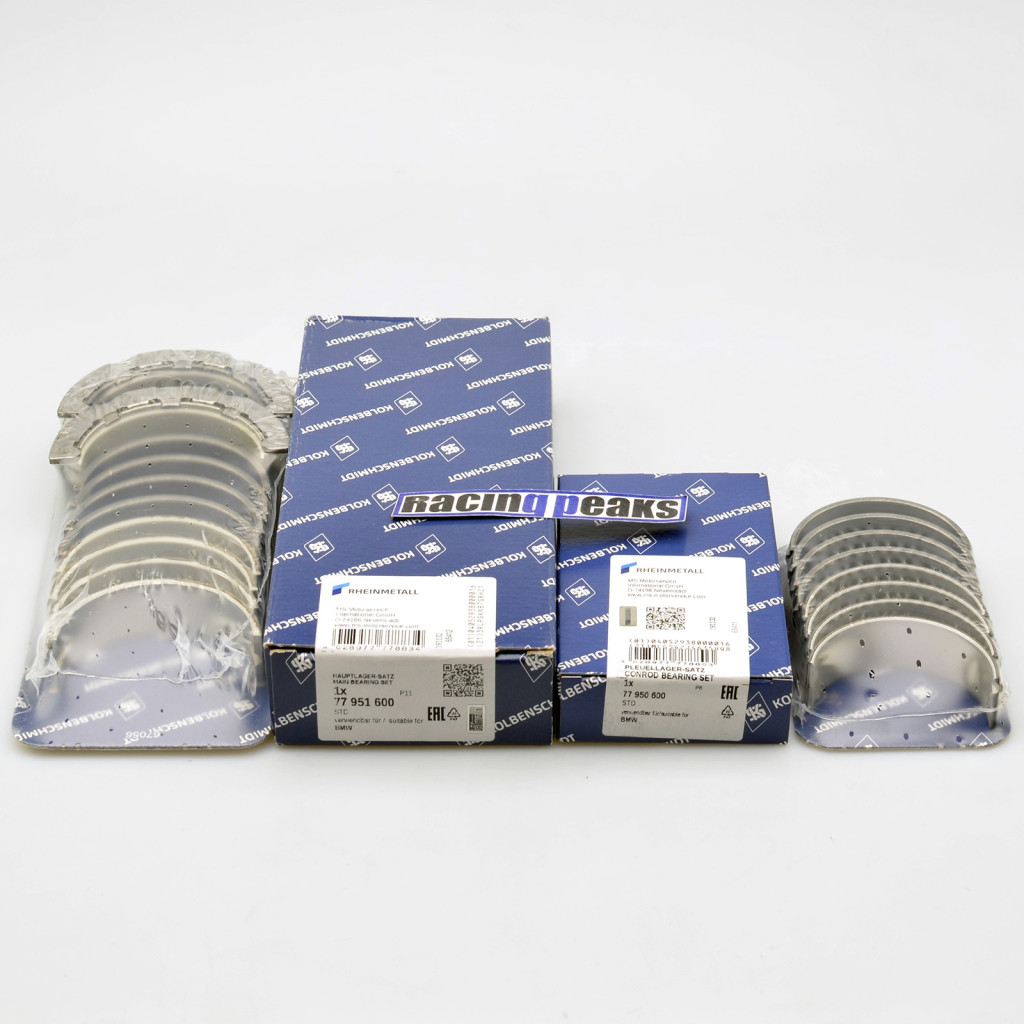

KS Kolbenschmidt bearings set for enhance engine efficiency, precision, and durability for an improved driving experience. .
77951600+77950600
10 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 11217802643
11217802644
11217802645
11217802647
11217802648
11217802649
11218471800
11218471801
11218471802
11218471804
11218471805
11218471806
11218471808
11218471809
11218471810
11218471812
11218471813
11218471814
11218517935
11218517936
11218517937
11218517939
11218517940
11218517941
11247798085
11247798092
11248516957
11248516961 - MPN
- 77951600+77950600
- BMW
- 3 Estate V (E91 / E91N) 2004 - 2011
- 316 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 A)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 200 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 163 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 163 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 197 Hp / Diesel / N47 D20 C)
- 2.0 320 d xDrive (2.0L / 163 Hp / Diesel / N47 D20 C)
- 318 d (2.0L / 136 Hp / Diesel / N47 D20 A)
- 318 d (2.0L / 136 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 197 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 197 Hp / Diesel / N47 D20 C)
- 2 Coupe (F22 / F87) 2012 - current
- 225 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 220 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 218 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 3 Coupe V (E92 / E92N) 2005 - 2013
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 320 xd (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 200 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 197 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 163 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 163 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 197 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 197 Hp / Diesel / N47 D20 C)
- 4 Coupe (F32 / F82) 2013 - current
- 425 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 420 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 420 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 3 Cabrio V (E93 / E93N) 2006 - 2013
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 200 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 200 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 197 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 197 Hp / Diesel / N47 D20 C)
- 3 Saloon VI (F30 / F80) 2011 - 2018
- 325 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 320 d EfficientDynamics Edition (2.0L / 163 Hp / Diesel / N47 D20 C)
- 318 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 316 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 3 Gran Turismo VI (F34) 2012 - current
- 325 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 4 Cabrio (F33 / F83) 2013 - current
- 425 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 420 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- X5 III (F15 / F85) 2013 - 2018
- xDrive 25 d (2.0L / 218-220 Hp / Diesel / N47 D20 D)
- sDrive 25 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 5 Saloon VI (F10 / F18) 2009 - 2016
- 525 d xDrive (2.0L / 218 Hp / Diesel / N47 D20 D)
- 525 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 520 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 518 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 520 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 5 Estate VI (F11) 2009 - current
- 520 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 520 d (2.0L / 200 Hp / Diesel / N47 D20 C)
- 520 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 518 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 520 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)
- 525 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 525 d xDrive (2.0L / 218 Hp / Diesel / N47 D20 D)
- X1 (E84) 2009 - 2015
- xDrive 23 d (2.0L / 204 Hp / Diesel / N47 D20 D)
- sDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- xDrive 25 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- sDrive 16 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- sDrive 20 d ed (2.0L / 163 Hp / Diesel / N47 D20 C)
- sDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- xDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- xDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- sDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 4 Gran Coupe (F36) 2014 - current
- 418 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 420 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 420 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 1 Coupe (E82) 2006 - 2013
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 D)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 B)
- X3 II (F25) 2010 - 2017
- xDrive 28 d (2.0L / 182 Hp / Diesel / N47 D20 C)
- sDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- xDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 1 Hatch 3-door (E81) 2004 - 2011
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 A)
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 D)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 B)
- 116 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 116 d (2.0L / 116 Hp / Diesel / N47 D20 A)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 5 Gran Turismo VI (F07) 2009 - 2017
- 520 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 1 Cabrio (E88) 2007 - 2013
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 A)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 D)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 B)
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- X3 (E83 / E83N) 2003 - 2010
- 2.0 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 2.0 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- xDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 5 Estate V (E61 / E61N) 2004 - 2010
- 520 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 520 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 1 Hatch 5-door (E87 / E87N) 2003 - 2011
- 116 d (2.0L / 116 Hp / Diesel / N47 D20 A)
- 116 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 A)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 120 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 D)
- 123 d (2.0L / 204 Hp / Diesel / N47 D20 B)
- 5 Saloon V (E60 / E60N) 2001 - 2009
- 520 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- 520 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 3 Estate VI (F31) 2012 - 2019
- 325 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 316 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 318 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d EfficientDynamics Edition (2.0L / 163 Hp / Diesel / N47 D20 C)
- 1 Hatch 3-door II (F21) 2011 - current
- 125 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 120 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 118 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)
- 120 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 116 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 1 Hatch 5-door II (F20) 2011 - 2019
- 125 d (2.0L / 218 Hp / Diesel / N47 D20 D)
- 118 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)
- 120 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 116 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 118 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 120 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 3 Saloon V (E90 / E90N) 2004 - 2012
- 318 d (2.0L / 136 Hp / Diesel / N47 D20 A)
- 318 d (2.0L / 136 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 163 Hp / Diesel / N47 D20 C)
- 320 xd (2.0L / 177 Hp / Diesel / N47 D20 C)
- 316 d (2.0L / 116 Hp / Diesel / N47 D20 C)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 A)
- 318 d (2.0L / 143 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 163 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 163 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 A)
- 320 d (2.0L / 177 Hp / Diesel / N47 D20 C)
- MINI
- Coupe (R58) 2010 - 2015
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Countryman (R60) 2010 - 2016
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Cooper D (2.0L / 112 Hp / Diesel / N47 C20 A)
- Cooper SD ALL4 (2.0L / 143 Hp / Diesel / N47 C20 A)
- Cooper D ALL4 (2.0L / 112 Hp / Diesel / N47 C20 A)
- Hatch II (R56 / R56N) 2005 - 2013
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Cooper D (2.0L / 112 Hp / Diesel / N47 C20 A)
- Cabrio II (R57 / R57N) 2007 - 2015
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Cooper SD (2.0L / 136 Hp / Diesel / N47 C20 A)
- Cooper D (2.0L / 112 Hp / Diesel / N47 C20 A)
- Clubman (R55 / R55N) 2006 - 2014
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Cooper D (2.0L / 112 Hp / Diesel / N47 C20 A)
- Roadster (R59) 2011 - 2015
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Paceman (R61) 2012 - 2016
- Cooper D ALL4 (2.0L / 112 Hp / Diesel / N47 C20 A)
- Cooper SD ALL4 (2.0L / 143 Hp / Diesel / N47 C20 A)
- Cooper D (2.0L / 112 Hp / Diesel / N47 C20 A)
- Cooper SD (2.0L / 143 Hp / Diesel / N47 C20 A)
- Alpina
- D3 Estate (E90) 2005 - 2013
- 2 (2.0L / 214 Hp / N47 D20 C)
- 2 (2.0L / 214 Hp / N47 D20 D)
- D3 Saloon (E90) 2005 - 2014
- 2 (2.0L / 214 Hp / N47 D20 C)
- 2 (2.0L / 214 Hp / N47 D20 D)
- D3 Coupe (E90) 2008 - 2013
- 2 (2.0L / 214 Hp / Diesel / N47 D20 C)
- 2 (2.0L / 214 Hp / Diesel / N47 D20 D)
Specific References
New
Position: Crankshaft
Quantity: 4 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 18.80mm
Position: Flanged bearings
Quantity: 1 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 24.93mm
:
Position: Connecting rod bearing
Quantity: 4 pairs
Shaft diameter : 49.975 / 49.991mm
Housing bore: 53.600 / 53.619mm
Wall thickness: 1.8mm
Bearing width: 18.30mm
Quantity: 4 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 18.80mm
Position: Flanged bearings
Quantity: 1 pairs
Shaft diameter : 54.971 / 54.990mm
Housing bore: 60.000 / 60.019mm
Wall thickness: 2.5mm
Bearing width: 24.93mm
:
Position: Connecting rod bearing
Quantity: 4 pairs
Shaft diameter : 49.975 / 49.991mm
Housing bore: 53.600 / 53.619mm
Wall thickness: 1.8mm
Bearing width: 18.30mm
