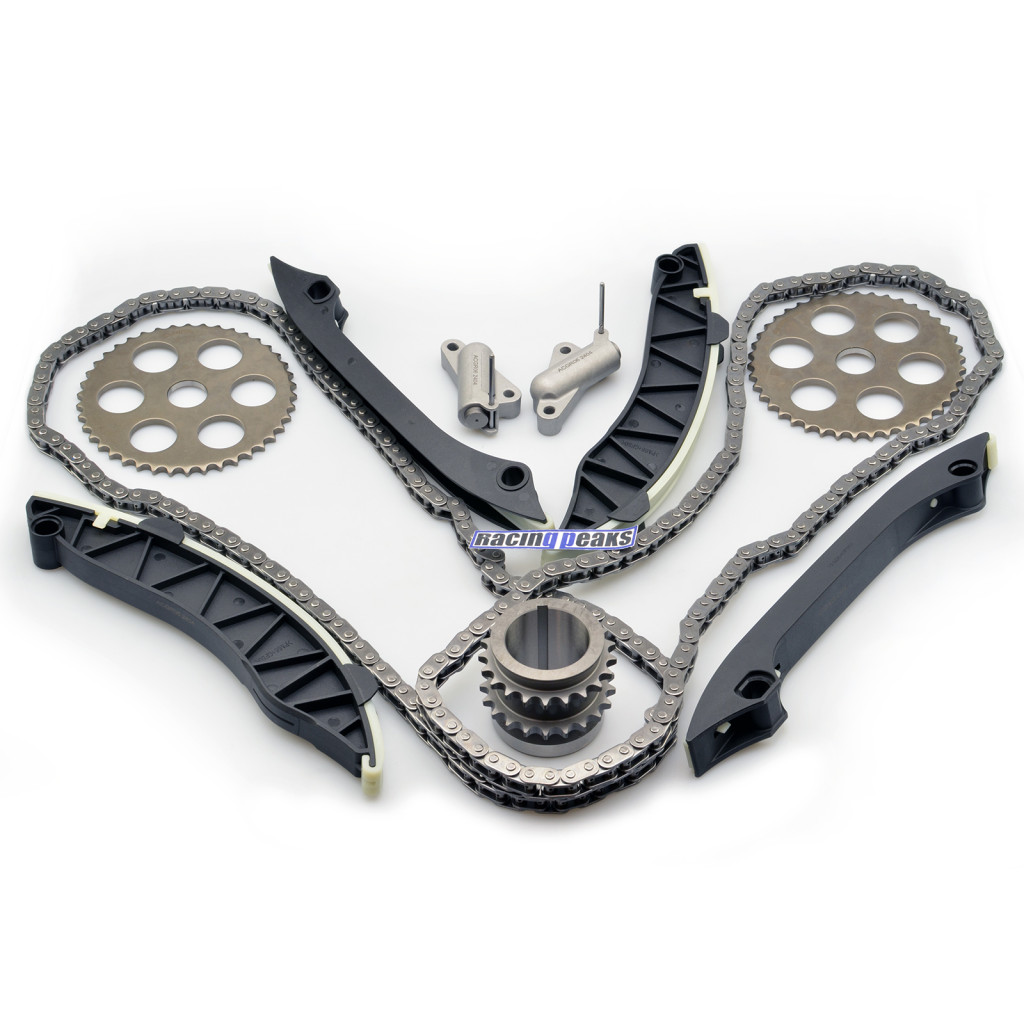

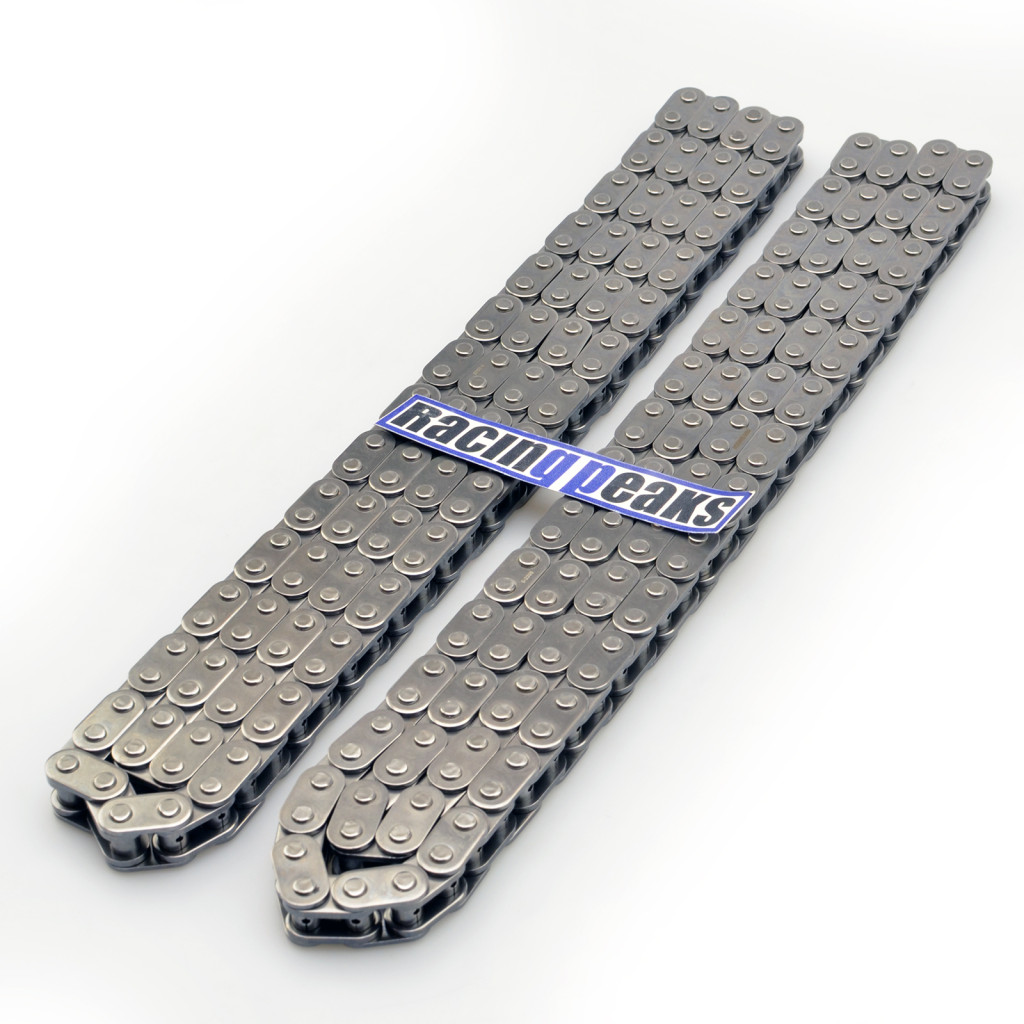

Timing Chain: 2pcs Tensioner, timing chain: 2pcs Guides, timing chain: 4pcs Gear/Sprocket, camshaft: 2pcs Gear, crankshaft: 1pc These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

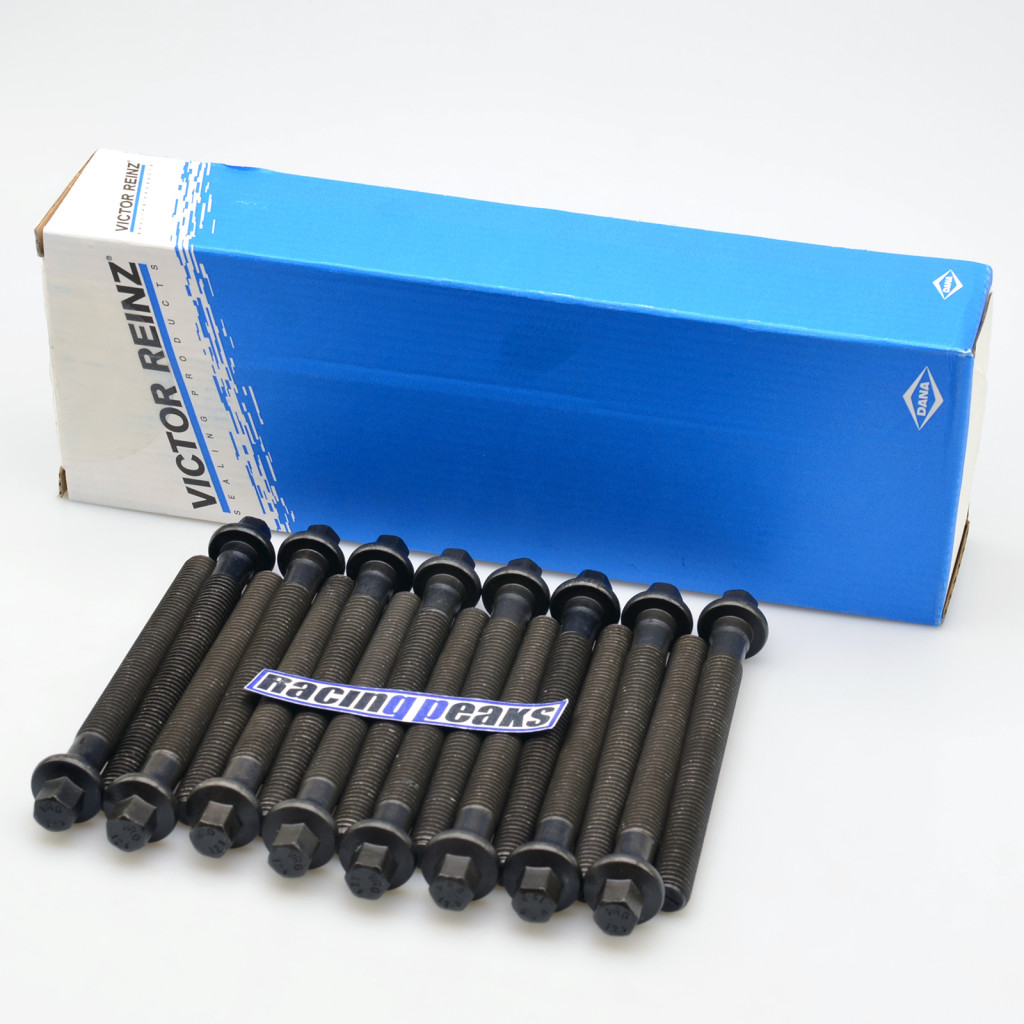

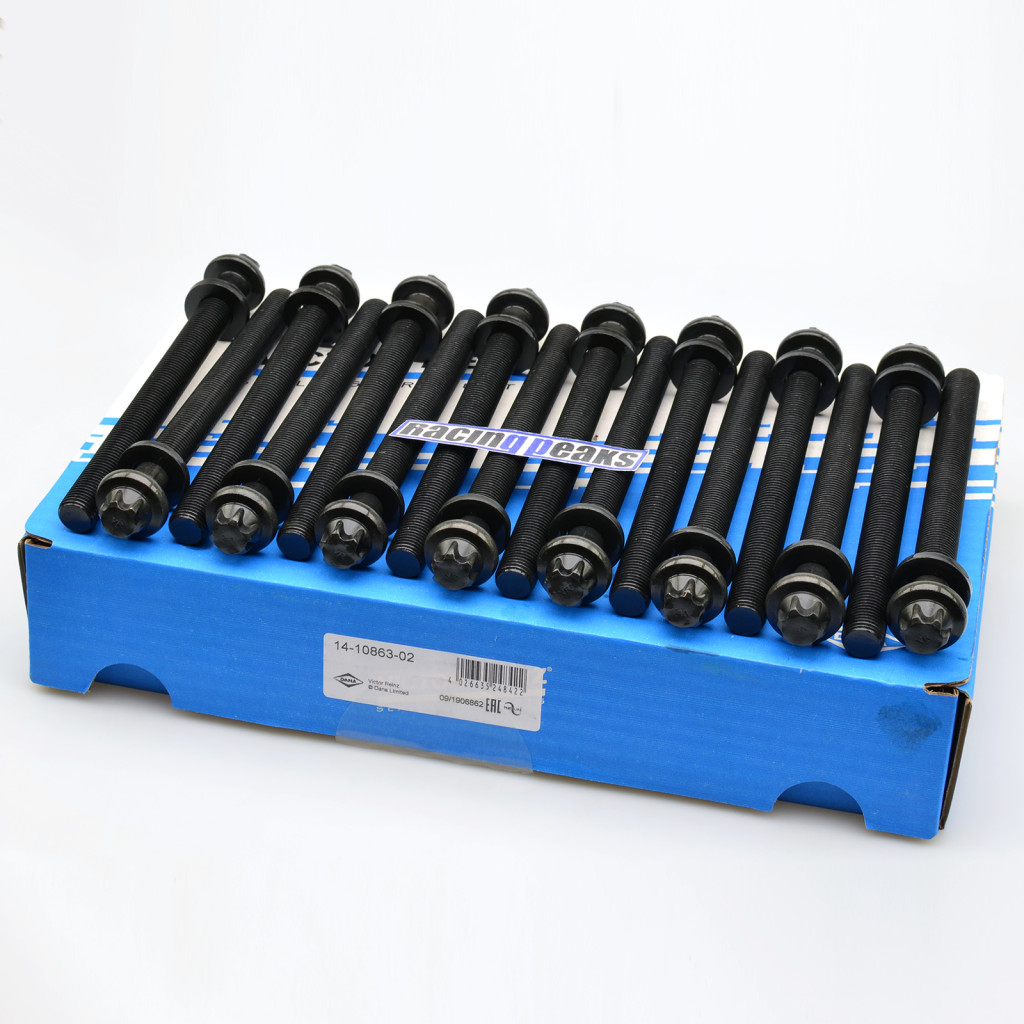

Thread Size: M12 Thread Pitch: 1.75 mm Length: 135 mm Bolt Head-/Nut Design: Male Torx

Thread Size: M12 Thread Pitch: 1.75 mm Length: 135 mm Bolt Head-/Nut Design: Male Torx

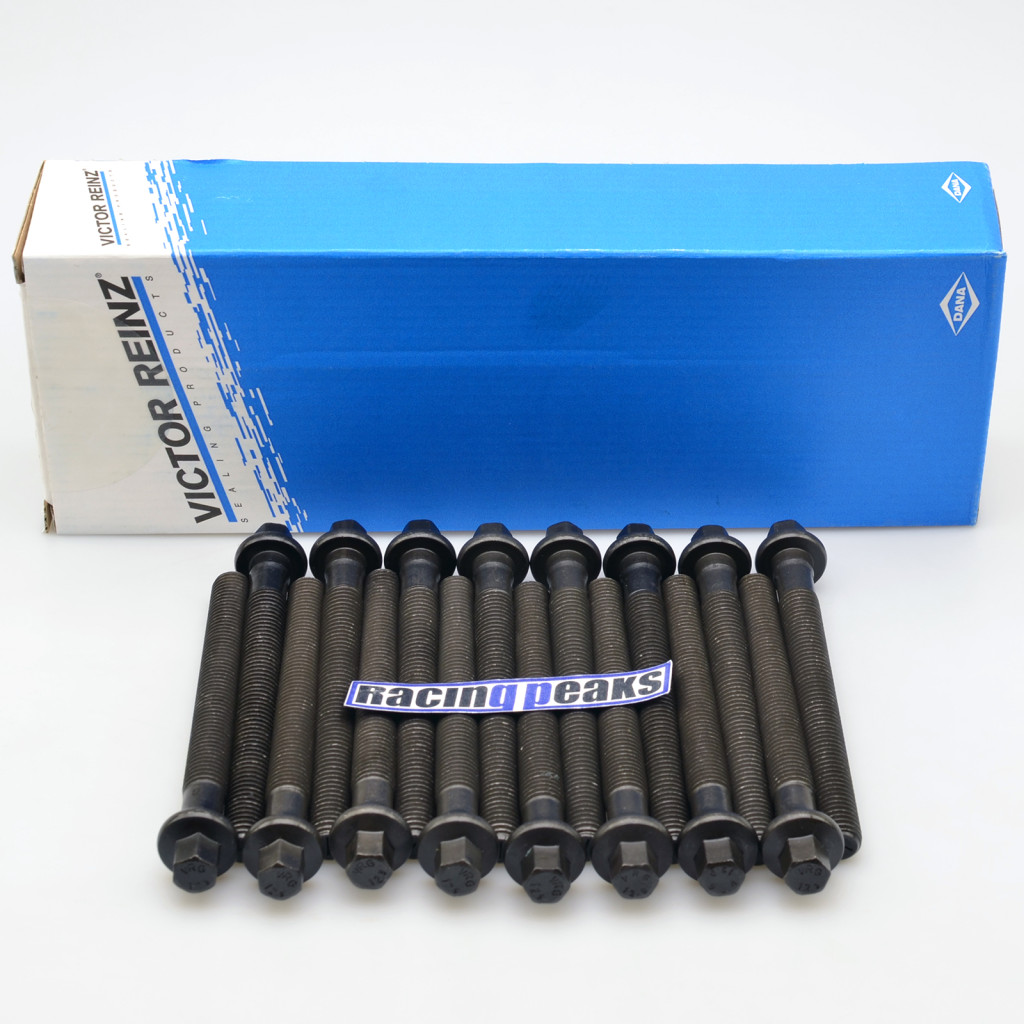

Thread Size: M14 Thread Pitch: 1.5 mm Length: 170 mm Bolt Head-/Nut Design: Male Torx

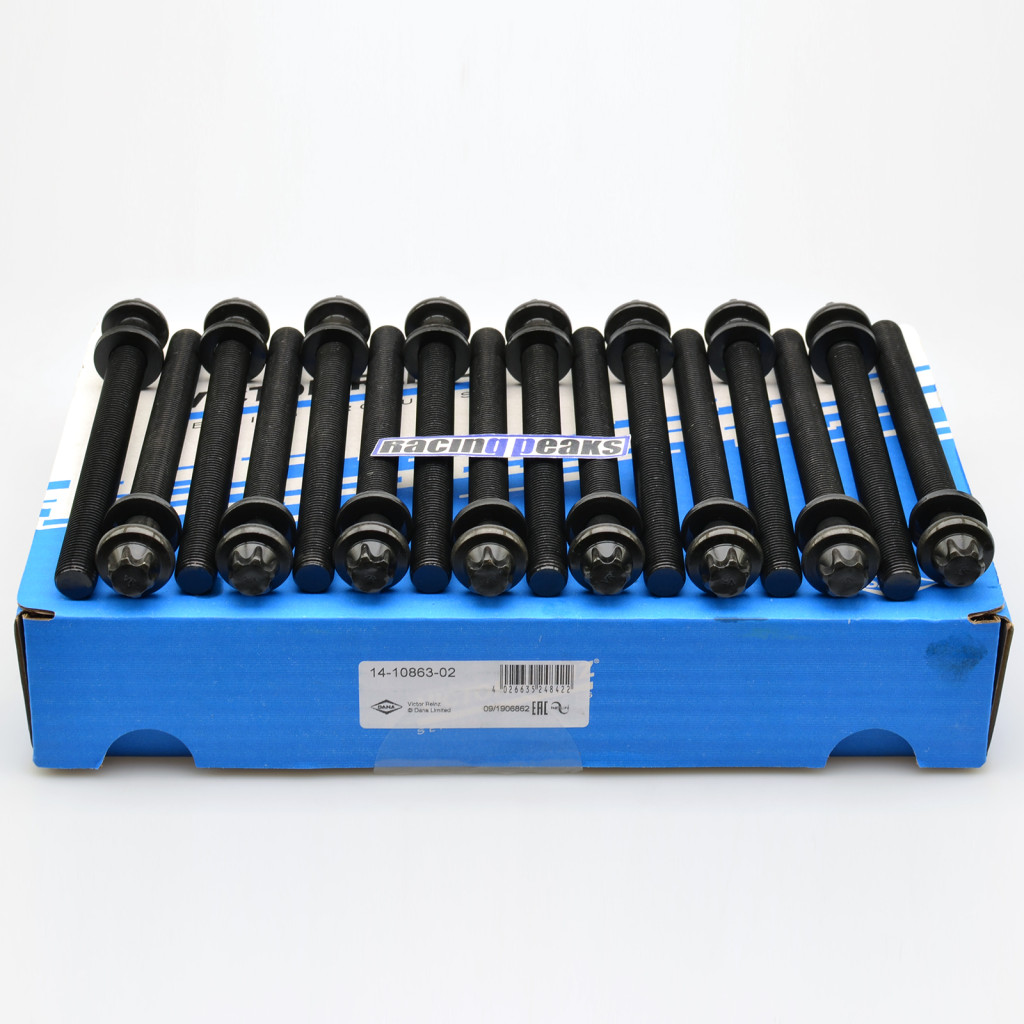

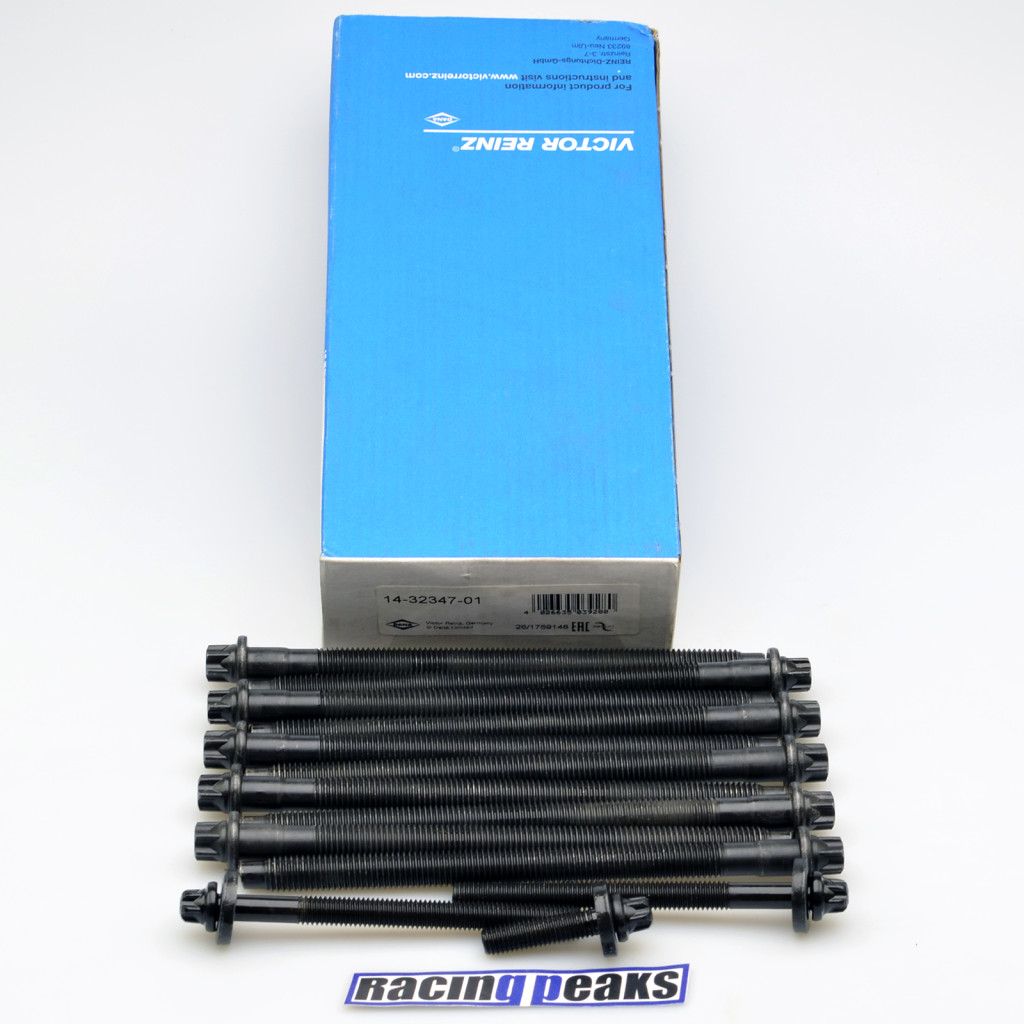

Thread Size: M12 Thread Pitch: 1.50 mm Length: 132 mm Bolt Head-/Nut Design: Male Torx

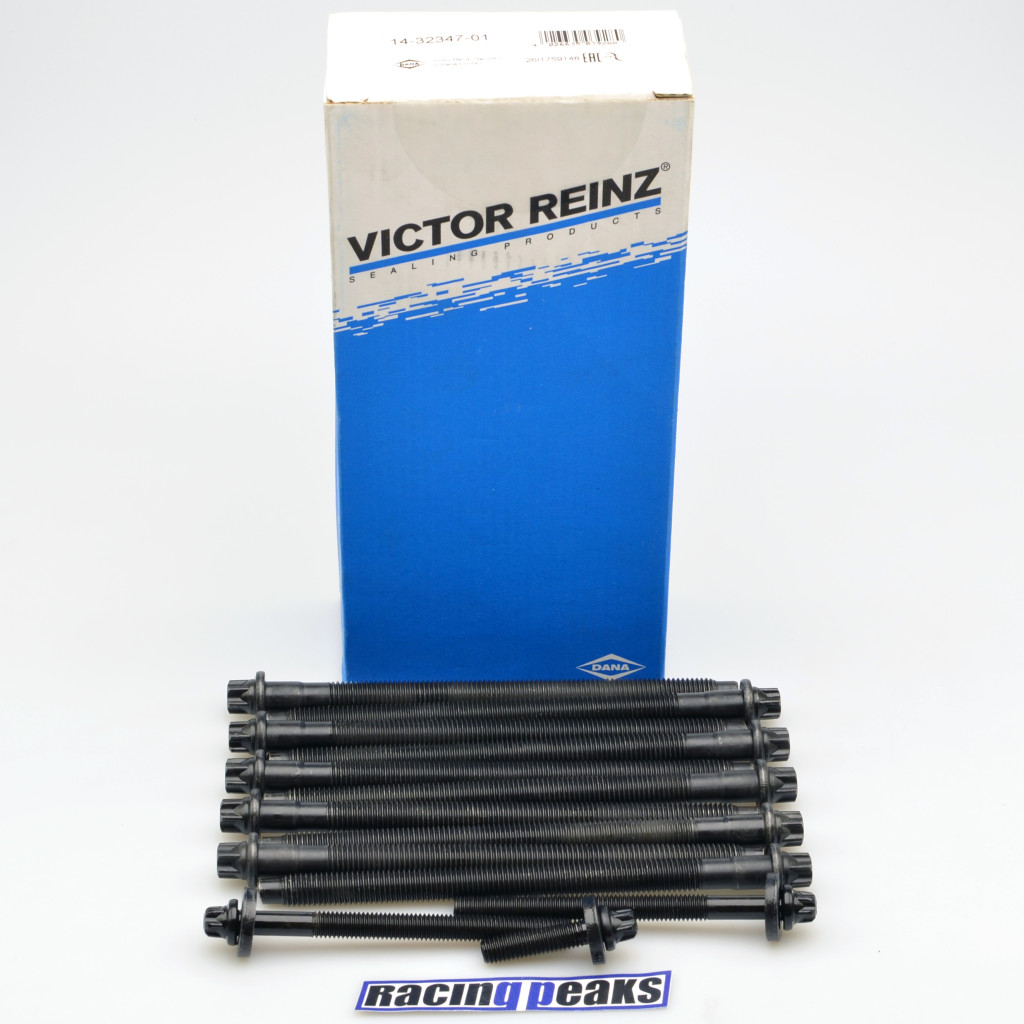

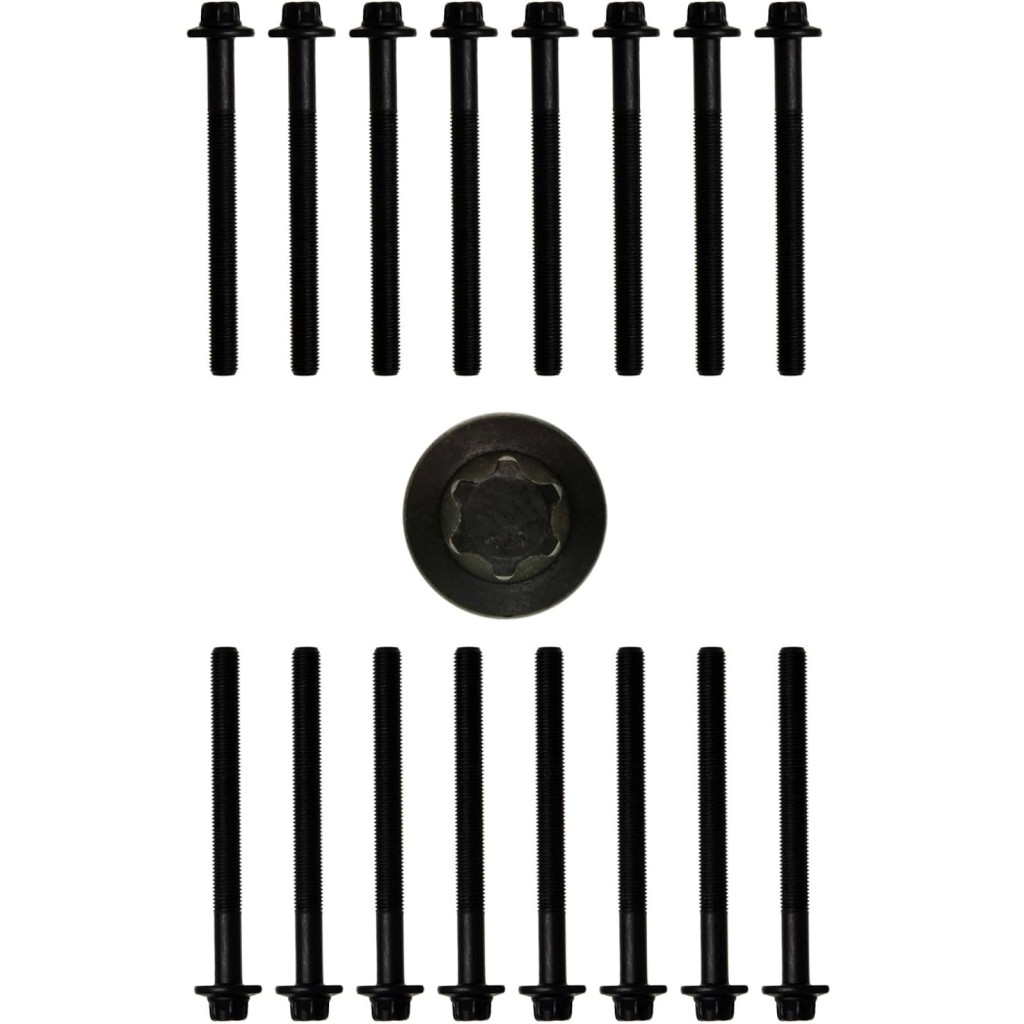

Thread Size: M10 Thread Pitch: 1.5 mm Length: 170 mm Bolt Head-/Nut Design: Male Torx

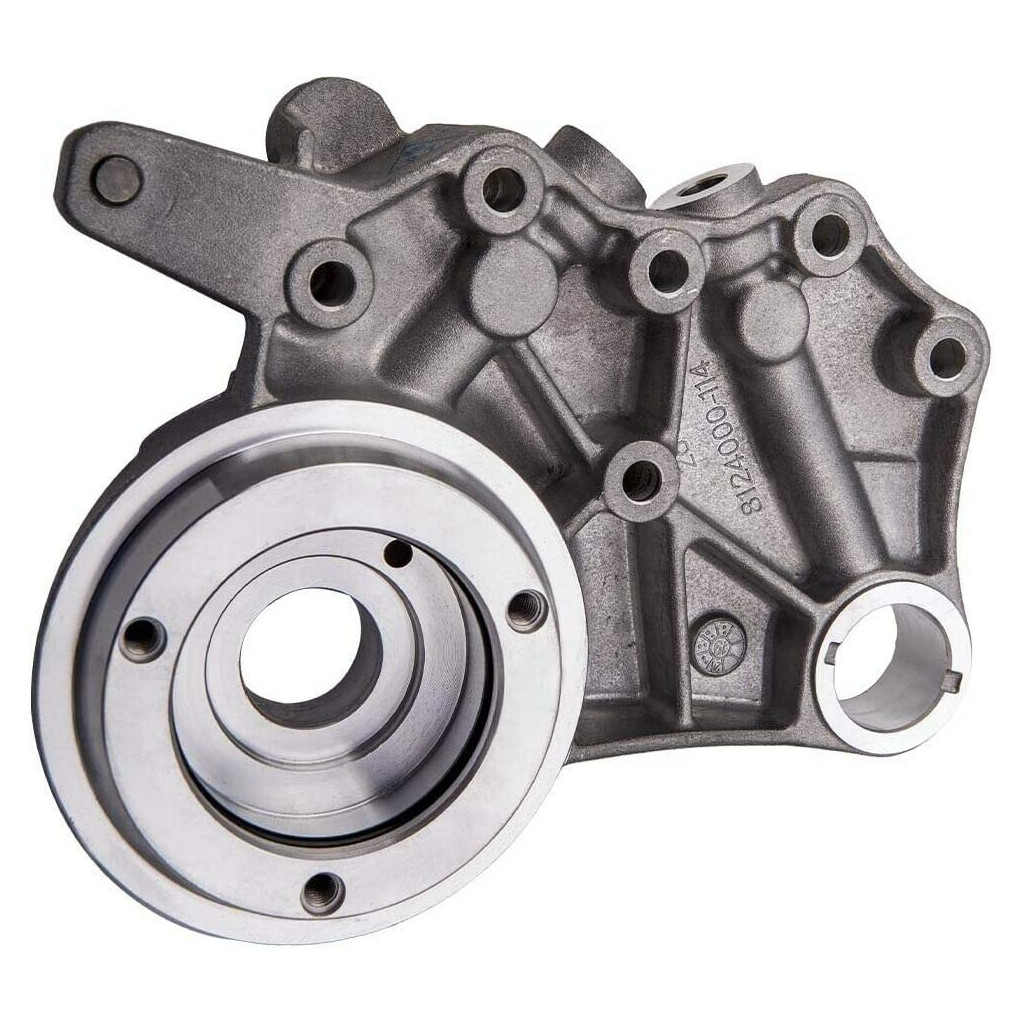

Position: Engine camshaft bracket

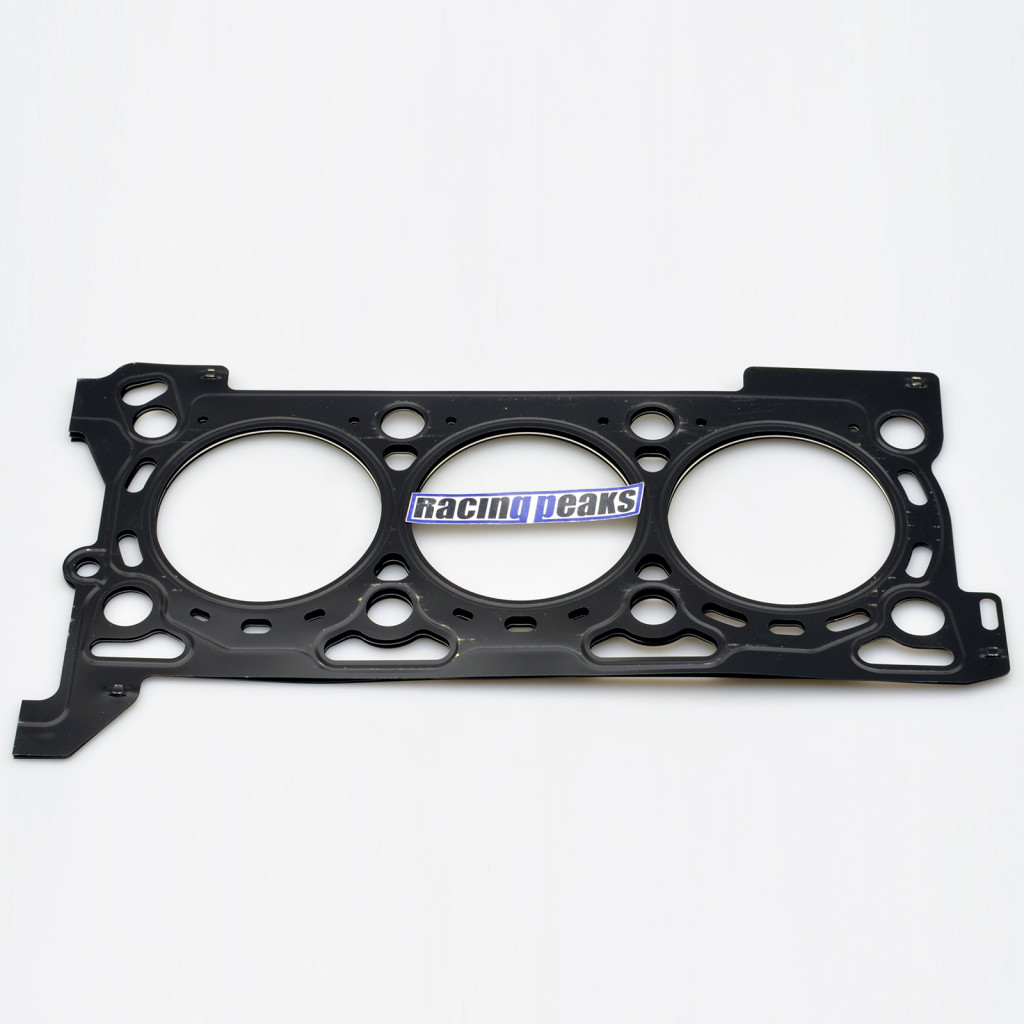

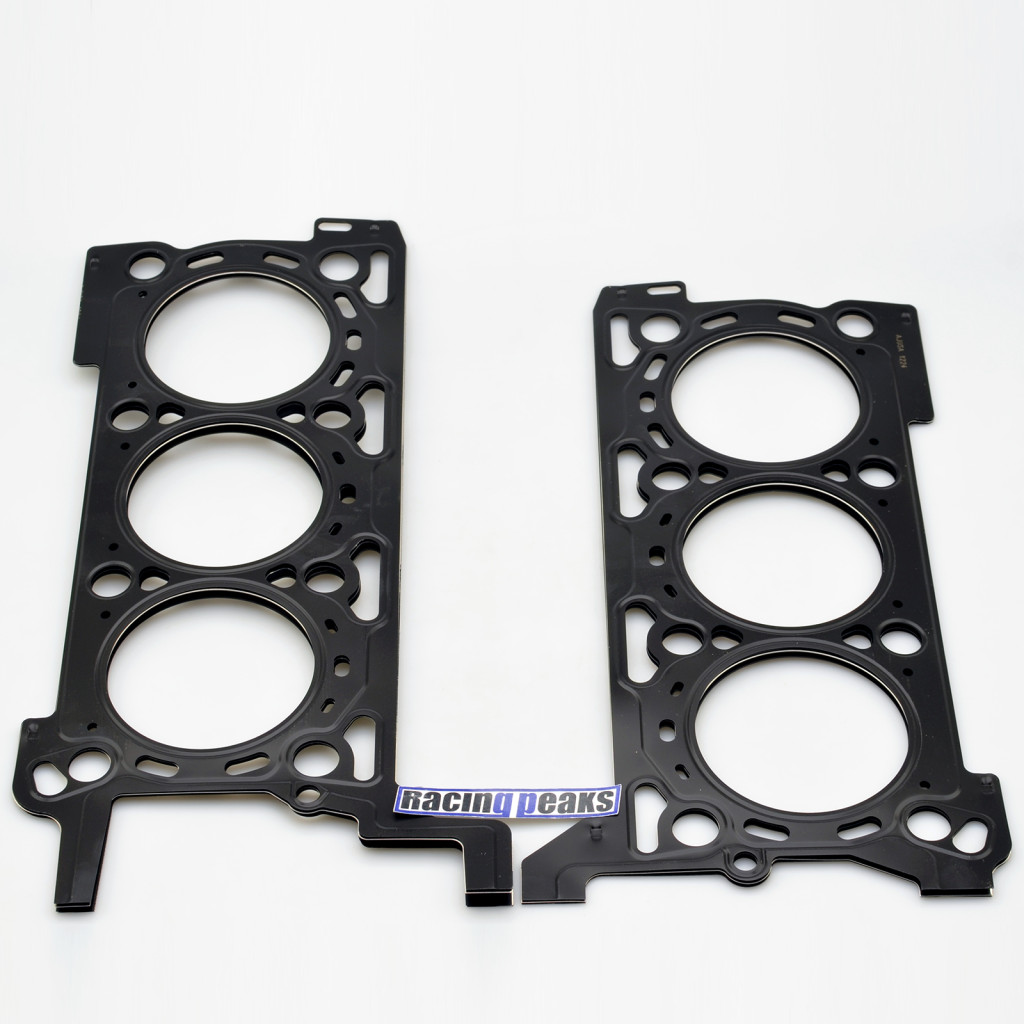

Gasket Design: Multilayer Steel (MLS) Thickness: 0.96 mm Bore diameter: 84.5 mm Num. of holes: no-hole Fitting Position: Right Piston Protrusion from: 0.13 mm, until 0.22 mm Info: Head bolts must be replaced; sold separately

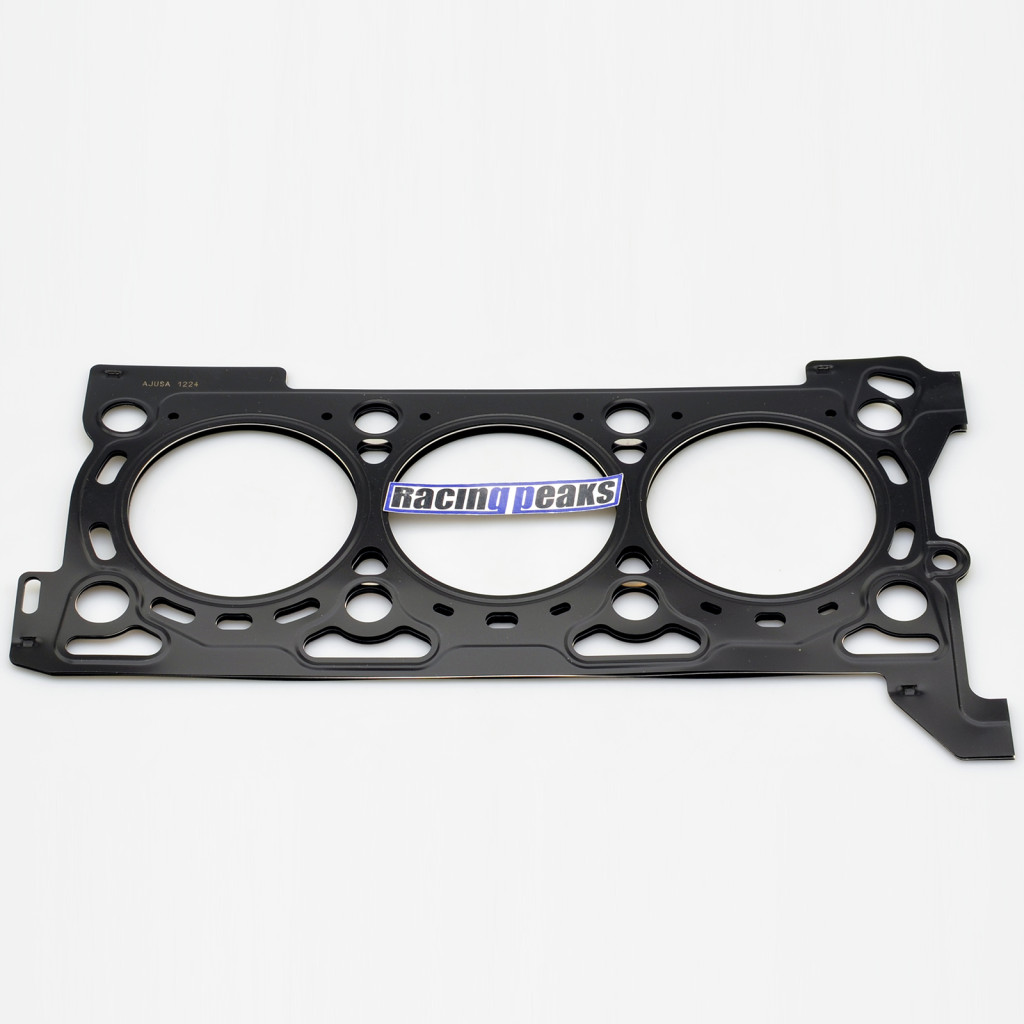

Gasket Design: Multilayer Steel (MLS) Thickness: 0.96 mm Bore diameter: 84.5 mm Num. of holes: no-hole Fitting Position: Right Piston Protrusion from: 0.13 mm, until 0.22 mm Info: Head bolts must be replaced; sold separately

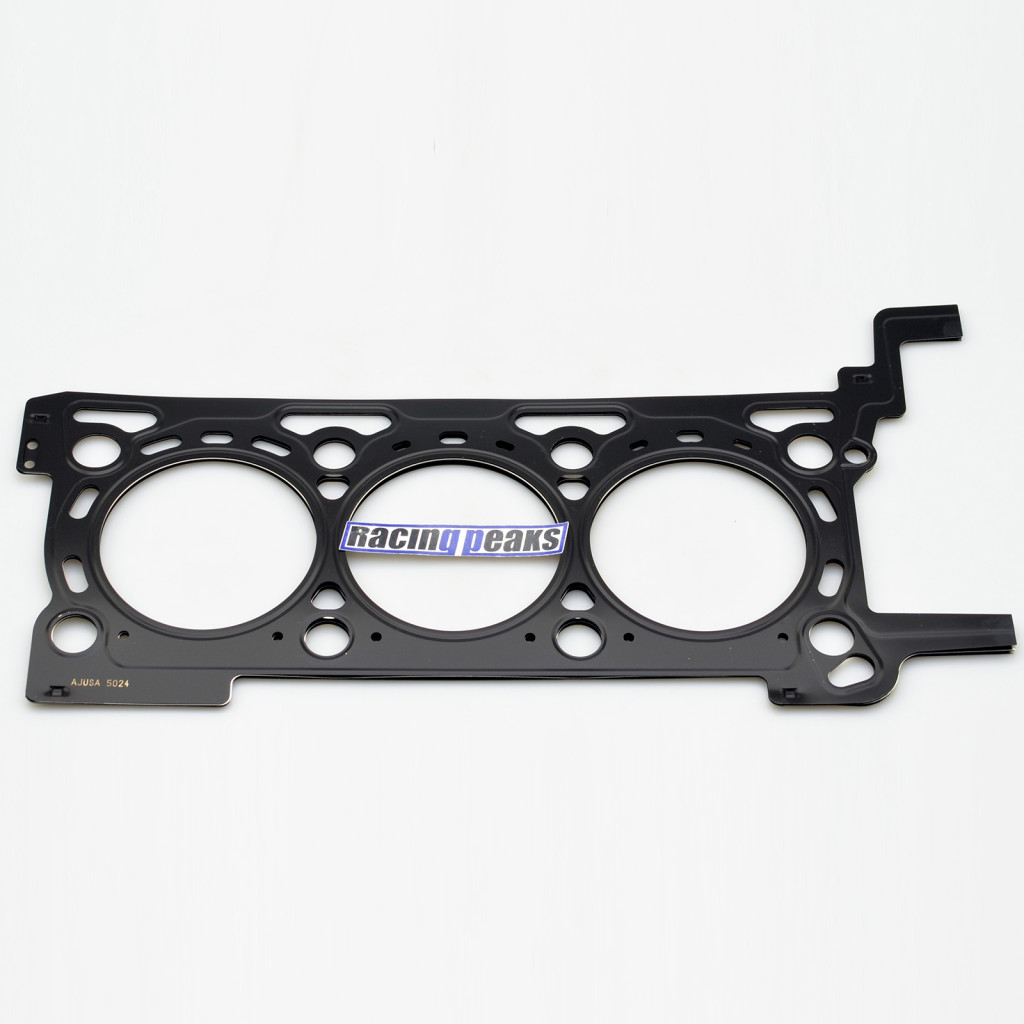

Gasket Design: Multilayer Steel (MLS) Thickness: 0.96 mm Bore diameter: 84.5 mm Num. of holes: no-hole Fitting Position: Right & Left Piston Protrusion from: 0.13 mm, until 0.22 mm Info: Head bolts must be replaced; sold separately

Position: Engine camshaft bracket

Gasket Design: Multilayer Steel (MLS) Thickness: 0.96 mm Bore diameter: 84.5 mm Num. of holes: no-hole Fitting Position: Right & Left Piston Protrusion from: 0.13 mm, until 0.22 mm Info: Head bolts must be replaced; sold separately
