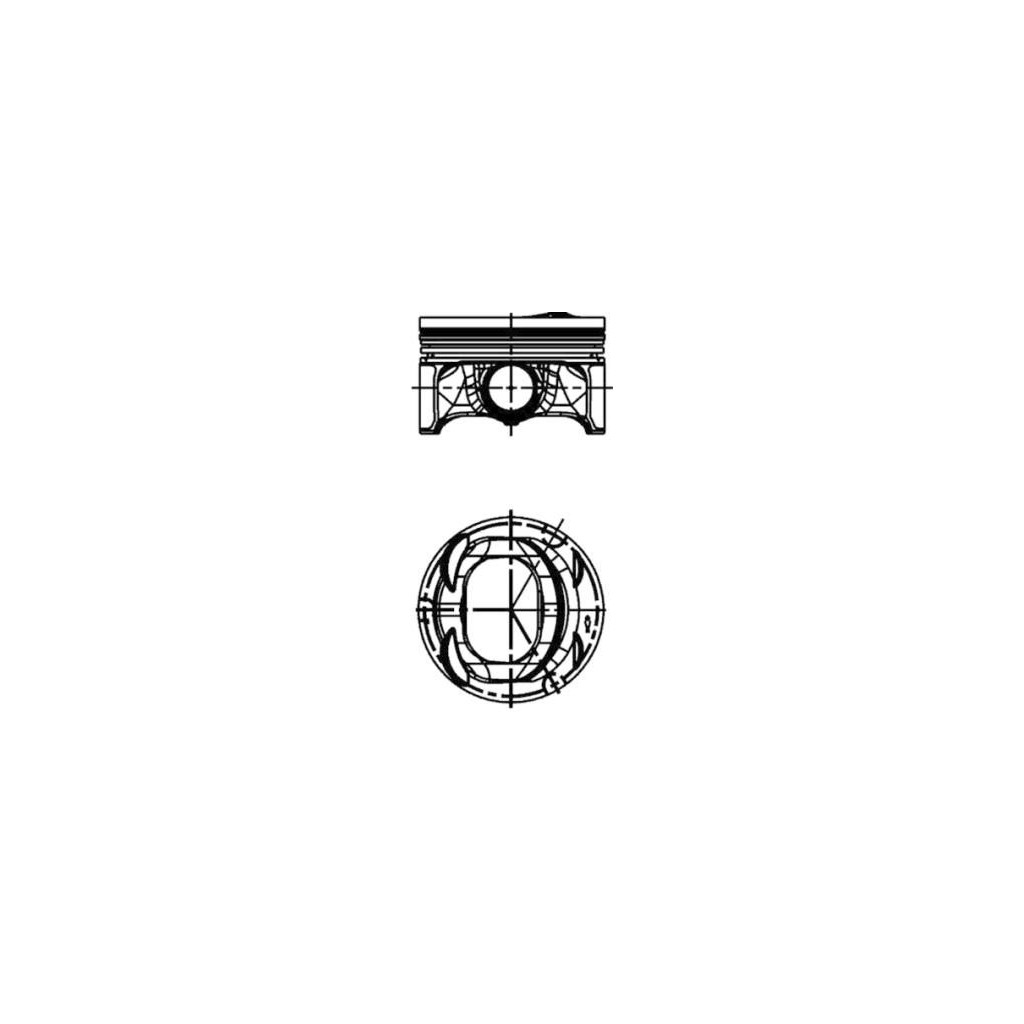

Cyl.Bore: 77.01mm Compression Height: 28.97mm Length: 49.97mm Piston Crown Clearance: 2mm Recess Depth 1: 4.57mm Valve Pocket Depth 1: 4mm Valve Pocket Depth 2: 1.3mm Component No.: 66038, 66040, 66039 Bolt d.: 19mm Bolt Length: 54mm Rep. Stage: 0.50

Bolt length [mm]: 51 Bolt Ø [mm]: 20 Component Number: 66342; 66343; 66344 Compression Height [mm]: 33,8 Cylinder Piston Diameter [mm]: 83 Length [mm]: 53,8 Production Number: 083134 Quantity: 3 Recess Depth 1 [mm]: 7,2 Recess Diameter [mm]: 53,82 Thickness [mm] 66342: 3 Height [mm] 66342: 1,2 Material 66342: Steel Surface 66342: Blank; Physical Vapor...

Bolt length [mm]: 51 Bolt Ø [mm]: 20 Component Number: 66342; 66343; 66344 Compression Height [mm]: 33,8 Cylinder Piston Diameter [mm]: 83 Length [mm]: 53,8 Production Number: 083134 Quantity: 3 Recess Depth 1 [mm]: 7,2 Recess Diameter [mm]: 53,82 Thickness [mm] 66342: 3 Height [mm] 66342: 1,2 Material 66342: Steel Surface 66342: Blank; Physical Vapor...

Bolt length [mm]: 60 Bolt Ø [mm]: 30 Component Number: 66486; 66487; 66488 Compression Height [mm]: 45,946 Cylinder Piston Diameter [mm]: 80,019 Length [mm]: 70,481 Production Number: 080340 Quantity: 3 Recess Depth 1 [mm]: 12,39 Recess Diameter [mm]: 46,5 Thickness [mm] 66486: 3,1 Height [mm] 66486: 2 Material 66486: Steel Surface 66486: Blank; Physical...

Bolt length [mm]: 66,85 Bolt Ø [mm]: 30 Component Number: 63268; 65892; 65894 Compression Height [mm]: 43,42 Cylinder Piston Diameter [mm]: 86,5 Length [mm]: 69,82 Oversize [mm]: 0,50 Production Number: 086210 Quantity: 3 Recess Depth 1 [mm]: 15,85 Recess Diameter [mm]: 46,9 Thickness [mm] 63268: 2,8 Height [mm] 63268: 2 Material 63268: Steel Surface...

Cyl.Bore: 88.509mm Compression Height: 42.3mm Length: 72.3mm Recess Depth 1: 13.8mm Recess Diameter: 43.5mm Component No.: 60555, 60559, 60557 Bolt d.: 30mm Bolt Length: 70mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bolt length [mm]: 67 Bolt Ø [mm]: 30 Component Number: 65904; 65906; 65907 Compression Height [mm]: 46,63 Cylinder Piston Diameter [mm]: 83,4 Length [mm]: 72,6 Oversize [mm]: 0,40 Production Number: 083170 Quantity: 3 Recess Depth 1 [mm]: 15,8 Recess Diameter [mm]: 43,5 Thickness [mm] 65904: 3,6 Height [mm] 65904: 1,5 Material 65904: Cast Iron with Ductile...

Bolt length [mm]: 64,5 Bolt Ø [mm]: 29,5 Component Number: 65920; 65922; 65924 Compression Height [mm]: 45,75 Cylinder Piston Diameter [mm]: 79 Length [mm]: 72,85 Production Number: 079214 Quantity: 3 Recess Depth 1 [mm]: 14 Recess Diameter [mm]: 41,8 Thickness [mm] 65920: 3,05 Height [mm] 65920: 2 Material 65920: Steel Surface 65920: Blank;...

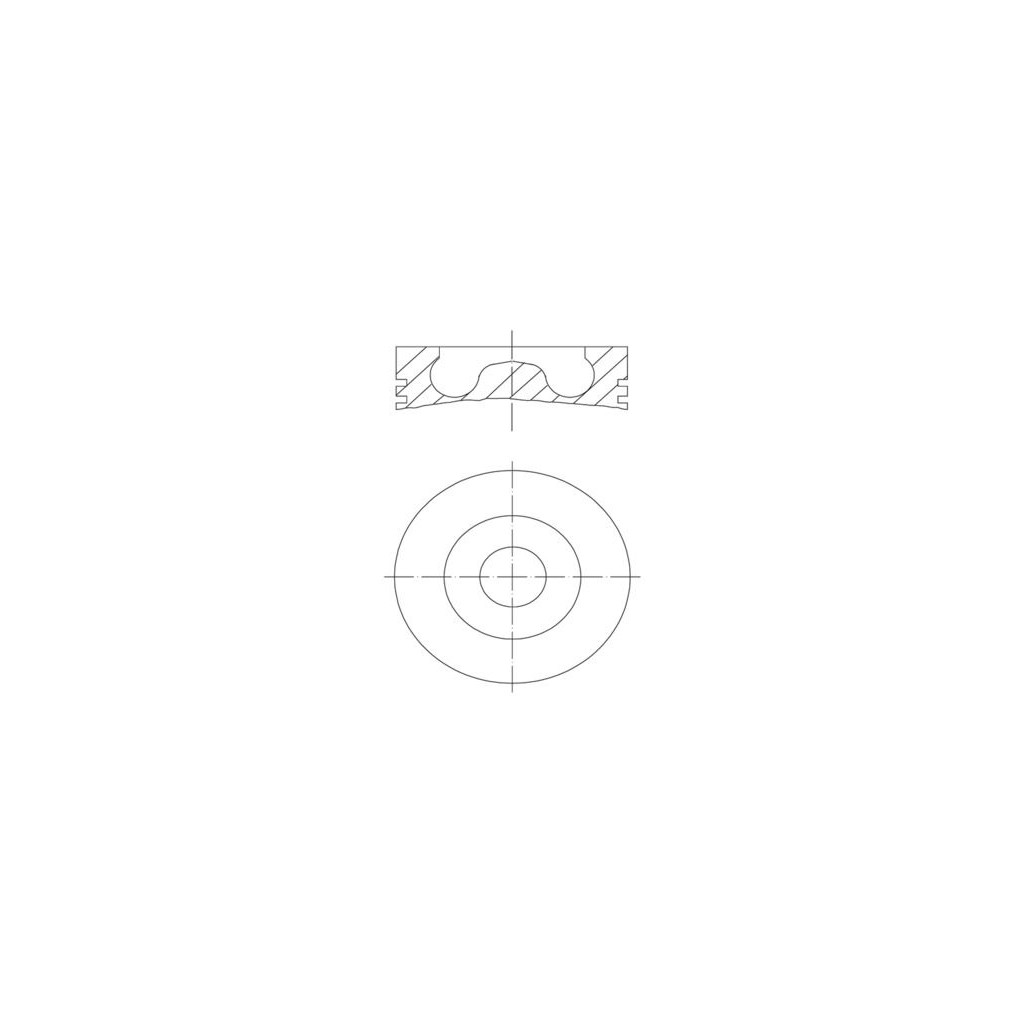

Cyl.Bore: 86.50mm Compression Height: 43.42mm Length: 69.82mm Recess Depth 1: 15.8mm Recess Diameter: 46.9mm Component No.: 63268, 65892, 65894 Bolt d.: 30mm Bolt Length: 66.85mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

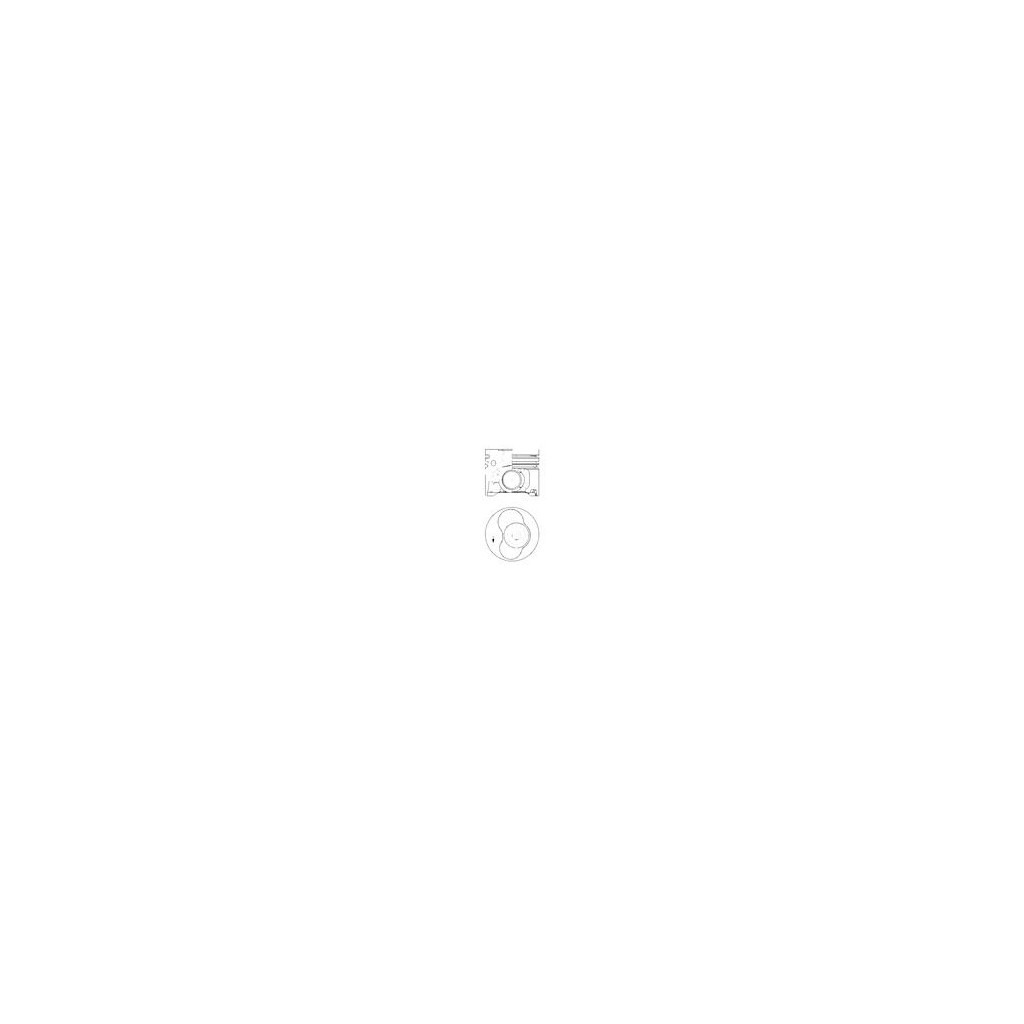

Cyl.Bore: 81.01mm Compression Height: 45.75mm Length: 68.75mm Recess Depth 1: 18.2mm Valve Pocket Depth 1: 1.5mm Recess Diameter: 37.9mm Component No.: 65959, 63504, 63745 Standard Size [STD]: Bolt d.: 26mm Bolt Length: 66mm Connecting Rod Design: Trapezoidal Connecting Rod General Information: for cylinder 1-2

Cyl.Bore: 81.01mm Compression Height: 45.75mm Length: 68.75mm Recess Depth 1: 18.2mm Valve Pocket Depth 1: 1.5mm Recess Diameter: 37.9mm Component No.: 63745, 65959, 63504 Standard Size [STD]: Bolt d.: 26mm Bolt Length: 66mm Connecting Rod Design: Trapezoidal Connecting Rod General Information: for cylinder 3-4-5

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 63501; 63504; 65959 Compression Height [mm]: 45,75 Cylinder Piston Diameter [mm]: 81,01 Length [mm]: 68 Production Number: 081199 Quantity: 3 Recess Depth 1 [mm]: 17,6 Recess Diameter [mm]: 37,8 Valve pocket depth 1 [mm]: 0,8 Thickness [mm] 63501: 3,3 Height [mm] 63501: 1,75 Material 63501: Cast Iron...
