Bore: 84.00mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: N/A

Cyl.Bore: 84.00mm is STD Compression Height: 47.0mm Length: 73.0mm Recess Depth: -4.6/-15.2mm Recess Diameter: 47.5mm Bolt d.: 32.0mm Bolt Length: 64.0mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 1.75x1.75x2.00mm

Bore: 80.00mm Ring sizes: 1.50x2.00x3.50mm Oil ring type: 3 PC. FLEX-VENT

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.973 / 49.993mm Housing bore: 53.600 / 53.616mm Wall thickness: 1.79mm Bearing width: 17.55mm

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019 Wall thickness: 2.497mm Bearing width: 17.30mm Position: Flanged bearings Quantity: 1 pair Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019 Wall thickness: 2.497mm Bearing width: 23.95mm

Bearing structure: Tri-Metal; Number in pack: 8

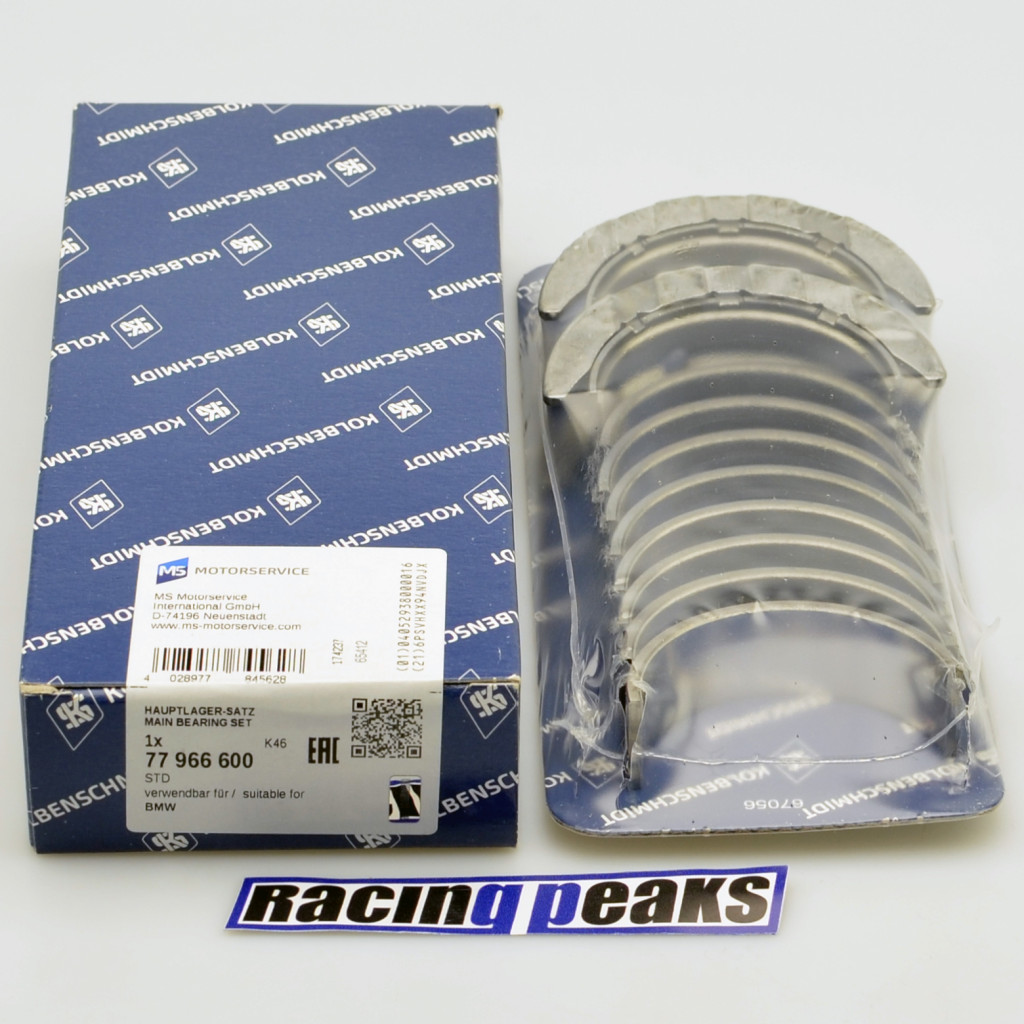

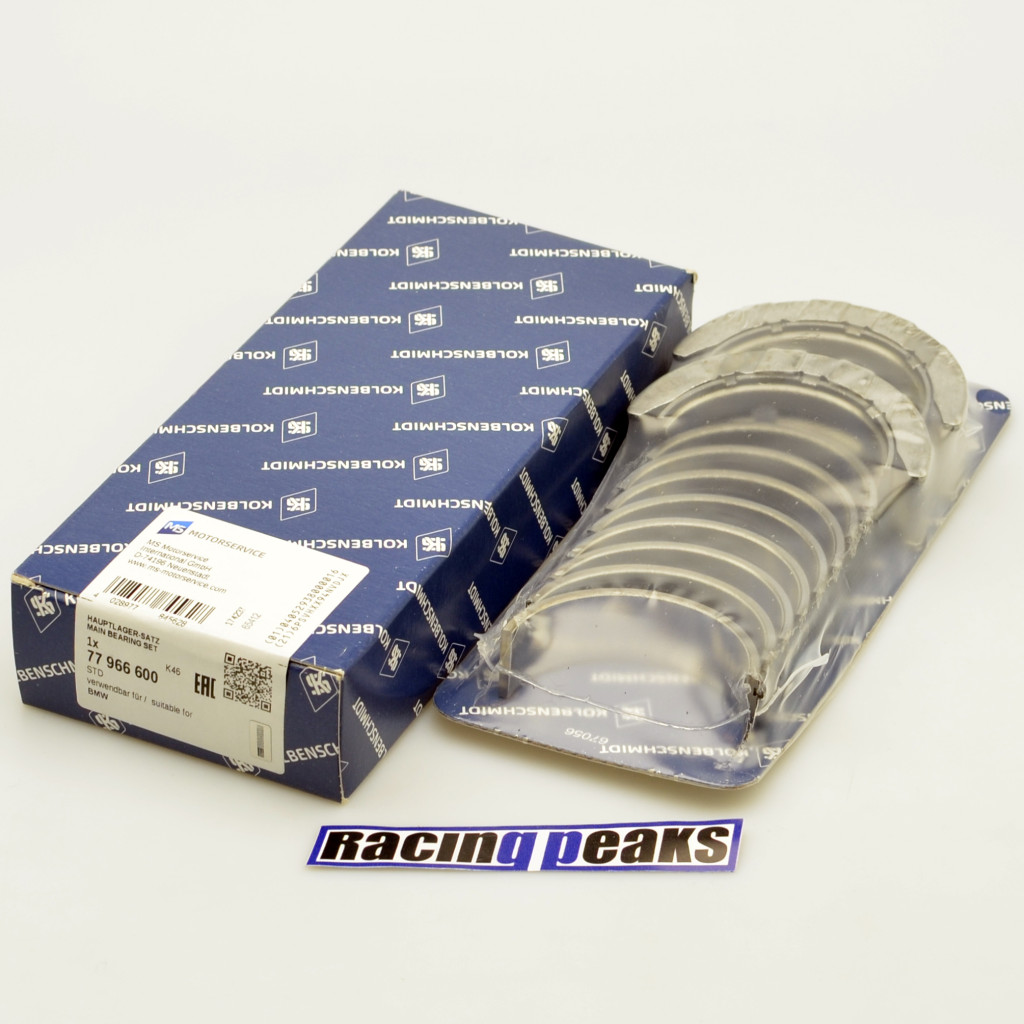

Position: Main bearing Quantity: 4 pairs Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019mm Wall thickness: 2.497mm Bearing width: 17.30mm Position: Flanged bearing Quantity: 1 pair Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019mm Wall thickness: 2.497mm Bearing width: 23.95mm Position: Connecting rod...

Bore: 84.00mm Top ring: 1.75mm 2nd ring: 1.75mm 3rd ring: 2.00mm

Bearing structure: Tri-Metal; Number in pack: 10

Crankshaft: 49.972 / 49.992mm Housing: 0.000 / 53.617mm Max Wall Thickness: 1,788mm Max Length: 17,498mm Quantity: for 2 journals only

Operating Mode: Mechanical Pump Type: Tandem Pump Fuel Type: Diesel Supplementary Info: without gasket/seal

More details coming soon.
