Piston size: 84.00mm; Ring size: 3.0/2.0/2.0mm

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 2.05 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L182 Piston Rings: 1.20x1.50x2.00mm Piston rings: 1.20x1.50x2.00mm

Crankshaft: 59.98 / 59.97 | 59.98 / 59.97mm Housing: 65.03 / 0.00 | 65.03 / 0.00mm Max Wall Thickness: 2,496 | 2,496mm Max Length: 21,7 | 21,7mm Quantity: 5 | 4

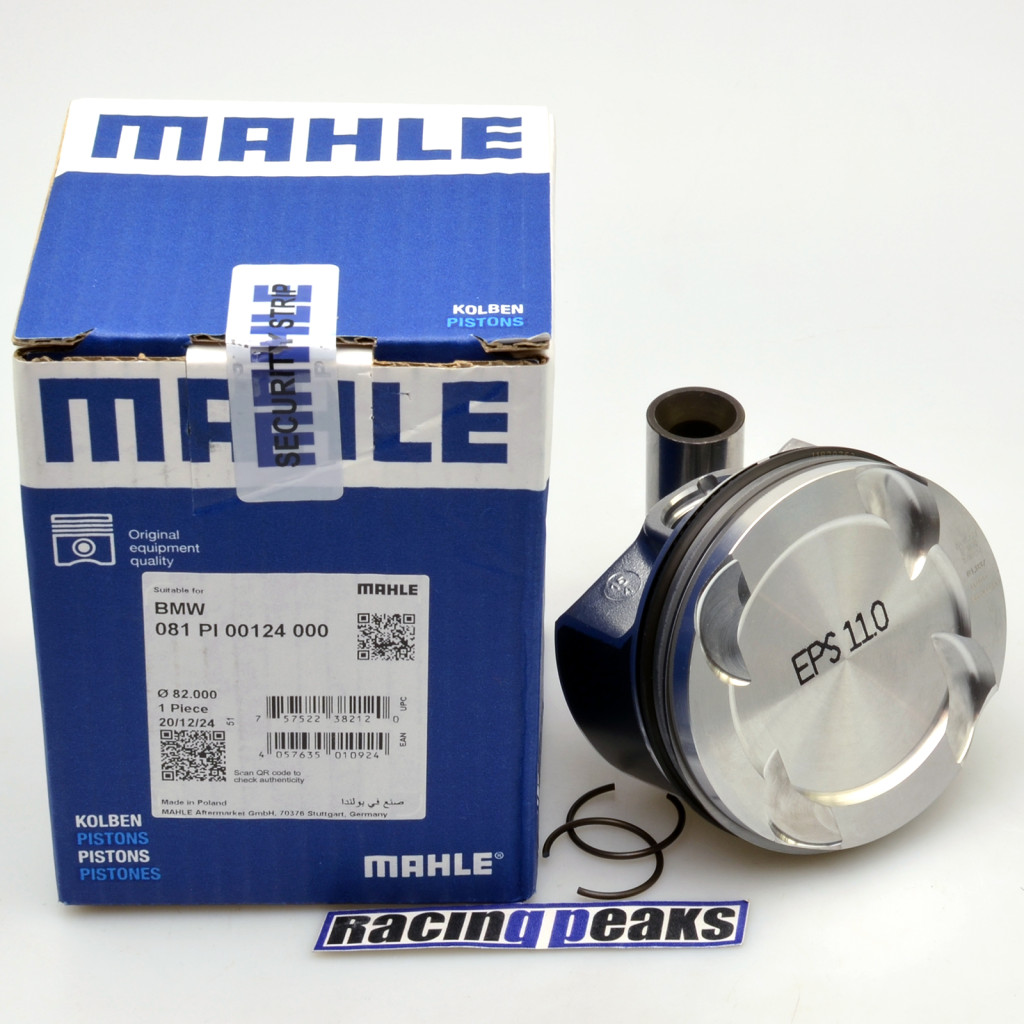

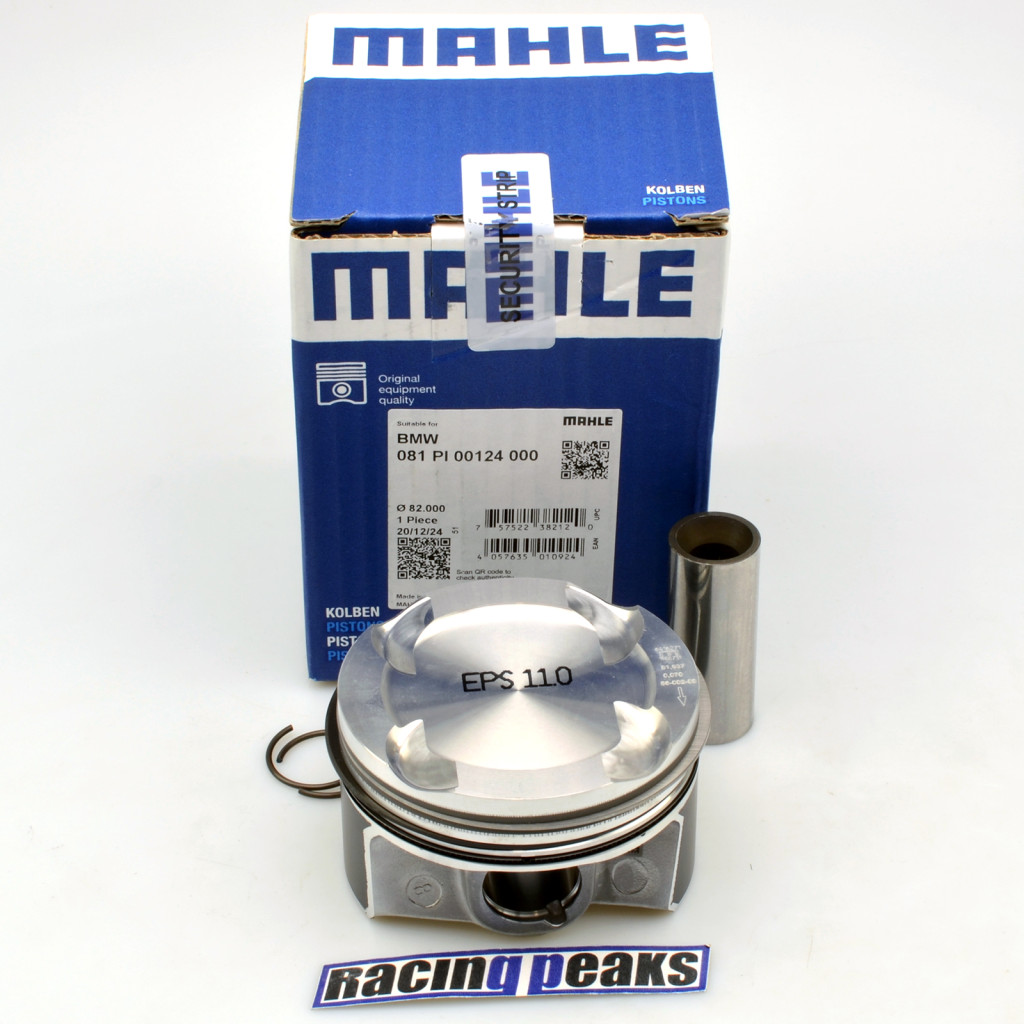

Bore: 82.00mm (stock 82.00mm) Stroke: 94.60mm Compression height: 33.27mm Compression ratio: 10.6 Pin: 22x50.0mm Rings: 1.20x1.50x2.00mm Crown volume: -11.0cc Weight: 299g Alloy: 2618 PowerPak Clearance guide: Measuring point .500 Min .0025 Max .0033 Package: 6 pistons with rings and pins

Crankshaft: 49.972 / 49.992mm Housing: 53.599 / 53.622mm Max Wall Thickness: 1,786mm Max Length: 19,568mm Quantity: 6

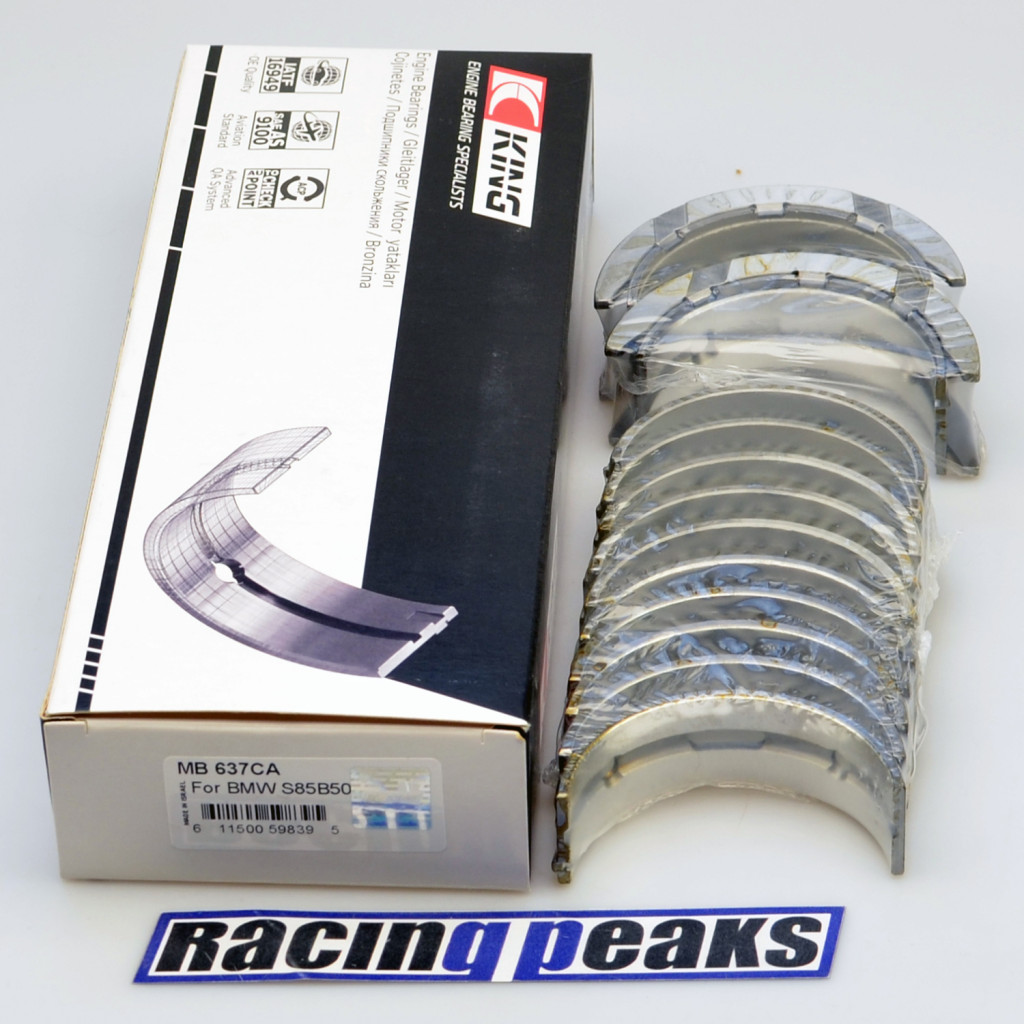

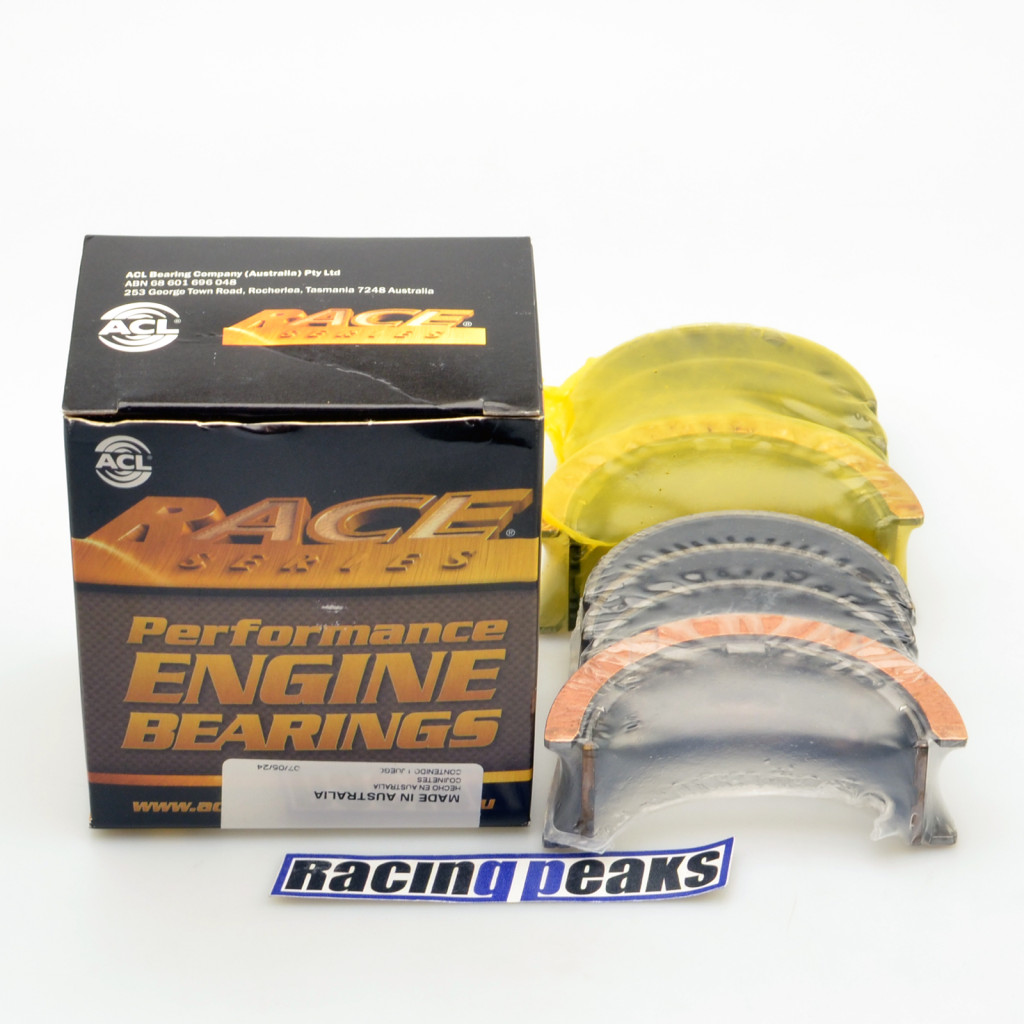

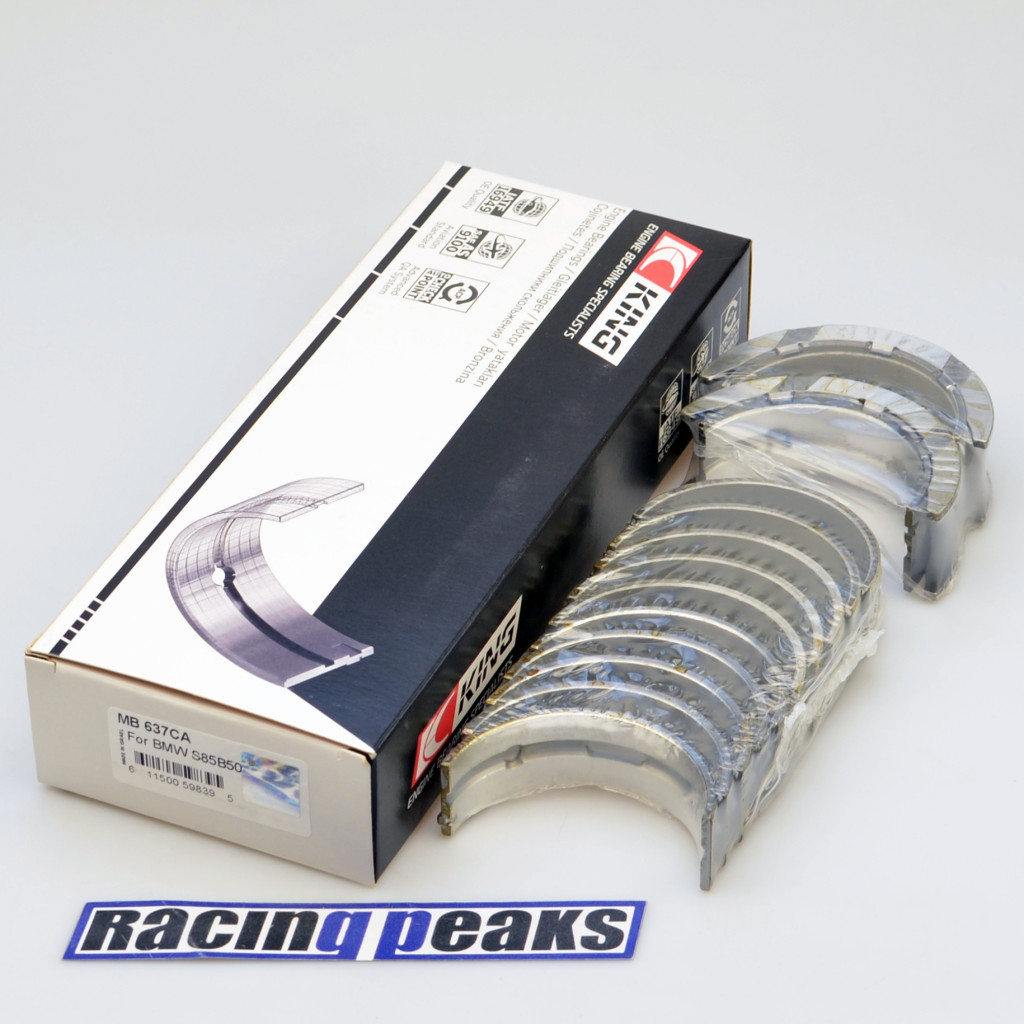

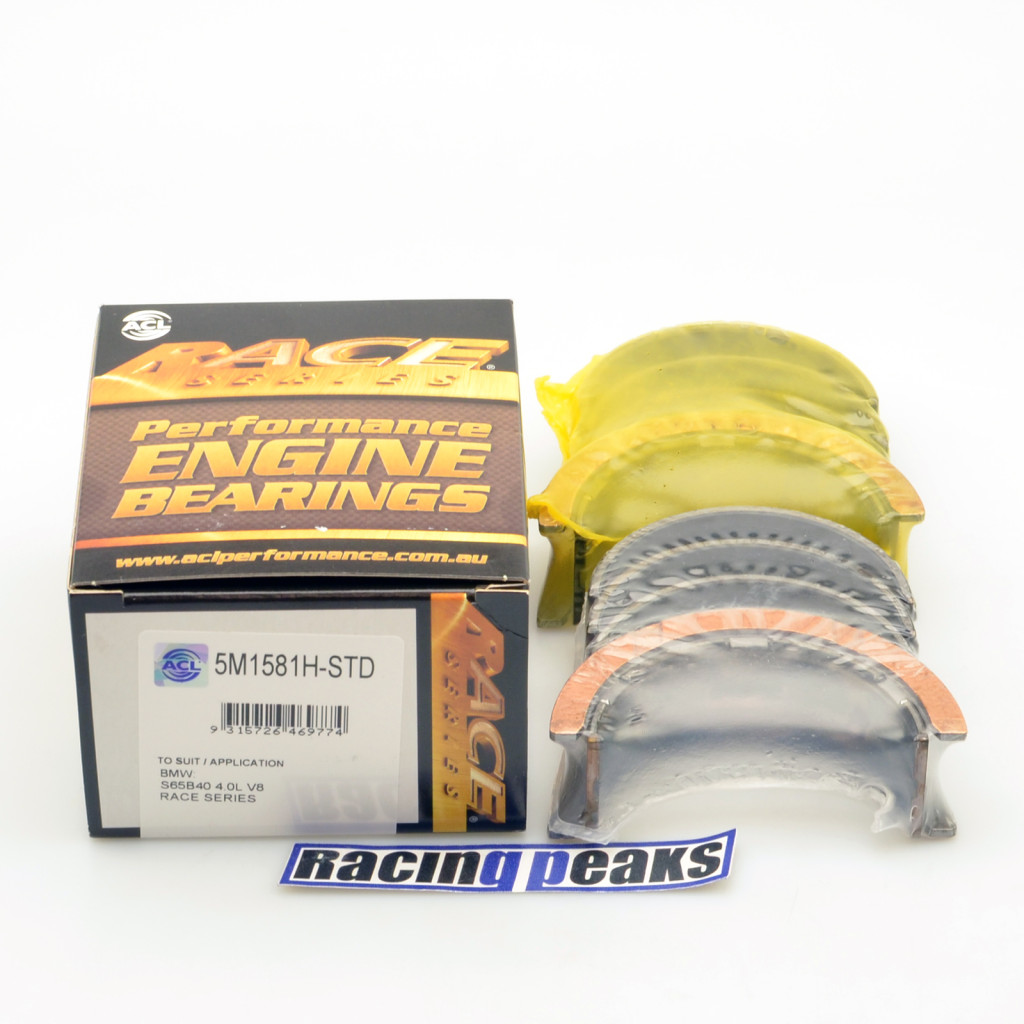

Bearing structure: Tri-Metal; Number in pack: 16

Crankshaft: 0.00 / 0.00 | 0.00 / 0.00mm Housing: 60.01 / 0.00 | 60.01 / 0.00mm Max Wall Thickness: 2,5 | 2,5mm Max Length: 18,6 | 24,9mm Quantity: 6 | 1

Bearing structure: Tri-Metal; Number in pack: 10

Bearing structure: Tri-Metal; Number in pack: 26

Bearing structure: Tri-Metal; Number in pack: 8

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.49mm Bearing width: 24.00mm Position: Flanged bearing Quantity: 1 pair Shaft diameter: 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.49mm Bearing width: 29.94mm

Bore: 82.00mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT
