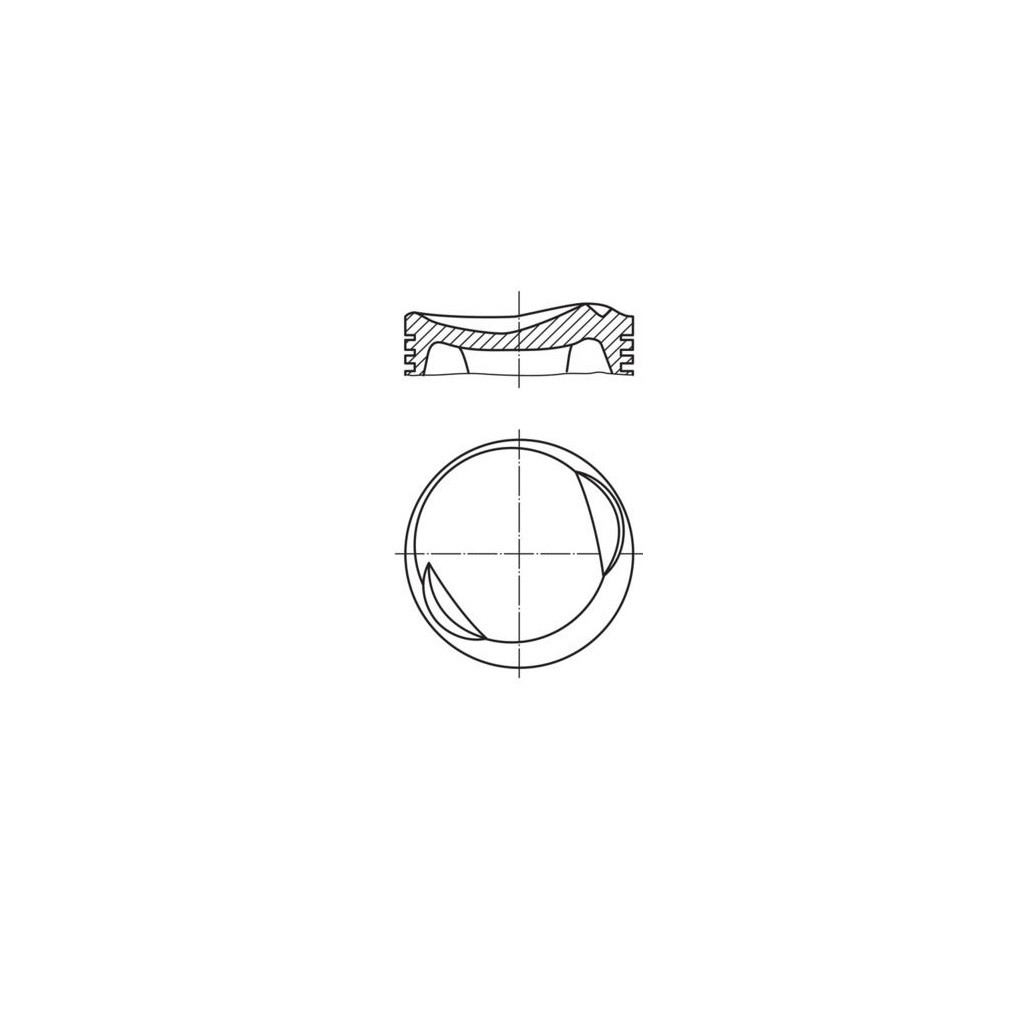

Bore: 84.50mm Length: 63.4 mm Compression Height: 34.2 mm Pin Length: 54 mm Pin Diameter: 22 mm Recess Depth 1: 6.7 mm Recess Diameter: 64.3 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 0.4 mm Surface: Tin-plated Top Land Height: 7.5 mm Production Number: 84 V 137 Piston Clearance: 0.02 mm Piston rings: 1.50x1.75x3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Quantity Unit: 5 Pairs Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm For wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm

Quantity Unit: 1 Pair Oversize: 0.00 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm Wall: 2.5 mm, until 2.506 mm for shaft diameter: 55.951 mm, until 55.97 mm Quantity Unit: 1 Pair Oversize: 0.00 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 70 mm, until...

Quantity Unit: 1 Pair Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm Wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm Quantity Unit: 1 Pair Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 70 mm, until...

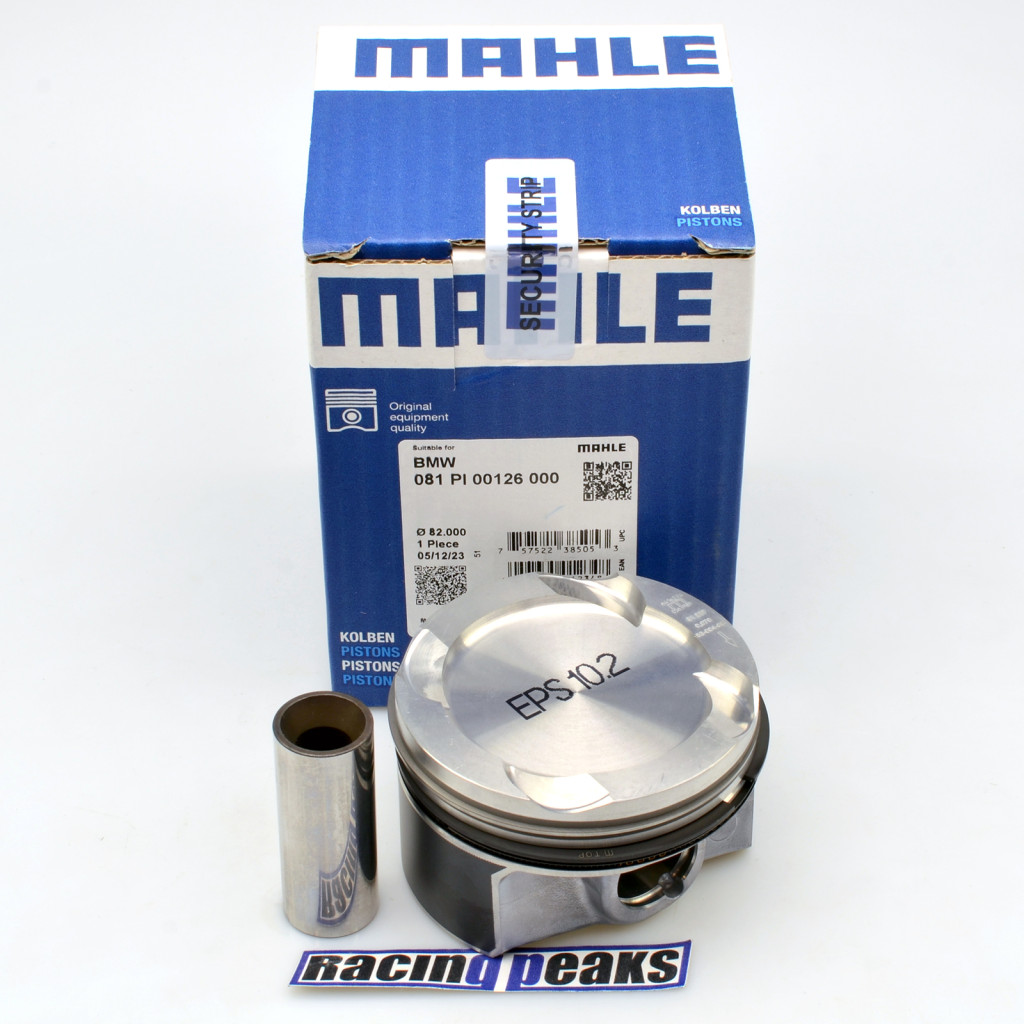

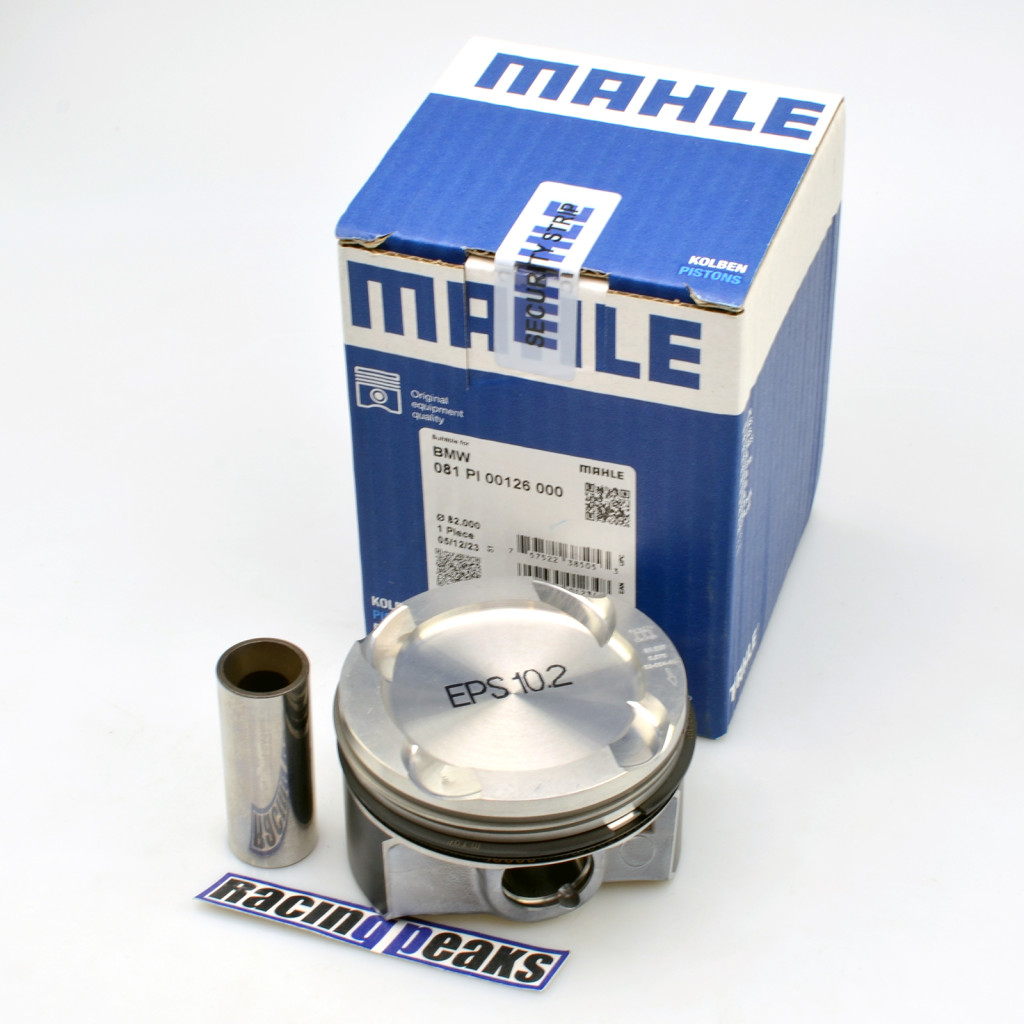

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 2.05 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L182 Piston Rings: 1.20x1.50x2.00mm Piston rings: 1.20x1.50x2.00mm

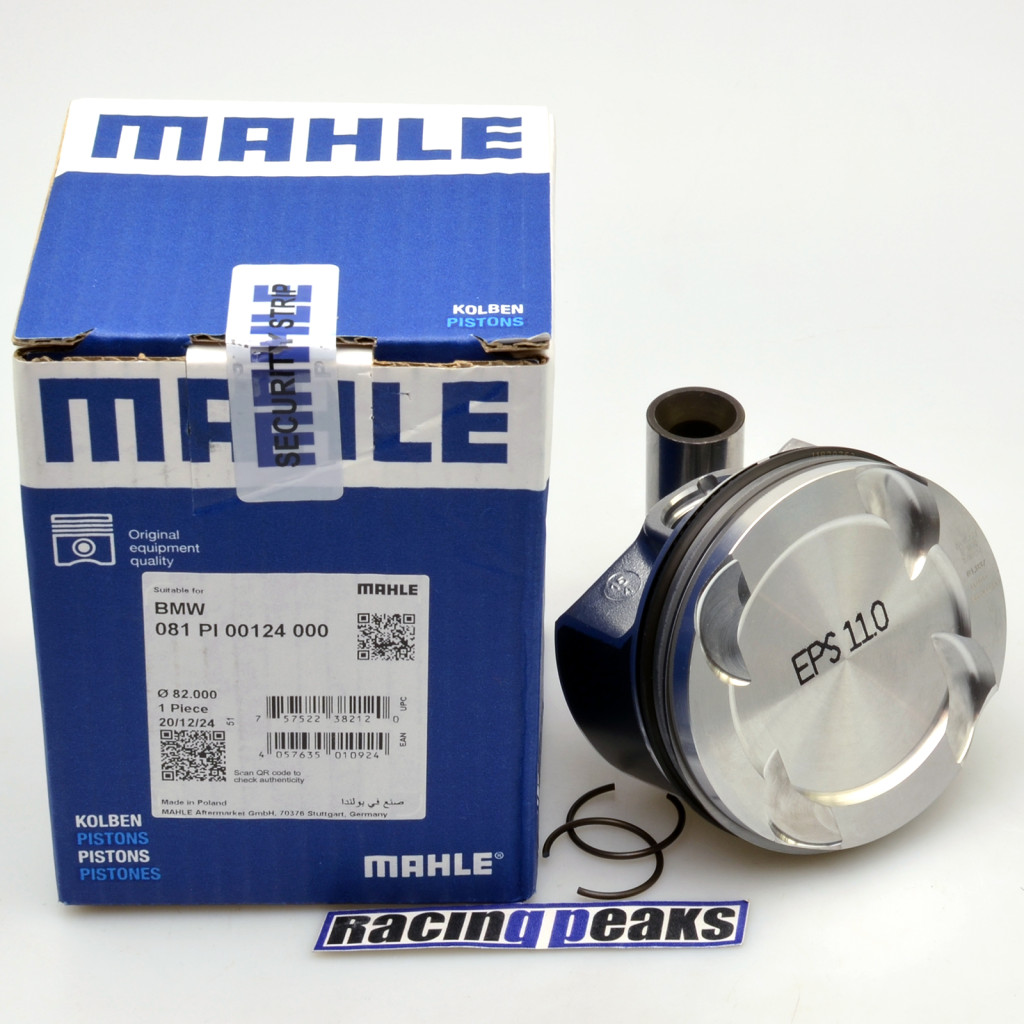

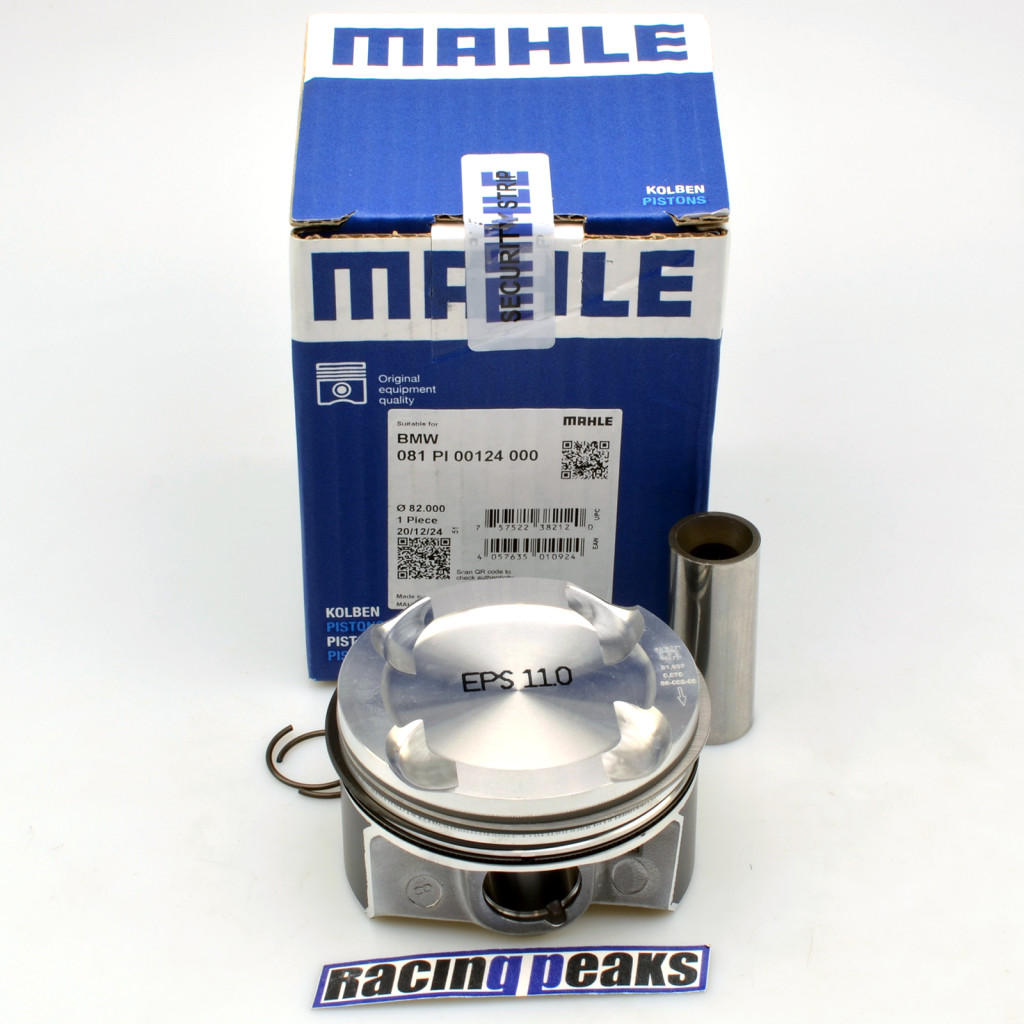

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 3.57 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L177 Piston rings: 1.20x1.50x2.00mm

Quantity Unit: 1 Pair Oversize: 0.00 mm Surface: Galvanically coated for bearing clearance: 0.011 mm, until 0.063 mm for housing diameter: 53.6 mm, until 53.616 mm Width: 17.3 mm, until 17.55 mm For wall: 1.786 mm, until 1.796 mm for shaft diameter: 49.981 mm, until 49.997 mm

Bore: 84.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 84.00mm Top ring: 1.75mm 2nd ring: 1.75mm 3rd ring: 2.00mm

Bore: 82.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm
