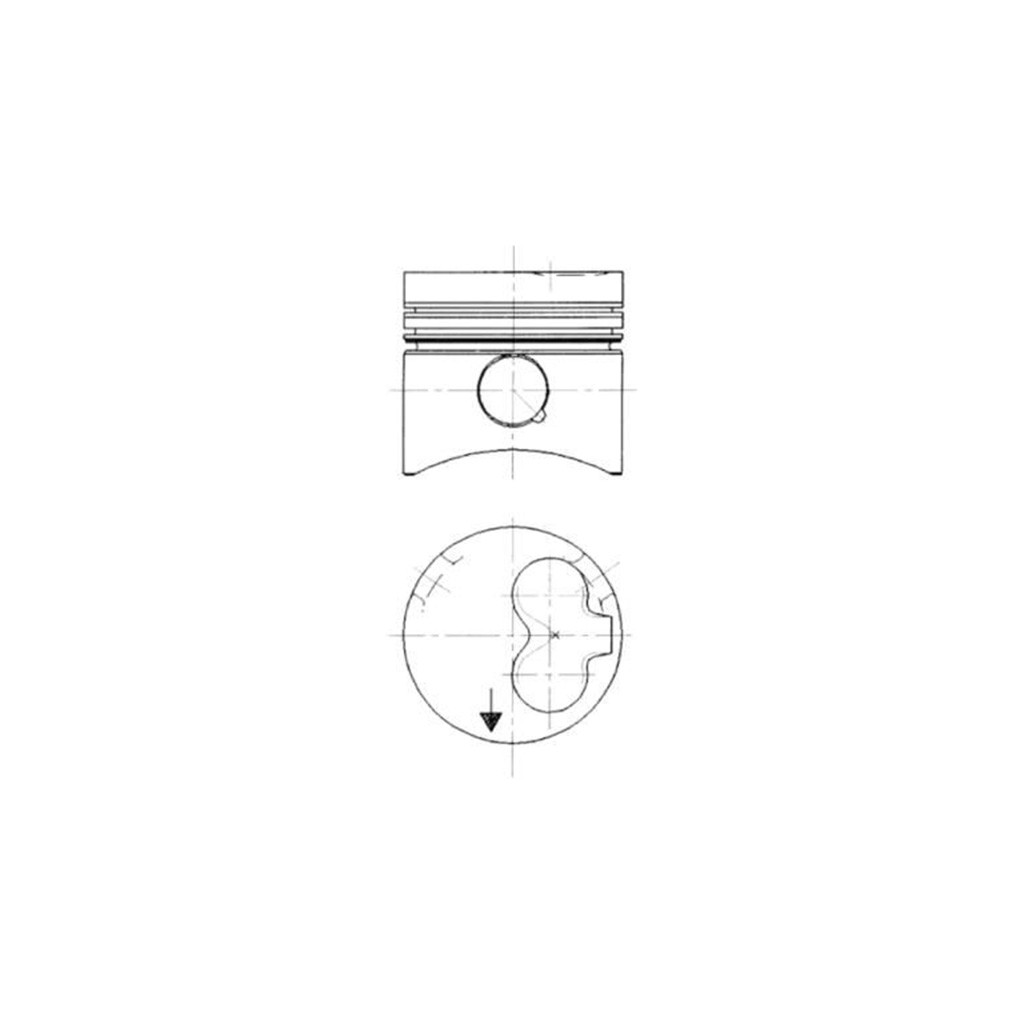

Cyl.Bore: 77.51mm Compression Height: 41.45mm Length: 71.45mm Recess Depth 1: 1.6mm Component No.: 32922, 39240, 35517 Bolt d.: 24mm Bolt Length: 64mm Rep. Stage: 1,00 Connecting Rod Design: Trapezoidal Connecting Rod

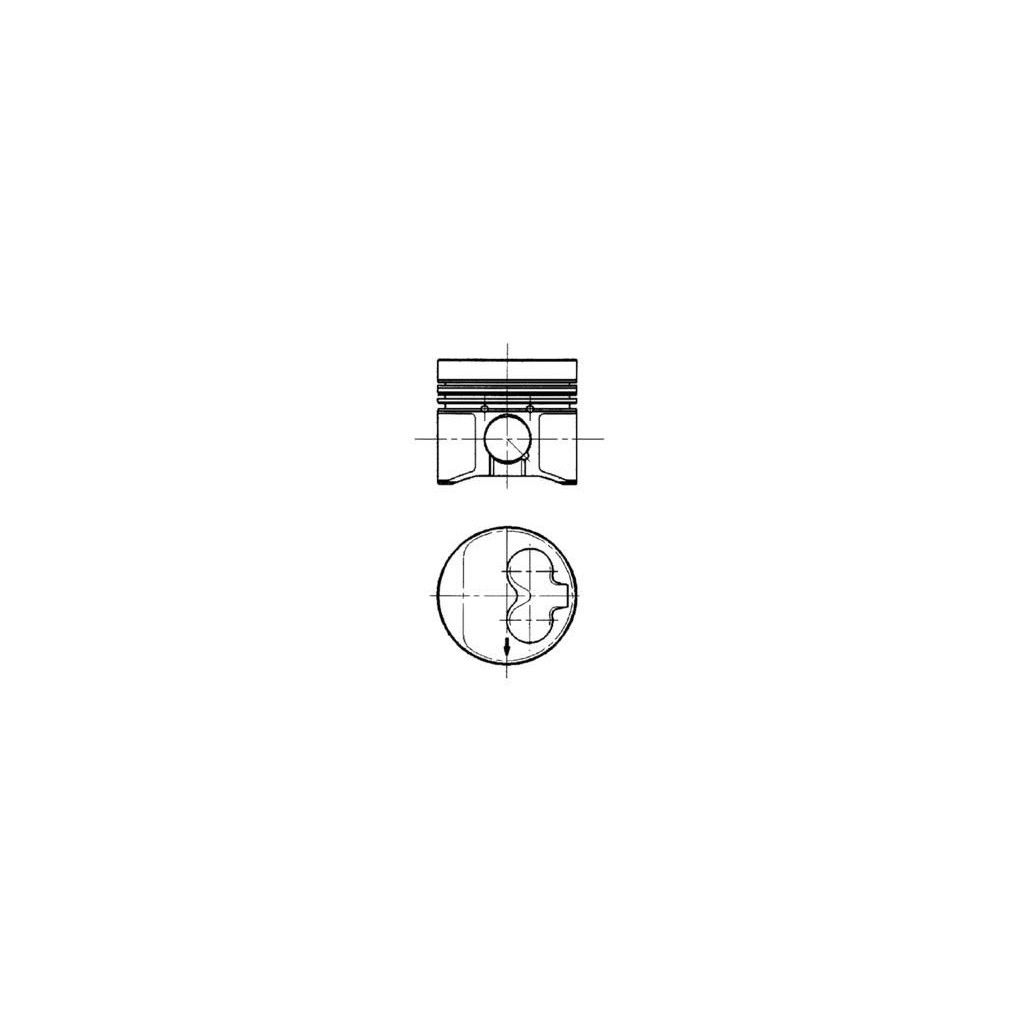

Cyl.Bore: 80.01mm Compression Height: 39.4mm Length: 65.7mm Recess Depth 1: 1.9mm Component No.: 80009, 80006, 80002 Bolt d.: 24mm Bolt Length: 64mm Rep. Stage: 0.50

Cyl.Bore: 80.01mm Compression Height: 45.4mm Length: 71.7mm Recess Depth 1: 1.9mm Component No.: 80006, 80009, 80002 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4

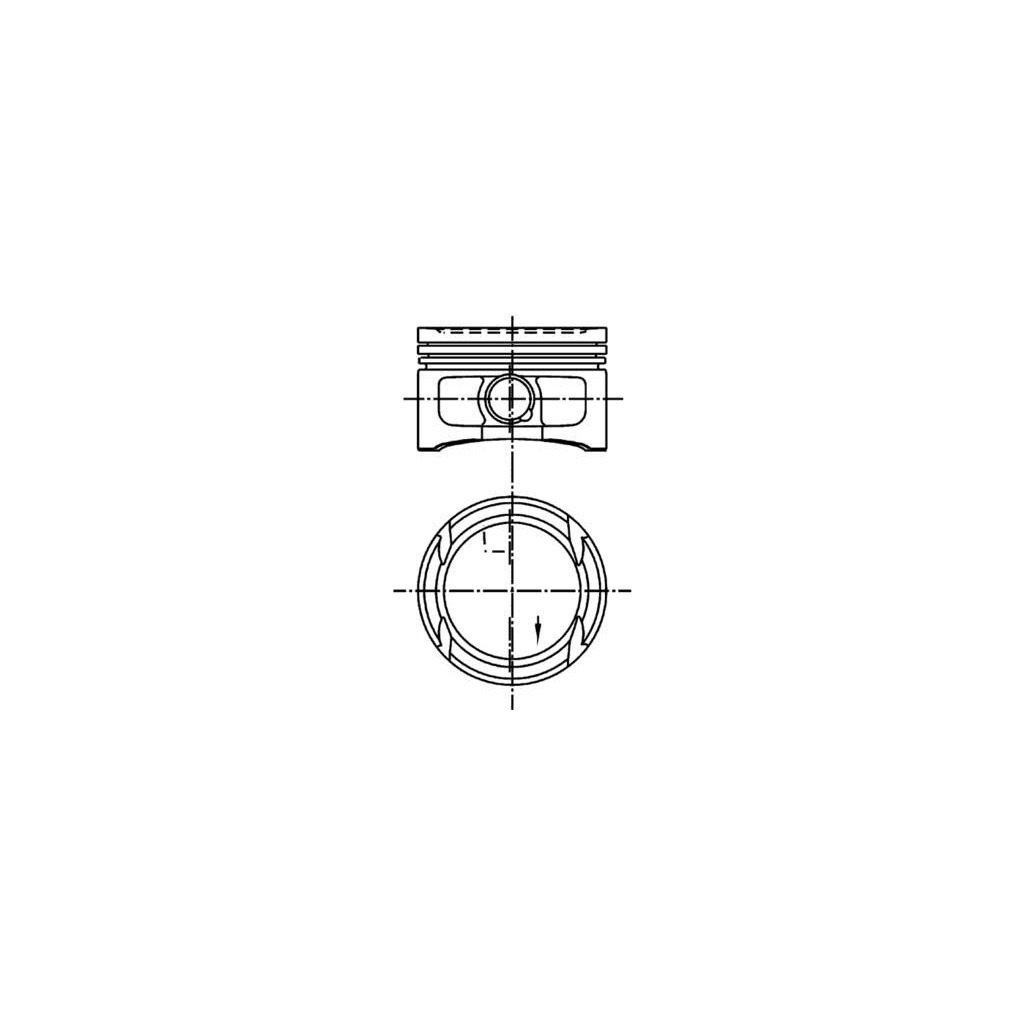

Cyl.Bore: 76.51mm Compression Height: 28.92mm Length: 49.92mm Recess Depth 1: 1.98mm Valve Pocket Depth 1: 2.2mm Valve Pocket Depth 2: 2.2mm Component No.: 85724, 84762, 82611 Standard Size [STD]: Bolt d.: 17mm Bolt Length: 54mm

Bolt length [mm]: 42 Bolt Ø [mm]: 19 Component Number: 61937; 61938; 85712 Compression Height [mm]: 29,7 Cylinder Piston Diameter [mm]: 81,01 Length [mm]: 50,7 Production Number: 081178 Quantity: 3 Recess Depth 1 [mm]: 2,7 Thickness [mm] 61937: 2,75 Height [mm] 61937: 1 Material 61937: Steel Surface 61937: Blank; Nitrified Cylinder Piston Diameter [mm]...

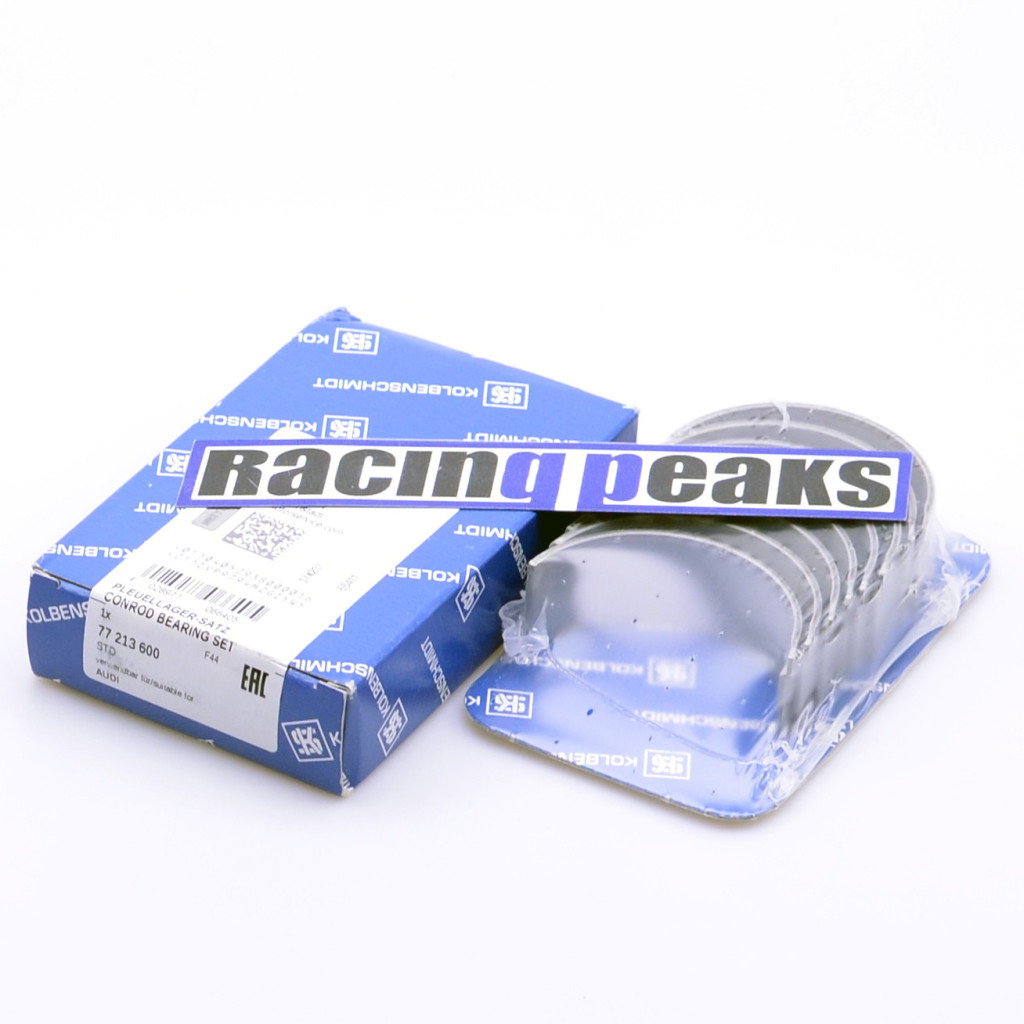

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 20.00mm
