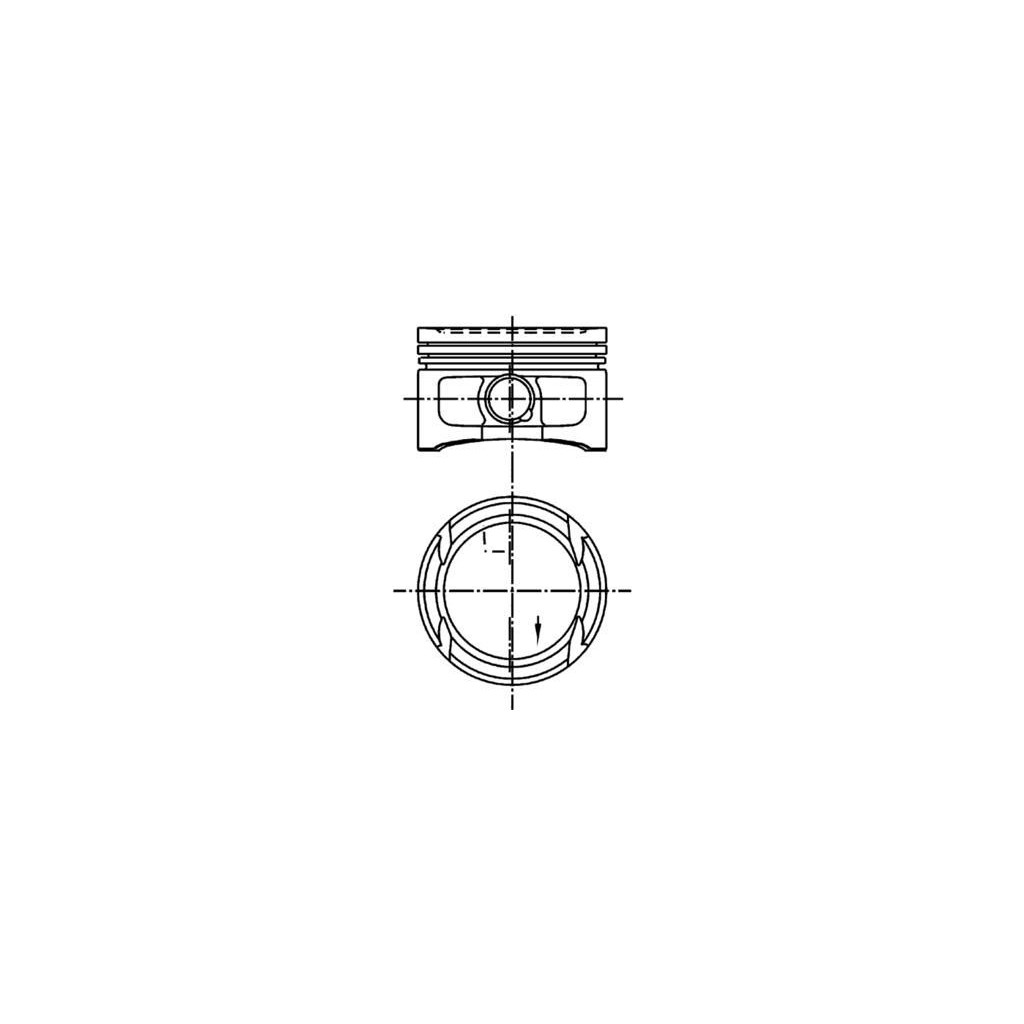

Cyl.Bore: 80.01mm Compression Height: 45.4mm Length: 71.7mm Recess Depth 1: 1.9mm Component No.: 80006, 80009, 80002 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50

Cyl.Bore: 81.51mm Compression Height: 33.1mm Length: 62.7mm Piston Crown Clearance: 0.6mm Component No.: 18680, 29839/04, 18649 Bolt d.: 20mm Bolt Length: 57mm Rep. Stage: 0.50

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4

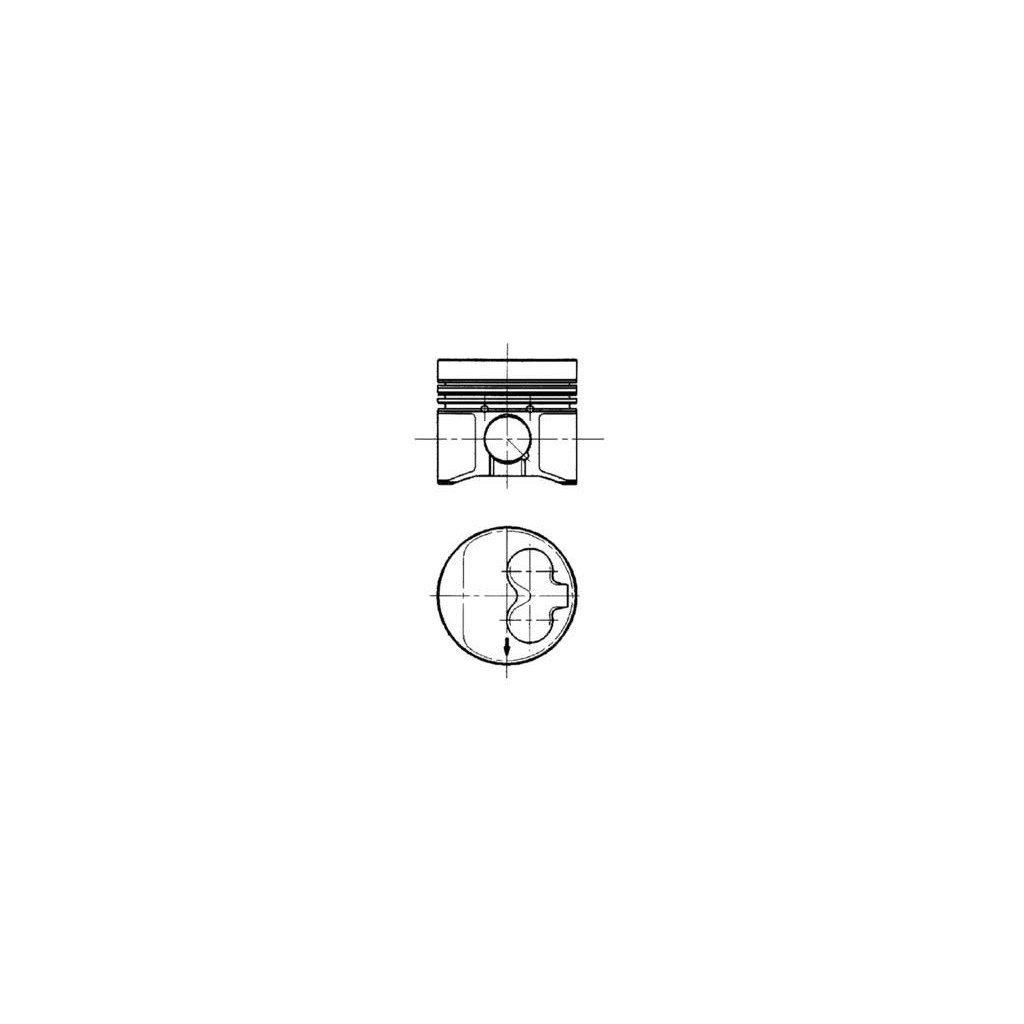

Cyl.Bore: 76.51mm Compression Height: 28.92mm Length: 49.92mm Recess Depth 1: 1.98mm Valve Pocket Depth 1: 2.2mm Valve Pocket Depth 2: 2.2mm Component No.: 85724, 84762, 82611 Standard Size [STD]: Bolt d.: 17mm Bolt Length: 54mm

Crankshaft: 47.757 / 47.777mm Housing: 50.599 / 50.612mm Max Wall Thickness: 1,405mm Max Length: 18,999mm Quantity: for 1 journal only

Crankshaft: 47.757 / 47.777mm Housing: 50.599 / 50.612mm Max Wall Thickness: 1,405mm Max Length: 18,999mm Quantity: for 1 journal only

Crankshaft: 50.858 / 50.879mm Housing: 53.701 / 53.711mm Max Wall Thickness: 1,402mm Max Length: 20,399mm Quantity: for 1 journal only

Crankshaft: 41.99 / 41.98mm Housing: 45.01 / 45.00mm Max Wall Thickness: 1,5mm Max Length: 16,2mm Quantity: 3

Crankshaft: 7.78 / 47.76mm Housing: 50.61 / 50.60mm Max Wall Thickness: 1,401mm Max Length: 20mm Quantity: 3

Crankshaft: 7.78 / 47.76mm Housing: 50.61 / 50.60mm Max Wall Thickness: 1,401mm Max Length: 20mm Quantity: 3

Crankshaft: 7.78 / 47.76mm Housing: 50.61 / 50.60mm Max Wall Thickness: 1,401mm Max Length: 20mm Quantity: 3
