Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 2.7 mm Oversize: 0.5 mm Compression Height: 29.78 mm Height: 50.7 mm Cyl.Bore: 81.5 mm Bolt d.: 19 mm Recess Diameter: 62.3 mm Bolt Length: 42 mm Component No.: 08-148307-00

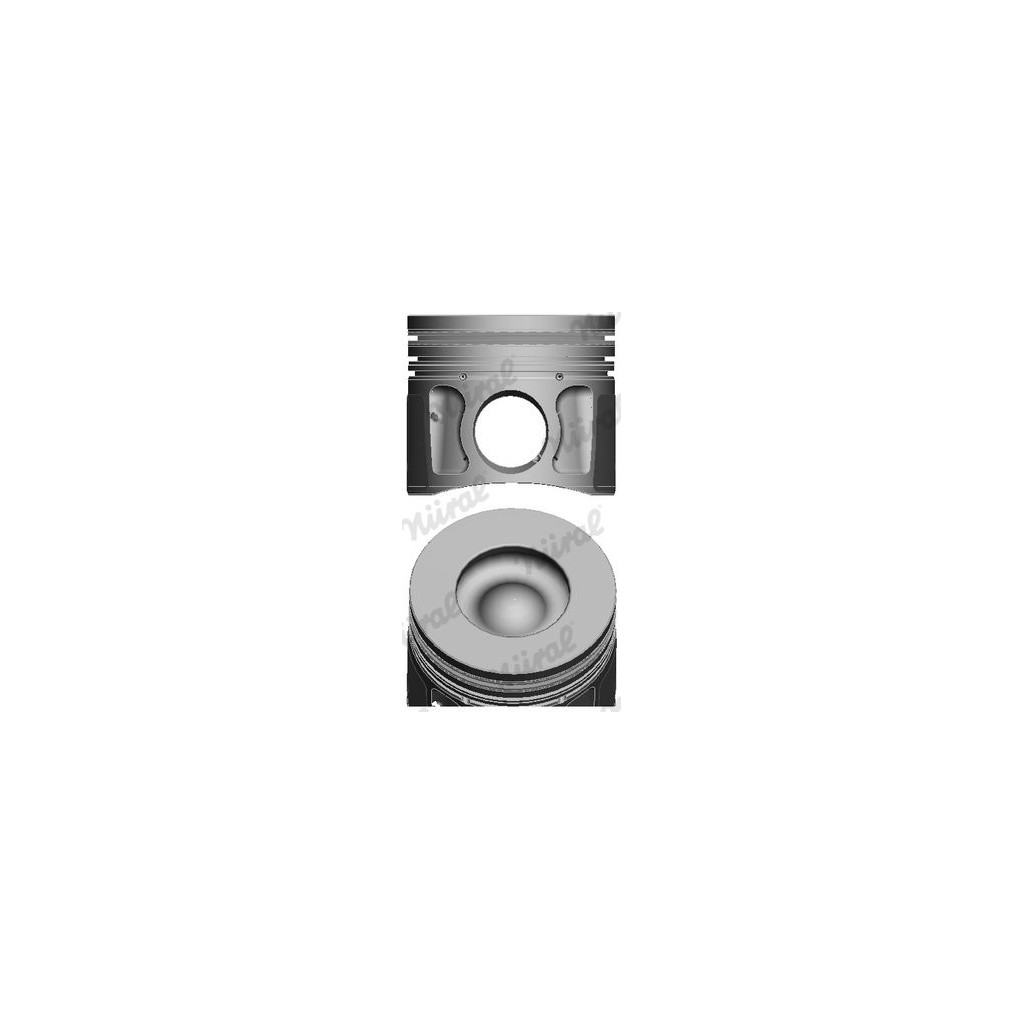

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Piston Clearance: 0.05 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 67 mm Component No.: 08-427700-00 Machined: with cut-out for oil...

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Piston Clearance: 0.05 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 67 mm Component No.: 08-427700-00 Machined: with cut-out for oil...

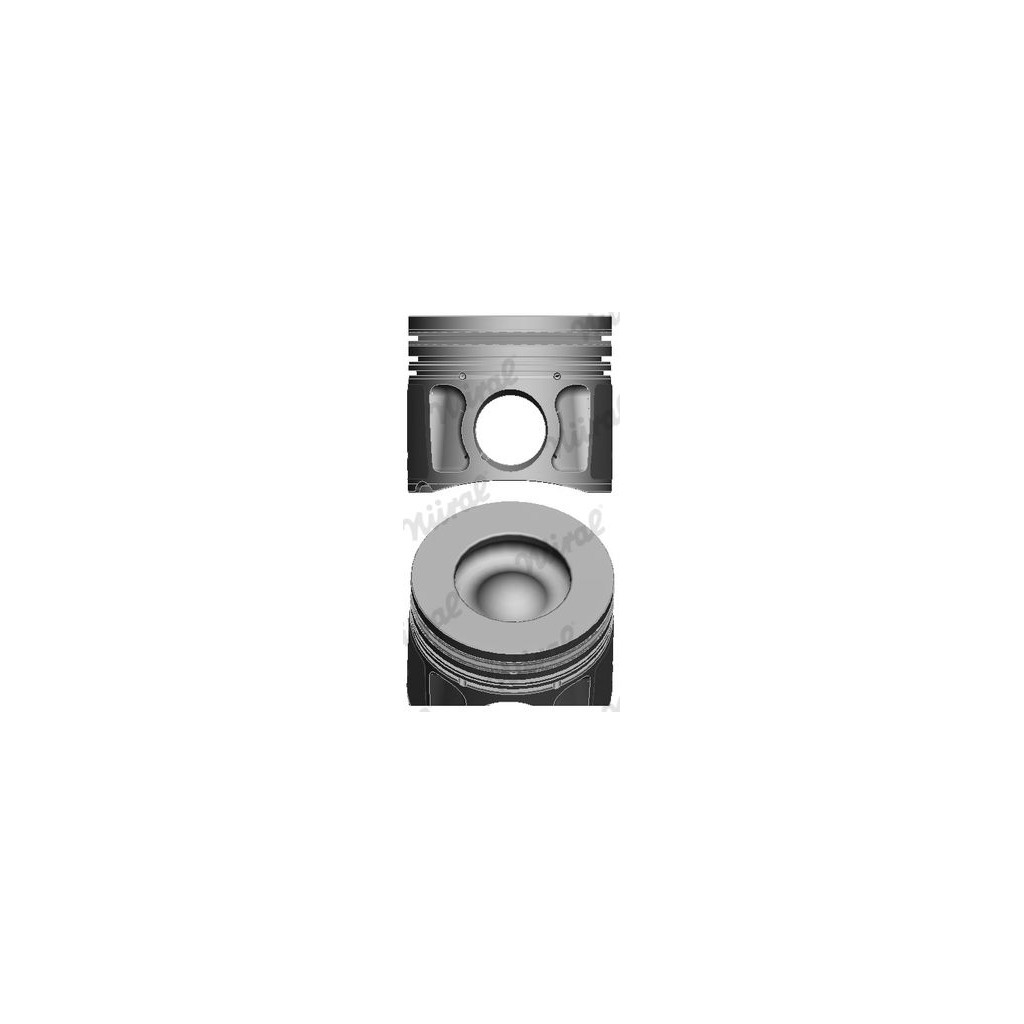

Production Number: 08683-101 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 15.85 mm Oversize: 0.5 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86.5 mm Bolt d.: 30 mm Recess Diameter: 46.9 mm Bolt Length: 66 mm Component No.: 08-427707-00 Machined: with cut-out for oil jet

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Oversize: 0.5 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86.5 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 66.85 mm Component No.: 08-427707-00 Machined: with cut-out for oil jet

Production Number: 08683-607 Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 16.17 mm Oversize: 0.5 mm Compression Height: 48.42 mm Height: 74.8 mm Cyl.Bore: 86.5 mm Bolt d.: 30 mm Recess Diameter: 49.04 mm Bolt Length: 66.85 mm Component No.: 08-427707-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: with piston ring carrier Recess Depth 1: 6.4 mm Piston Clearance: 0.05 mm Piston Protrusion: 1.85 mm Compression Height: 29 mm Height: 48 mm Cyl.Bore: 76.5 mm Bolt d.: 19 mm Bolt Length: 54 mm Valve Pocket Depth 1: 1 mm Valve Pocket Depth 2: 3.8 mm Component No.: 08-433900-00 Notice: Pistons to be replaced in Engine Sets only

Supplementary Article/Info 2: with piston ring carrier, for keystone connecting rod Recess Depth 1: 6.4 mm Oversize: 0.5 mm Piston Protrusion: 1.85 mm Compression Height: 29 mm Height: 48 mm Cyl.Bore: 77 mm Bolt d.: 19 mm Bolt Length: 53.5 mm Valve Pocket Depth 1: 1 mm Valve Pocket Depth 2: 3.8 mm Component No.: 08-433907-00 Notice: Pistons to be replaced in...

Supplementary Article/Info 2: for keystone connecting rod Recess Depth 1: 1.25 mm Compression Height: 31 mm Height: 48 mm Cyl.Bore: 74.5 mm Bolt d.: 19 mm Recess Diameter: 53.07 mm Bolt Length: 47 mm Valve Pocket Depth 1: 2.9 mm Valve Pocket Depth 2: 4.4 mm Component No.: 08-449500-00

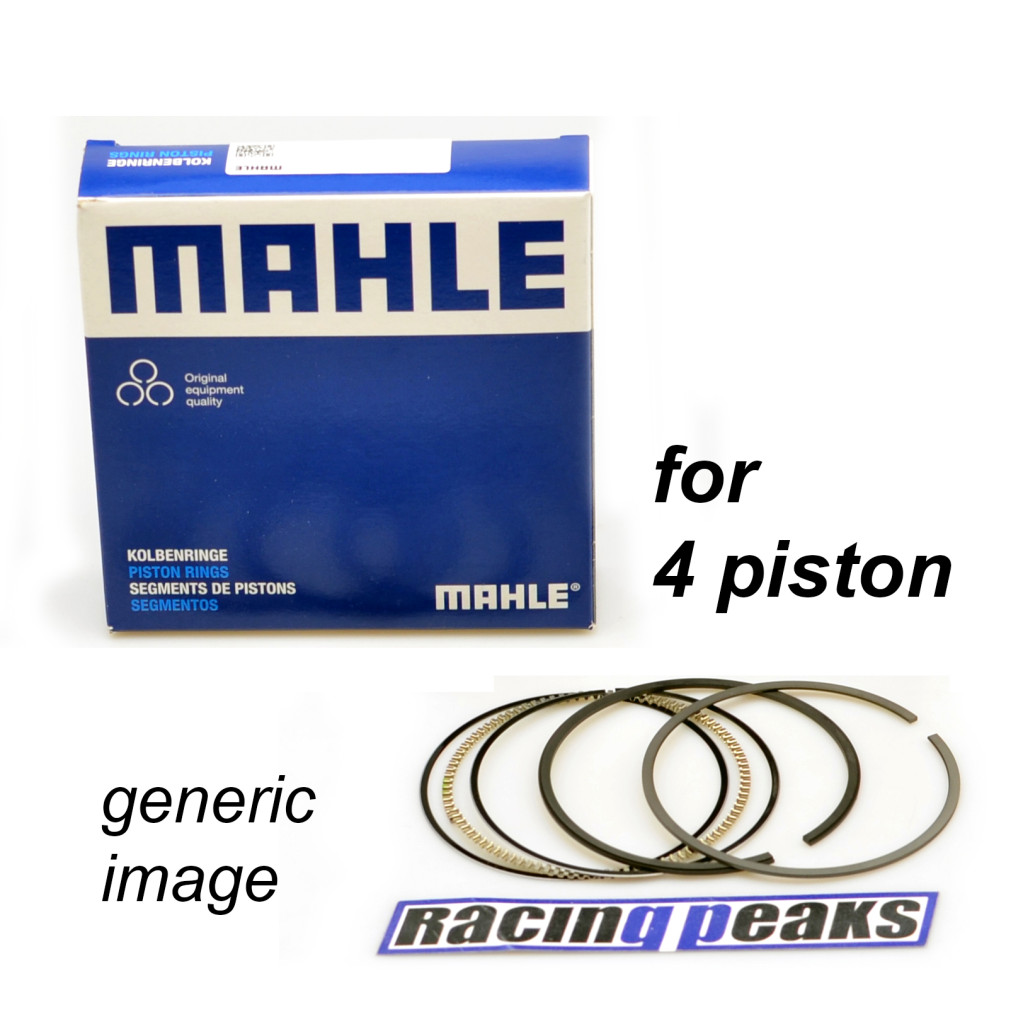

Bore: 87.50mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.50mm

Bore: 76.51mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 76.51mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm
