Cyl.Bore: 83.00mm is STD Compression Height: 48.5mm Length: 75.5mm Recess Depth: -4.0/-13.2mm Recess Diameter: 49.5mm Bolt d.: 30.0mm Bolt Length: 66.0mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 2.00x1.75x2.00mm

Cyl.Bore: 83.00mm is STD Compression Height: 46.6mm Length: 72.6mm Recess Depth: -5.3/-15.8mm Recess Diameter: 43.5mm Bolt d.: 30.0mm Bolt Length: 65.0mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 2.00x2.00x2.00mm

Cyl.Bore: 83.00mm is STD Compression Height: 46.6mm Length: 72.6mm Recess Depth: -5.3/-15.8mm Recess Diameter: 43.5mm Bolt d.: 30.0mm Bolt Length: 65.0mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 2.00x2.00x2.00mm

Cyl.Bore: 83.00mm is STD Compression Height: 46.6mm Length: 72.6mm Recess Depth: -5.3/-15.8mm Recess Diameter: 43.5mm Bolt d.: 30.0mm Bolt Length: 65.0mm Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod Piston rings: 2.00x2.00x2.00mm

Timing Chain: 2pcs Tensioner, timing chain: 2pcs Guides, timing chain: 4pcs Gear/Sprocket, camshaft: 2pcs Gear, crankshaft: 1pc These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

Bore: 83.00mm Top ring: 2.00mm 2nd ring: 1.75mm 3rd ring: 2.00mm

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm

Number of Teeth: 61 Pump Type: Vane Pump

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 51.940 / 51.965mm Housing bore: 55.600 / 55.614mm Wall thickness: 1.808mm Bearing width: 20.50mm

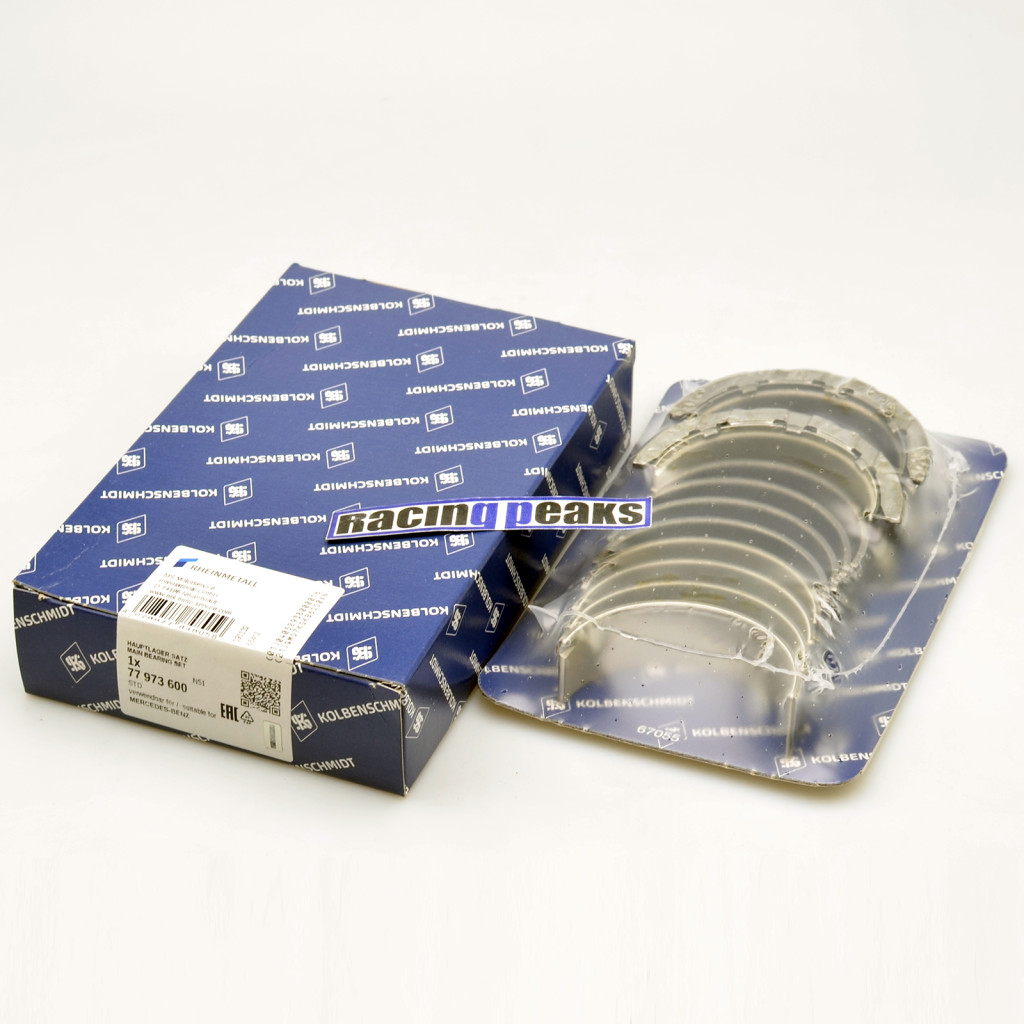

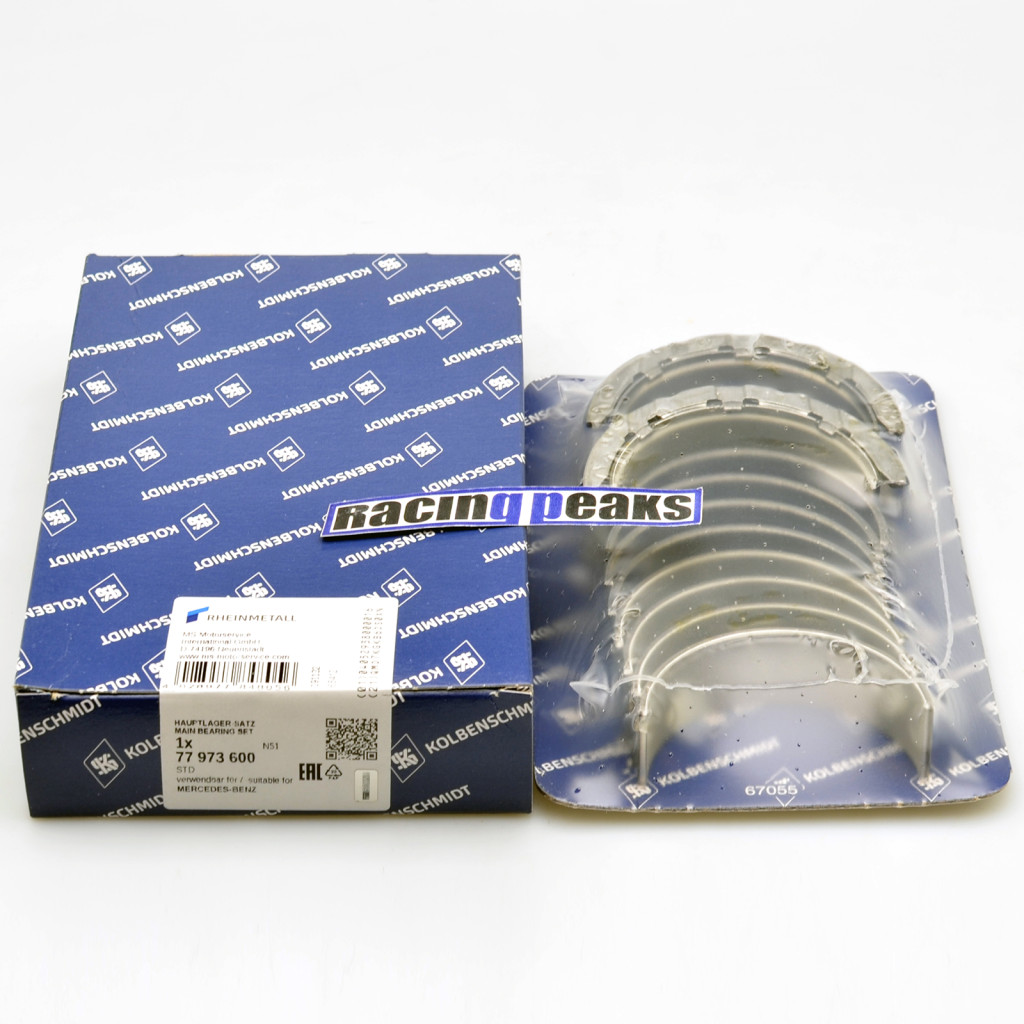

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 59.940 / 59.965mm Housing bore: 64.000 / 64.014mm Wall thickness: 2.012mm Bearing width: 20.50mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter: 59.940 / 59.965mm Housing bore: 64.000 / 64.014mm Wall thickness: 2.012mm Bearing width: 26.33mm
