Bore: 84.50mm Length: 63.4 mm Compression Height: 34.2 mm Pin Length: 54 mm Pin Diameter: 22 mm Recess Depth 1: 6.7 mm Recess Diameter: 64.3 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 0.4 mm Surface: Tin-plated Top Land Height: 7.5 mm Production Number: 84 V 137 Piston Clearance: 0.02 mm Piston rings: 1.50x1.75x3.00mm

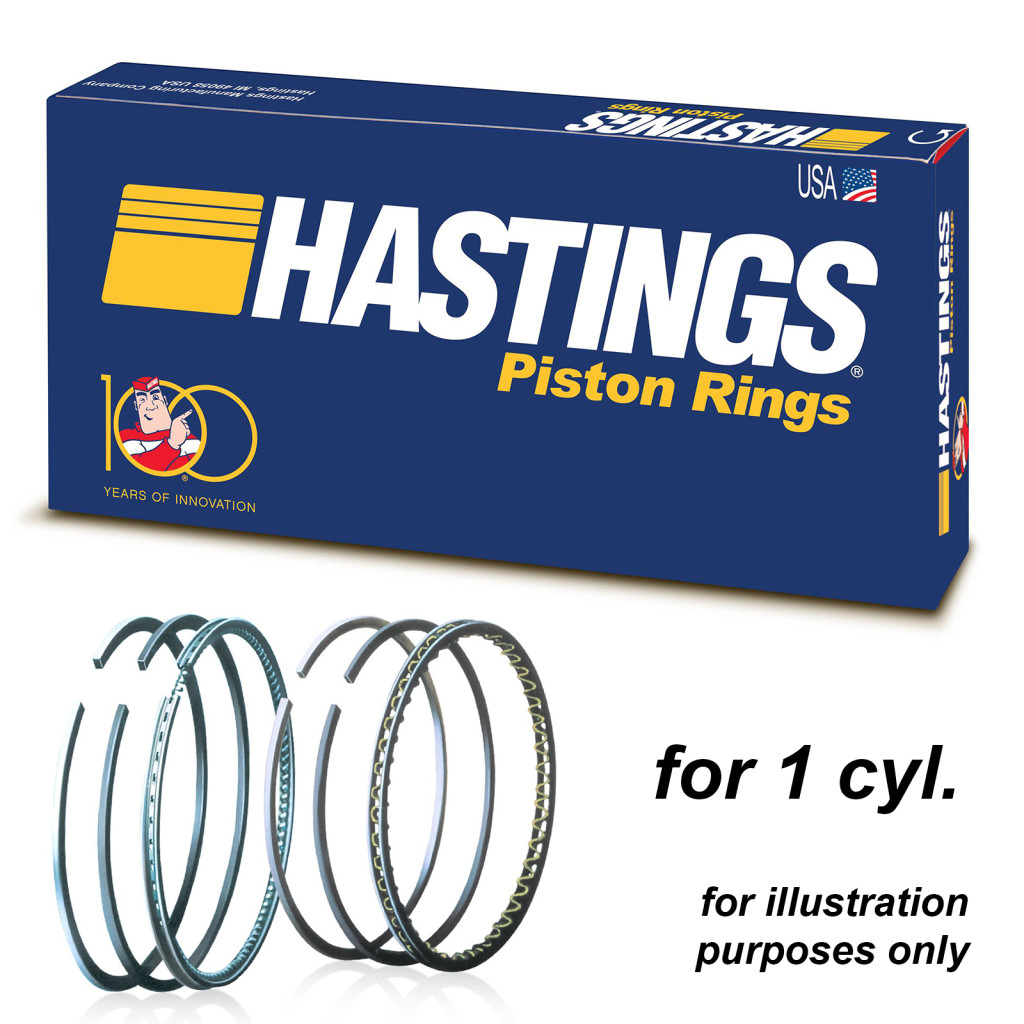

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Bore: 84.00mm Top ring: 1.50mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Piston diameter: 84.00mm Compression ring: 1.50mm Second ring: 1.75mm Oil ring: 3.00mm

Piston diameter: 84.00mm Compression ring: 1.50mm Second ring: 1.75mm Oil ring: 3.00mm

Piston diameter: 84.00mm Compression ring: 1.50mm Second ring: 1.50mm Oil ring: 2.00mm

Valve stem diameter: 5mm Inner diameter: 10mm Material: FPM

Application: Flywheel Bolt Kit Material: Hi-Perf 8740 Details: M12x1.50

Application: Head Stud Kit Material: ARP2000 Details: 12-point

Application: Head Stud Kit Material: ARP2000 Details: 12-point

Application: Main Stud Kit Material: Hi-Perf 8740 Details: 2-bolt
