Bore: 82.50mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT

Cyl.Bore: 79.00mm is STD Compression Height: 32.1mm Length: 51.6mm Recess Depth: -6.5mm Bolt d.: 20.0mm Bolt Length: 50.0mm Info: head, top and 2nd ring lands anodized Piston rings: 1.20x1.20x3.00mm

Bore: 79.50mm Length: 51.7 mm Compression Height: 32.2 mm Pin Length: 50 mm Pin Diameter: 20 mm Recess Depth 1: 6.7 mm Recess Diameter: 55.8 mm Production Number: 79 L 102 Piston rings: 1.20x1.20x3.00mm

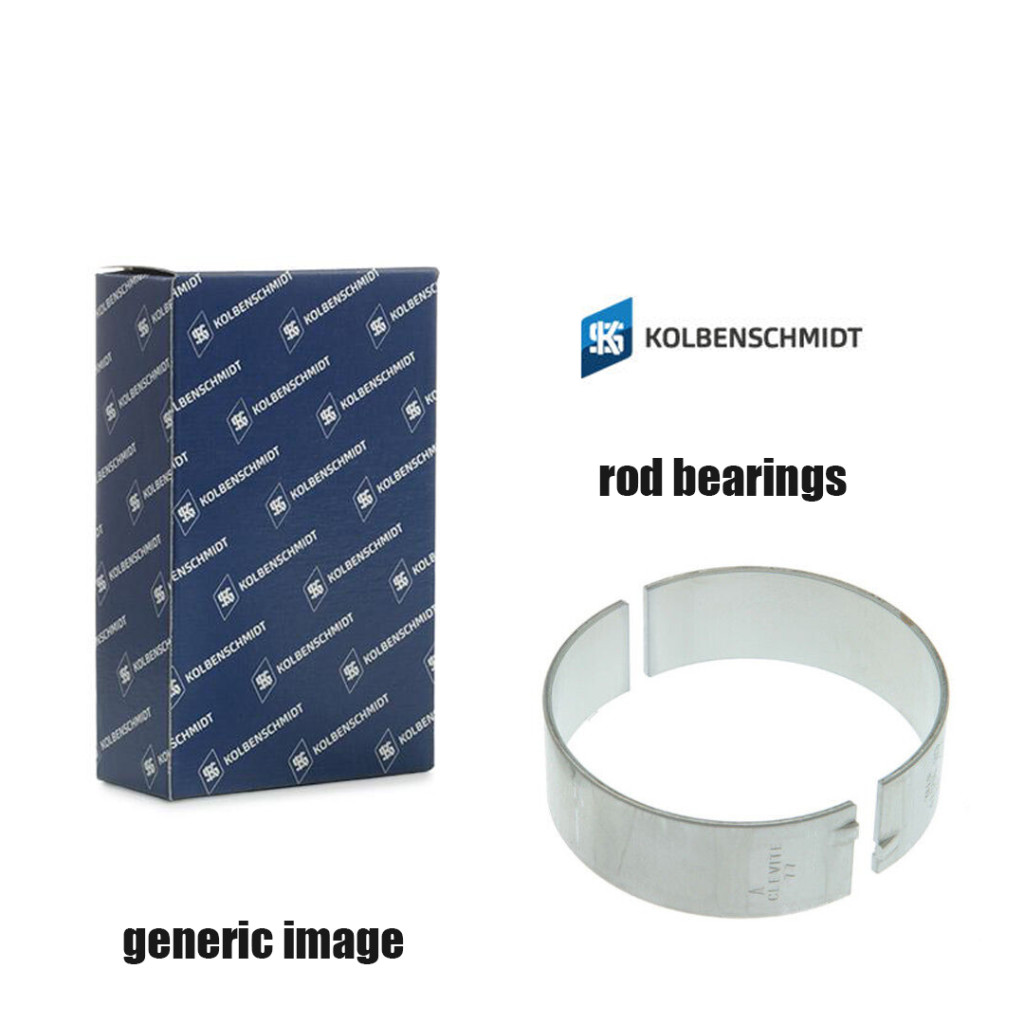

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 19.00mm

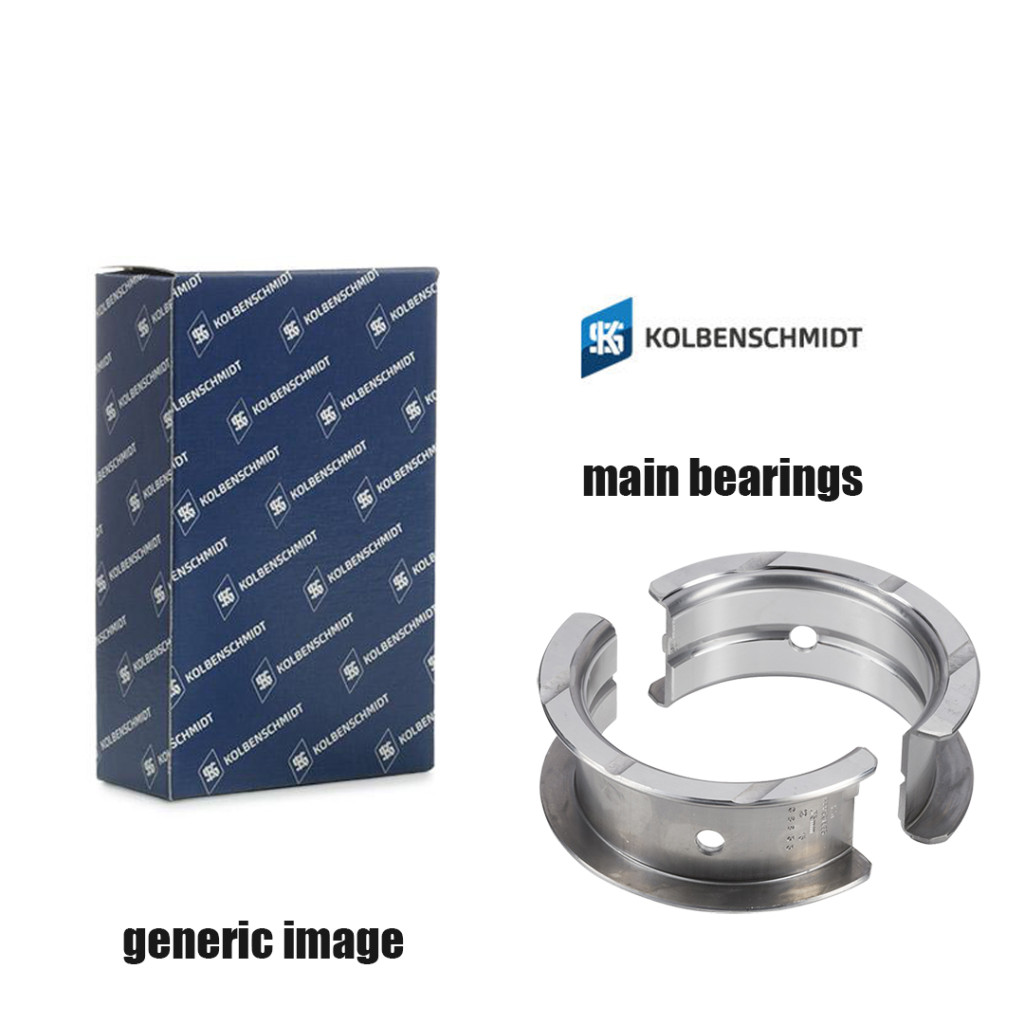

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.502mm Bearing width: 18.50mm Position: Crankshaft Quantity: 1 pair Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.502mm Bearing width: 18.50mm

Crankshaft: 47.78 / 47.76mm Housing: 50.62 / 50.60mm Max Wall Thickness: 1,402mm Max Length: 19mm Quantity: 4

Crankshaft: 47.78 / 47.76mm Housing: 50.62 / 50.60mm Max Wall Thickness: 1,402mm Max Length: 19mm Quantity: 4

Crankshaft: 40.01 / 39.99mm Housing: 43.02 / 43.00mm Max Wall Thickness: 1,491mm Max Length: 15mm Quantity: 4

Crankshaft: 40.01 / 39.99mm Housing: 43.02 / 43.00mm Max Wall Thickness: 1,491mm Max Length: 15mm Quantity: 4

Crankshaft: 44.00 / 43.99mm Housing: 47.02 / 47.00mm Max Wall Thickness: 1,496mm Max Length: 15,7mm Quantity: 4

Crankshaft: 40.00 / 39.98mm Housing: 43.03 / 43.00mm Max Wall Thickness: 1,491mm Max Length: 17,1mm Quantity: 4

1L / 999CC L4 1E SOHC/OHC ota 1L / 999CC L4 1E-L SOHC/OHC Toyota 1.3L / 1296CC L4 2E-LC SOHC/OHC Toyota 1.3L / 1296CC L4 2E SOHC/OHC Toyota 1.3L / 1296CC L4 2E-E SOHC/OHC Toyota 1.3L / 1296CC L4 2E-L...
