Piston rings: 1.00x1.20x2.00mm A: 27.400 B: 50.900 C: 8.700 CD: 43.700 D: 5.500 E: -3.200 F: -2.700 Pin: 20.00 x 46.80 Features: Hard Anodising

Piston size: 71.90mm; Ring size: 1.00x1.00x2.00mm

Thread Size: M10x1.5x105 Bolt Head-/Nut Design: Polydrive Spanner Size: PL 10 Number of bolts/screws: 8

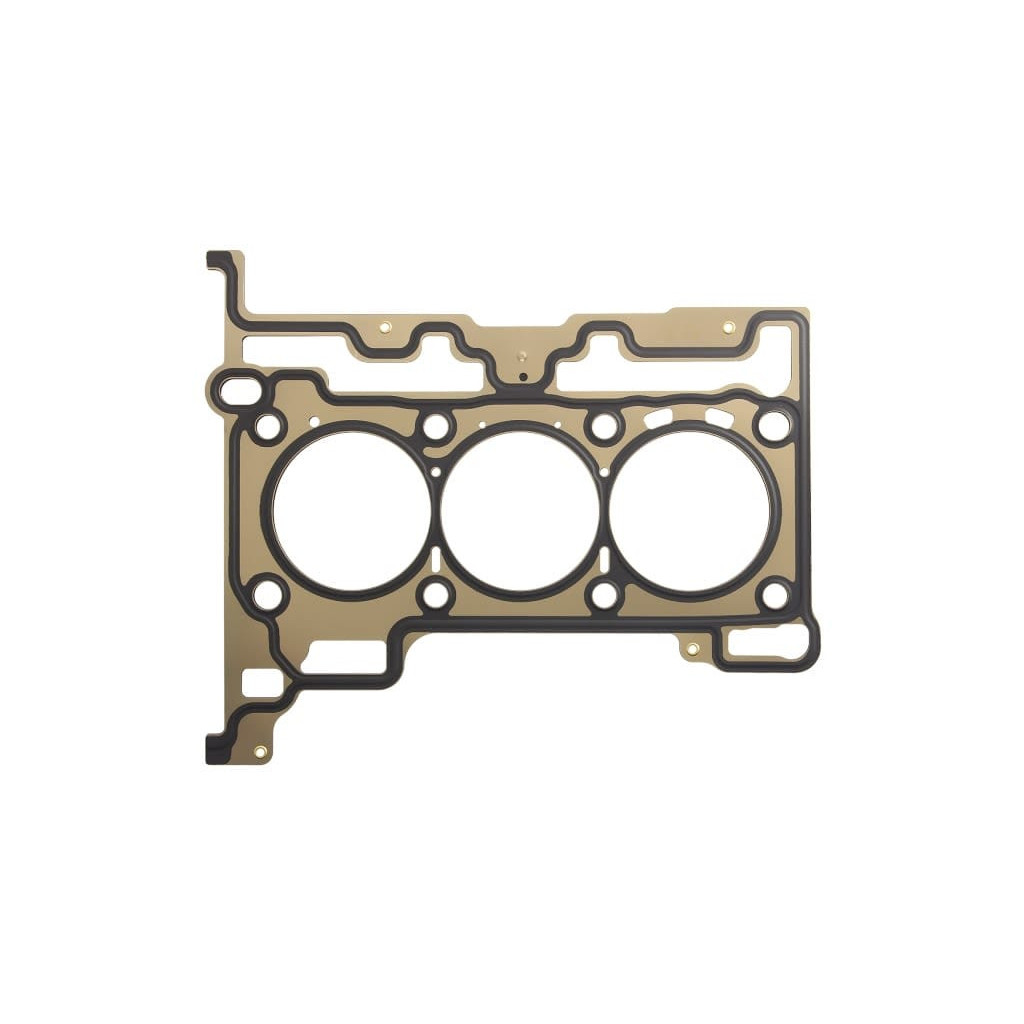

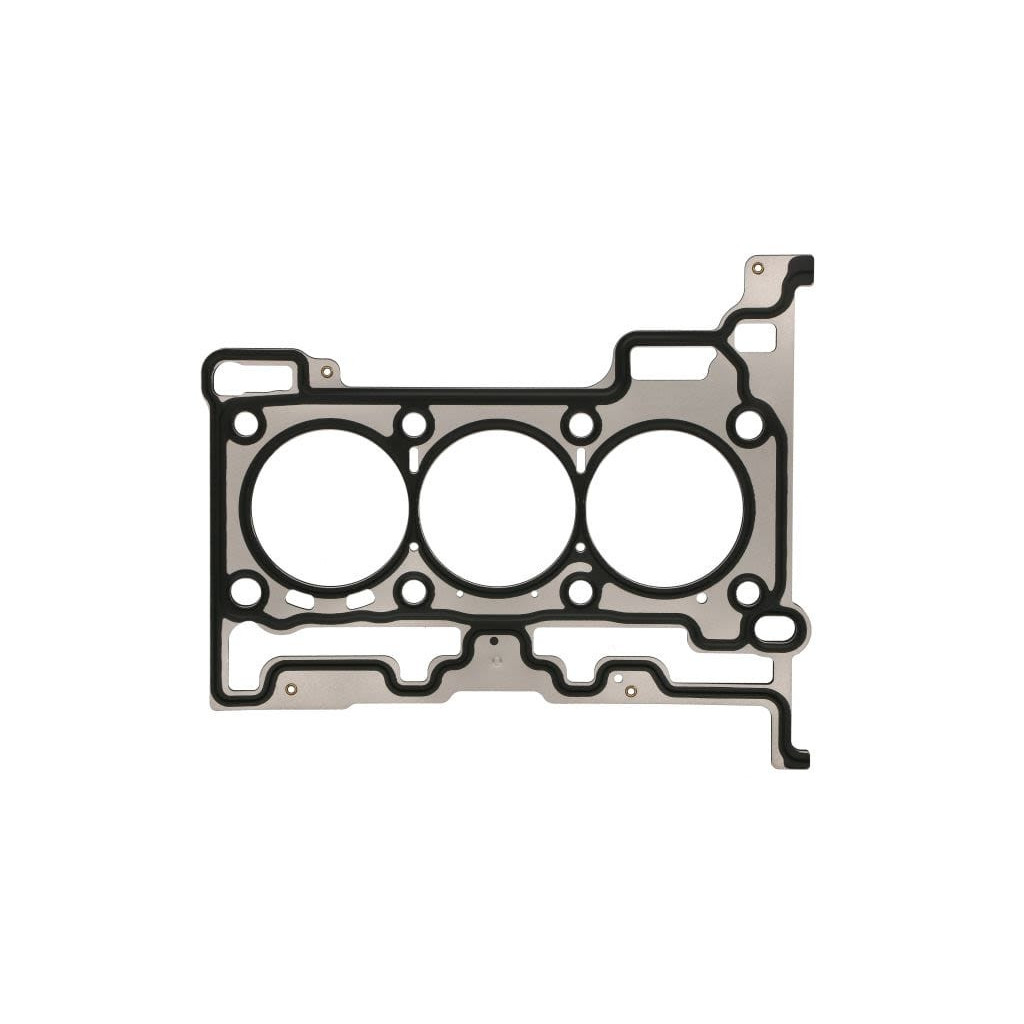

Thickness: 0.7 mm Hole diameter: 73.2 mm Gasket design: Multilayer Steel (MLS) Number of layers: 3 -layer

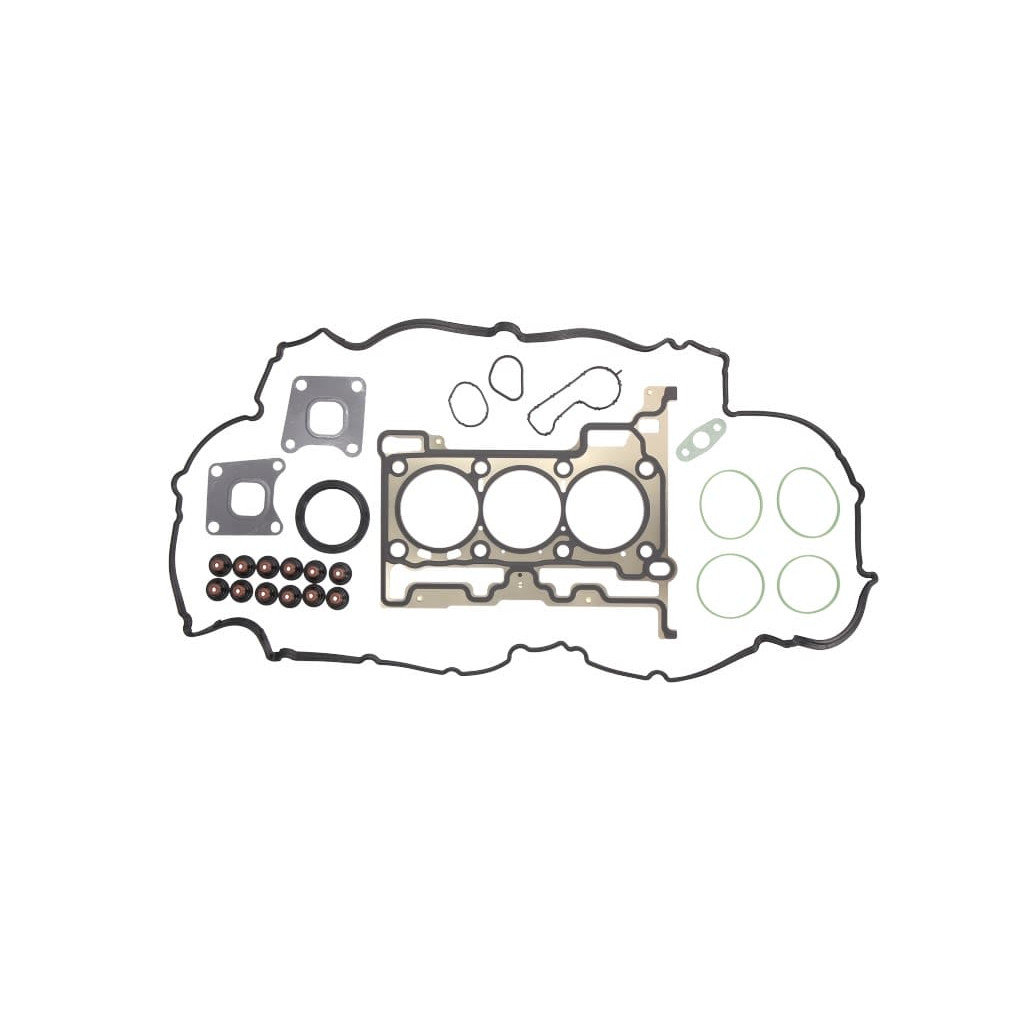

Supplementary Info: with valve stem seals, with cylinder head gasket Thickness: 0.7 mm Hole diameter: 73.2 mm Gasket design: Multilayer Steel (MLS) Number of layers: 3 -layer

Number in pack: 1Big end width: 19.500 Big end diameter: 43.000-43.015 Center-to-center length: 137.000 Bore-to-bore length: 105.500 Pin end width: 15.300 Pin diameter: 20.015-20.024 Weight: 390 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 20 Nm + 40 degree

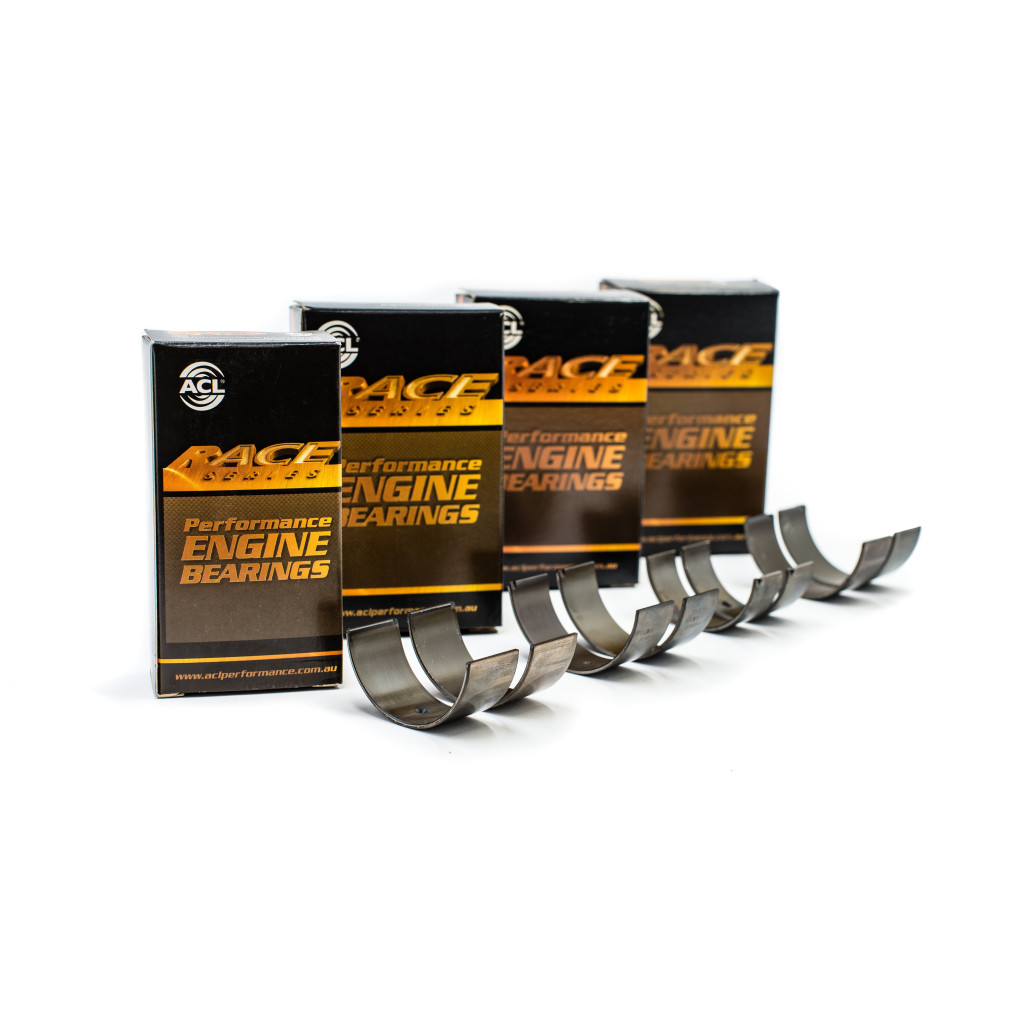

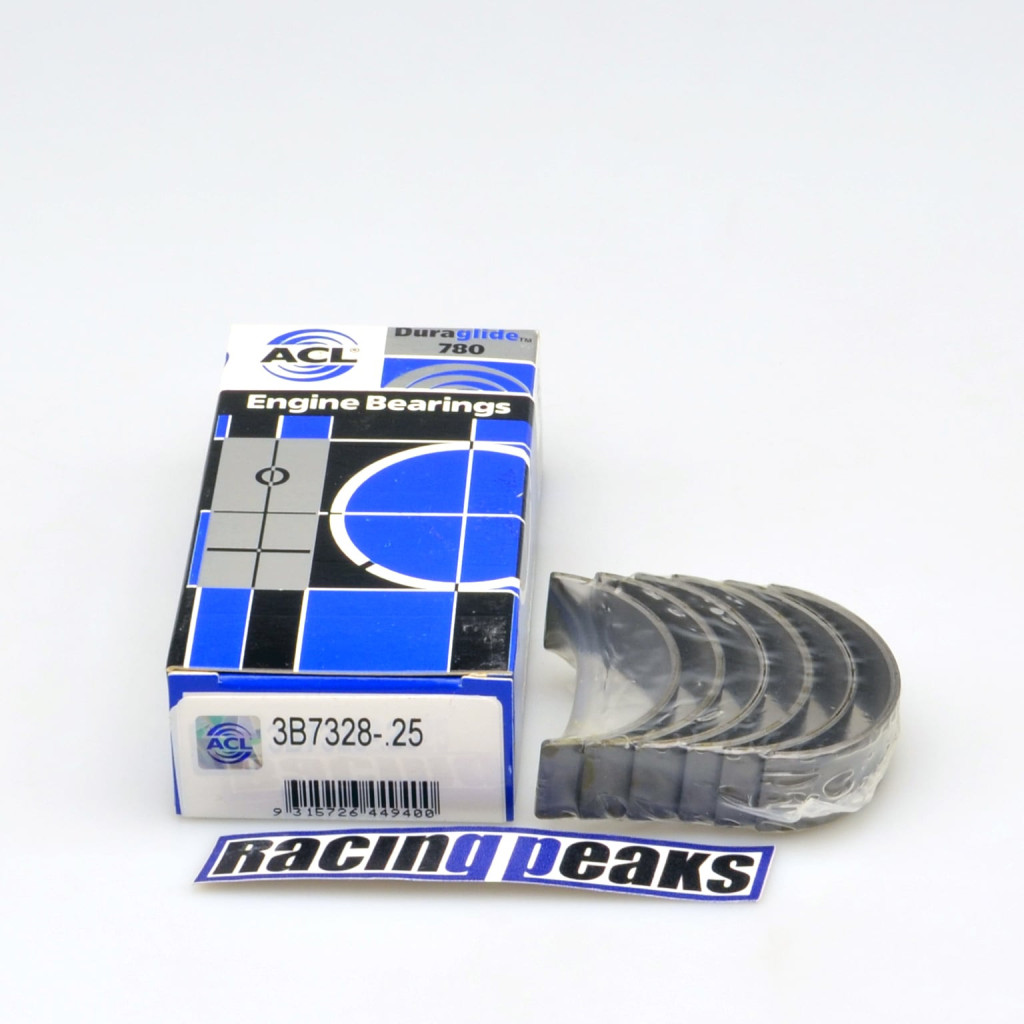

Bearing structure: Tri-Metal; Number in pack: 6

Bearing structure: Tri-Metal; Number in pack: 6

Bearing structure: Tri-Metal; Number in pack: 8

Bore: 71.90mm Ring sizes: 1.00x1.20x2.00mm Oil ring type: 3 PC. FLEX-VENT

Bore: 72.40mm Ring sizes: 1.00x1.20x2.00mm Oil ring type: N/A

Width: 16 mm Number of Teeth: 116 Belts: with trapezoidal tooth profile Units/pulleys: tensioner pulley, bolt
