Connecting rod fits Ford EcoSport Fiesta Focus Mondeo 1.0 EcoBoost 2012-
€49.19
VAT included
Number in pack:

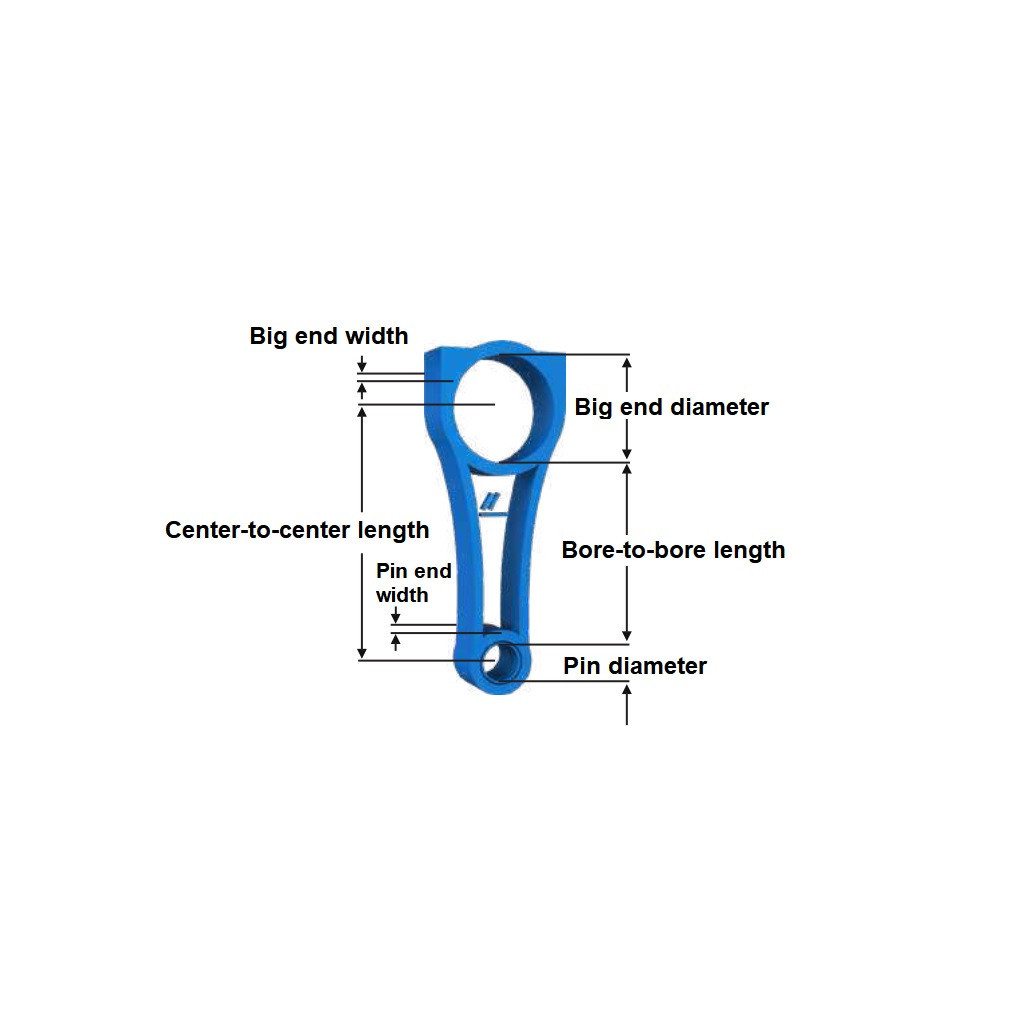

1Big end width: 19.500
Big end diameter: 43.000-43.015
Center-to-center length: 137.000
Bore-to-bore length: 105.500
Pin end width: 15.300
Pin diameter: 20.015-20.024
Weight: 390 gr

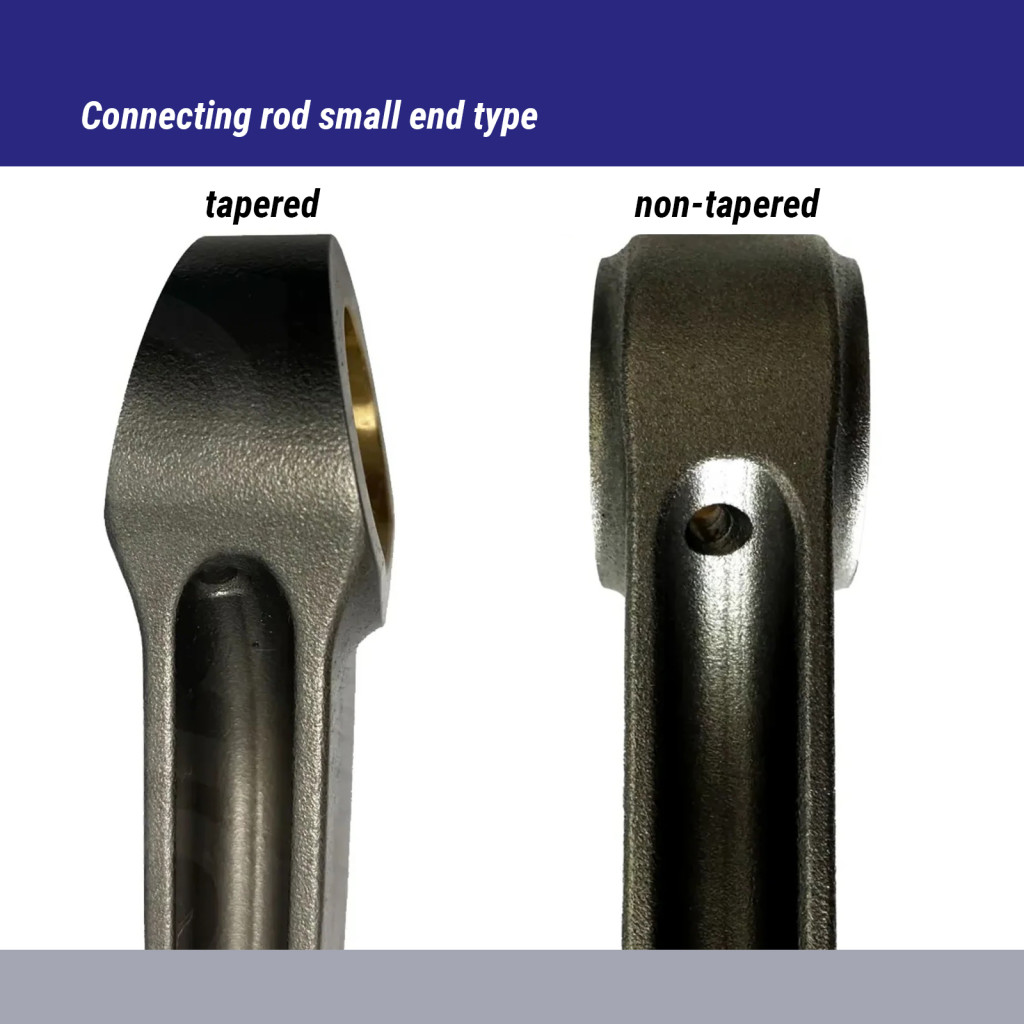

Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 40 degree
1Big end width: 19.500
Big end diameter: 43.000-43.015
Center-to-center length: 137.000
Bore-to-bore length: 105.500
Pin end width: 15.300
Pin diameter: 20.015-20.024
Weight: 390 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 40 degree

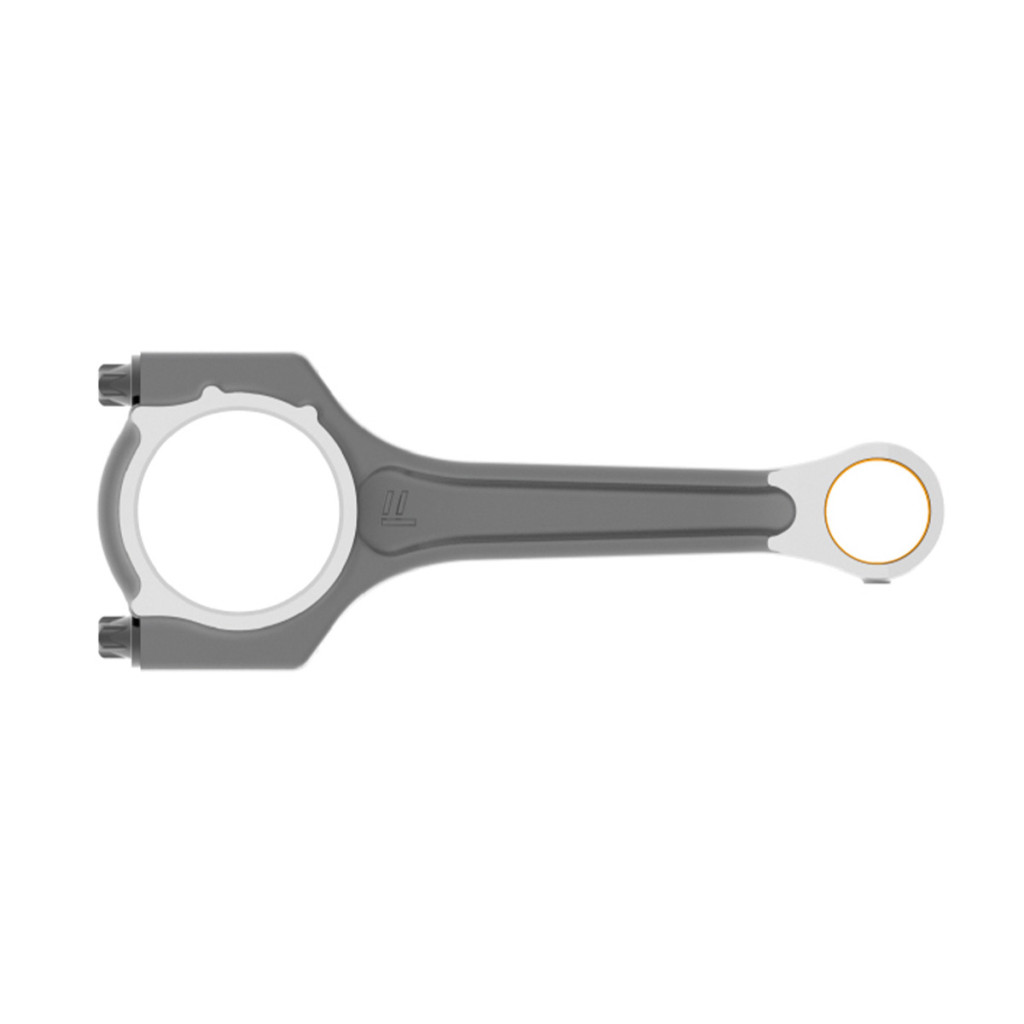

Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY1107 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY1107
7 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- CM5G-6205-EC
CM5G-6205-FA
- Ford
- Focus Estate III (BL) 2010 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DC)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DD)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / M2DA)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDB)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDA)
- Focus Saloon III (BM_) 2010 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DC)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DD)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / M2DA)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDA)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDB)
- Focus Hatch III (BK) 2010 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DC)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DD)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / M2DA)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDA)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDB)
- C-Max II (BH_) 2010 - current
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / M2DA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DD)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFDA)
- Fiesta Hatch VII (JJ_ / JG_ / KD_ / KC_) 2008 - current
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJA)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJB)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJC)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJD)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1JE)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1JH)
- 1 (1.0L / 65 Hp / Petrol / XMJA)
- 1 (1.0L / 65 Hp / Petrol / XMJB)
- B-Max (JK_) 2012 - current
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1JH)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1JE)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJD)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJC)
- 1.0 EcoBoost (1.0L / 100 Hp / Petrol / SFJB)
- Grand C-Max (BH) 2010 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1DD)
- Mondeo Estate V (CF) 2014 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1CA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1CB)
- Mondeo Hatch V (CE) 2014 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1CA)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1CB)
- Ecosport II 2012 - current
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1JC)
- 1.0 EcoBoost (1.0L / 125 Hp / Petrol / M1JJ)
Specific References
New
Number in pack:
1Big end width: 19.500
Big end diameter: 43.000-43.015
Center-to-center length: 137.000
Bore-to-bore length: 105.500
Pin end width: 15.300
Pin diameter: 20.015-20.024
Weight: 390 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 40 degree
1Big end width: 19.500
Big end diameter: 43.000-43.015
Center-to-center length: 137.000
Bore-to-bore length: 105.500
Pin end width: 15.300
Pin diameter: 20.015-20.024
Weight: 390 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 40 degree
