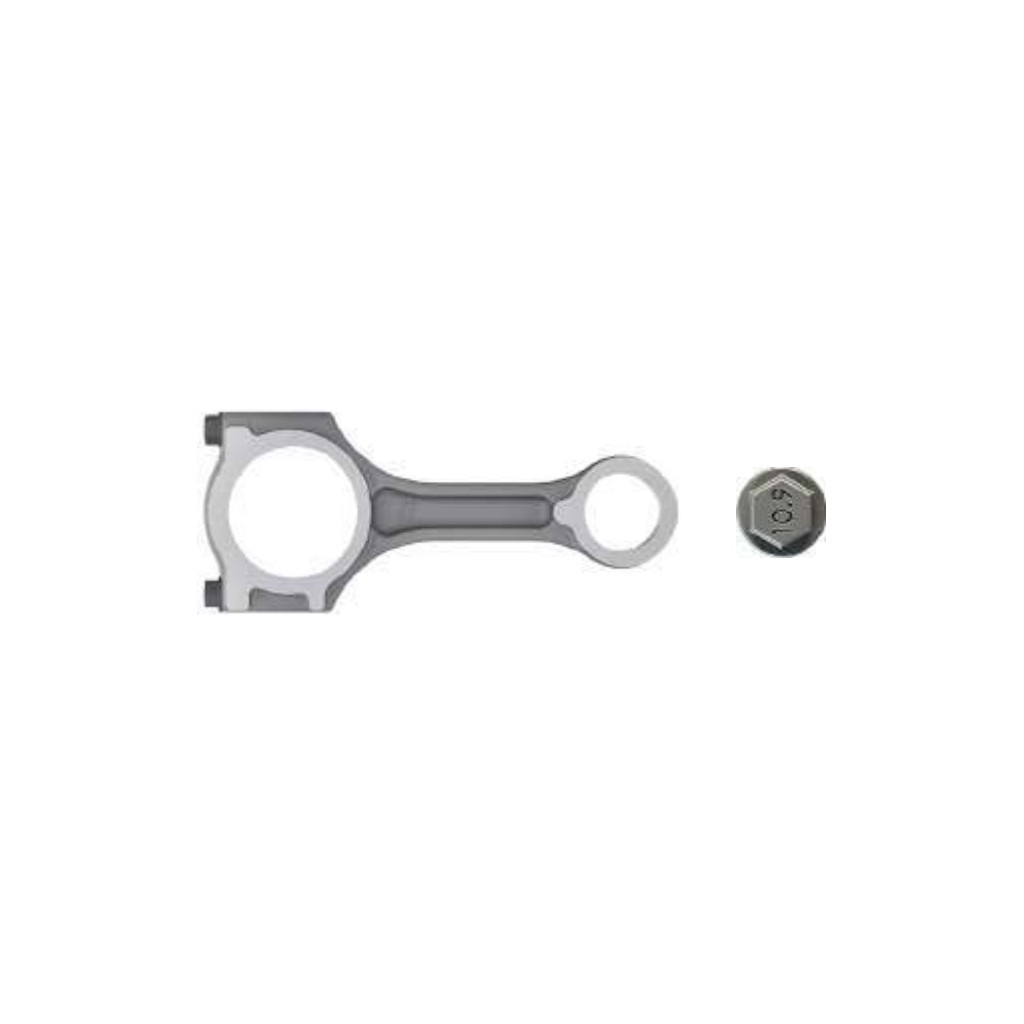

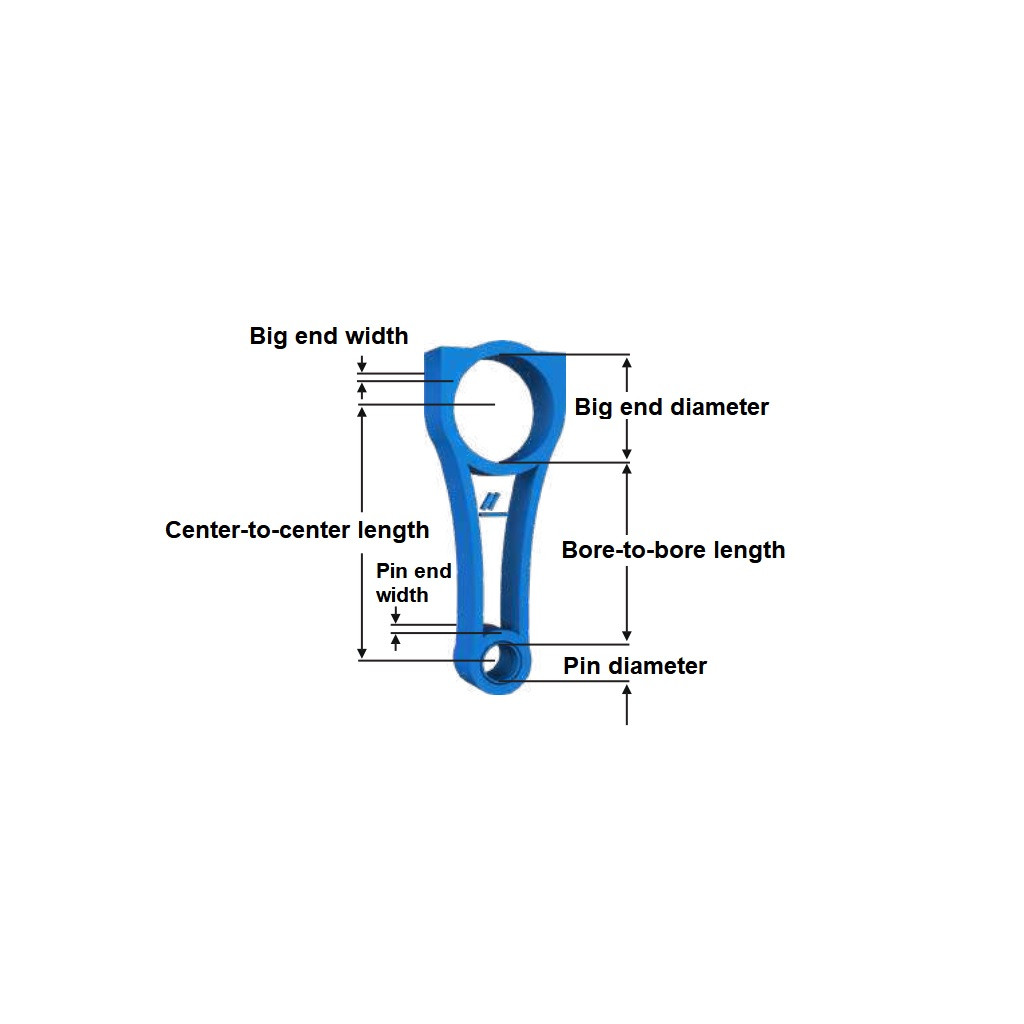

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: with oil hole

Number in pack: 12Strengh class: 10.9 Thread: M9X1.00 Bolt lengh: 50 mm Bolt Head Design: Torx

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 51.485 / 51.500mm Housing bore: 55.497 / 55.511 m Wall thickness: 1.985mm Bearing width: 17.00mm

Possition: Connecting rod Quantity: 3 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 45.677 mm / 45.690 mm Wall thickness: 1.82 mm Bearing width: 17.30 mm

Possition: Connecting rod Quantity: 3 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 45.677 mm / 45.690 mm Wall thickness: 1.82 mm Bearing width: 17.30 mm

Possition: Connecting rod Quantity: 4 pairs Shaft diameter : 39.990 mm / 40.010 mm Housing bore: 43.674 mm / 43.690 mm Wall thickness: 1.823 mm Bearing width: 18.30 mm

Possition: Connecting rod Quantity: 4 pairs Shaft diameter : 39.990 mm / 40.010 mm Housing bore: 43.674 mm / 43.690 mm Wall thickness: 1.823 mm Bearing width: 18.30 mm

Possition: Crankshaft Quantity: 1 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm Possition: Crankshaft Quantity: 4 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm

Possition: Crankshaft Quantity: 1 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm Possition: Crankshaft Quantity: 4 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm

Possition: Crankshaft Quantity: 4 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm

Possition: Crankshaft Quantity: 4 pairs Shaft diameter : 41.990 mm / 42.010 mm Housing bore: 46.030 mm / 46.049 mm Wall thickness: 2.004 mm Bearing width: 16.10 mm

Bolt length [mm]: 60 Bolt Ø [mm]: 26 Component Number: 61824; 61826; 61828 Compression Height [mm]: 41,78 Cylinder Piston Diameter [mm]: 76 Length [mm]: 66 Production Number: 076191 Quantity: 3 Recess Depth 1 [mm]: 14 Recess Diameter [mm]: 39,7 Valve pocket depth 1 [mm]: 0,48 Valve pocket depth 2 [mm]: 0,28 Thickness [mm] 61824: 3,3 Height [mm] 61824:...
