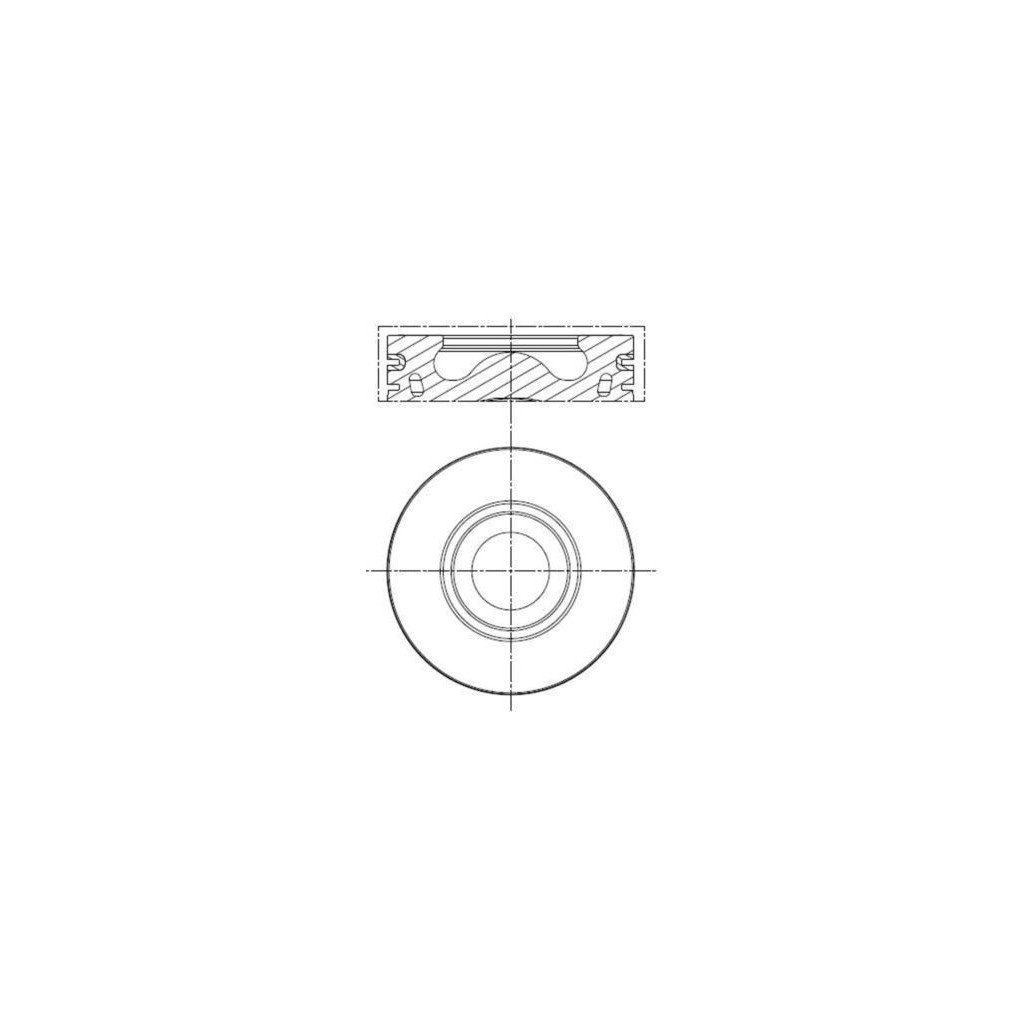

Bore: 77.25mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm (stock 77.00mm) Stroke: 85.80mm Compression height: 28.50mm Compression ratio: 10.3 Pin: 20x50.8mm Rings: 1.00x1.20x2.80mm Crown volume: -1.1cc Weight: 273g Alloy: M142P Clearance guide: Measuring point: .385 Min: .0008 Max: .0016 Package: 4 pistons with rings and pins Warning: check for interference to piston motion from valves, oil squirters,...

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 42.582 / 42.600mm Housing bore: 45.734 / 45.744mm Wall thickness: 1.552mm Bearing width: 20.00mm

Position: Connecting rod Quantity: 3 pairs Shaft diameter: 41.984 / 42.000mm Housing bore: 45.000 / 45.012mm Wall thickness: 1.49mm Bearing width: 16.00mm

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 41.981 / 42.000mm Housing bore: 45.600 / 45.619mm Wall thickness: 1.795mm Bearing width: 16.19mm

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 41.981 / 42.000mm Housing bore: 45.600 / 45.619mm Wall thickness: 1.795mm Bearing width: 16.19mm Position: Connecting rod Quantity: 3 pairs Shaft diameter: 41.984 / 42.000mm Housing bore: 45.000 / 45.012mm Wall thickness: 1.49mm Bearing width: 16.00mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm :

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm
