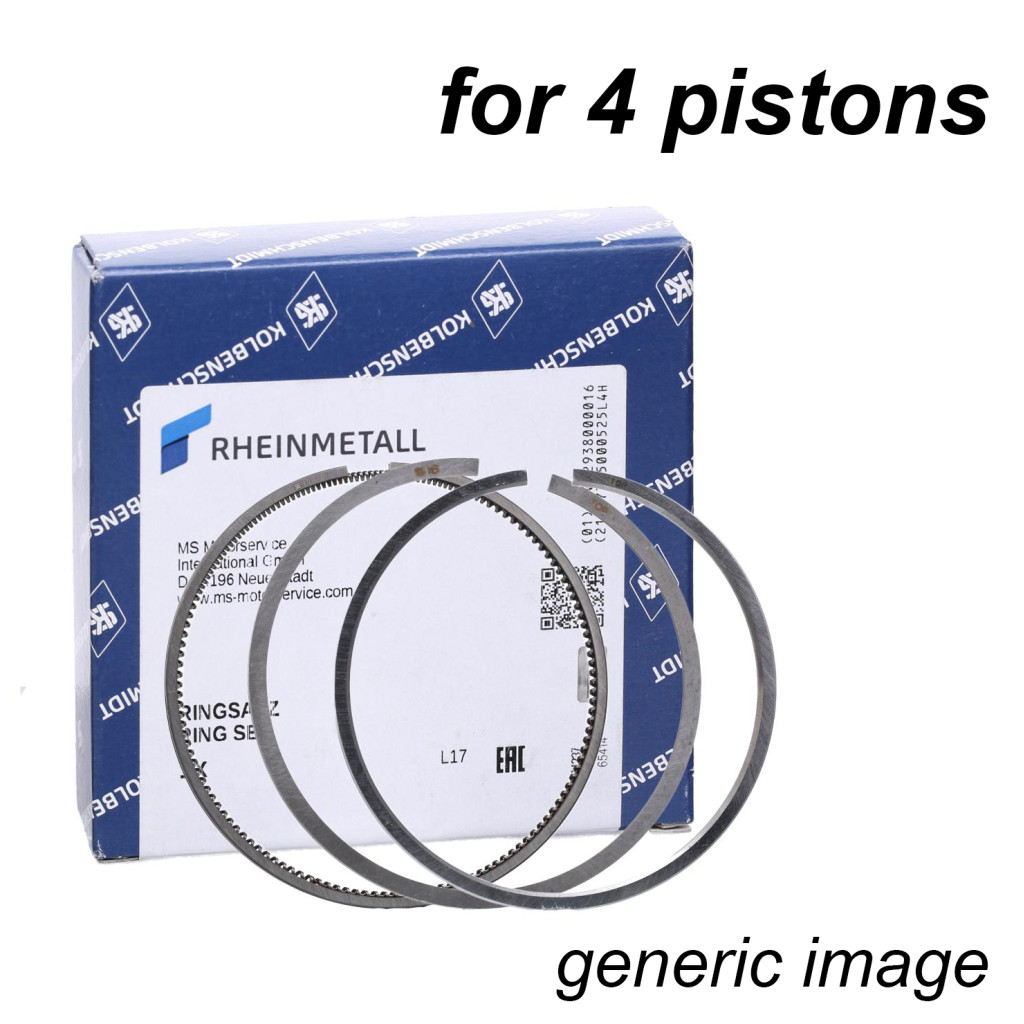

Bore: 76.50mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 19.00mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 19.00mm

Cyl.Bore: 82.01mm Compression Height: 30.45mm Length: 58.78mm Piston Crown Clearance: 4.33mm Recess Depth 1: 5.5mm Component No.: 18994, 18680, 18738 Bolt d.: 20mm Bolt Length: 57mm Rep. Stage: 1.00

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4

Cyl.Bore: 76.51mm Compression Height: 28.92mm Length: 49.92mm Recess Depth 1: 1.98mm Valve Pocket Depth 1: 2.2mm Valve Pocket Depth 2: 2.2mm Component No.: 85724, 84762, 82611 Standard Size [STD]: Bolt d.: 17mm Bolt Length: 54mm

Bolt length [mm]: 42 Bolt Ø [mm]: 19 Component Number: 61937; 61938; 85712 Compression Height [mm]: 29,7 Cylinder Piston Diameter [mm]: 81,01 Length [mm]: 50,7 Production Number: 081178 Quantity: 3 Recess Depth 1 [mm]: 2,7 Thickness [mm] 61937: 2,75 Height [mm] 61937: 1 Material 61937: Steel Surface 61937: Blank; Nitrified Cylinder Piston Diameter [mm]...

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 20.00mm
