Bore: 76.50mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.50mm

Component Number: 61608; 80007; 87647 Quantity: 3 Thickness [mm] 61608: 3,4 Height [mm] 61608: 1,75 Material 61608: Cast Iron with Ductile Iron Surface 61608: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm] 61608: 79,51 Thickness [mm] 80007: 3,65 Height [mm] 80007: 3 Surface 80007: Chromed; Phosphatized Cylinder Piston Diameter [mm] 80007:...

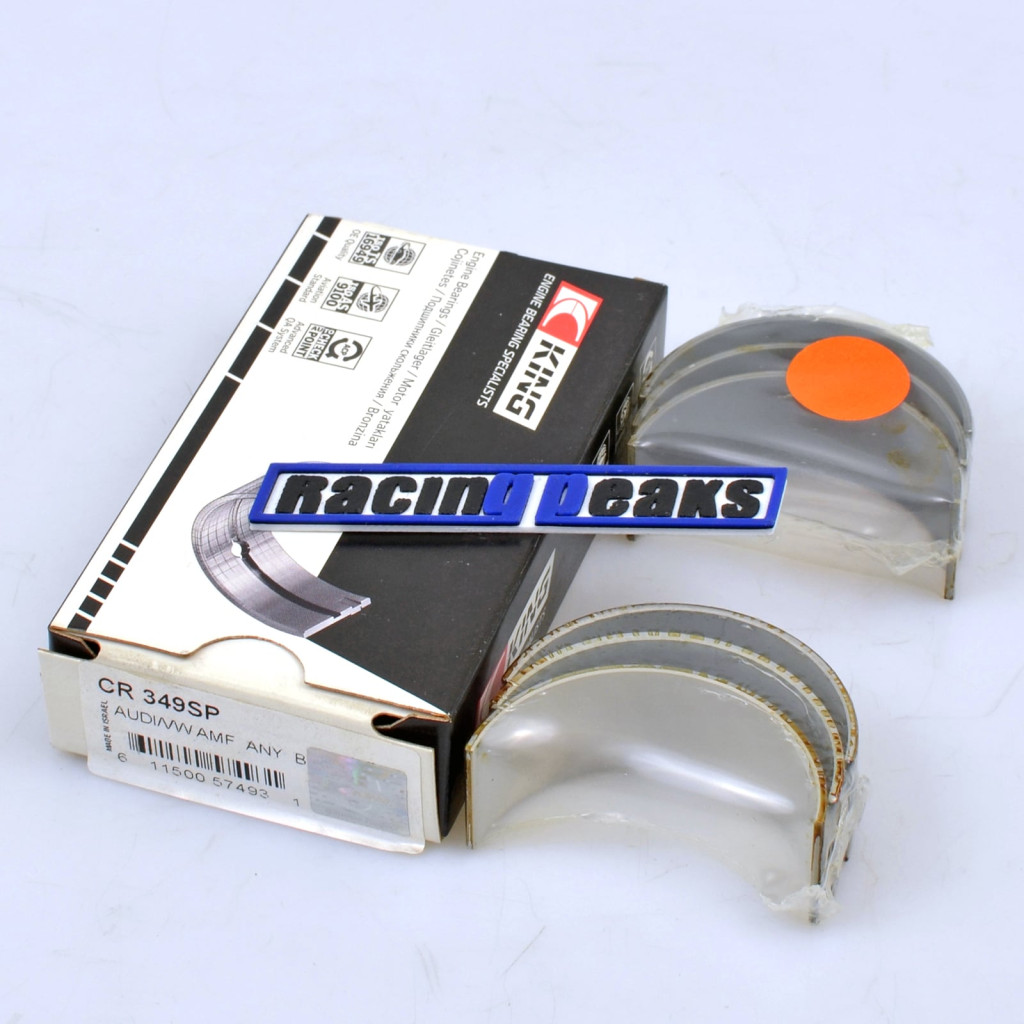

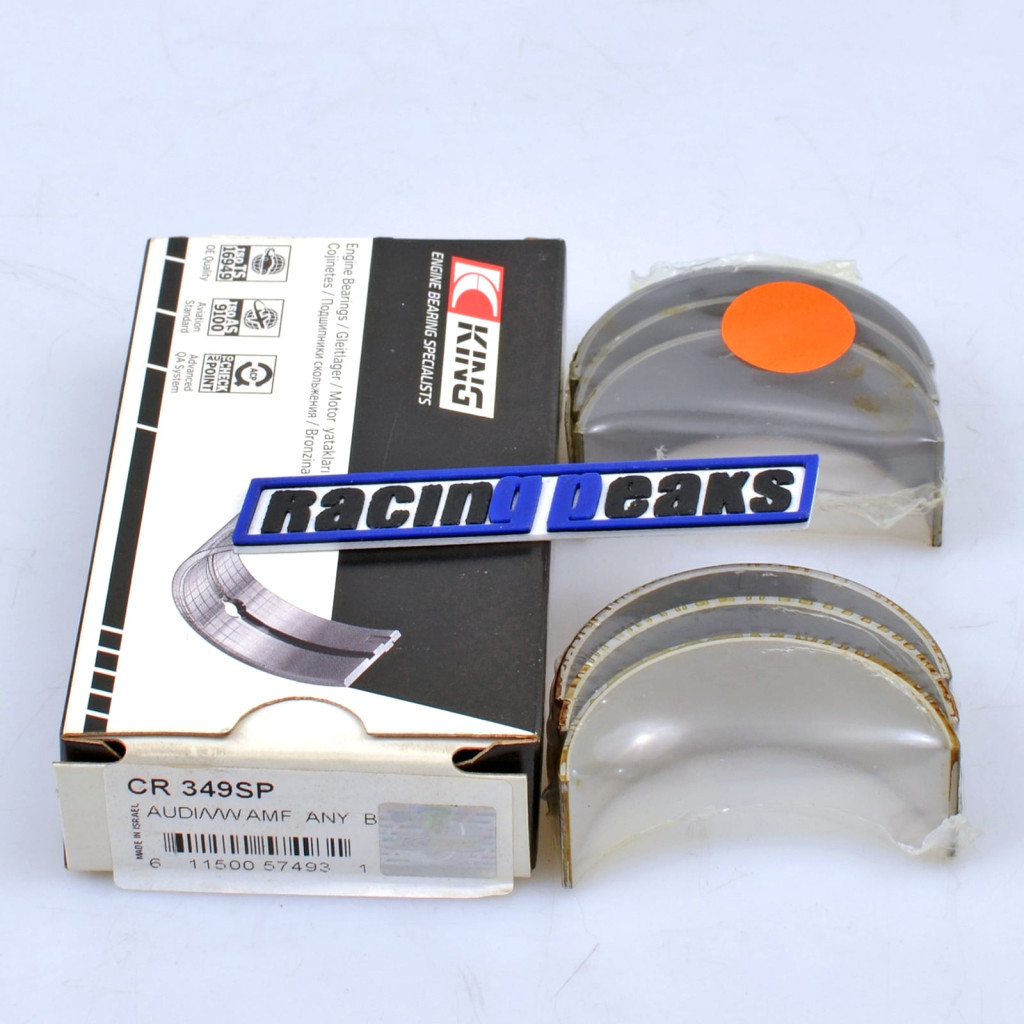

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 19.00mm

Cyl.Bore: 80.01mm Compression Height: 39.4mm Length: 65.7mm Recess Depth 1: 1.9mm Component No.: 80009, 80006, 80002 Bolt d.: 24mm Bolt Length: 64mm Rep. Stage: 0.50

Cyl.Bore: 76.51mm Compression Height: 28.92mm Length: 49.92mm Recess Depth 1: 1.98mm Valve Pocket Depth 1: 2.2mm Valve Pocket Depth 2: 2.2mm Component No.: 85724, 84762, 82611 Standard Size [STD]: Bolt d.: 17mm Bolt Length: 54mm

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4
