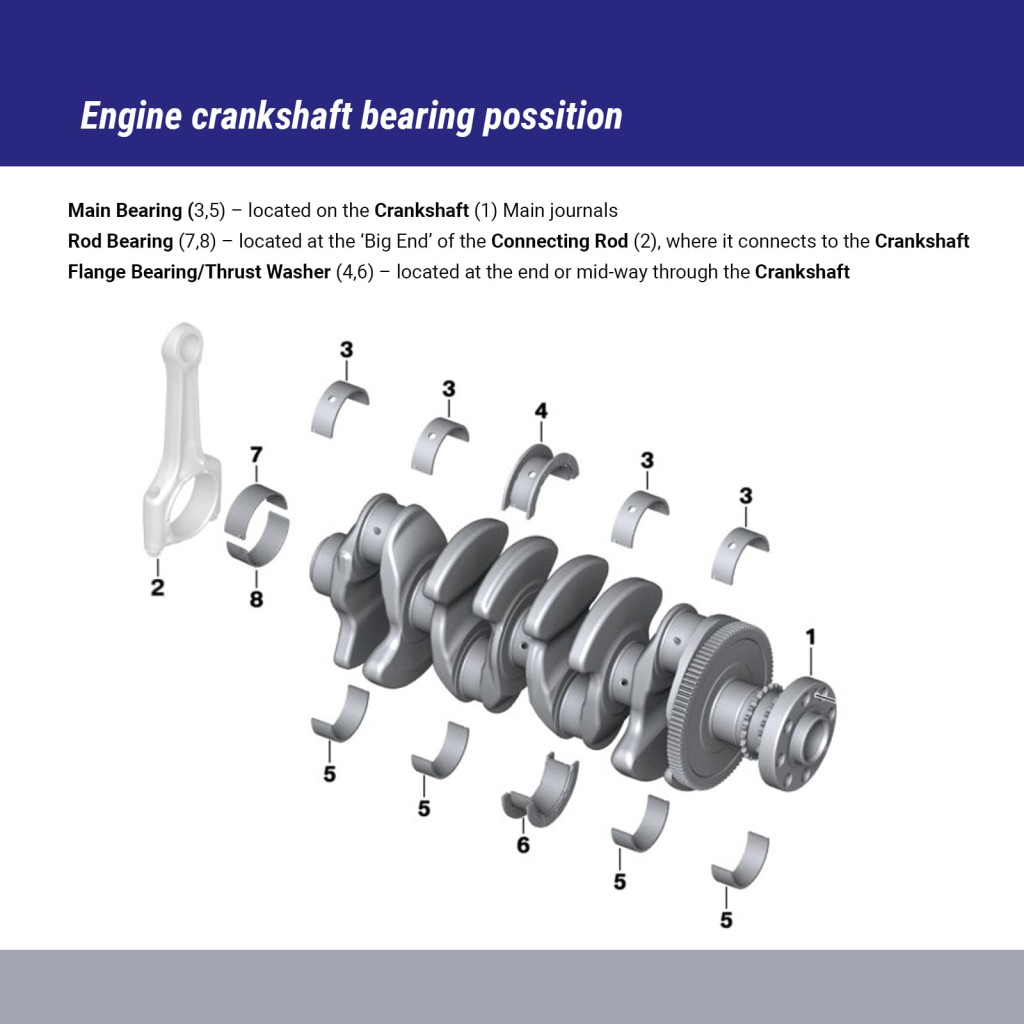

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 50.858 / 50.878mm Housing bore: 53.700 / 53.712mm Wall thickness: 1.404mm Bearing width: 20.40mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 57.958 / 57.978mm Housing bore: 63.000 / 63.019mm Wall thickness: 2.51mm Bearing width: 15.50mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 51.958 / 51.978mm Housing bore: 57.000 / 57.019mm Wall thickness: 2.51mm Bearing width: 15.50mm

Position: Connecting rod Quantity: 6 pairs Shaft diameter: 59.958 / 59.978mm Housing bore: 63.600 / 63.619mm Wall thickness: 1.801mm Bearing width: 16.40mm

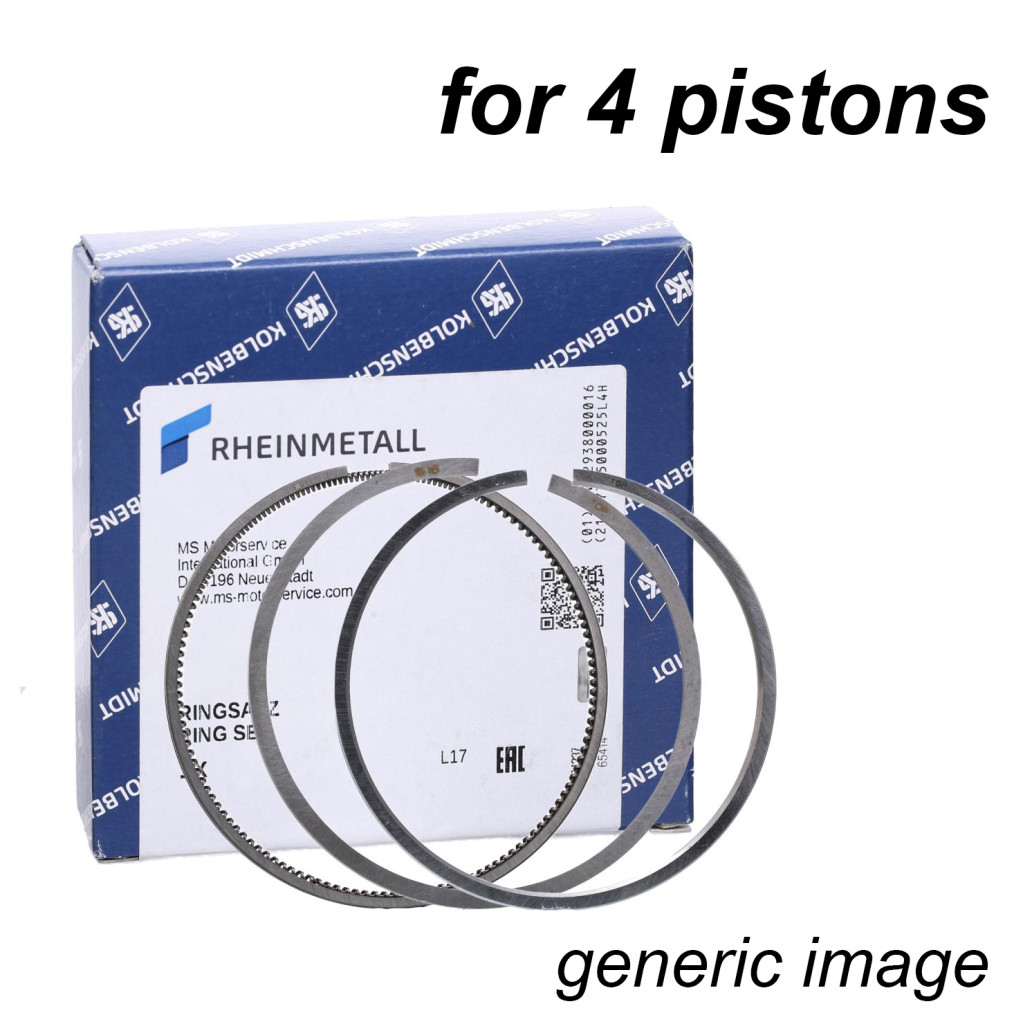

Bore: 81.00mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 3.00mm

Bore: 81.50mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 3.00mm

Component Number: 63502; 63505; 63508 Oversize [mm]: 0,25 Quantity: 3 Thickness [mm] 63502: 3,3 Height [mm] 63502: 1,75 Material 63502: Cast Iron with Ductile Iron Surface 63502: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm] 63502: 81,25 Thickness [mm] 63505: 3,3 Height [mm] 63505: 2 Material 63505: Grey Cast Iron Surface 63505:...

Bore: 82.50mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Component Number: 63715; 63718; 63721 Oversize [mm]: 0,50 Quantity: 3 Thickness [mm] 63715: 3,05 Height [mm] 63715: 1,2 Material 63715: Steel Surface 63715: Blank; Nitrified Cylinder Piston Diameter [mm] 63715: 83 Thickness [mm] 63718: 3,15 Height [mm] 63718: 1,5 Material 63718: Grey Cast Iron Surface 63718: Blank Cylinder Piston Diameter [mm] 63718:...

Bore: 82.50mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Component Number: 66009; 66010; 66011 Construction year from: 201106 Construction year to: 201507 Oversize [mm]: 0,50 Quantity: 3 Thickness [mm] 66009: 3,2 Height [mm] 66009: 1,2 Material 66009: Steel Surface 66009: Blank; Physical Vapor Deposition (PVD) Cylinder Piston Diameter [mm] 66009: 83 Thickness [mm] 66010: 3,2 Height [mm] 66010: 1,2 Material 66010:...

Bore: 81.00mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 2.00mm
