Cyl.Bore: 82.50mm is STD Compression Height: 29.6mm Length: 50.1mm Recess Depth: -6.2mm Bolt d.: 23.0mm Bolt Length: 51.0mm Info: Alfin, skirt MOS2 treated, fits tapered connecting rod Piston rings: 1.20x1.20x2.00mm

Cyl.Bore: 82.50mm is STD Compression Height: 29.6mm Length: 50.1mm Recess Depth: -6.2mm Bolt d.: 23.0mm Bolt Length: 51.0mm Info: Alfin, skirt MOS2 treated, fits tapered connecting rod Piston rings: 1.20x1.20x2.00mm

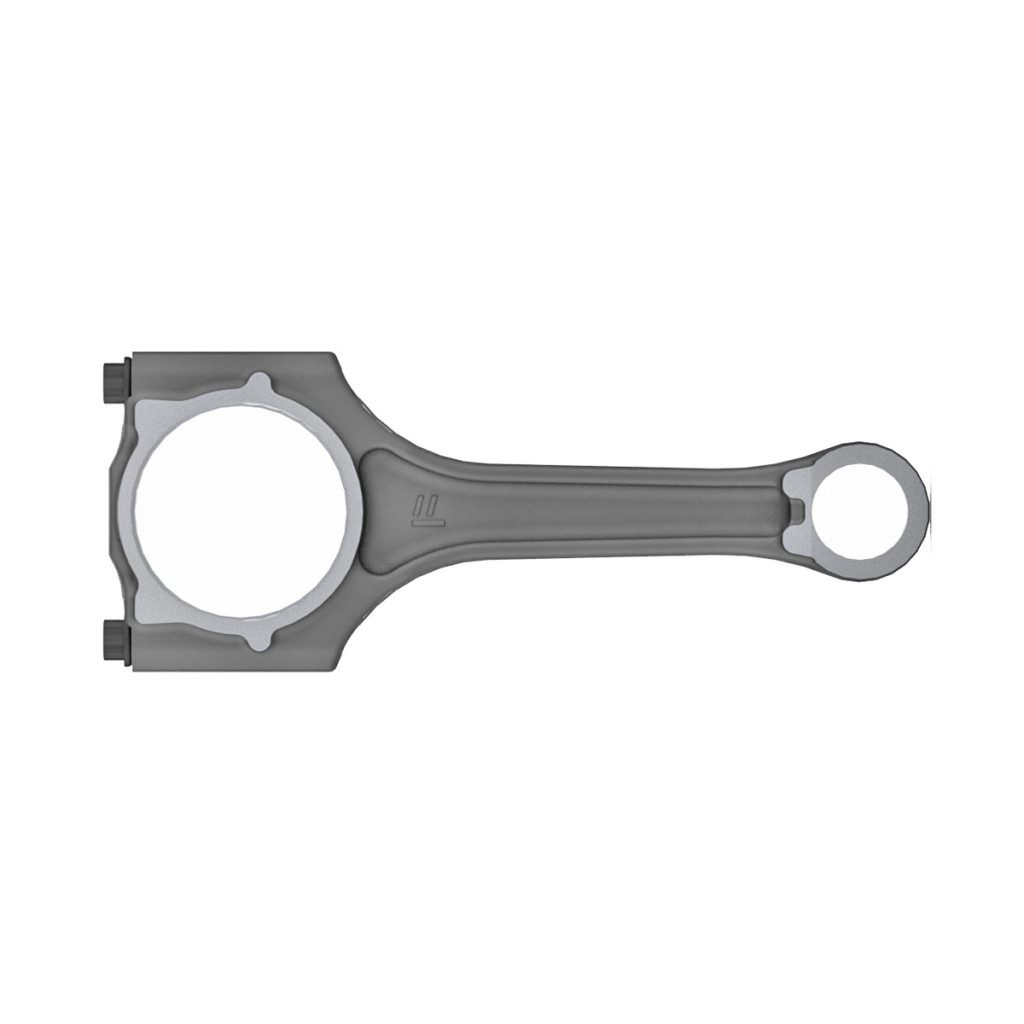

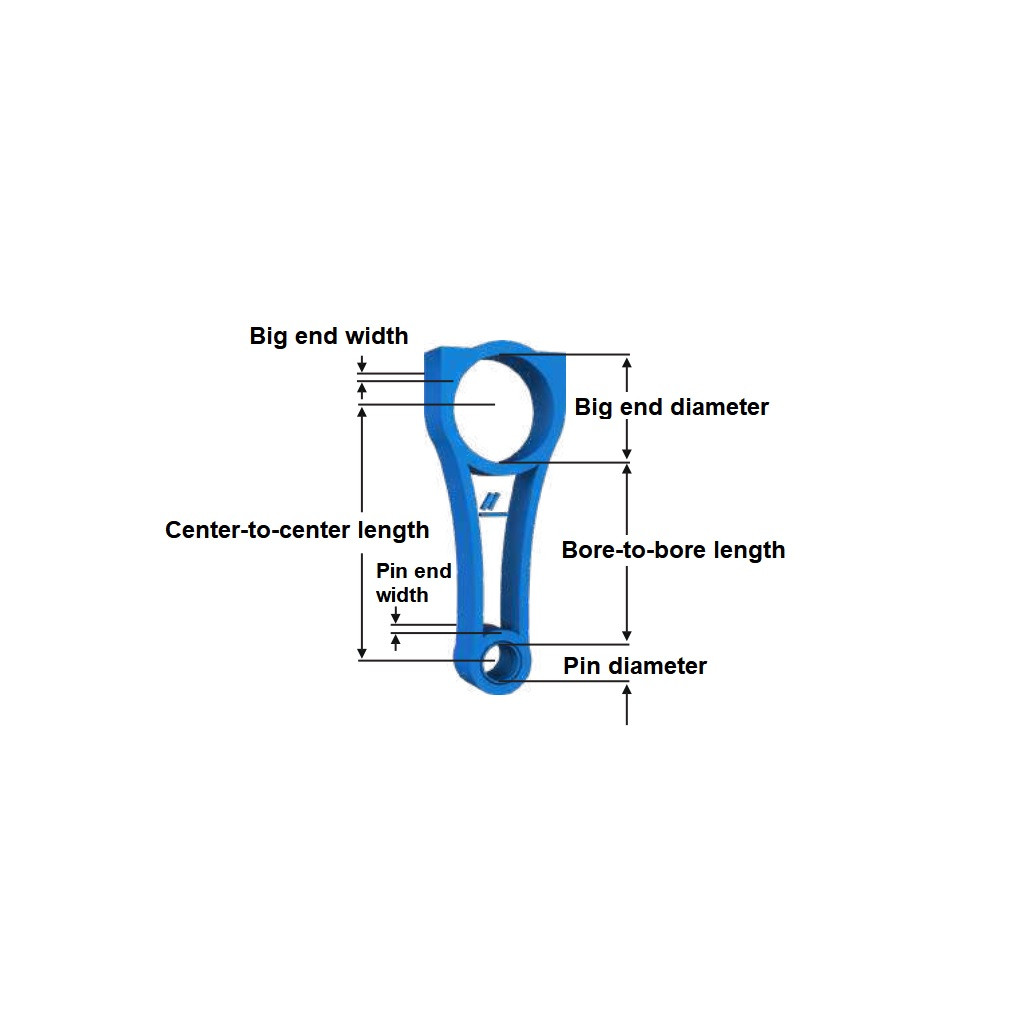

Number in pack: 1Big end width: 21.750 Big end diameter: 50.595-50.620 Center-to-center length: 148.000 Bore-to-bore length: 111.200 Pin end width: 21.750 Pin diameter: 23.005-23.015 Weight: 565 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 21.750 Big end diameter: 50.595-50.620 Center-to-center length: 148.000 Bore-to-bore length: 111.200 Pin end width: 21.750 Pin diameter: 23.005-23.015 Weight: 565 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 24.850 Big end diameter: 53.700-53.720 Center-to-center length: 144.000 Bore-to-bore length: 104.150 Pin end width: 24.850 Pin diameter: 26.020-26.035 Weight: 640 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm 2nd Torque option: 30 Nm + 90 degree Notice: Installed in VW/Skoda/Seat from 2015-05-25 Installed in Audi...

Number in pack: 1Big end width: 24.850 Big end diameter: 53.700-53.720 Center-to-center length: 144.000 Bore-to-bore length: 104.150 Pin end width: 24.850 Pin diameter: 26.020-26.035 Weight: 640 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm 2nd Torque option: 30 Nm + 90 degree Notice: Installed in VW/Skoda/Seat from 2015-05-25 Installed in Audi...

Number in pack: 1Big end width: 21.750 Big end diameter: 50.595-50.620 Center-to-center length: 144.000 Bore-to-bore length: 107.200 Pin end width: 21.750 Pin diameter: 23.005-23.015 Weight: 568 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 21.750 Big end diameter: 50.595-50.620 Center-to-center length: 144.000 Bore-to-bore length: 107.200 Pin end width: 21.750 Pin diameter: 23.005-23.015 Weight: 568 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 20.050 Big end diameter: 58.820-58.839 Center-to-center length: 153.000 Bore-to-bore length: 112.700 Pin end width: 22.000 Pin diameter: 22.020-22.035 Weight: 580 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm

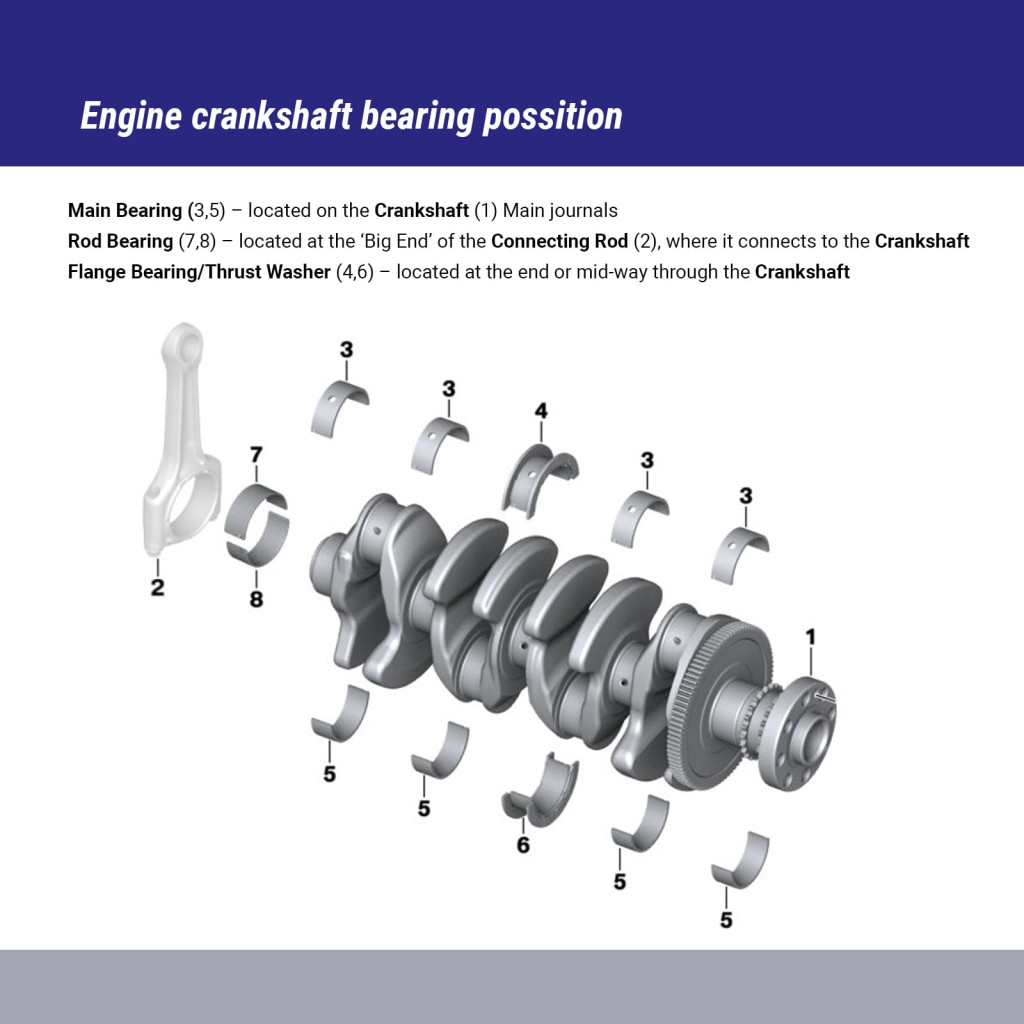

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 47.963 / 47.978mm Housing bore: 53.000 / 53.019mm Wall thickness: 2.51mm Bearing width: 15.50mm

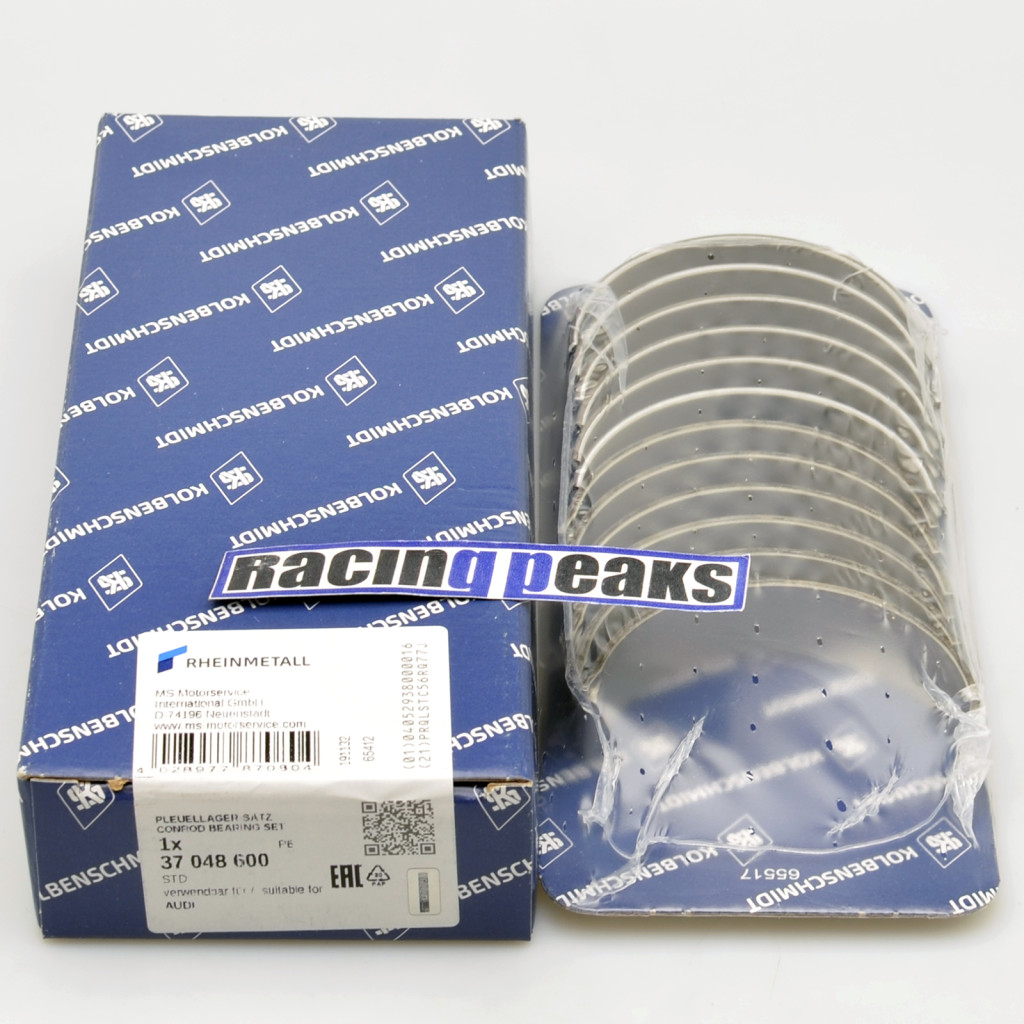

Position: Connecting rod Quantity: 6 pairs Shaft diameter: 59.958 / 59.978mm Housing bore: 63.600 / 63.619mm Wall thickness: 1.801mm Bearing width: 16.40mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 50.868 / 50.883mm Housing bore: 53.700 / 53.719mm Wall thickness: 1.402mm Bearing width: 20.40mm
